(5 PC) CS5535-UDC AMD Serial I/O Controller 2 Channel(s) 0.1875MBps CMOS PBGA208
Tax included.

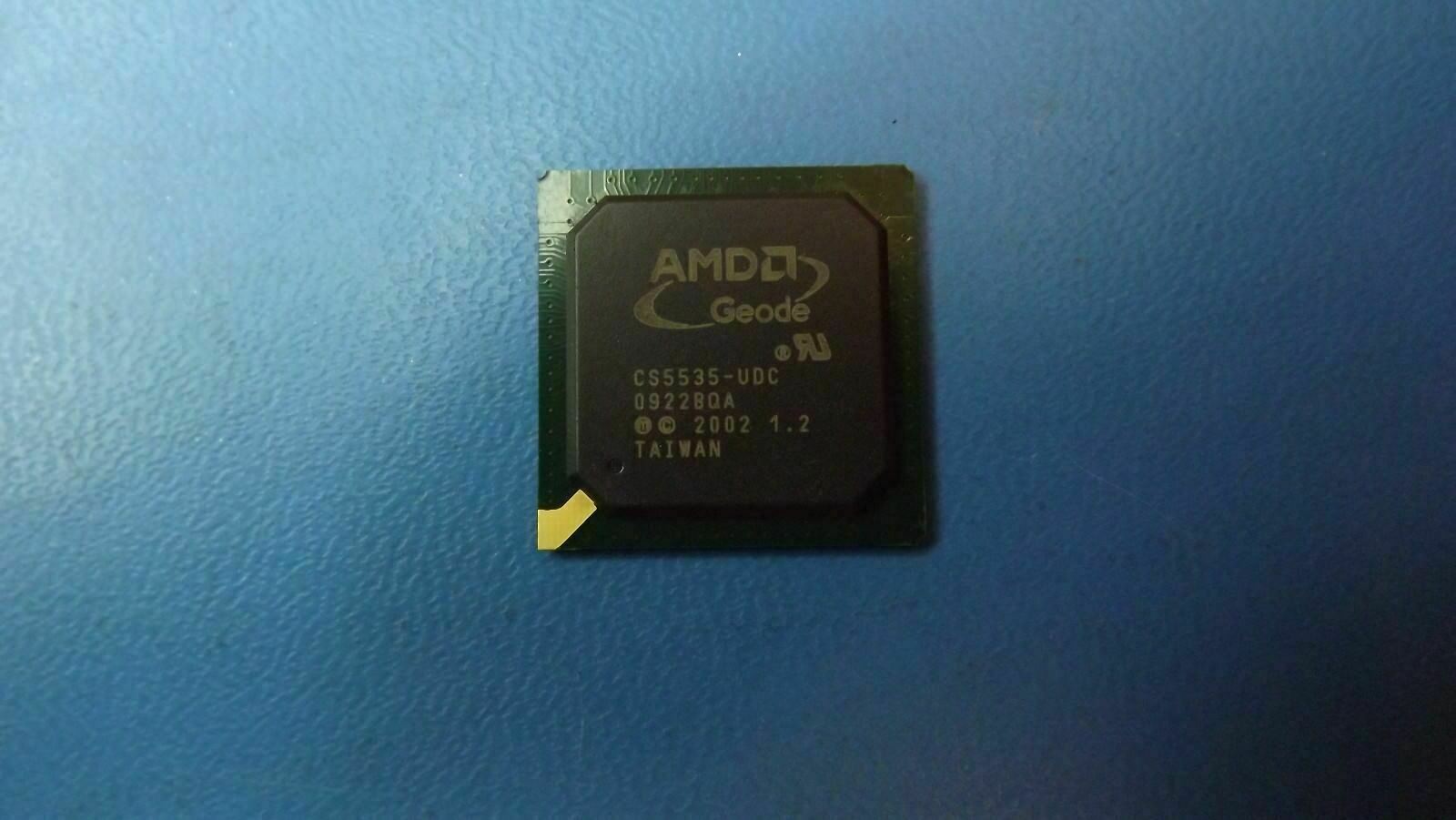

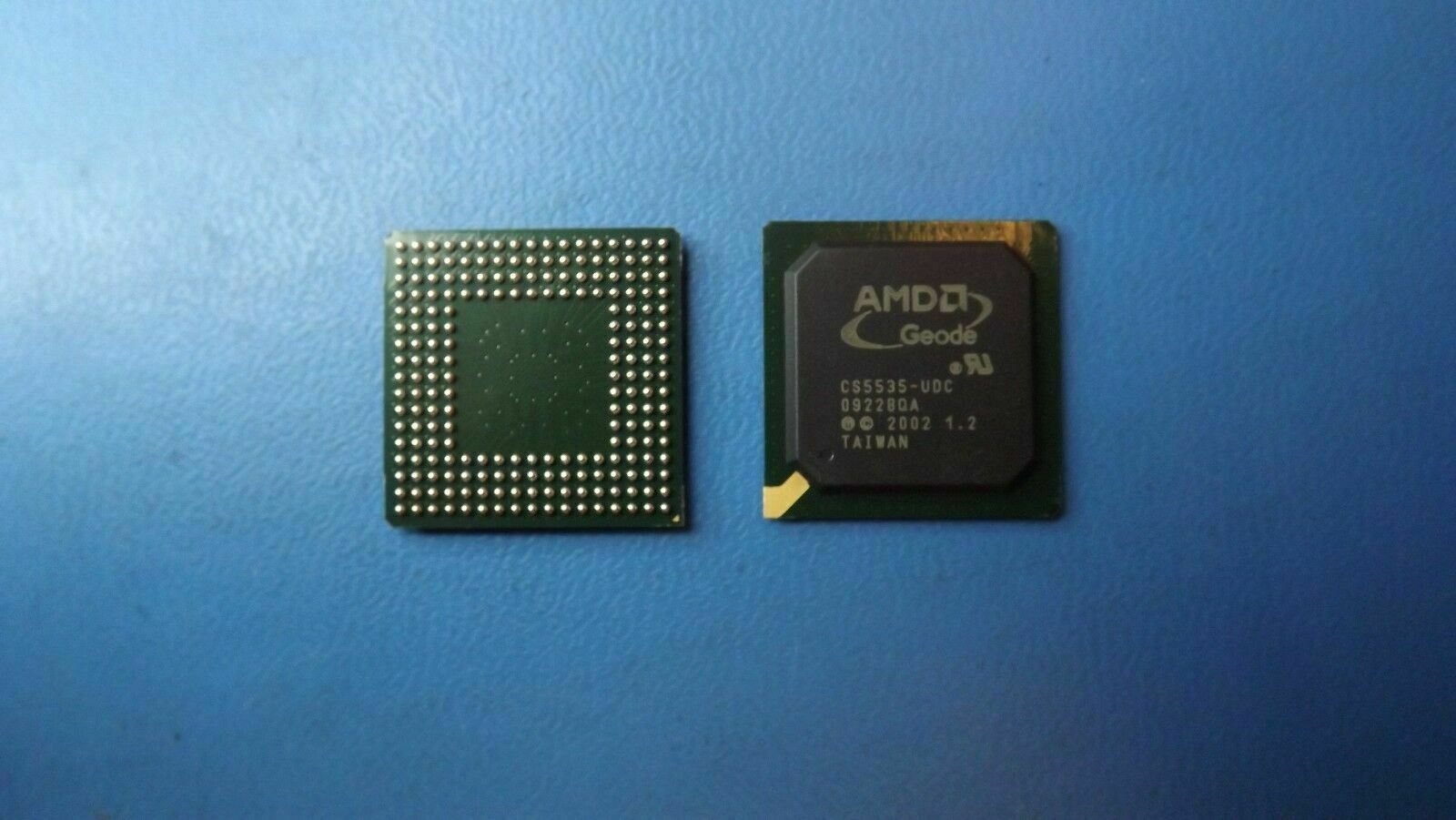

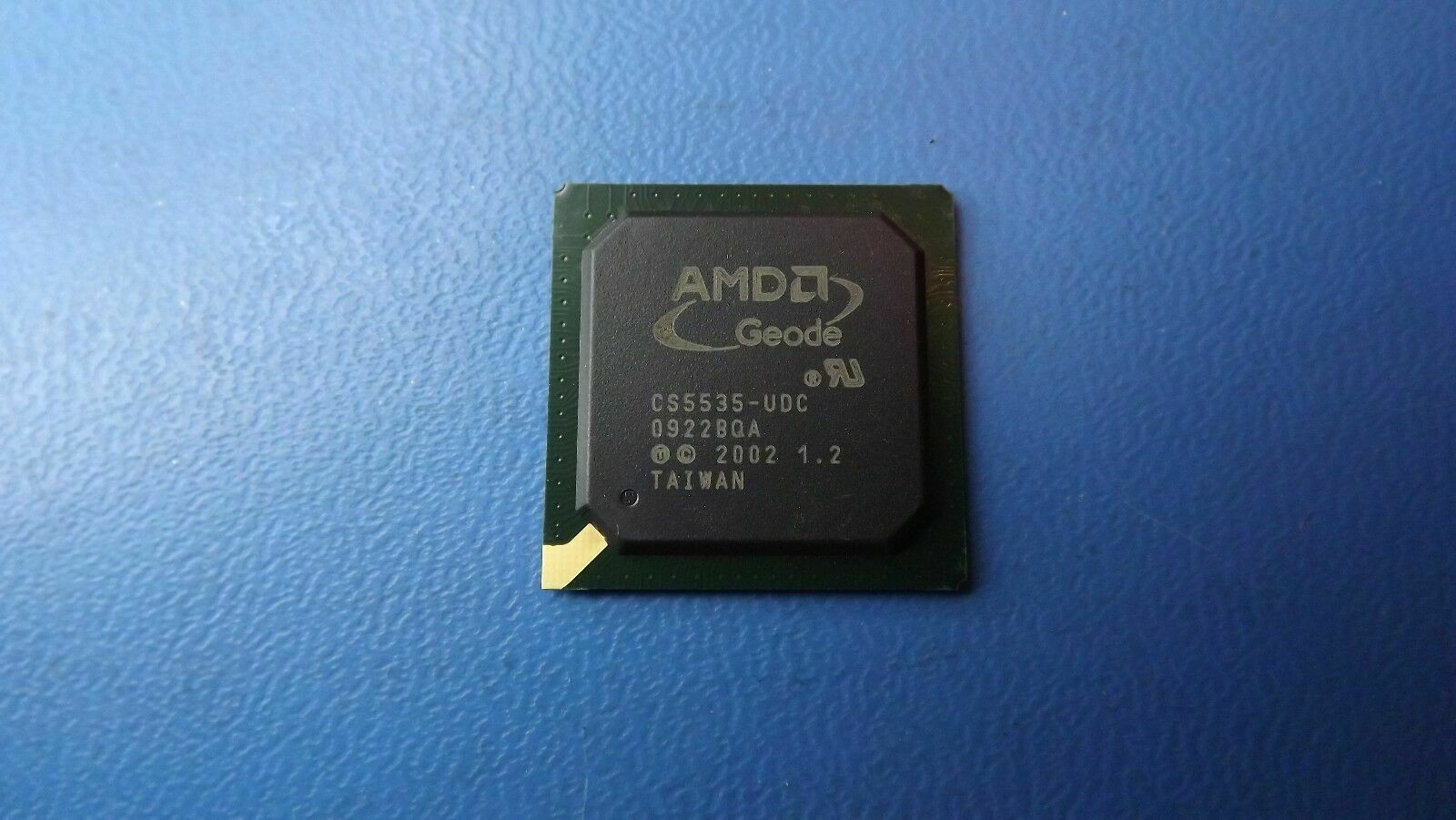

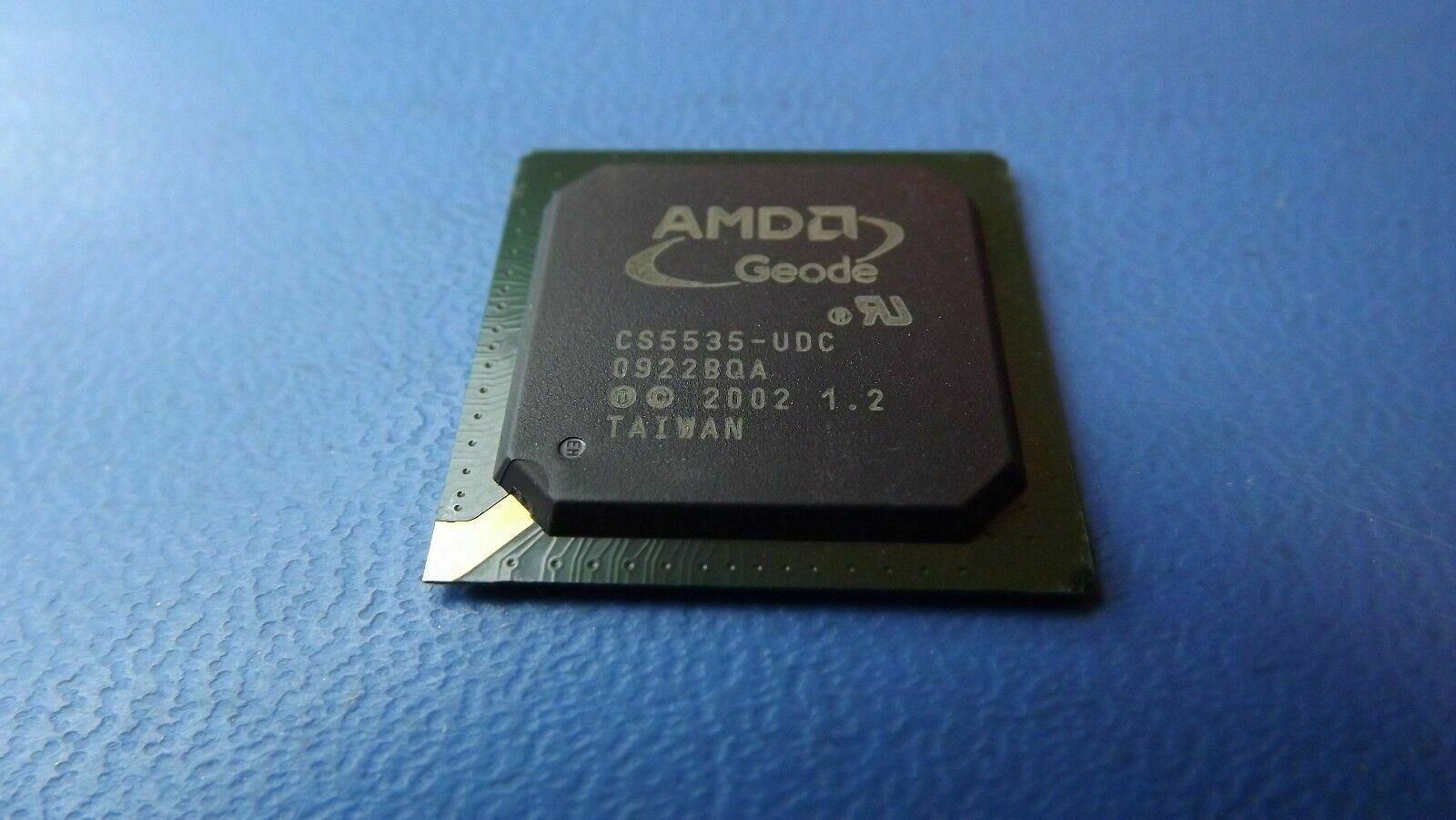

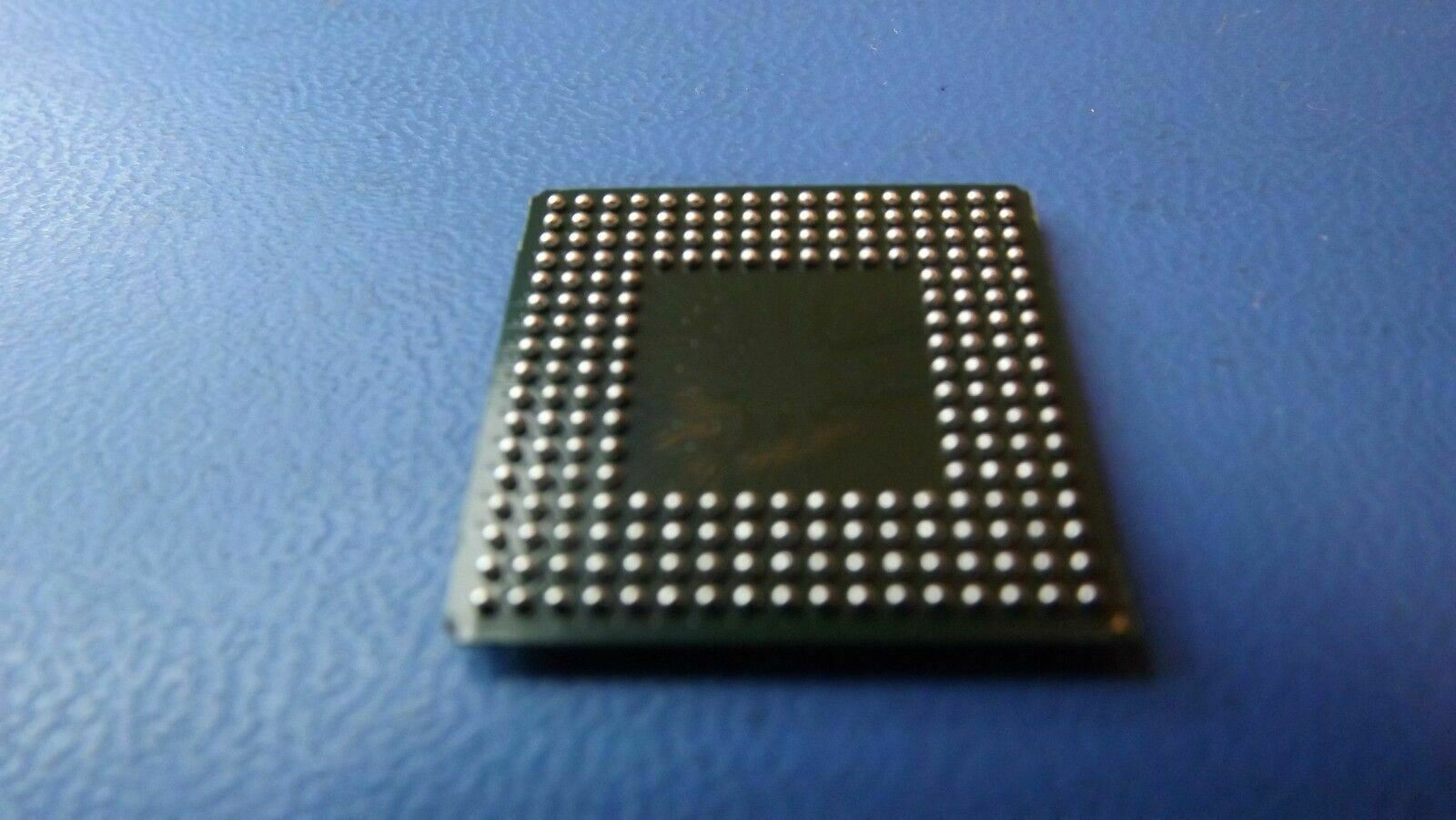

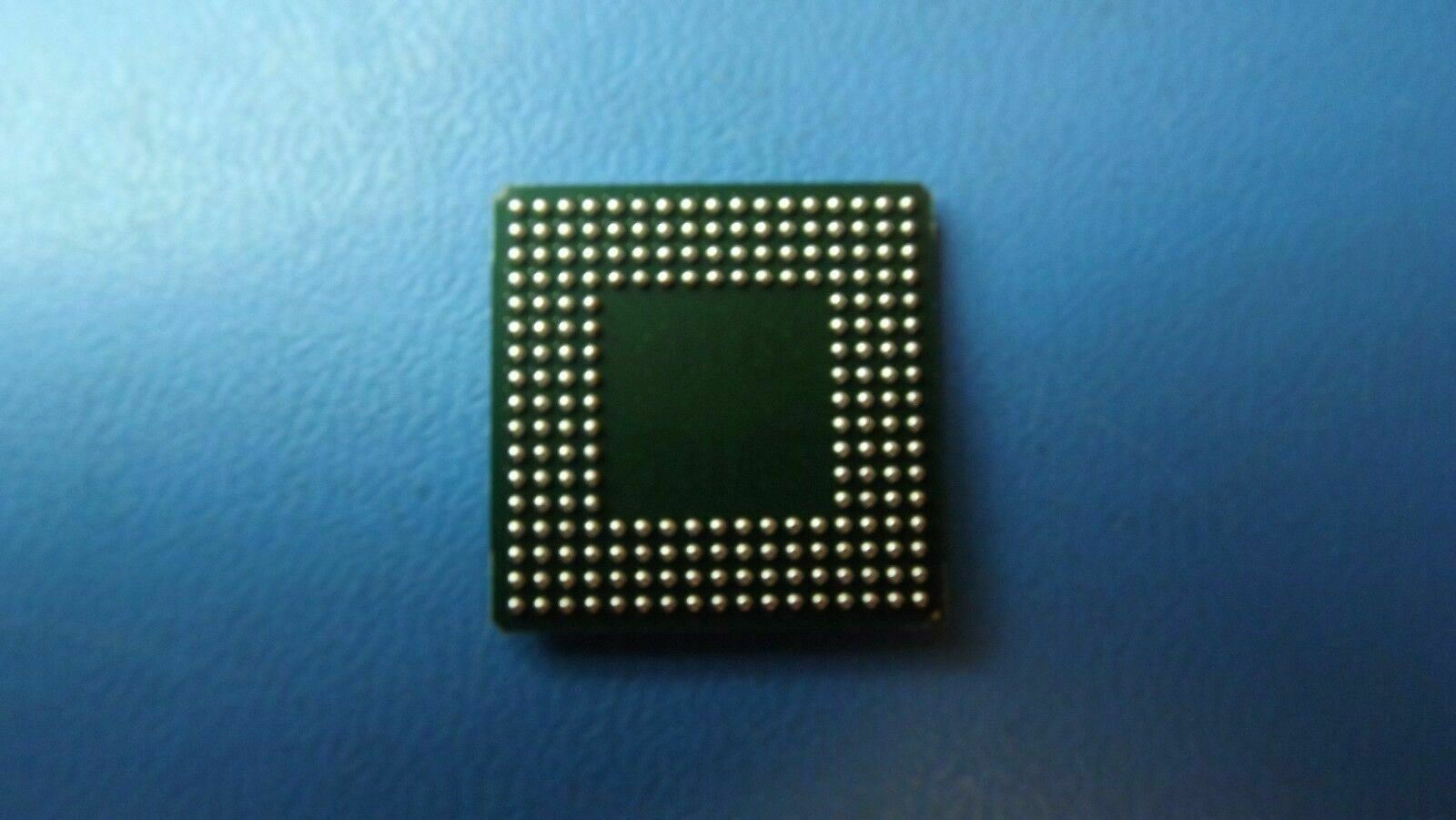

THIS LISTING IS FOR (5 PCS) OF CS5535-UDC BY AMD
Serial I/O Controller 2 Channel(s) 0.1875MBps CMOS PBGA208
Mfr Package Description 23 X 23 MM, 2.13 MM HEIGHT, 1.27 MM PITCH, PLASTIC, MO-151BAJ-2, BGA-208
Part #: CS5535-UDC
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: Serial I/O Controller, 2 Channel(s), 0.1875MBps, CMOS, PBGA208
Mfr Package Description 23 X 23 MM, 2.13 MM HEIGHT, 1.27 MM PITCH, PLASTIC, MO-151BAJ-2, BGA-208
Status Discontinued
Address Bus Width 32.0
Boundary Scan YES
Bus Compatibility PCI; CARDBUS; USB; ISA; ATA
Clock Frequency-Max 67.5 MHz
Communication Protocol ASYNC, BIT; SYNC, BYTE
Data Encoding/Decoding Method NRZ
Data Transfer Rate-Max 0.1875 MBps
External Data Bus Width 32.0
JESD-30 Code S-PBGA-B208
JESD-609 Code e0
Low Power Mode YES
Moisture Sensitivity Level 3
Number of Serial I/Os 2.0
Number of Terminals 208
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA208,17X17,50
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 1.5,3.3
Qualification Status Not Qualified
Seated Height-Max 2.34 mm
Sub Category Other Microprocessor ICs
Supply Voltage-Nom 1.5 V
Supply Voltage-Min 1.14 V
Supply Voltage-Max 1.58 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn63Pb37)
Terminal Form BALL
Terminal Pitch 1.27 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 23.0 mm
Width 23.0 mm
