(5) N74F154D PHILIPS Decoder/Driver, F/FAST Series, Inverted Output, TTL, SOIC24
Tax included.

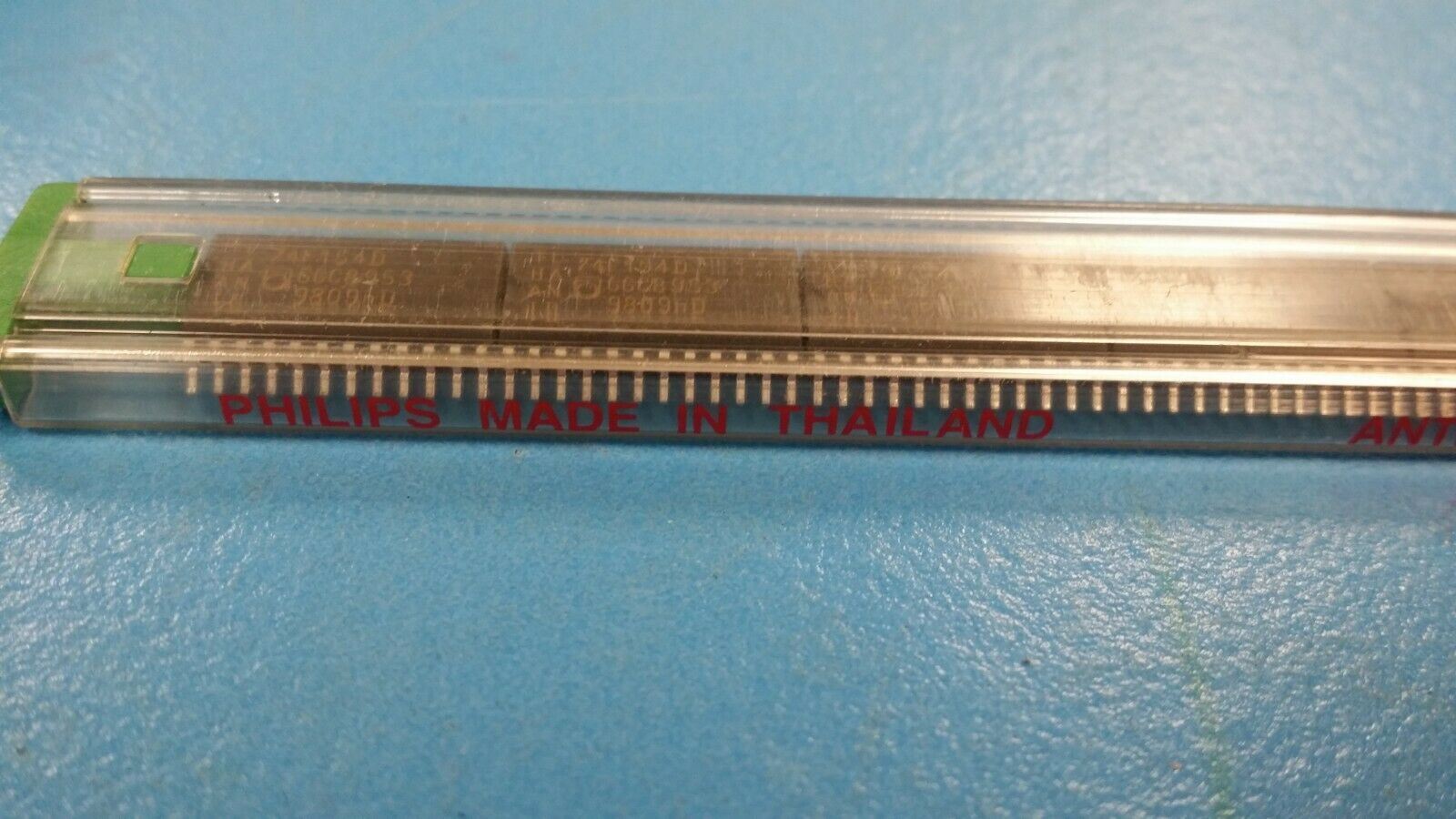

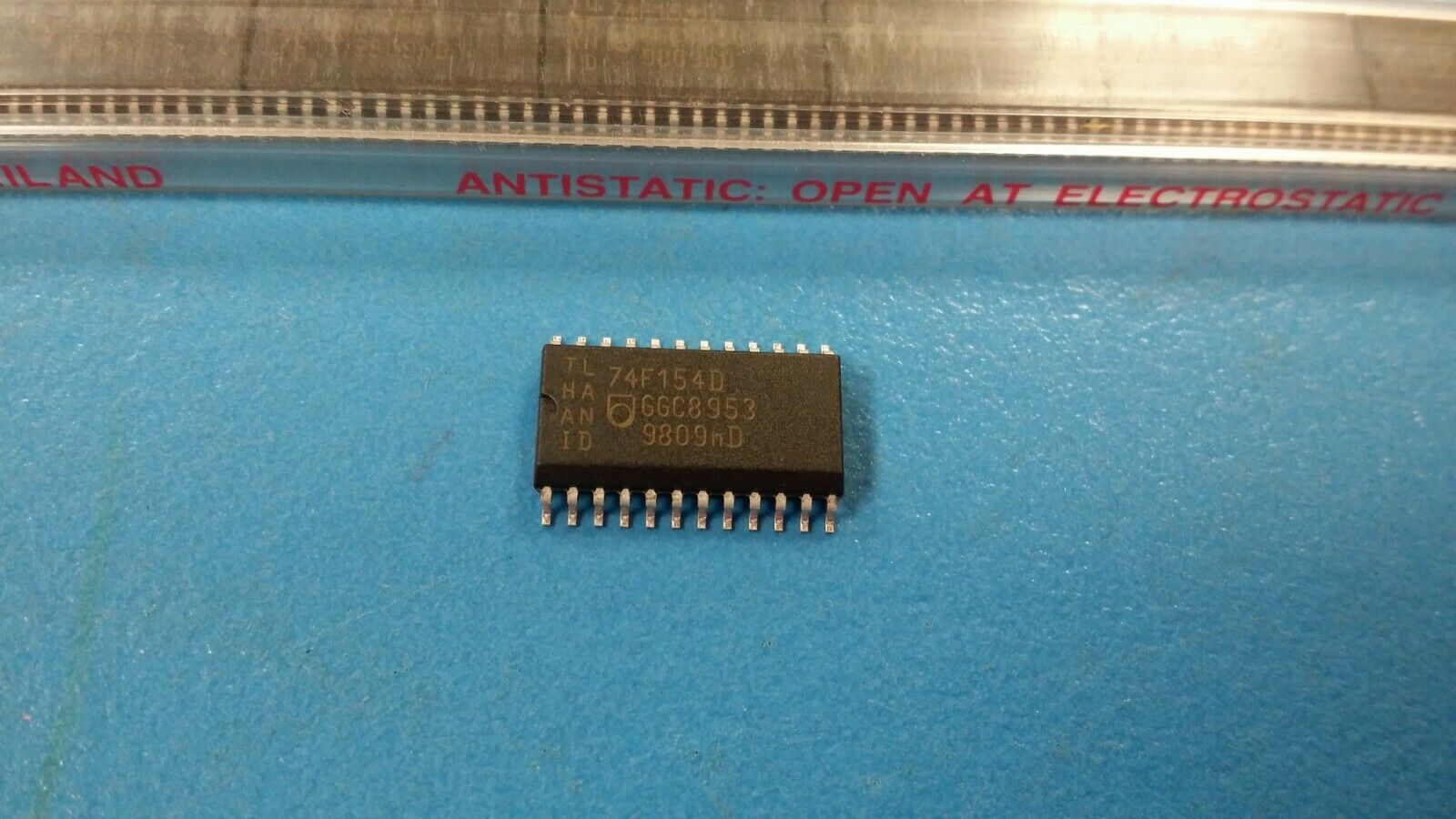

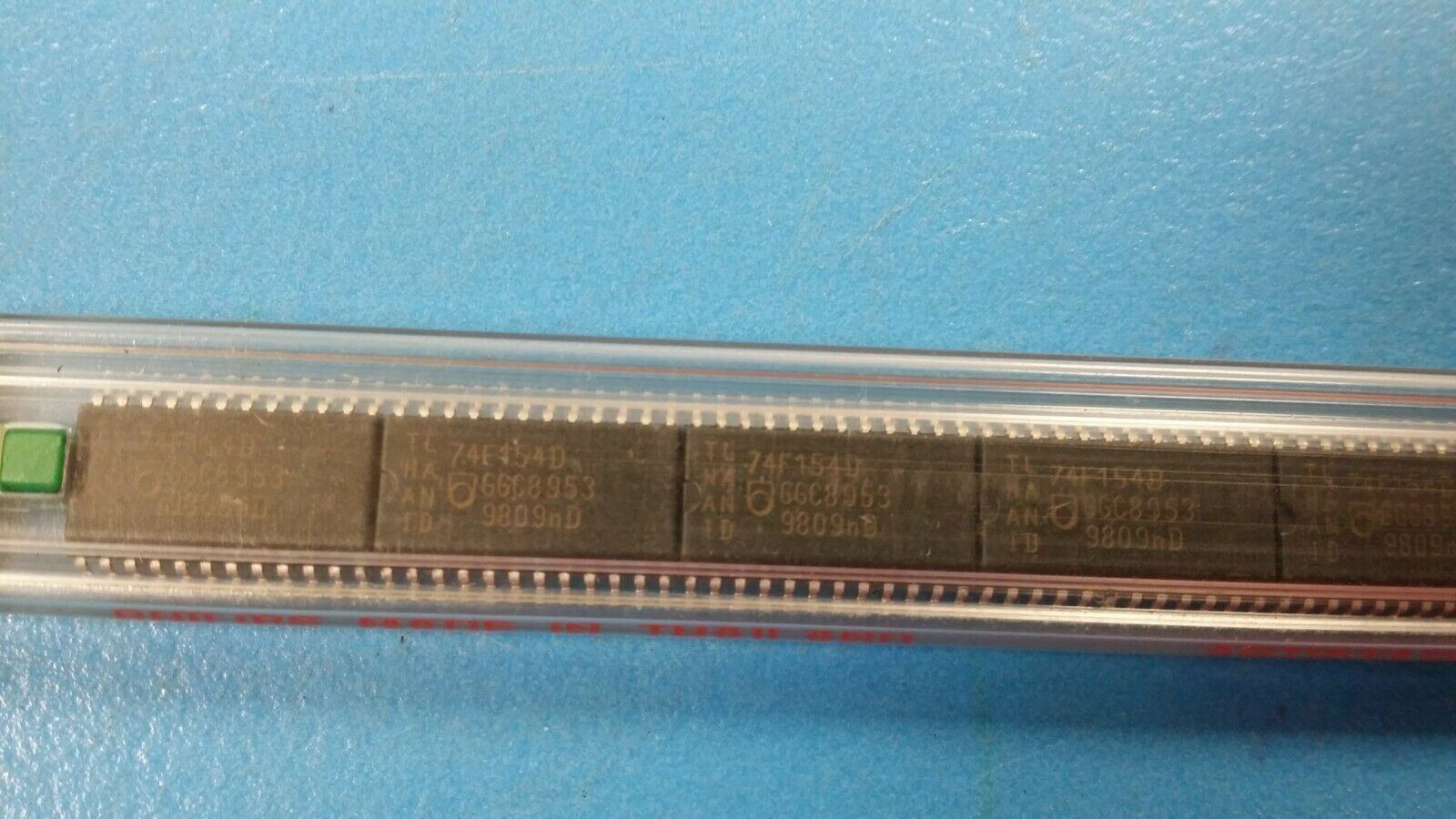

THIS LISTING IS FOR (5 PCS) OF N74F154D BY PHILIPS
Decoder/Driver, F/FAST Series, Inverted Output, TTL, SOIC24
Manufacturer: Philips Semiconductor
Description: Decoder/Driver, F/FAST Series, Inverted Output, TTL, PDSO24
Status Discontinued
Family F/FAST
JESD-30 Code R-PDSO-G24
Load Capacitance (CL) 50.0 pF
Number of Functions 1
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Power Supply Current-Max (ICC) 45.0 mA
Propagation Delay (tpd) 10.5 ns
Qualification Status Not Qualified
Seated Height-Max 2.65 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology TTL
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 15.4 mm
Width 7.5 mm
