(5) MSS1038-223MLB COILCRAFT Power Inductor SMD 22uH Shld 20% 2.85A 73mOhms ROHS
Tax included.

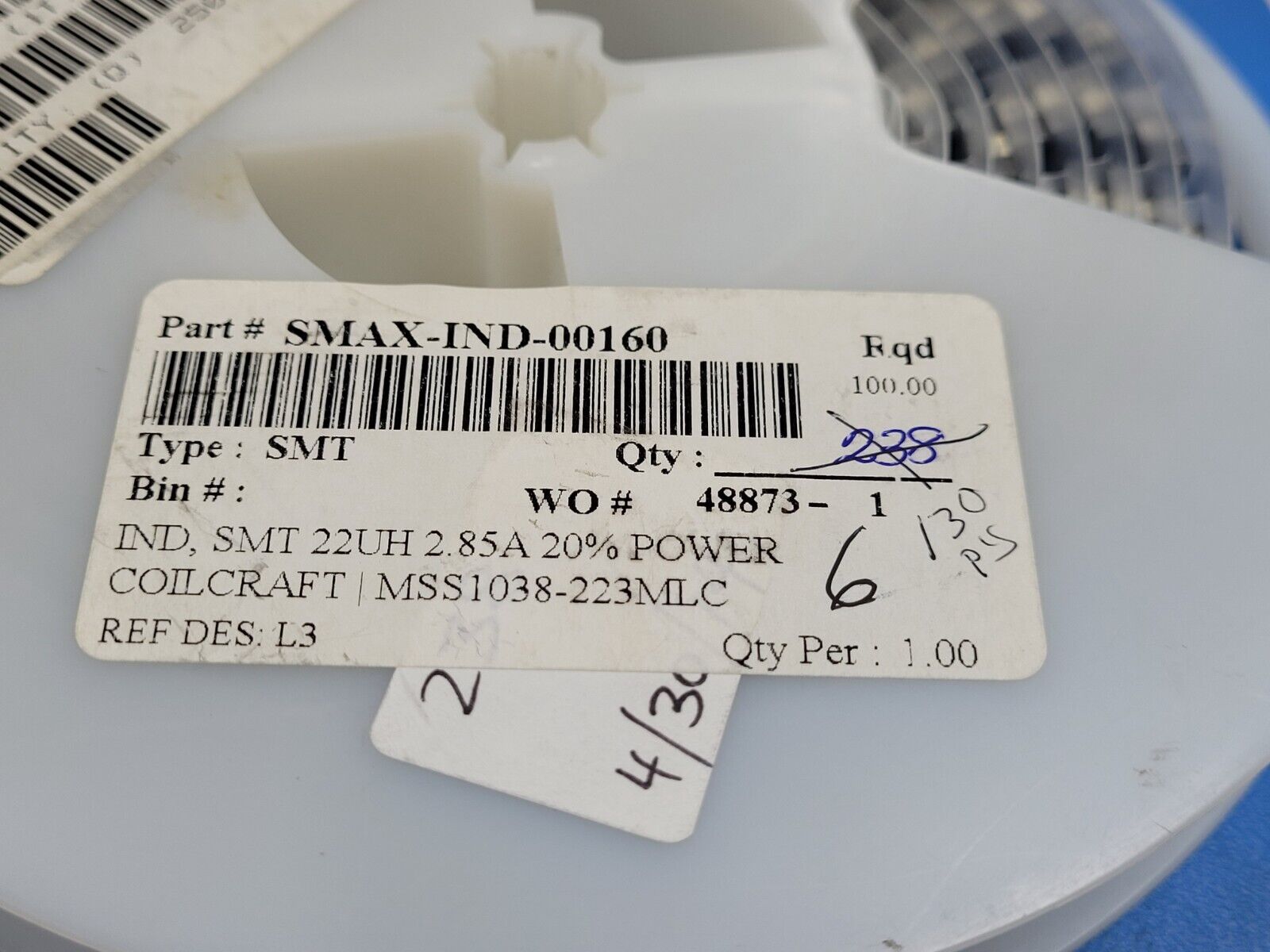

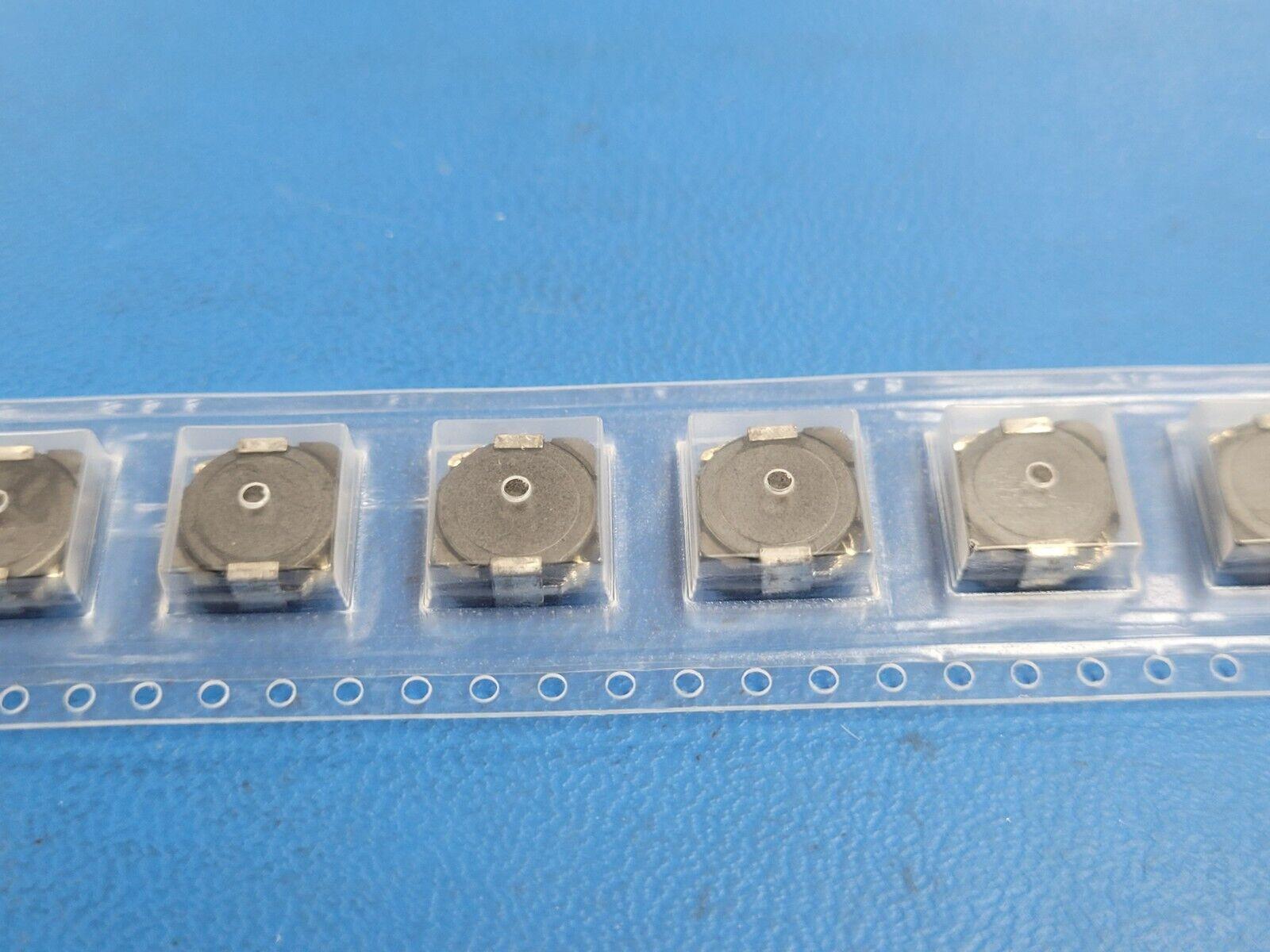

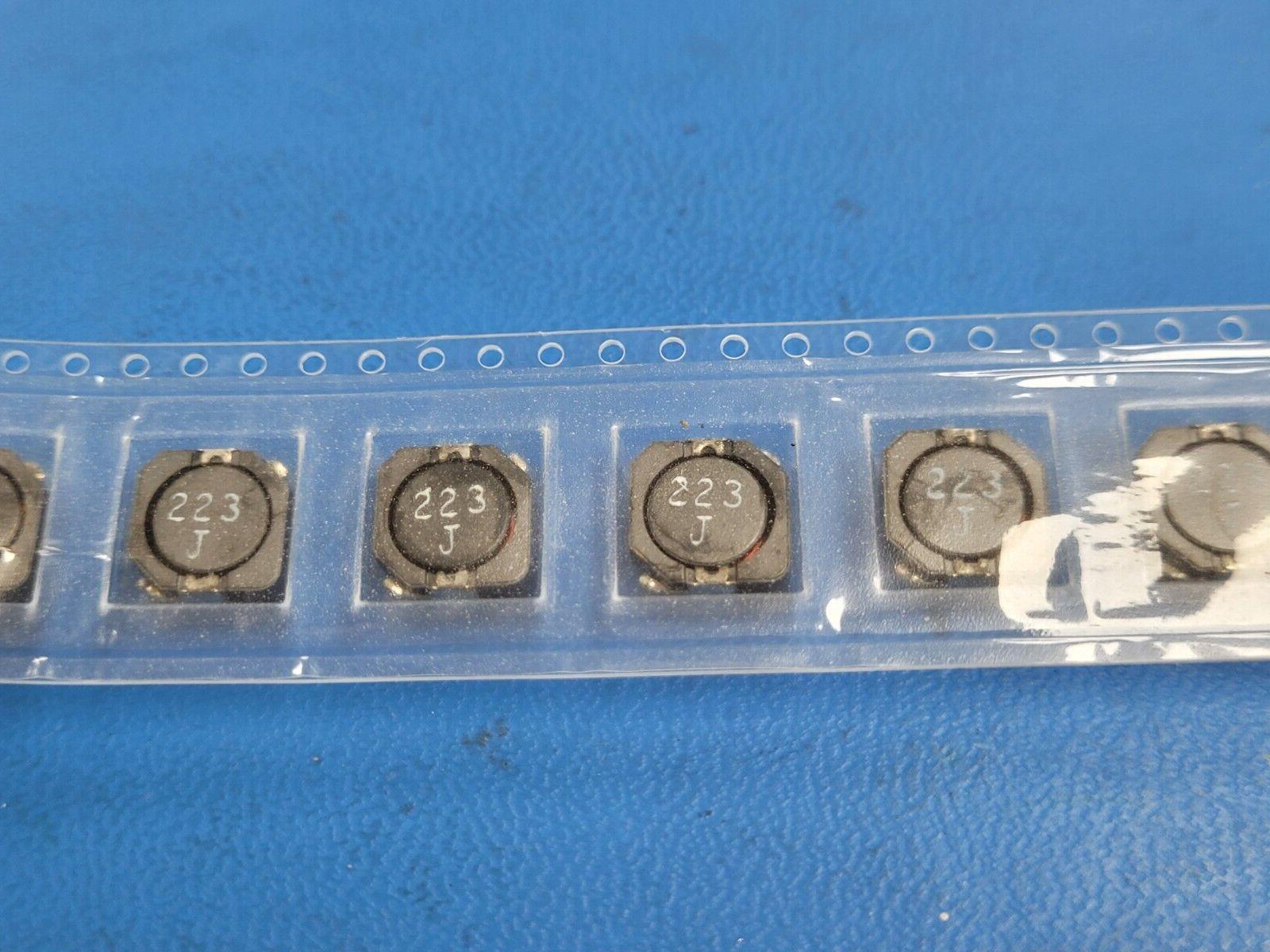

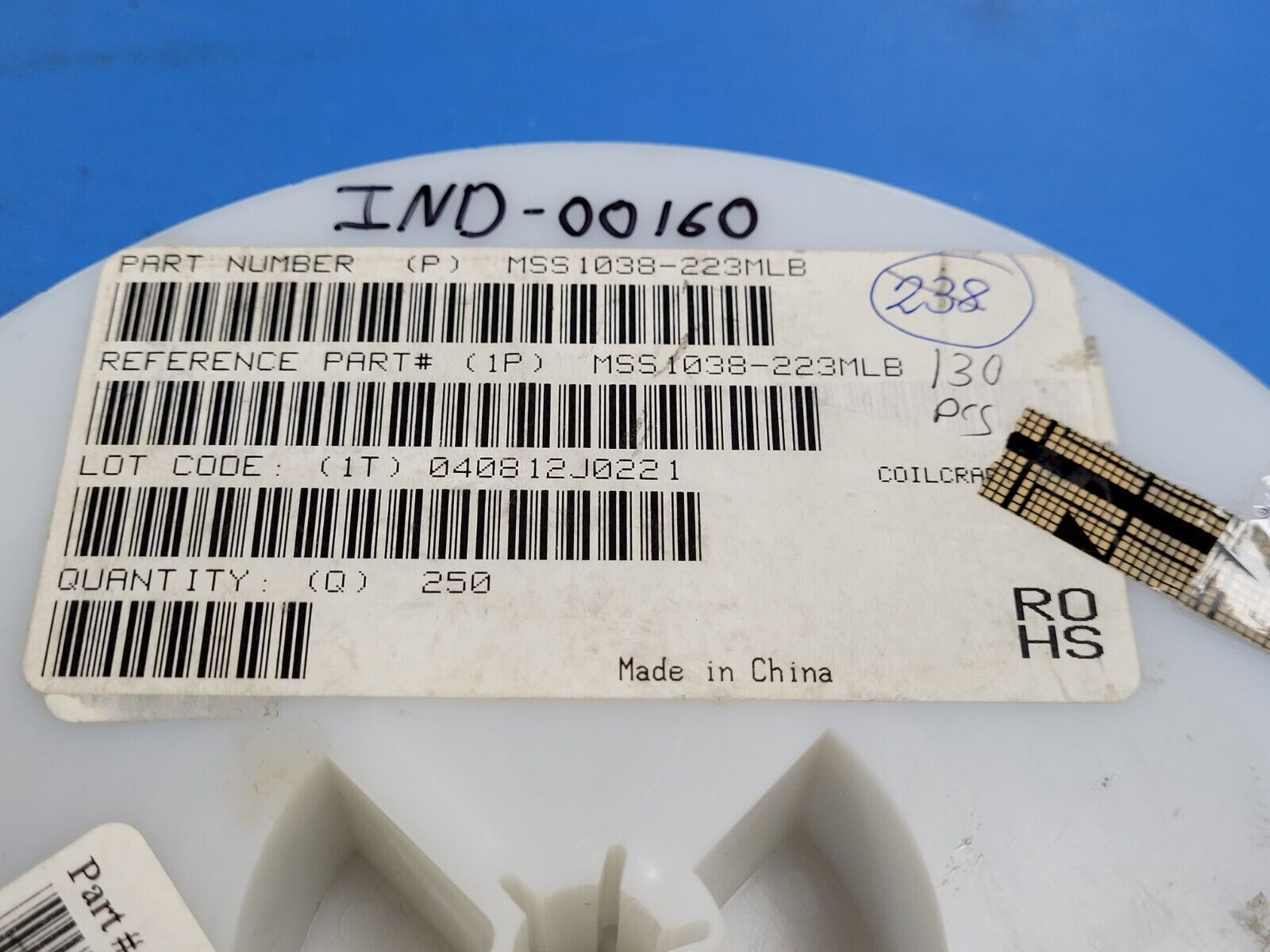

THIS IS FOR (5 PCS) OF MSS1038-223MLB BY COILCRAFT
Power Inductor SMD 22uH Shld 20% 2.85A 73mOhms ROHS
Manufacturer: Coilcraft
Product Category: Power Inductors - SMD
RoHS: YES
Type: Power Inductor
Package / Case: 10 mm x 3.8 mm x 10.2 mm
Shielding: Shielded
Inductance: 22 uH
Tolerance: 20 %
Maximum DC Current: 2.85 A
Maximum DC Resistance: 73 mOhms
Saturation Current: 3.3 A
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Self Resonant Frequency: 15 MHz
Termination: Standard
Length: 10.2 mm
Width: 10 mm
Height: 3.8 mm
Core Material: Ferrite
Series: MSS1038
Packaging: Reel
Packaging: Cut Tape
Application: Automotive
Brand: Coilcraft
Core Type: Drum
Mounting Style: PCB Mount
Product: Power Inductors
Product Type: Power Inductors - SMD
Subcategory: Inductors, Chokes & Coils
Termination Style: SMD/SMT
Test Frequency: 100 kHz
Unit Weight: 0.176370 oz
