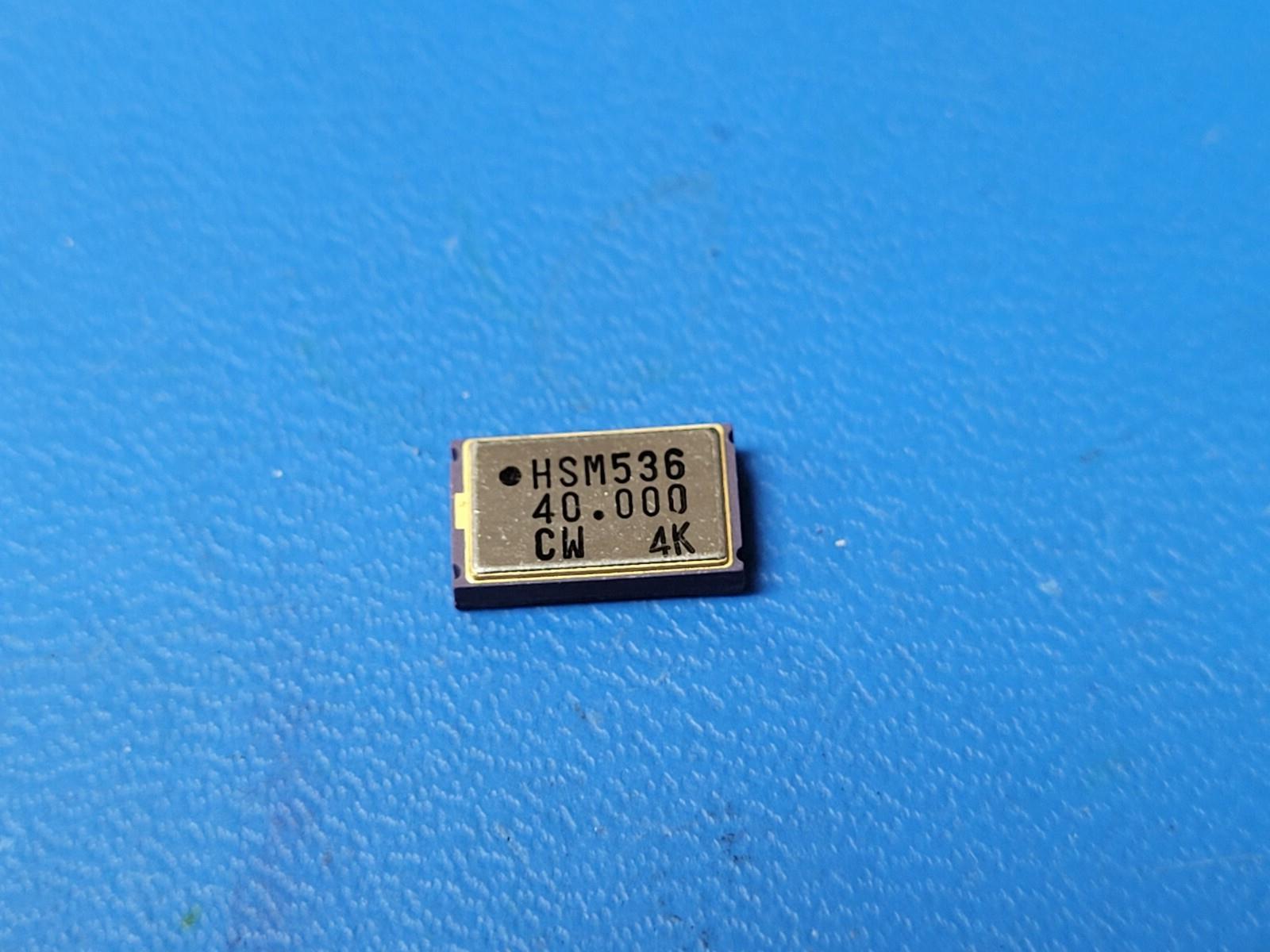

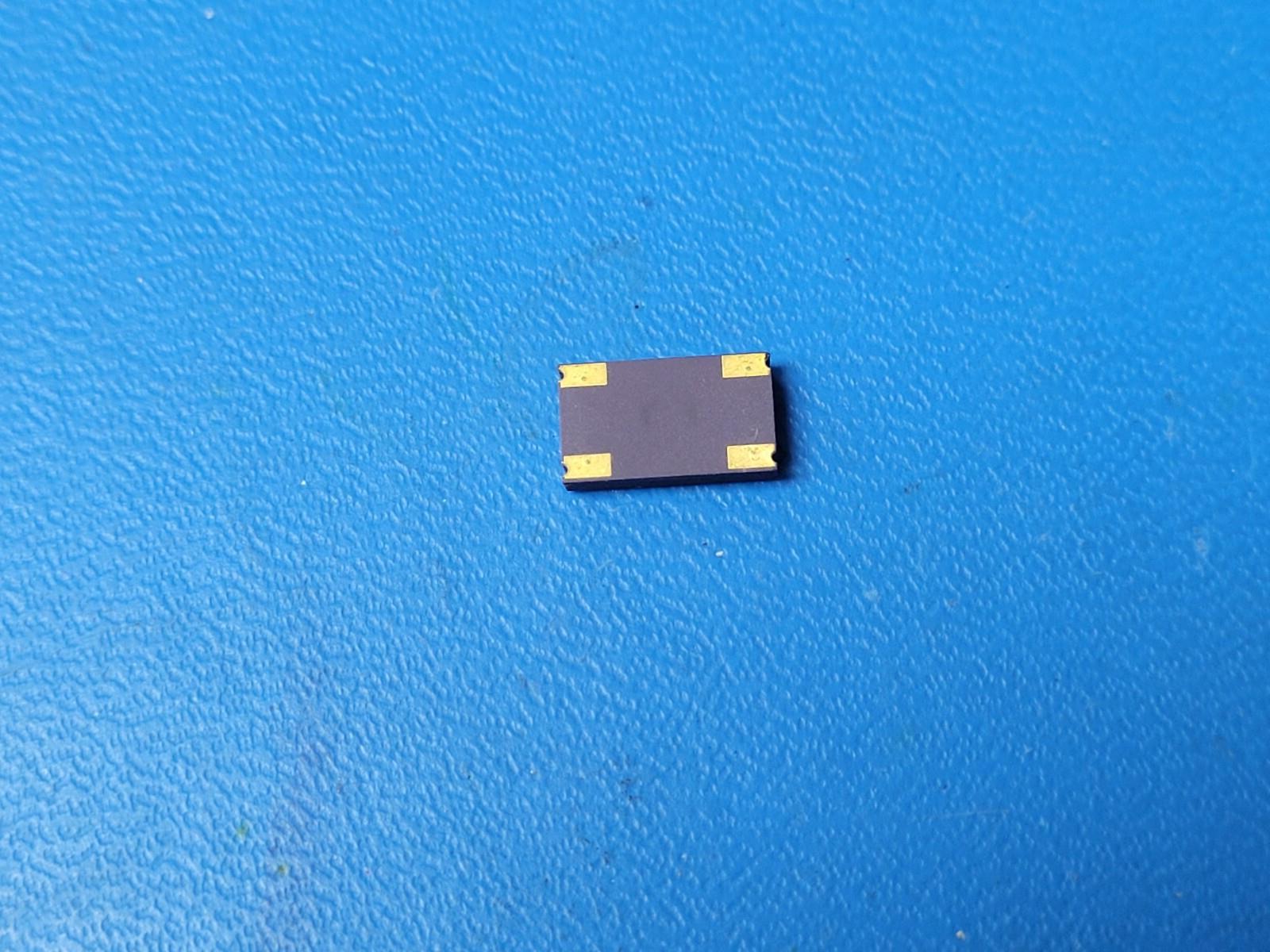

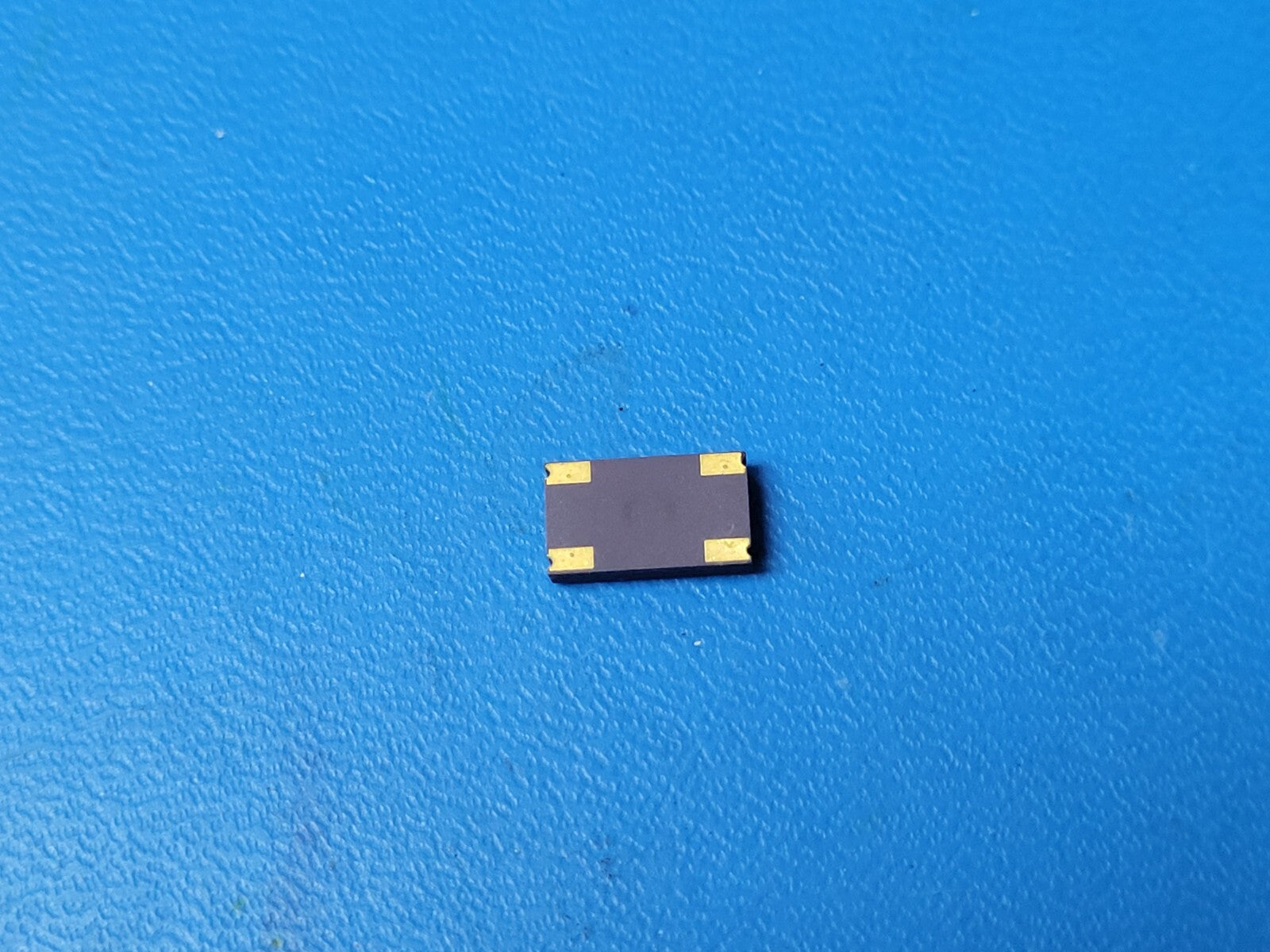

(5) HSM536-40MHZ CONNOR WINFIELD HCMOS Output Clock Oscillator 40MHz 50pF 100ppm

$8.95
Unit price per

Tax included.

THIS IS FOR (5 PCS) OF HSM536-40MHZ BY CONNOR WINFIELD

HCMOS Output Clock Oscillator 40MHz 50pF 100ppm

Part #: HSM536-FREQ

Part Category: Oscillators

Manufacturer: Connor-Winfield Corporation (The)

Description: HCMOS Output Clock Oscillator, 1.8MHz Min, 80MHz Max

EU RoHS Compliant Yes

Status Active

Oscillator Type HCMOS

Fall Time-Max 5.0 ns

Frequency Adjustment-Mechanical NO

Frequency Stability 100.0 ppm

Manufacturer Series HSM536

Mounting Feature SURFACE MOUNT

Operating Frequency-Min 1.8 MHz

Operating Frequency-Max 80.0 MHz

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Output Load 50 pF

Physical Dimension 11.05mm x 6.35mm x 2.67mm

Rise Time-Max 5.0 ns

Supply Voltage-Nom 5.0 V

Supply Voltage-Min 4.5 V

Supply Voltage-Max 5.5 V

Additional Feature TAPE AND REEL; TRI-STATE ENABLE/DISABLE FUNCTION
