(5) EZ1085CT3.3 SEMTEC 3.3V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, TO220

$6.95
Unit price per

Tax included.

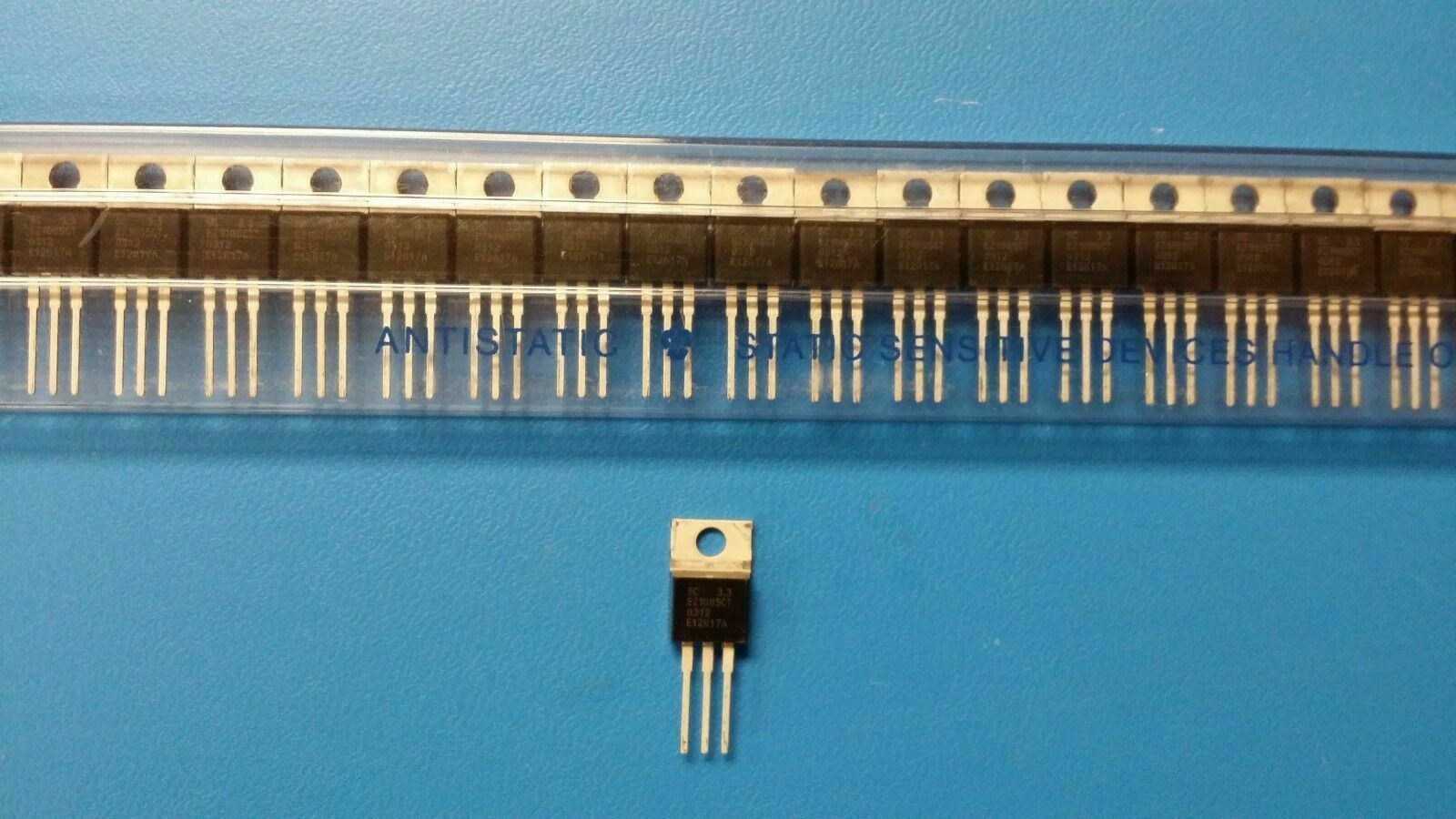

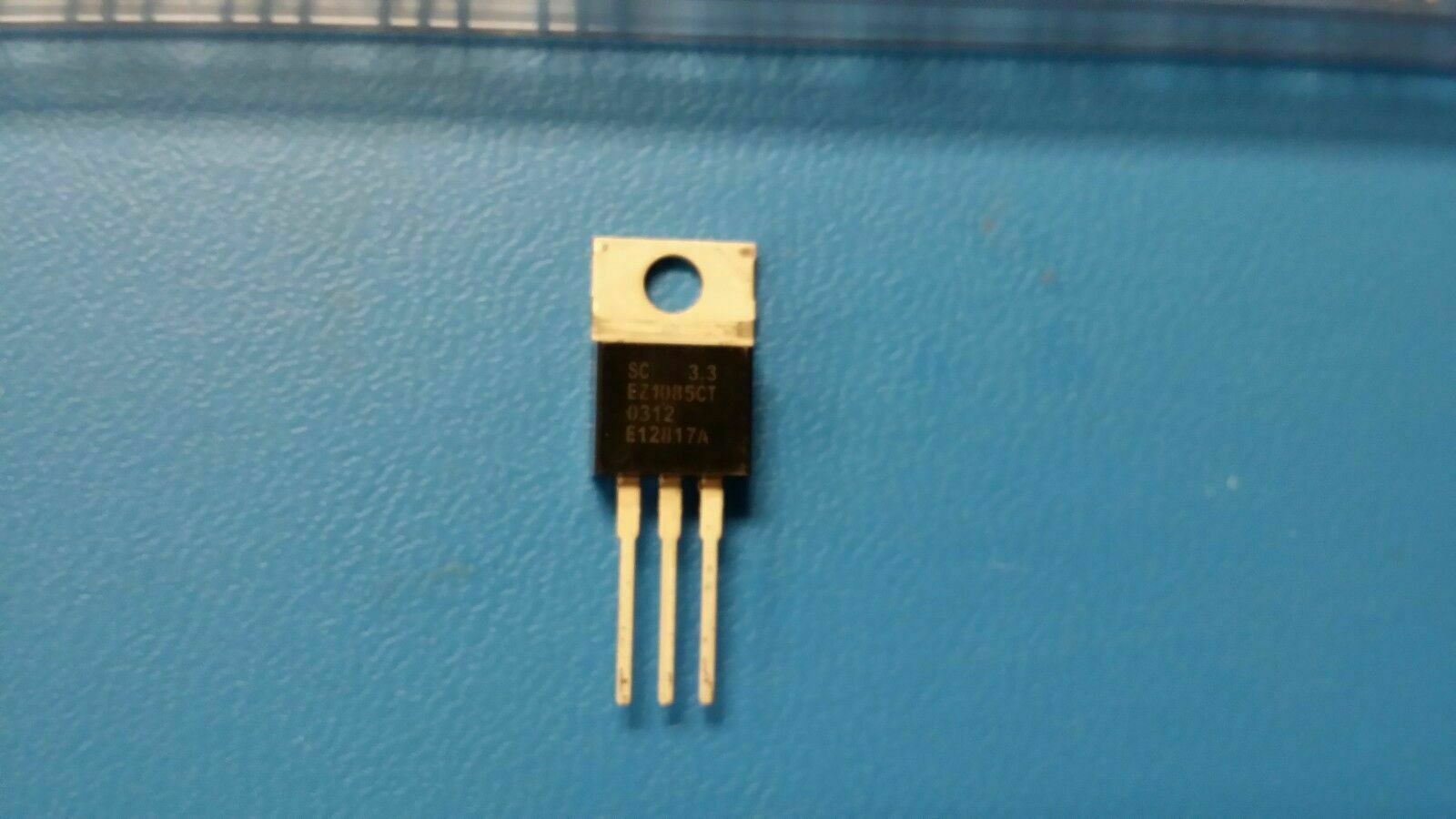

THIS LISTING IS FOR (5 PCS) OF EZ1085CT3.3 BY SEMTEC CORP.

3.3V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, TO220

Part #: EZ1085ACM

Part Category: Regulators

Manufacturer: Semtech Corp.

Description: Adjustable Positive LDO Regulator, 1.3V Min, 4V Max, 1.2V Dropout, BIPolar, PSSO3

Mfr Package Description TO-263, 3 PIN

Status Discontinued

Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

Adjustability ADJUSTABLE

Dropout Voltage1-Nom 1.0 V

Dropout Voltage1-Max 1.2 V

JESD-30 Code R-PSSO-G3

JESD-609 Code e0

Line Regulation-Max (%/V) 0.047

Load Regulation-Max(%) 0.4 %

Number of Functions 1

Number of Outputs 1.0

Number of Terminals 3

Operating Temperature, TJ-Min 0.0 Cel

Operating Temperature, TJ-Max 125.0 Cel

Output Current1-Max 3.0 A

Output Voltage1-Min 1.3 V

Output Voltage1-Max 4.0 V

Package Body Material PLASTIC/EPOXY

Package Code TO-263

Package Equivalence Code SMSIP3H,.55TB

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Seated Height-Max 4.6 mm

Sub Category Other Regulators

Surface Mount YES

Technology BIPOLAR

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 2.54 mm

Terminal Position SINGLE

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Length 9.97 mm

Width 8.445 mm
