(5) EZ1085CT3.3 SEMTEC 3.3V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, TO220

  • $6.95
    Unit price per
Tax included.

Only 209 left!

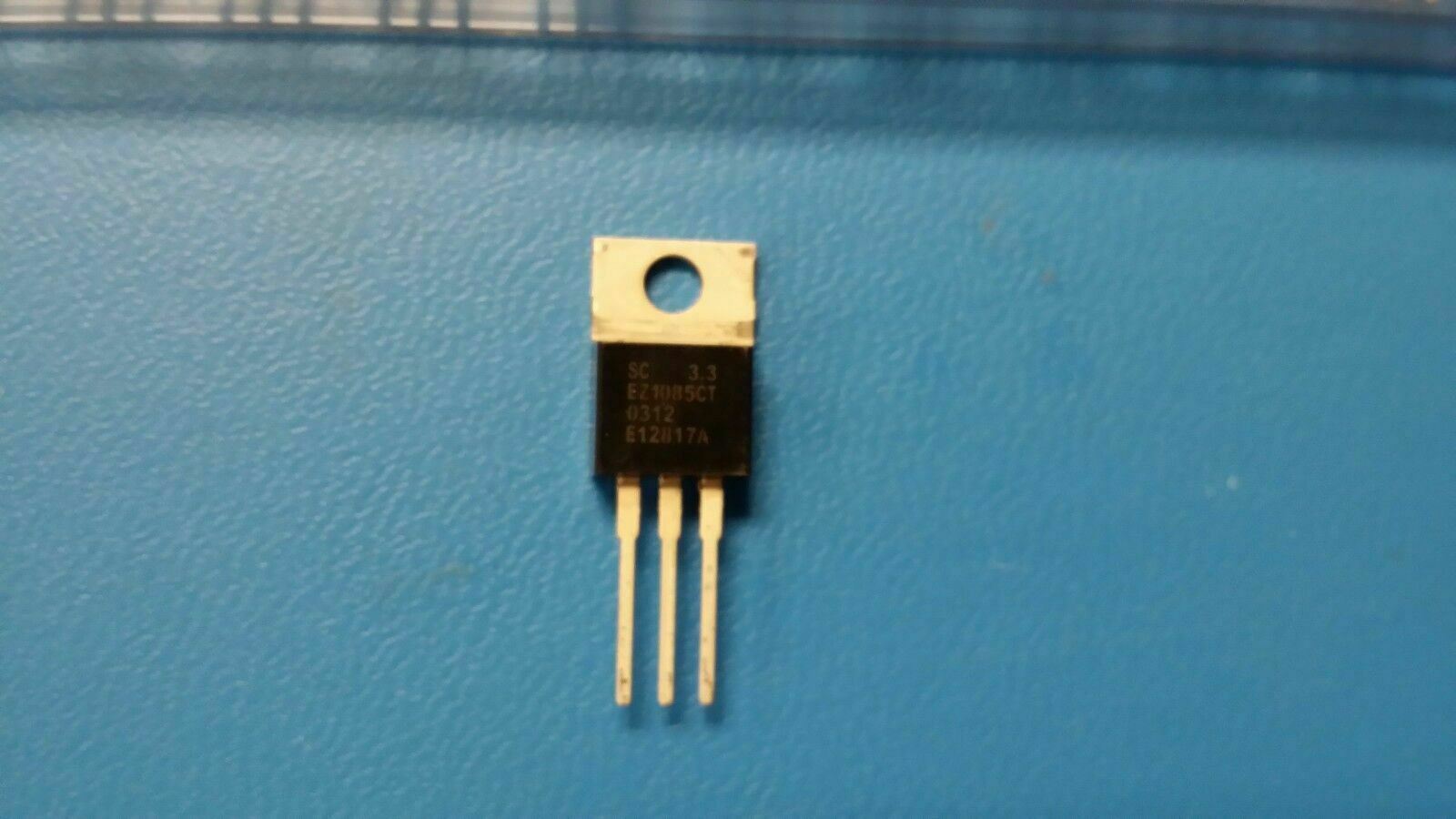

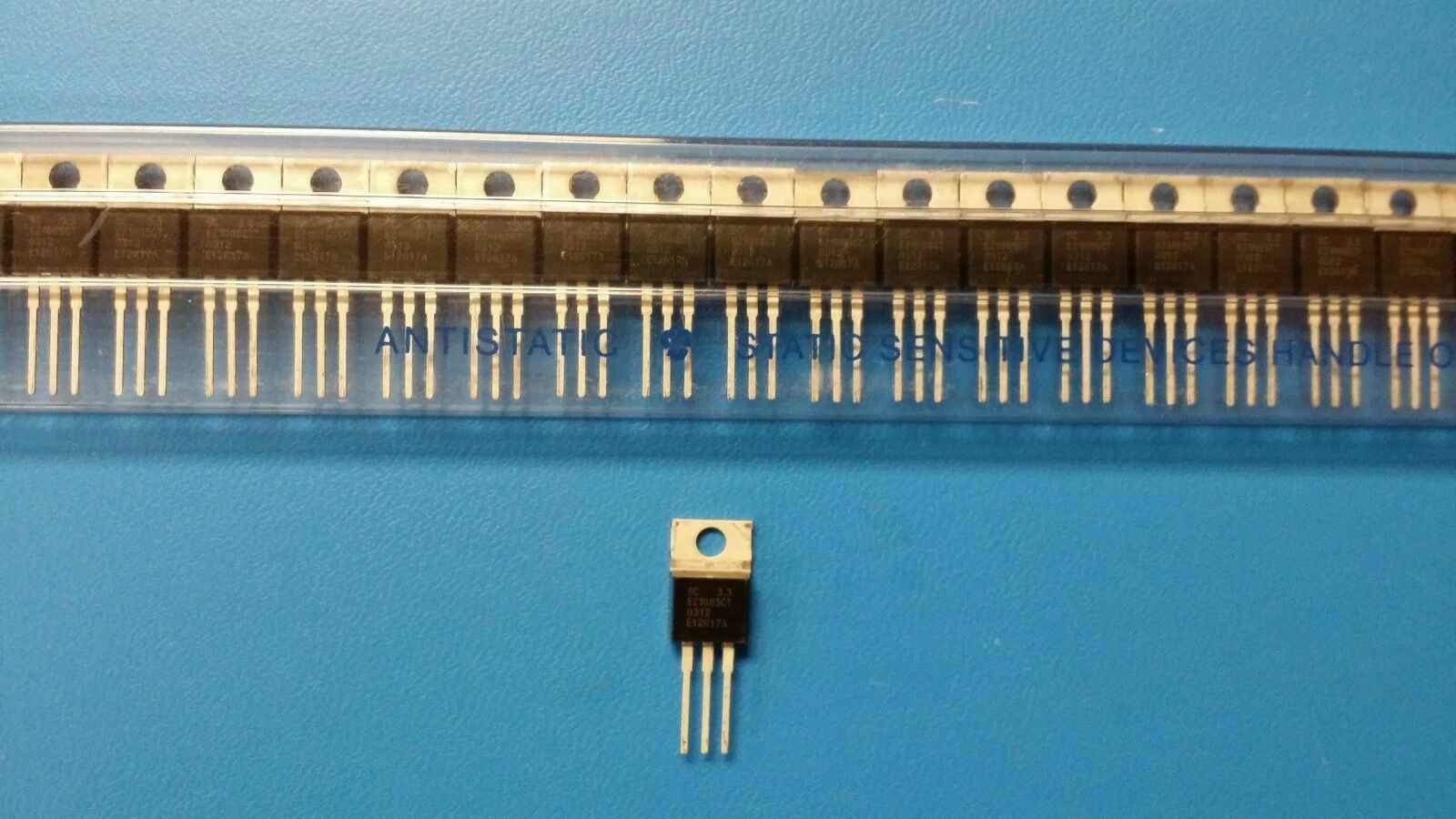

THIS LISTING IS FOR (5 PCS) OF EZ1085CT3.3 BY SEMTEC CORP.
3.3V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, TO220

Part #: EZ1085CT-3.3

Part Category: Regulators
Manufacturer: Semtech Corp.
Description: 3.3V FIXED POSITIVE LDO REGULATOR, 1.35V DROPOUT, PSFM3


Mfr Package Description TO-220, 3 PIN
Status Active
Regulator Type FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Adjustability FIXED
Dropout Voltage1-Nom 1.2 V
Dropout Voltage1-Max 1.35 V
Input Voltage Absolute-Max 7.0 V
Input Voltage-Min 4.75 V
Input Voltage-Max 7.0 V
JESD-30 Code R-PSFM-T3
JESD-609 Code e0
Line Regulation-Max 0.0066 V
Load Regulation-Max 0.0132 V
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 3
Operating Temperature, TJ-Min 0.0 Cel
Operating Temperature, TJ-Max 125.0 Cel
Output Current1-Max 3.0 A
Output Voltage1-Nom 3.3 V
Output Voltage1-Min 3.234 V
Output Voltage1-Max 3.366 V
Package Body Material PLASTIC/EPOXY
Package Code TO-220
Package Equivalence Code SIP3,.1TB
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Packing Method TUBE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Sub Category Other Regulators
Surface Mount NO
Technology BIPOLAR
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Voltage Tolerance-Max 2.0 %
