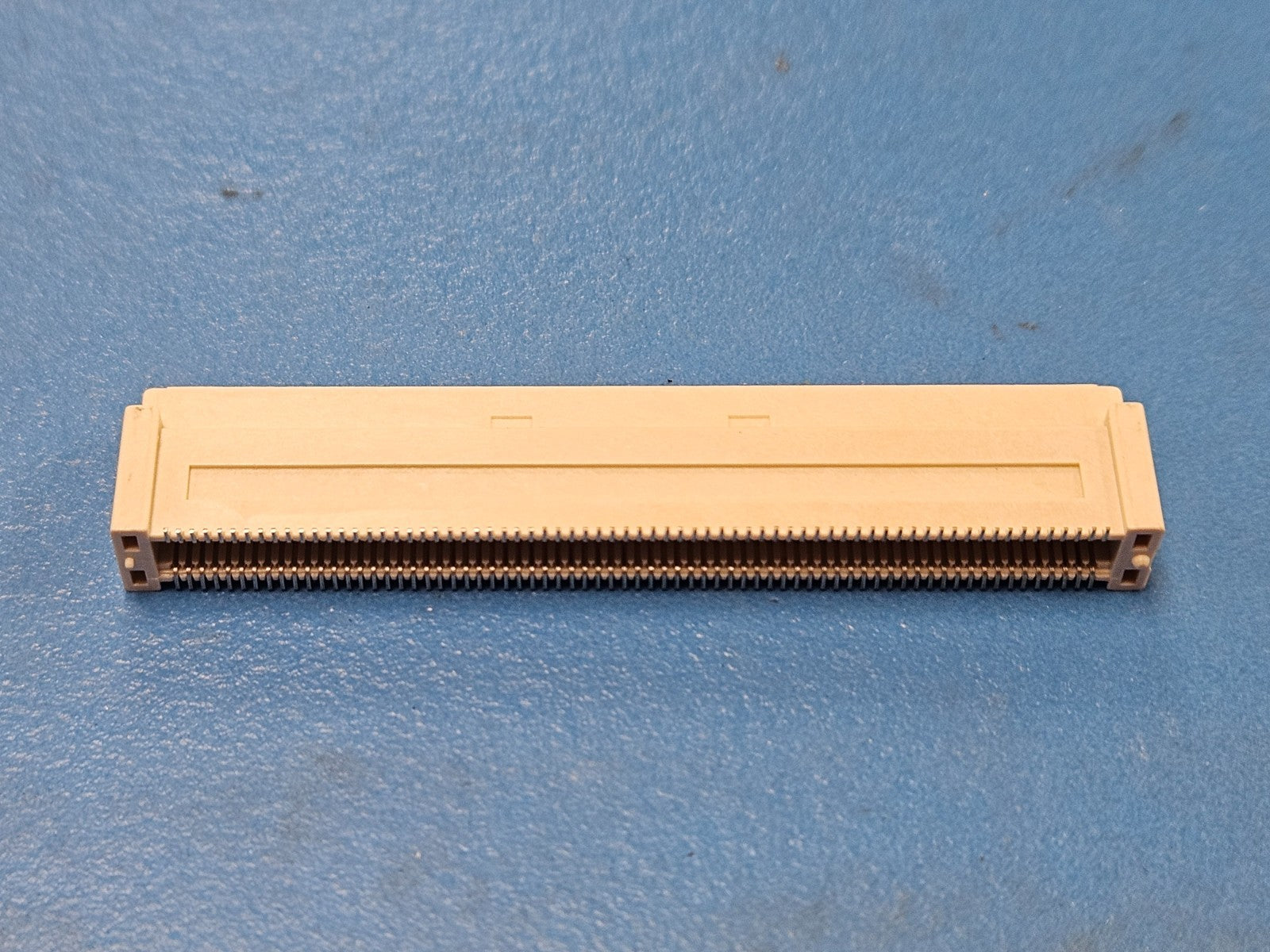

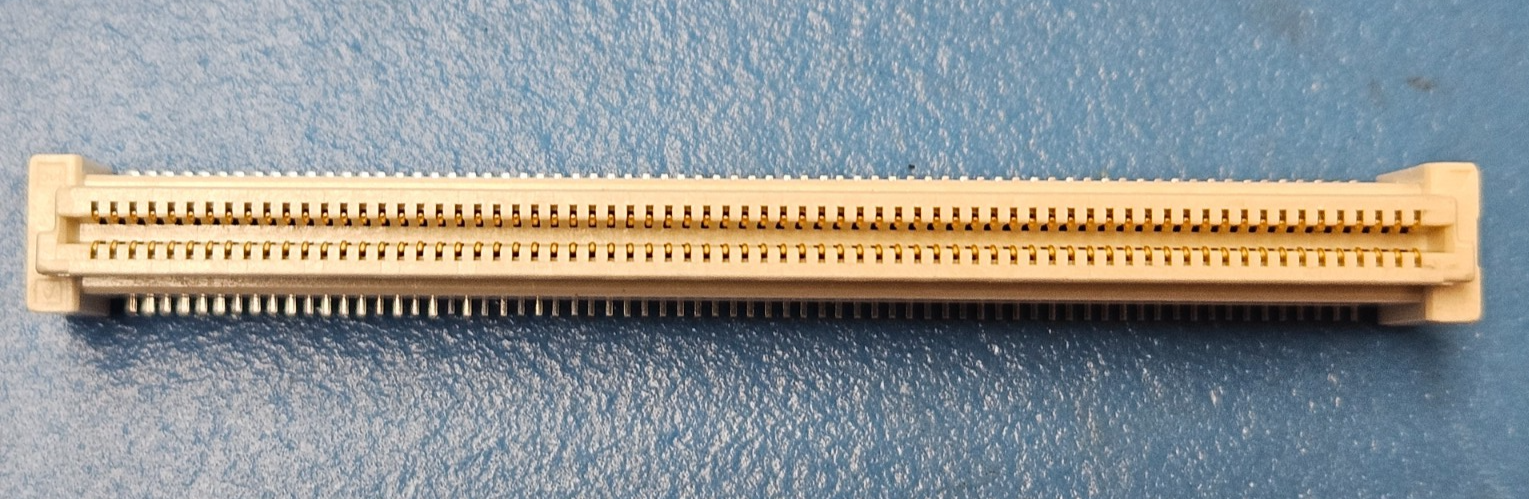

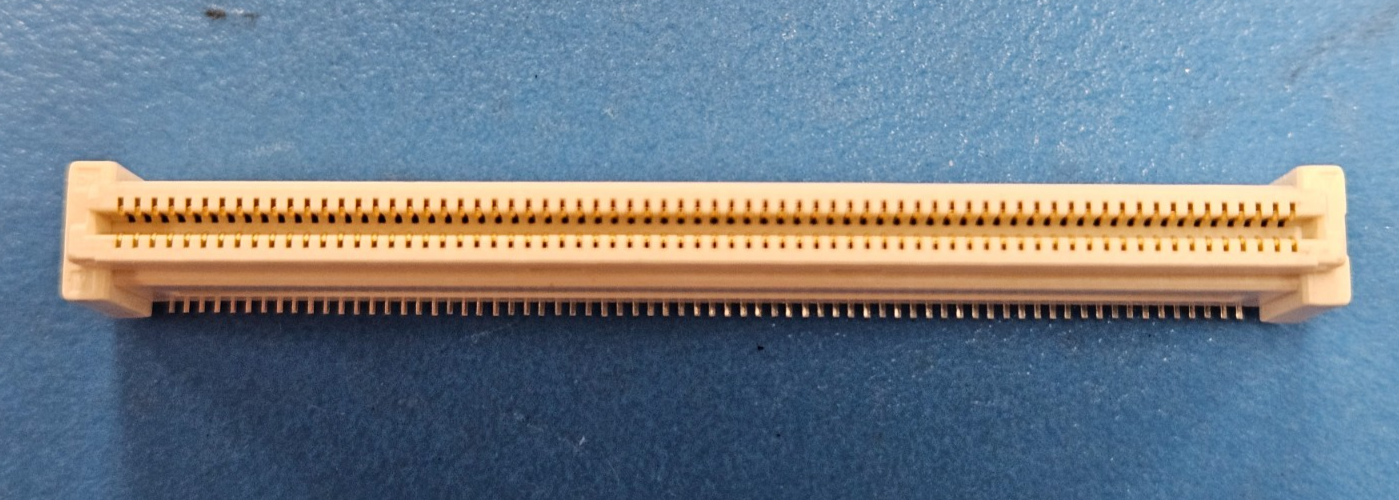

5-179010-6 Tyco Board Stacking Connector, 140 Contact, 2 Rows, Female, Straight
Tax included.
This listing is for (1PC) of 5-179010-6 by Tyco
Status Discontinued
Additional Feature HIGH DENSITY
Board Mounting Option PEG
Body Breadth (inch) 0.268000
Body Depth (inch) 0.463000
Body Length (inch) 2.433000
Body/Shell Style RECEPTACLE
Connector Type BOARD STACKING CONNECTOR
Contact Finish - Mating NOT SPECIFIED
Contact Gender FEMALE
Contact Material NOT SPECIFIED
Contact Pattern RECTANGULAR
Contact Style BELLOWED TYPE
DIN Conformance NO
Dielectric Withstanding Voltage (V) 500VAC
Durability (Cycles) 100
Filter Feature NO
IEC Conformance NO
Insertion Force-Max (N) .8896
Insulation Resistance (ohm) 500000000.000000000000000
Insulator Color NATURAL
Insulator Material LIQUID CRYSTAL POLYMER
MIL Conformance NO
Mating Contact Pitch (inch) 0.031
Mating Information MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style STRAIGHT
Mounting Type BOARD
Number of Connectors ONE
Number of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -40
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
PCB Contact Row Spacing (mm) 4.8006
Plating Thickness (inch) 8u
Polarization Key POLARIZED HOUSING
Rated Current (Signal) (A) 0.5000000000000000
Screening Level / Reference Standard UL
Terminal Pitch (mm) .8
Termination Type SURFACE MOUNT
Number of Contacts 140
UL Flammability Code 94V-0
Withdrawl Force-Min (N) .0973
