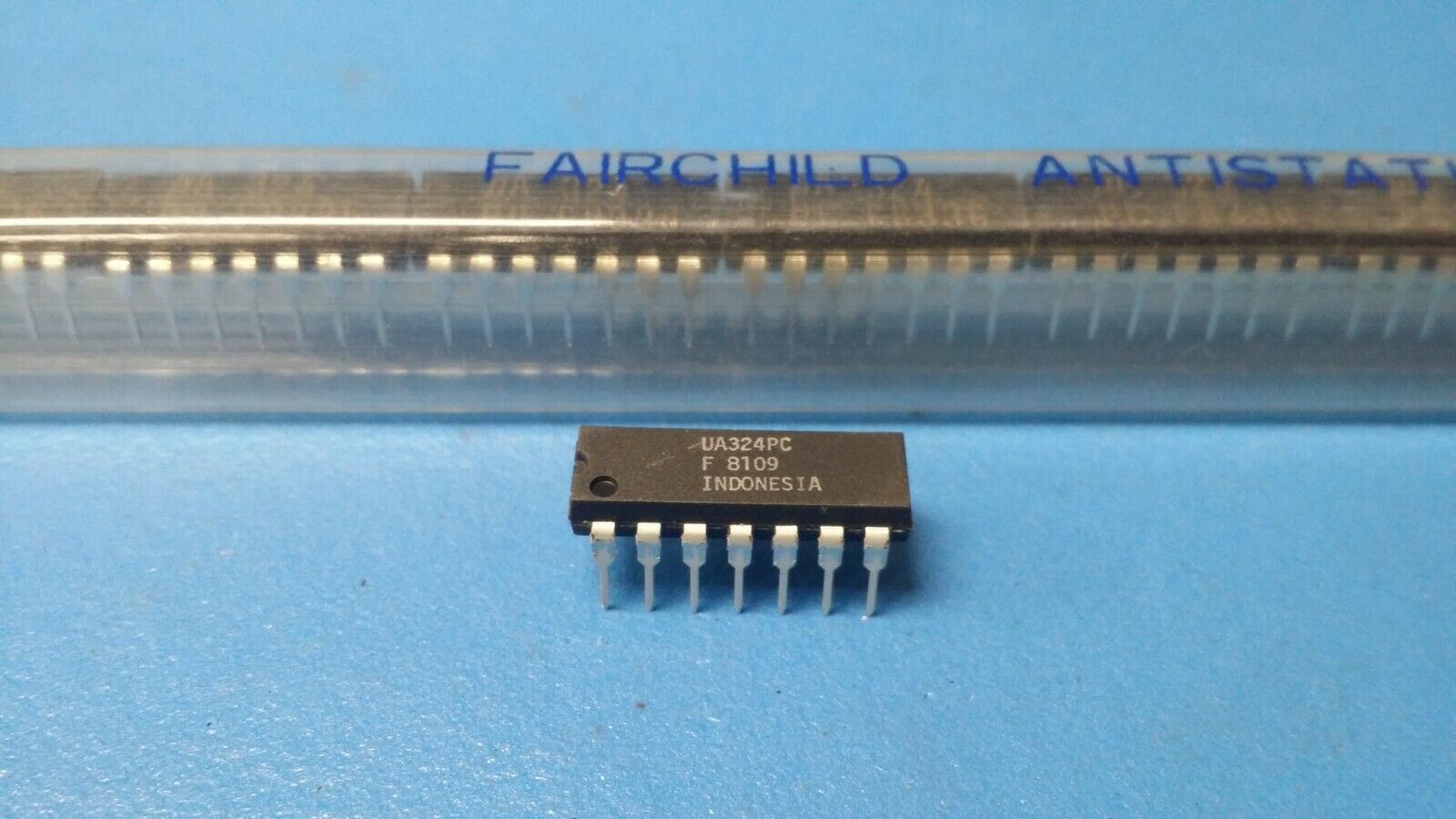

(4PCS) UA324PC Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14
Tax included.
THIS LISTING IS FOR (4 PCS) OF UA324PC BY FSC
Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14
Part #: UA324PC
Part Category: Amplifiers
Manufacturer: Fairchild Semiconductor
Description: Operational Amplifier, 4 Func, 9000uV Offset-Max, BIPolar, PDIP14
Mfr Package Description PLASTIC, DIP-14
Status Discontinued
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Frequency Compensation YES
Input Offset Voltage-Max 9000.0 µV
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Low-Offset NO
Micropower YES
Moisture Sensitivity Level 2A
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 250
Qualification Status Not Qualified
Sub Category Operational Amplifier
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
