(4PCS) SK055R SCR 1 kV 55 A Standard Recovery Through Hole TO-220 Non-Isolated
Tax included.

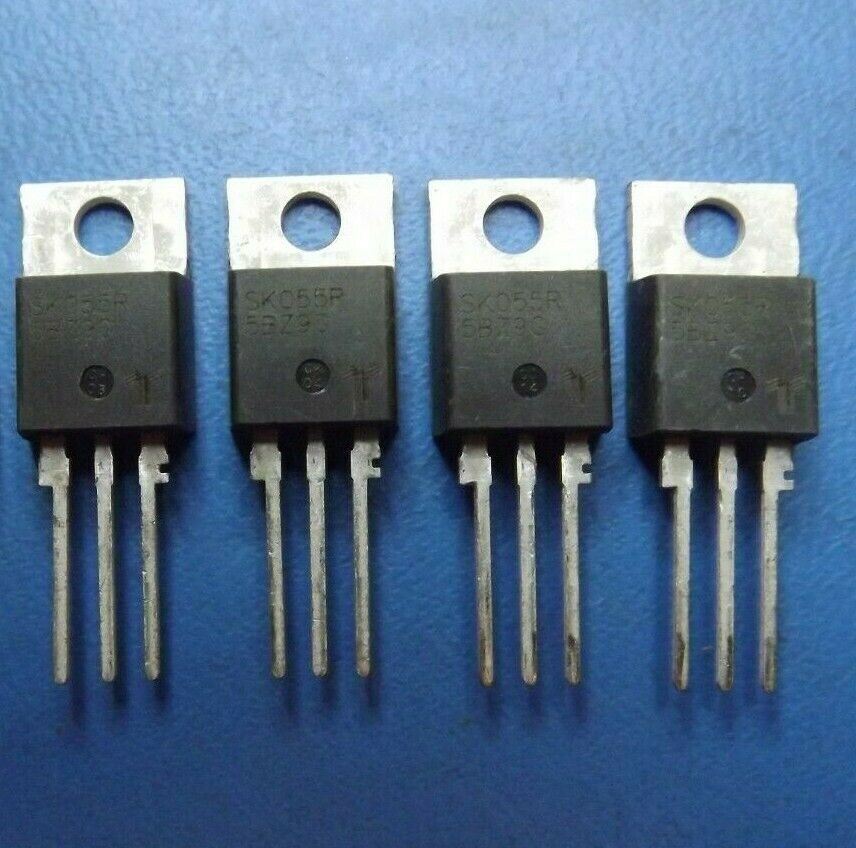

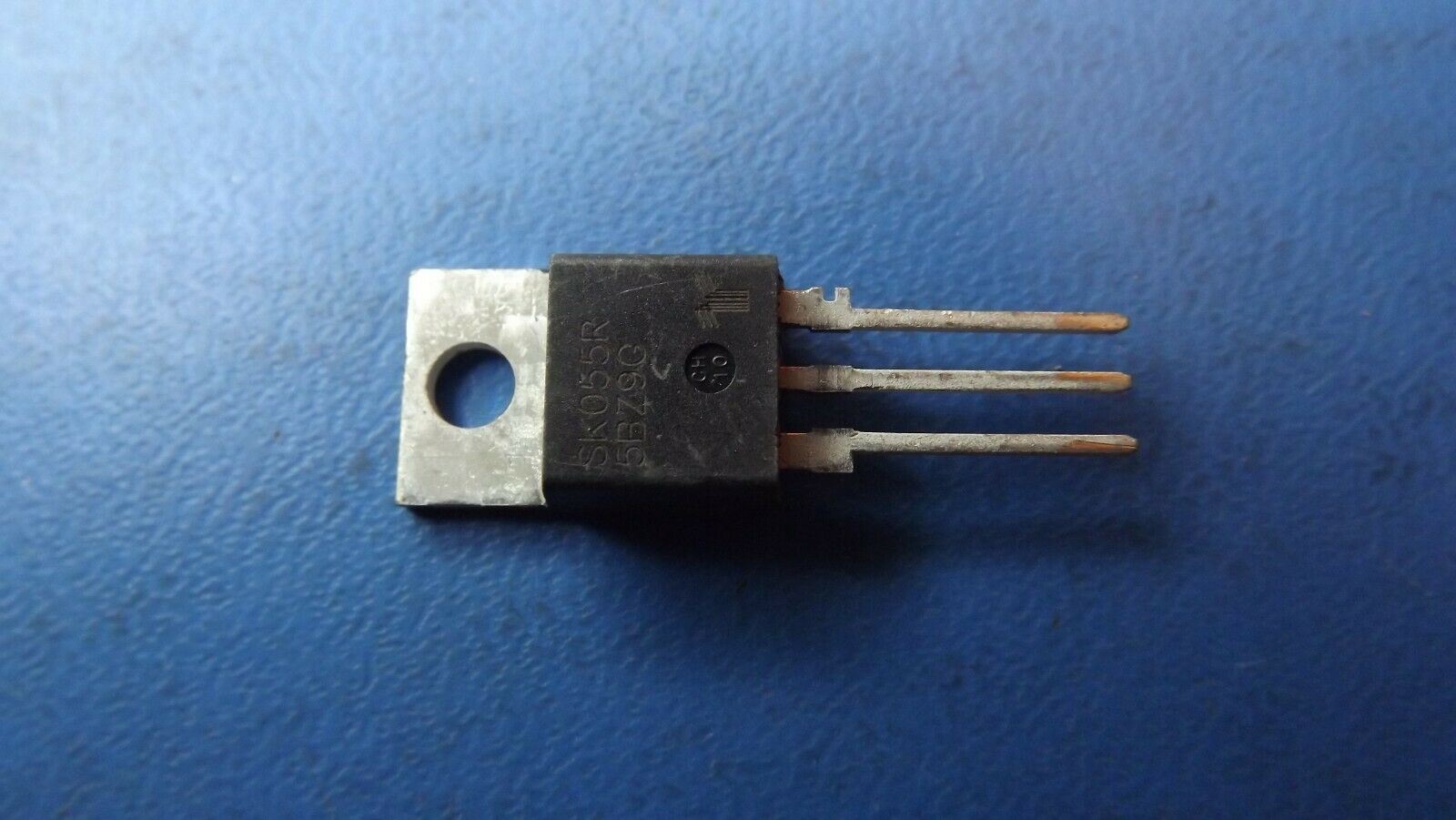

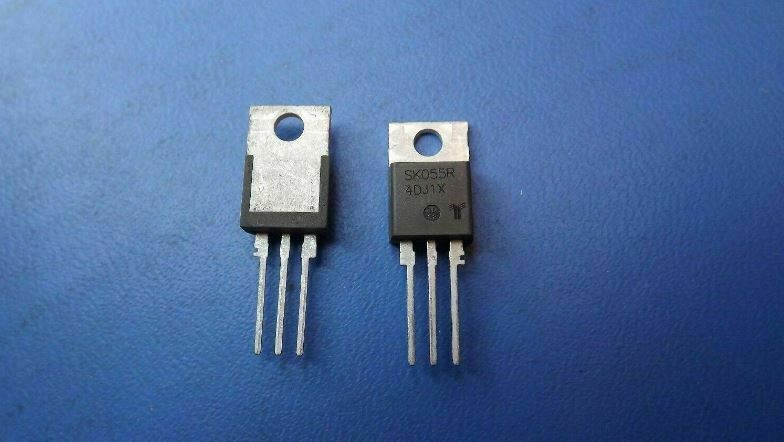

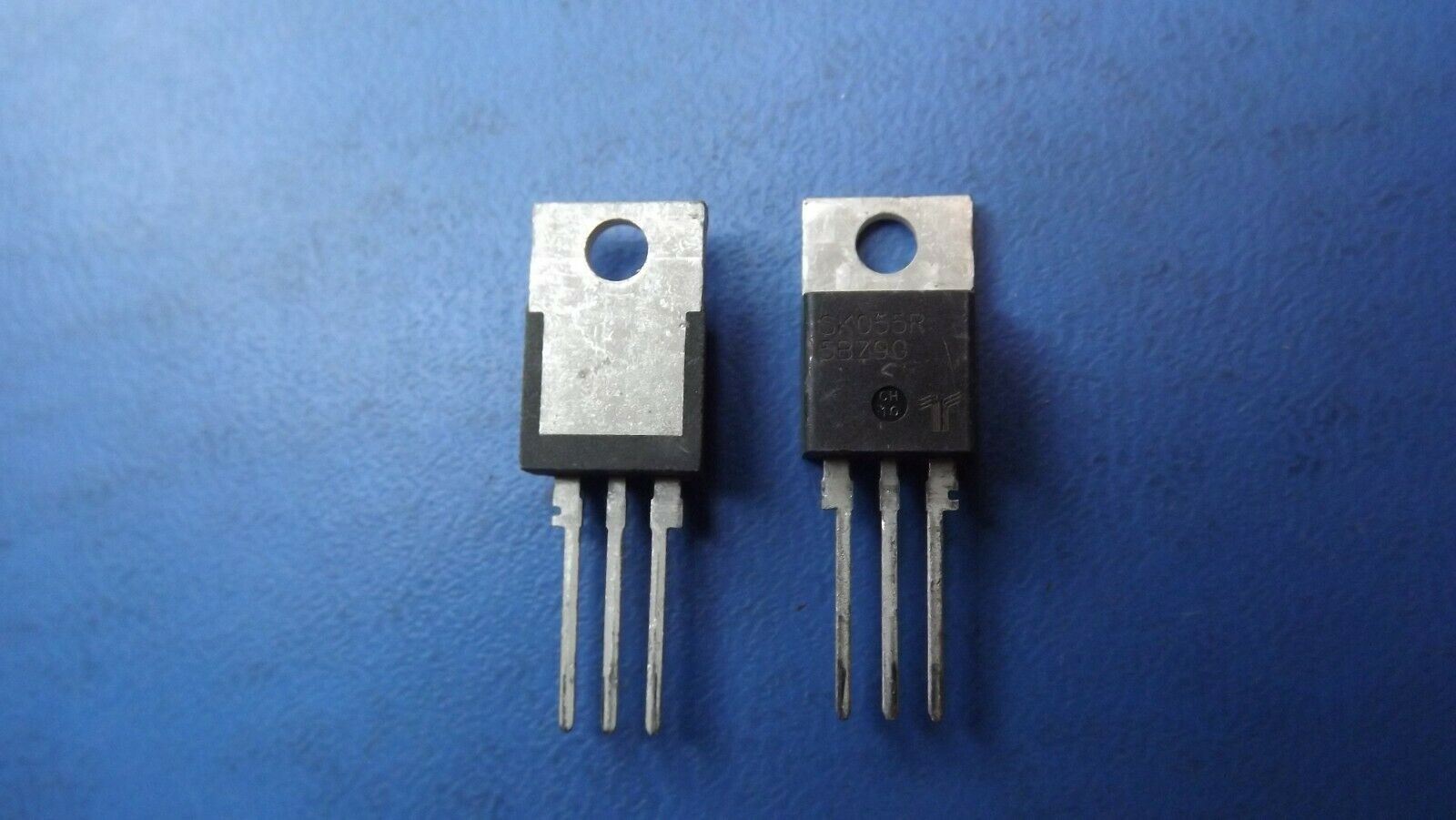

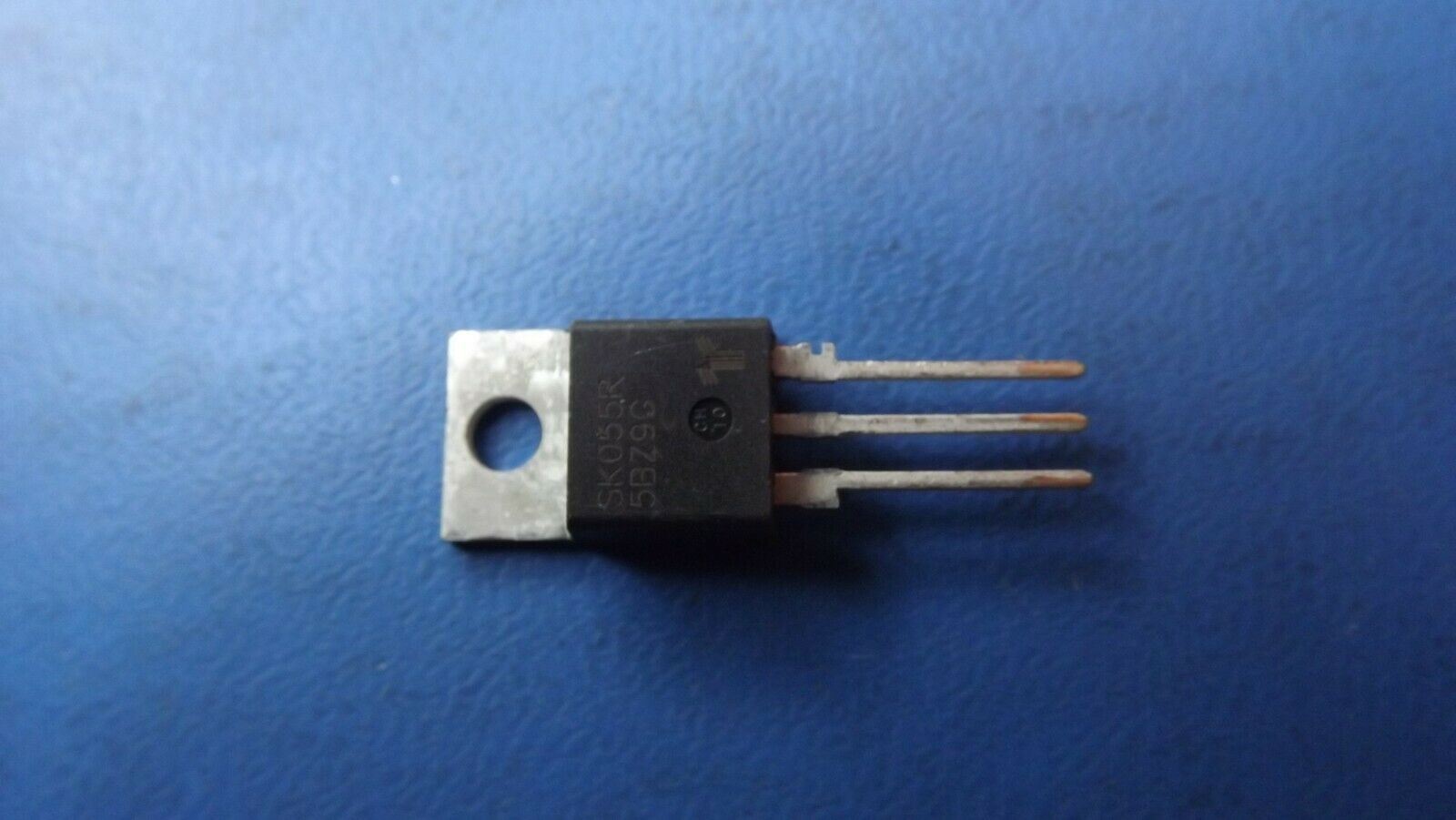

This listing is for 4 pcs of SK055R by Littelfuse/Teccor.
Mfr Package Description ROHS COMPLIANT, PLASTIC PACKAGE-3
EU RoHS Compliant Yes
Status Discontinued
Trigger Device Type SCR
Case Connection ANODE
Configuration SINGLE
Critical Rate of Rise of Off-state Voltage-Min 250.0 V/us
DC Gate Trigger Current-Max 40.0 mA
DC Gate Trigger Voltage-Max 1.5 V
Holding Current-Max 60.0 mA
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
JESD-609 Code e3
Non-Repetitive Pk On-state Cur 650.0 A
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 125.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) 260
Qualification Status Not Qualified
Repetitive Peak Off-state Voltage 1000.0 V
Repetitive Peak Reverse Voltage 1000.0 V
RMS On-state Current-Max 55.0 A
Sub Category Silicon Controlled Rectifiers
Surface Mount NO
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) 40
