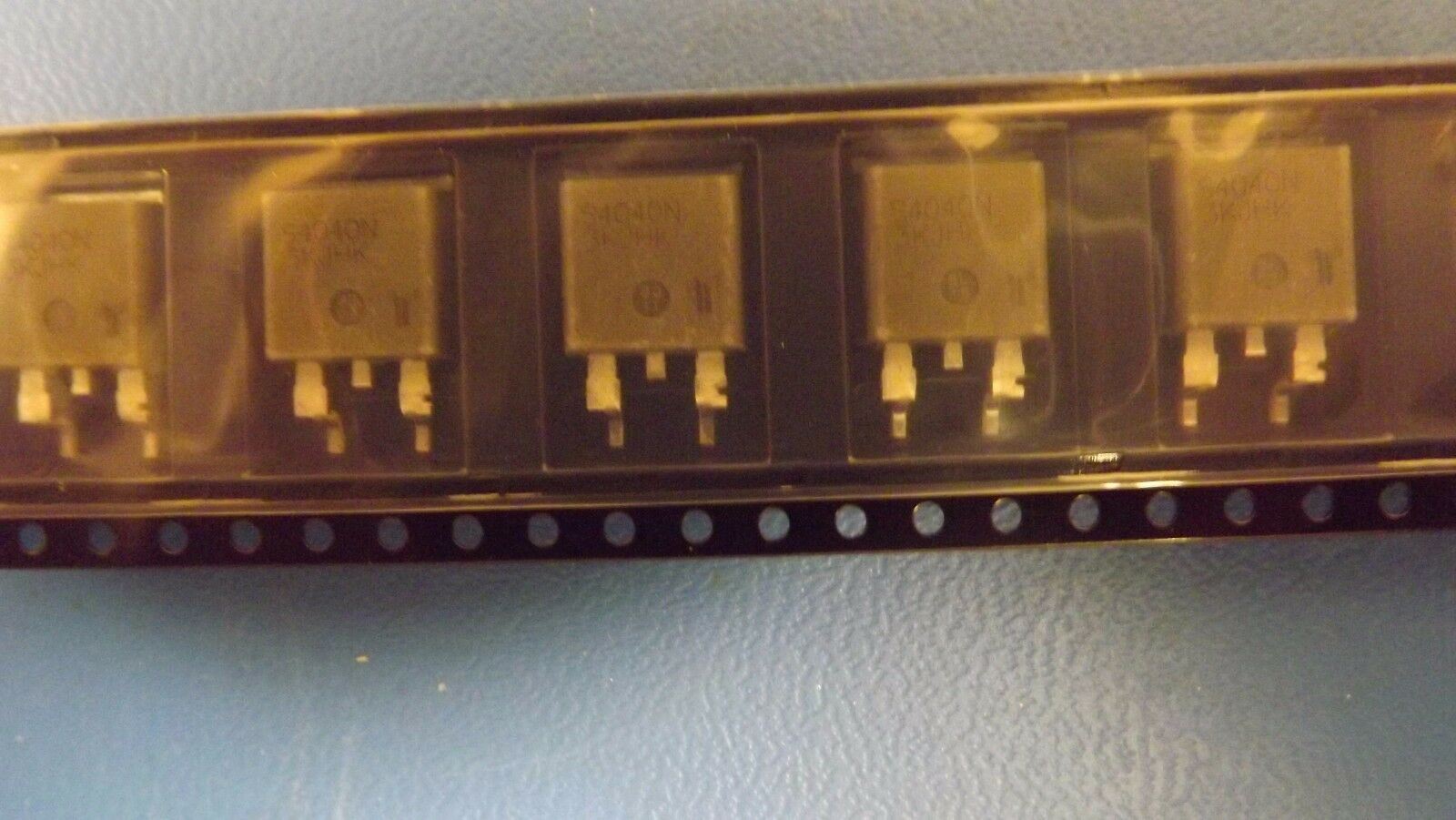

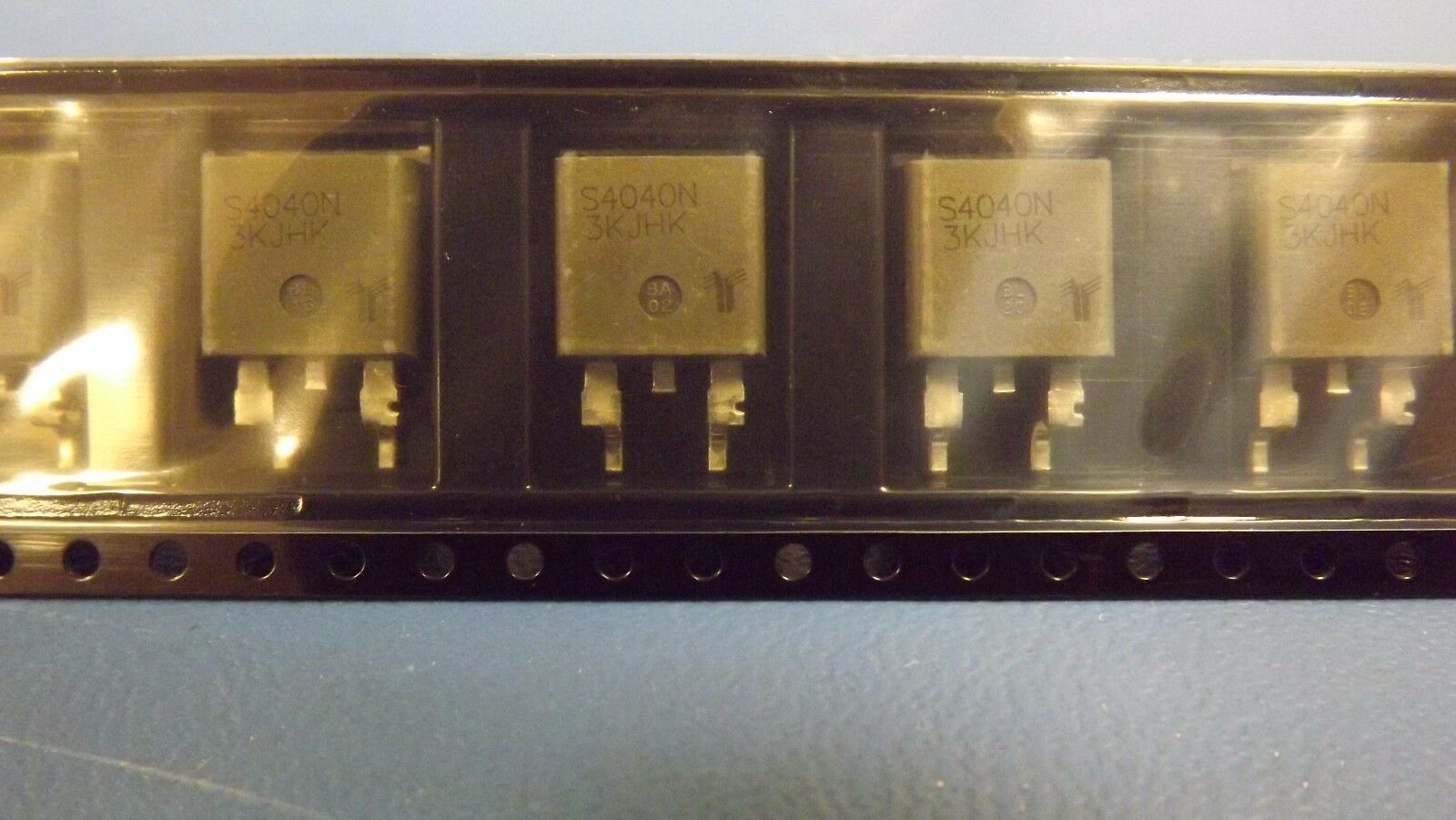

(4PCS) S4040NRP Thyristor SCR 400V 520A 3-Pin(2+Tab) D2PAK
Tax included.
THIS LISTING IS FOR (4PCS) OF S4040NRP BY LITTELFUSE
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, TO-263, D2PAK-3 |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | SCR |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Critical Rate of Rise of Off-state Voltage-Min | 550 V/us |
| DC Gate Trigger Current-Max | 40 mA |
| DC Gate Trigger Voltage-Max | 1.5 V |
| Holding Current-Max | 60 mA |
| JEDEC-95 Code | TO-263AB |
| JESD-30 Code | R-PSSO-G2 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 2 mA |
| Non-Repetitive Pk On-state Cur | 520 A |
| Number of Elements | 1 |
| Number of Terminals | 2 |
| On-State Current-Max | 25000 mA |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 400 V |
| Repetitive Peak Reverse Voltage | 400 V |
| RMS On-state Current-Max | 40 A |
| Sub Category | Silicon Controlled Rectifiers |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 40 |
