(4PCS) OP07CP OP Amp Single GP Añ18V 8-Pin PDIP
Tax included.

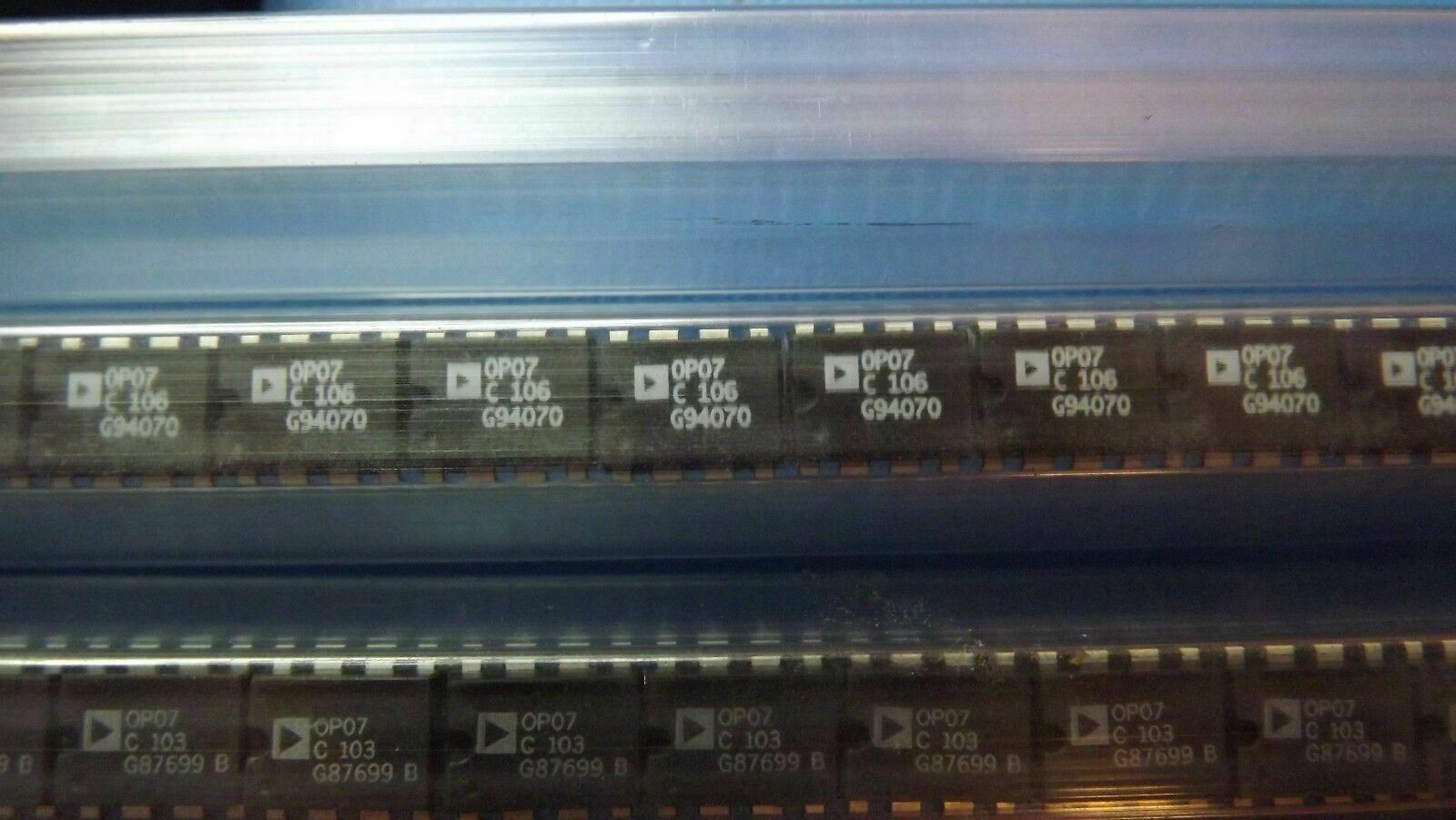

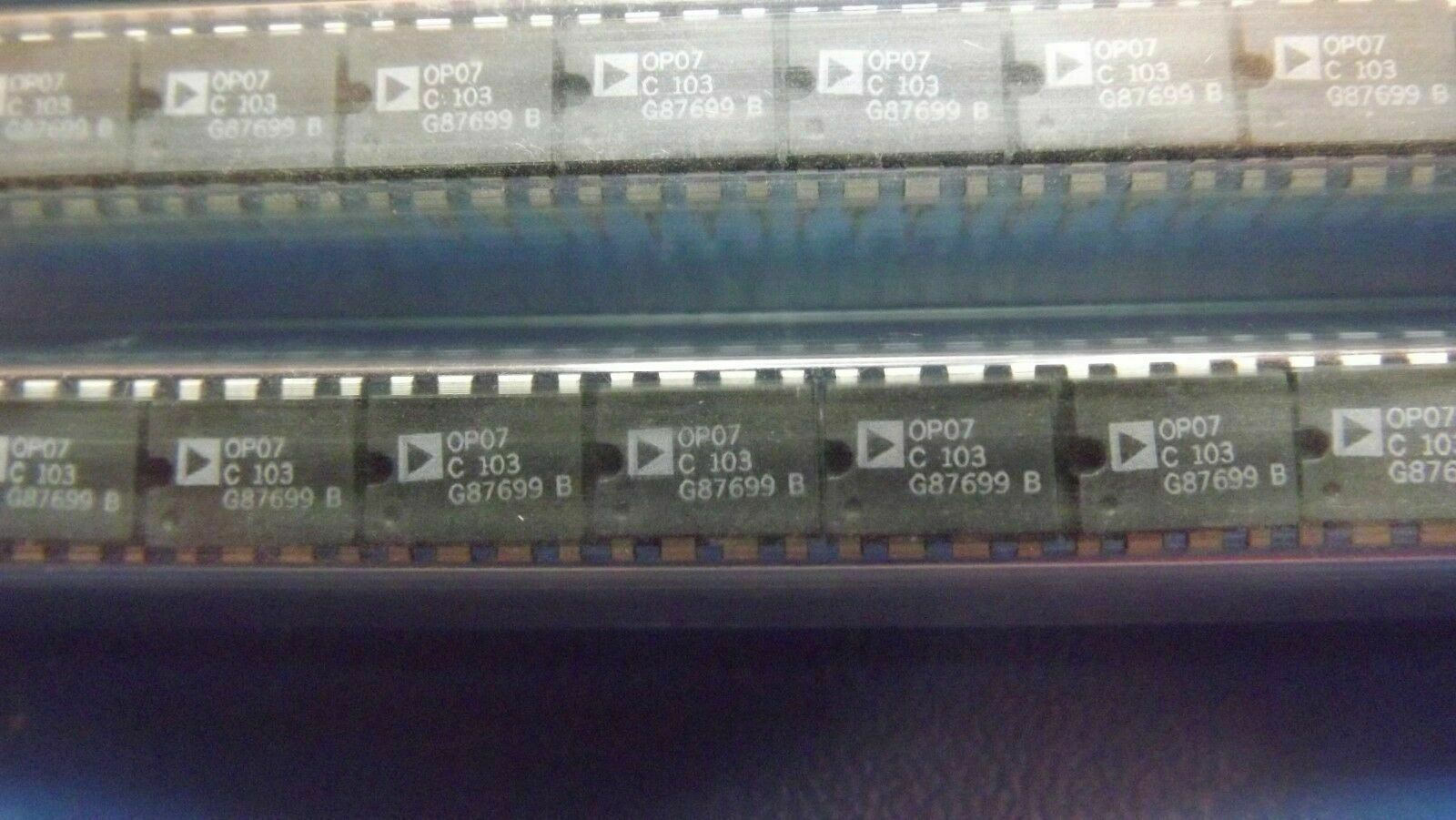

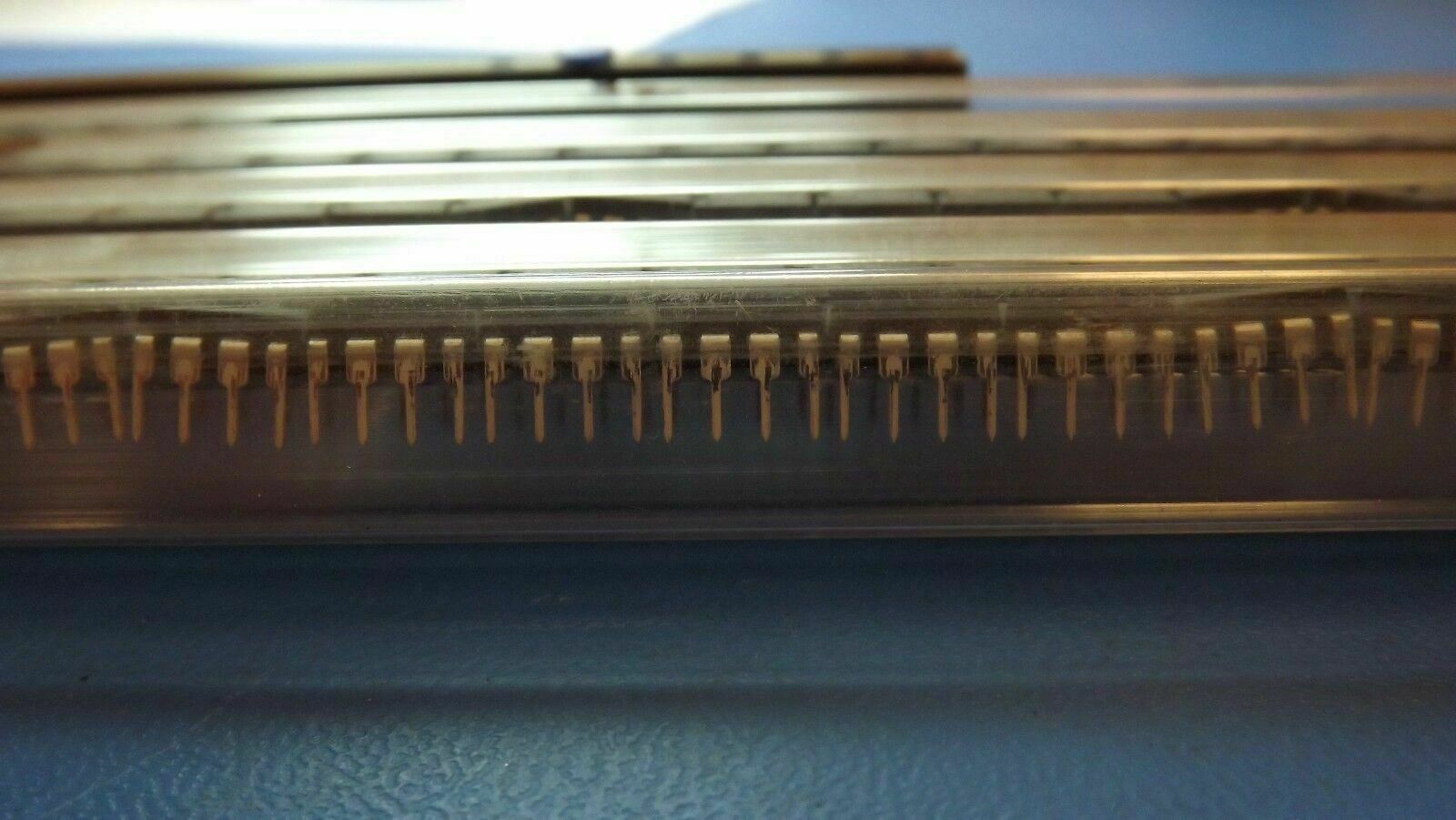

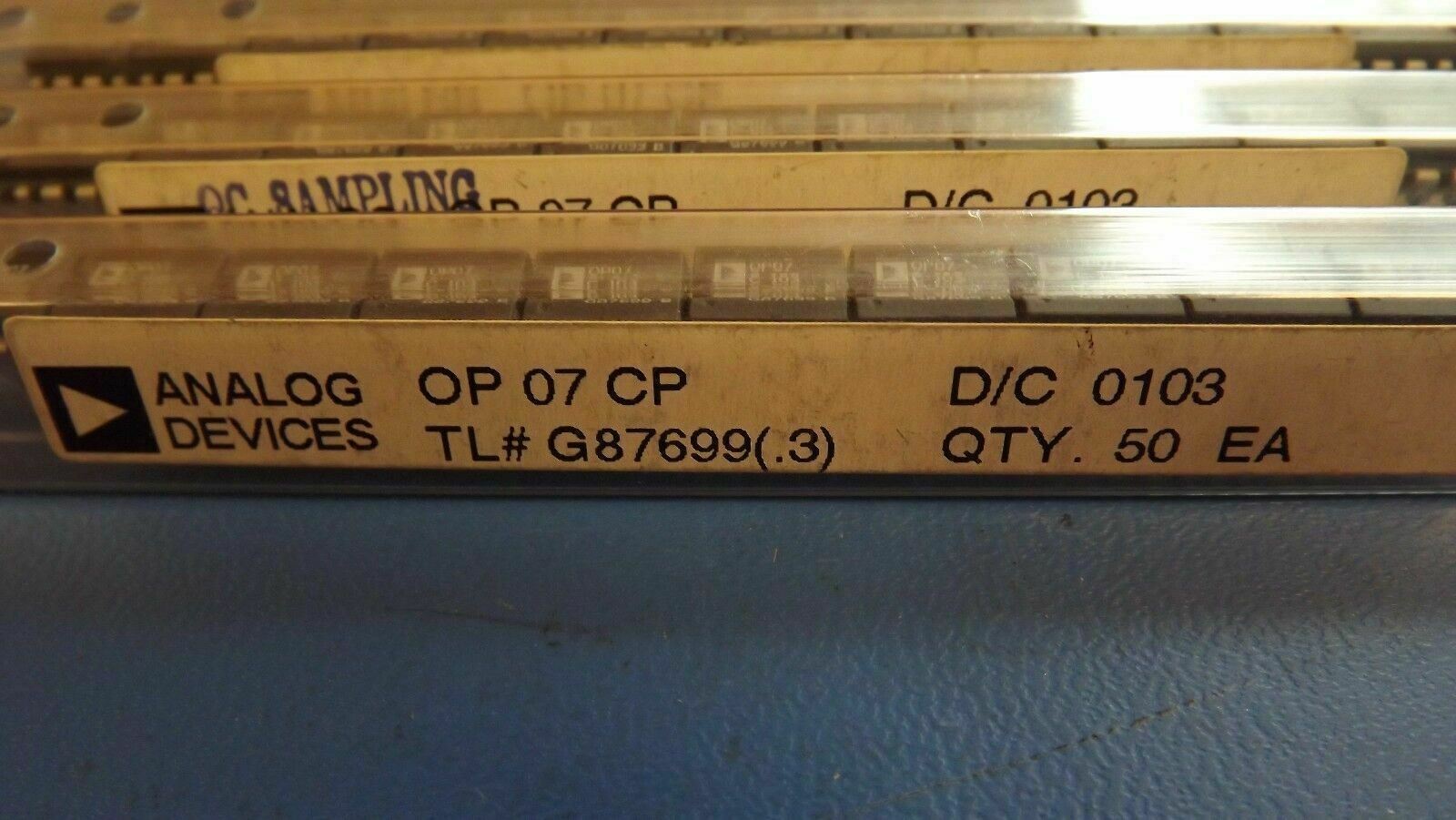

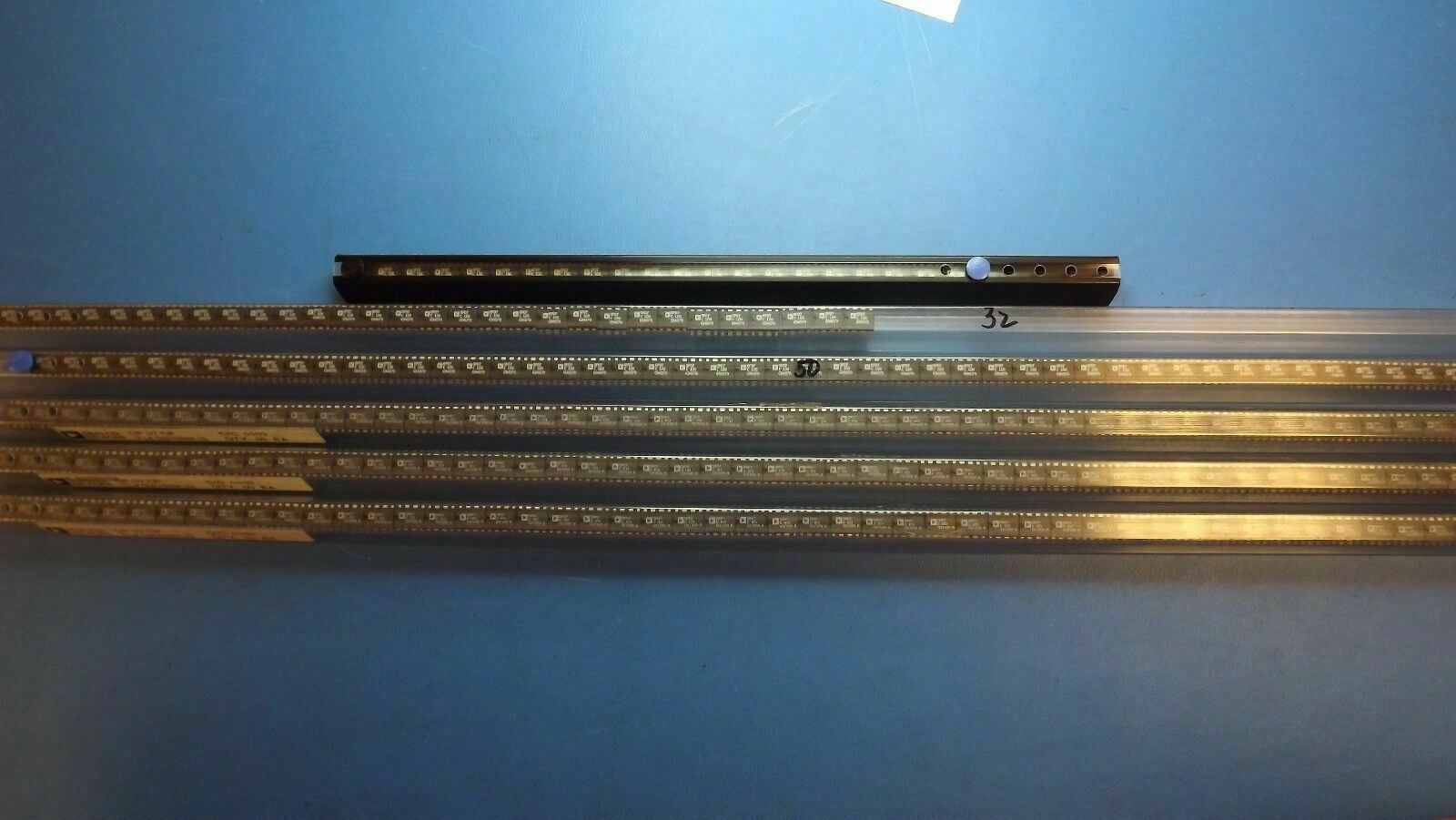

THIS LISTING IS FOR (4PCS) OF OP07CP BY ANALOG DEVICES.
OP Amp Single GP Añ18V 8-Pin PDIP
PART INFORMATION
OP07CP PART DETAILS & PARAMETRIC
| EU RoHS | Not Compliant |
| Manufacturer Type | Low Offset Voltage Amplifier |
| Maximum Input Offset Current (uA) | 0.006@±15V |
| Type | General Purpose Amplifier |
| Number of Channels per Chip | 1 |
| Minimum PSRR (dB) | 103.09(Typ) |
| Technology | Bipolar |
| Rail to Rail | No |
| Power Supply Type | Dual |
| Typical Slew Rate (V/us) | 0.3@±15V |
| Maximum Dual Supply Voltage (V) | ±18 |
| Shut Down Support | No |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Input Offset Voltage (mV) | 0.15@±15V |
| Maximum Input Bias Current (uA) | 0.007@±15V |
| Minimum Dual Supply Voltage (V) | ±3 |
| Typical Dual Supply Voltage (V) | ±5|±9|±12|±15 |
| Minimum CMRR (dB) | 100 |
| Typical Voltage Gain (dB) | 112.04 |
| Maximum Operating Temperature (°C) | 85 |
| Mounting | Through Hole |
| Package Height (mm) | 3.3 |
| Package Length (mm) | 9.27 |
| Package Width (mm) | 6.35 |
| PCB | 8 |
| Standard Package Name | DIP |
| Supplier Package | PDIP N |
| Pin Count | 8 |
| Lead Shape | Through Hole |
