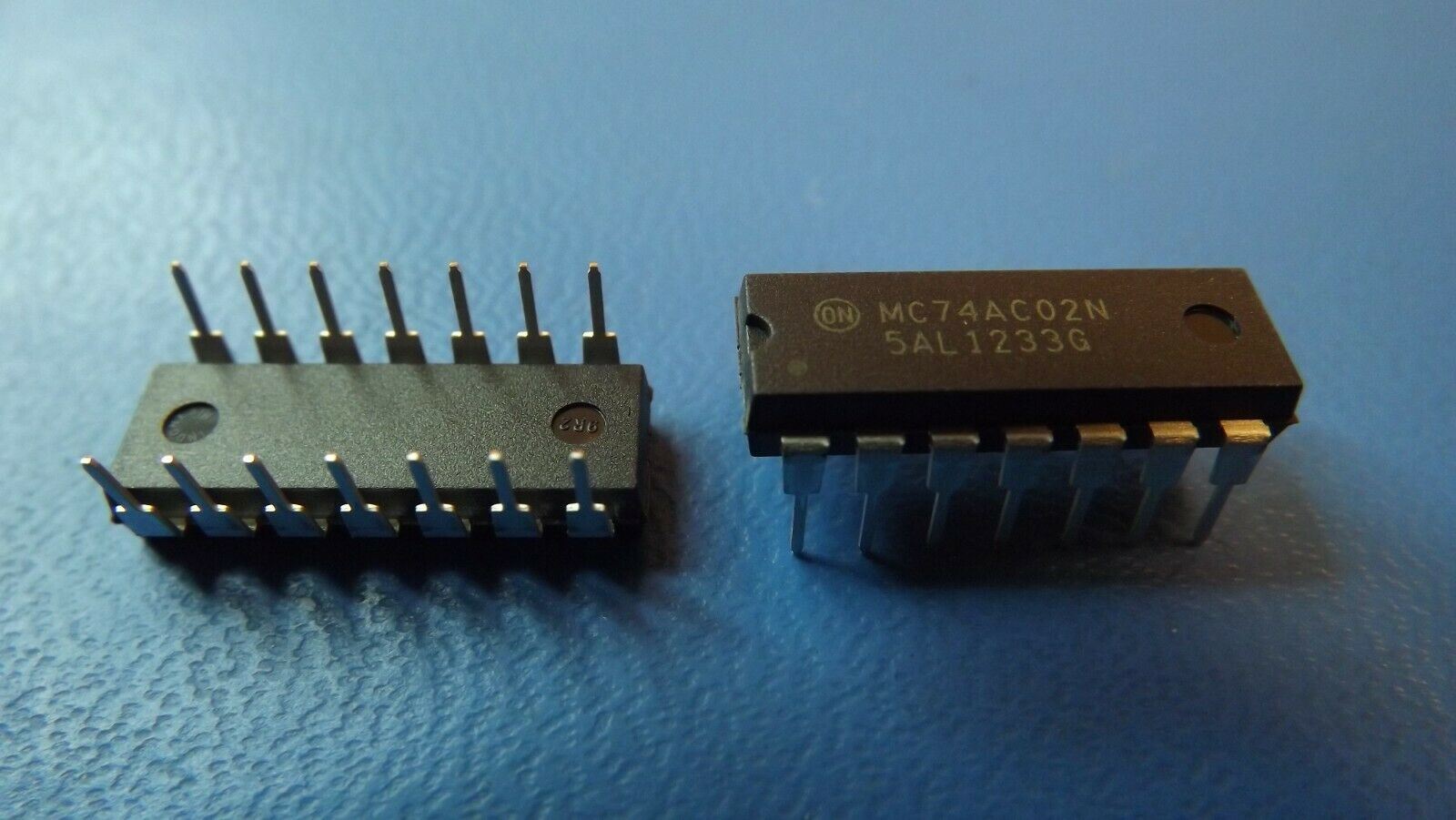

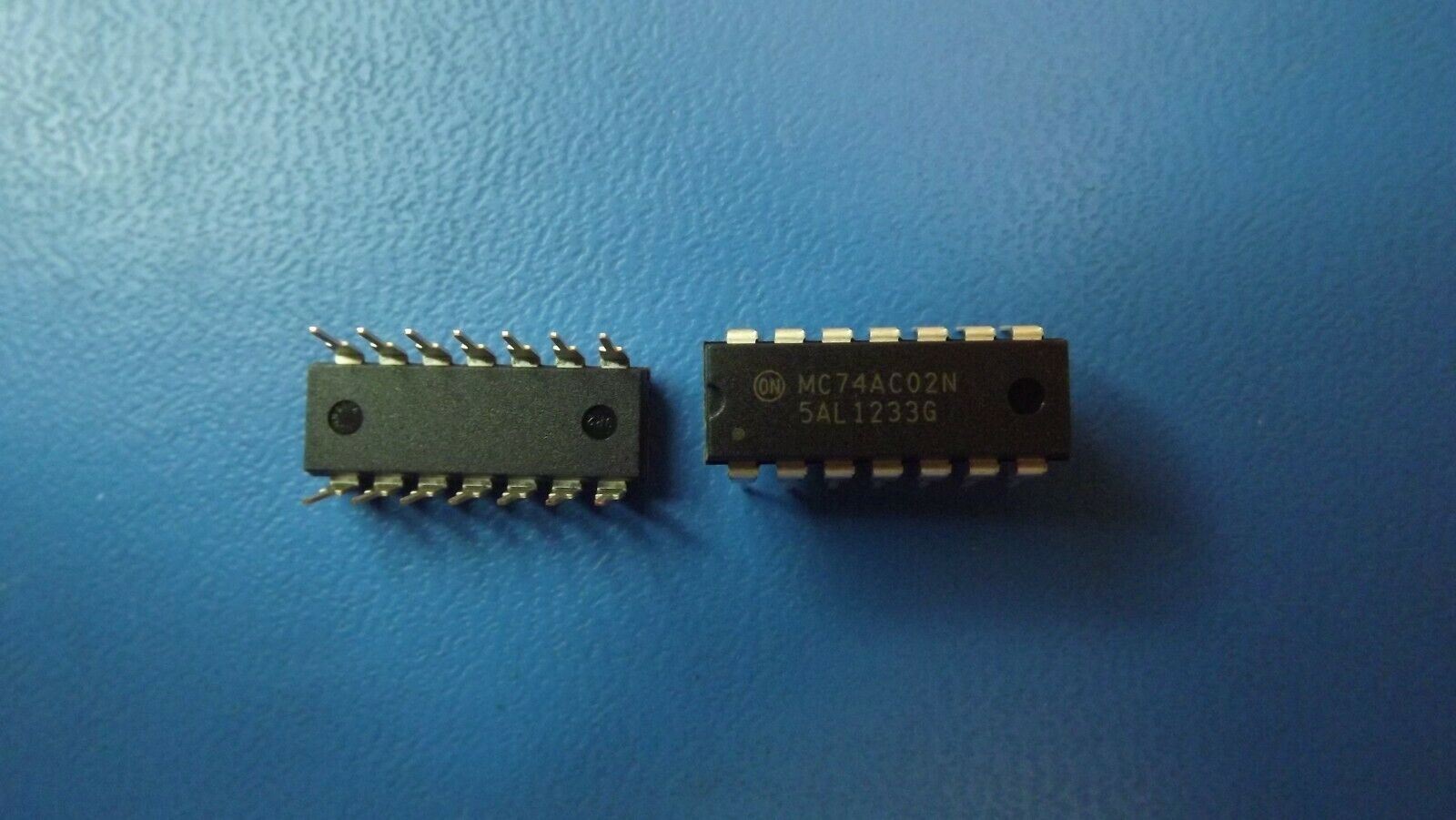

(4PCS) MC74AC02NG ON SEMI IC GATE NOR 4CH 2-INP 14-DIP
Tax included.

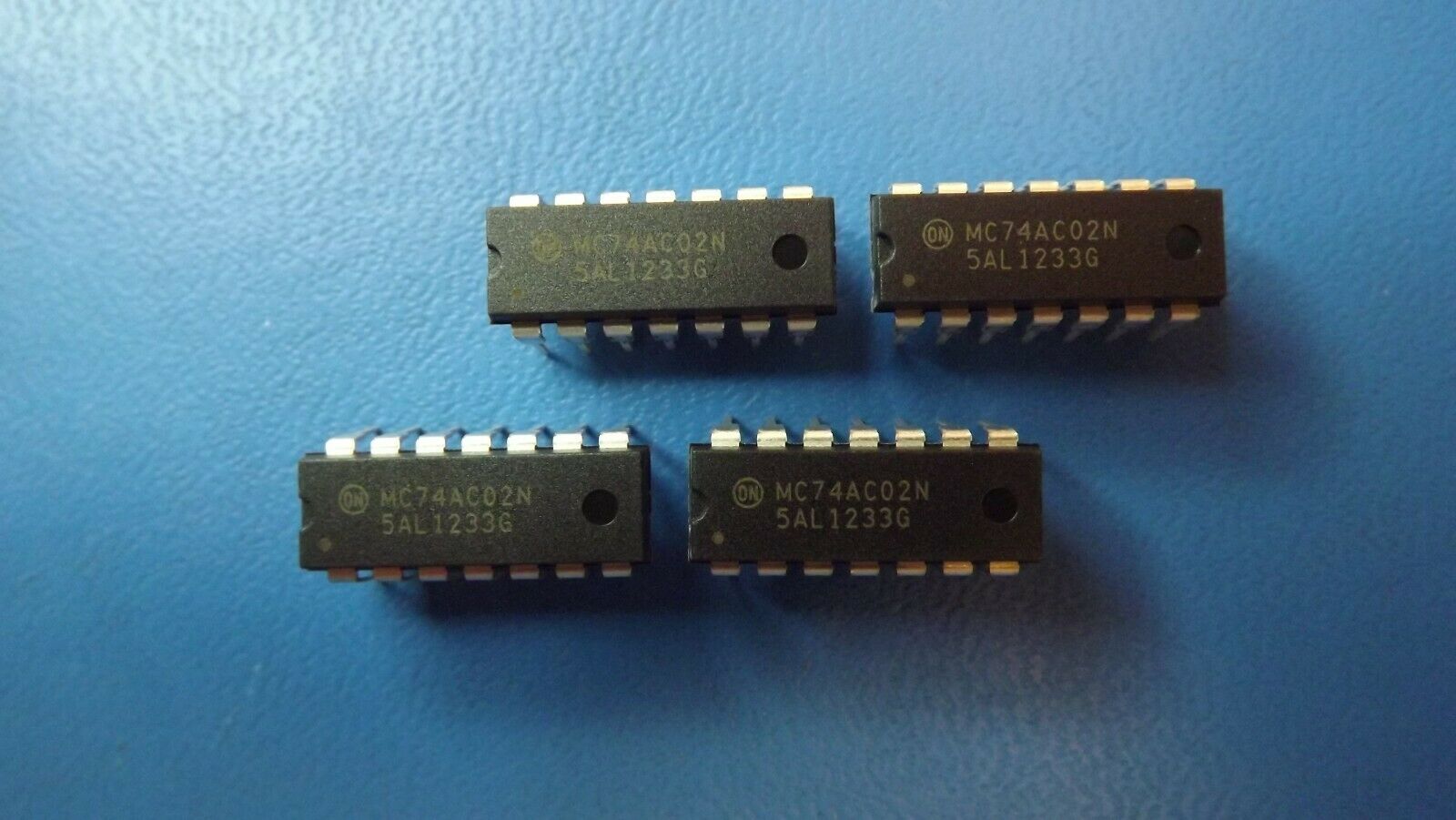

THIS LISTING IS FOR (4PCS) OF MC74AC02NG BY ON SEMICONDUCTOR
Manufacturer:ON Semiconductor
Product Category:Logic Gates
RoHS: Details
Product:Single-Function Gate
Logic Function:NOR
Logic Family:74AC
Number of Gates:4 Gate
Number of Input Lines:2 Input
Number of Output Lines:1 Output
High Level Output Current:- 24 mA
Low Level Output Current:24 mA
Propagation Delay Time:7.5 ns
Supply Voltage - Max:6 V
Supply Voltage - Min:2 V
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Mounting Style:Through Hole
Package / Case:PDIP-14
Packaging:Tube
Function:NOR
Height:3.68 mm
Length:19.56 mm
Width:6.6 mm
Brand:ON Semiconductor
Logic Type:2-Input NOR
Operating Supply Voltage:5 V
