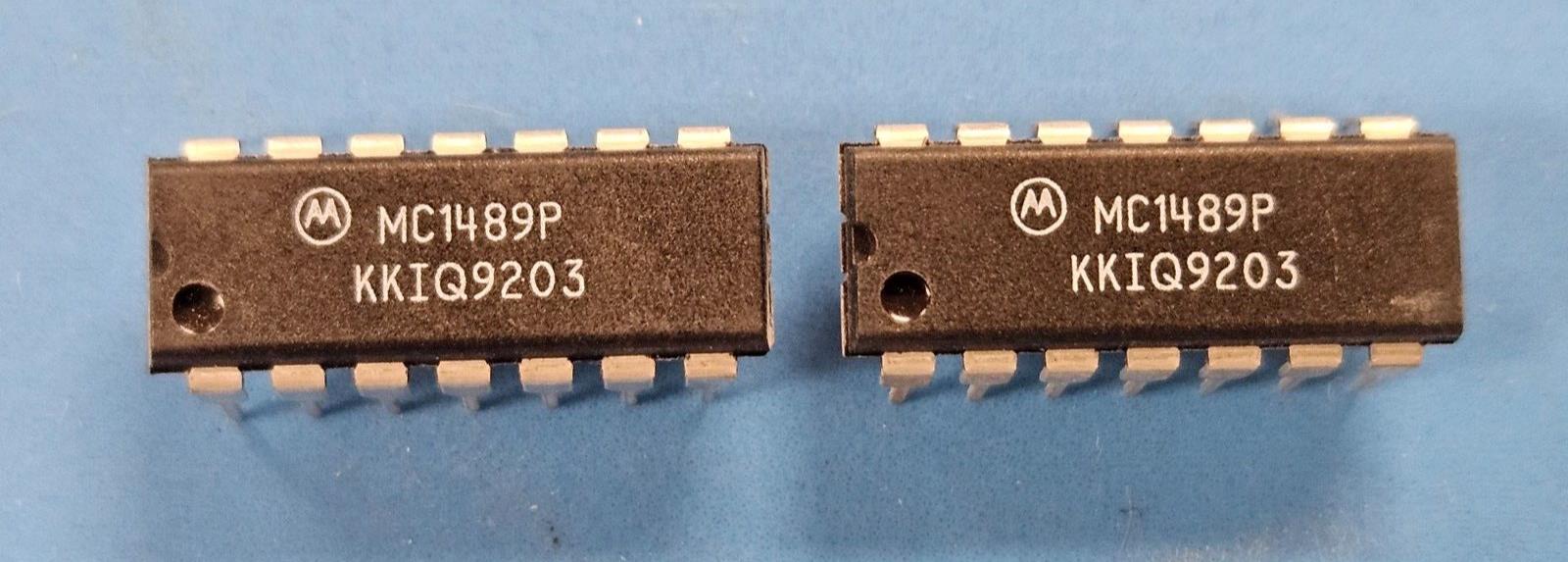

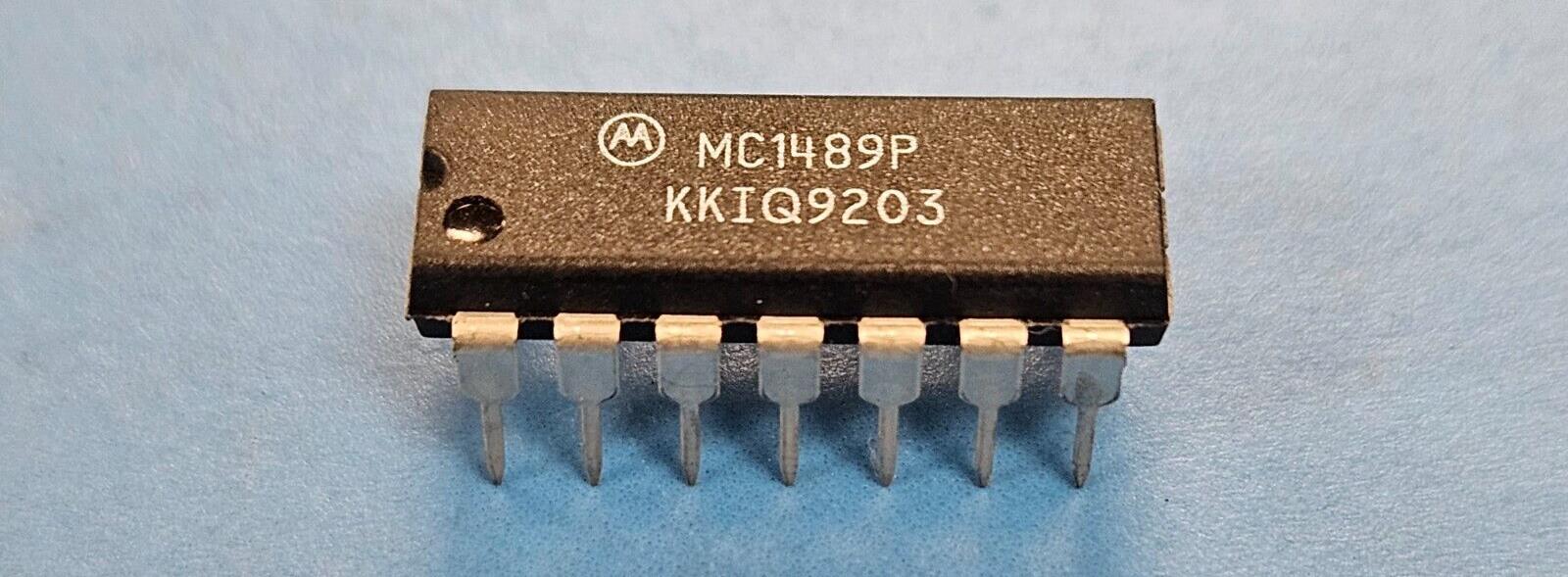

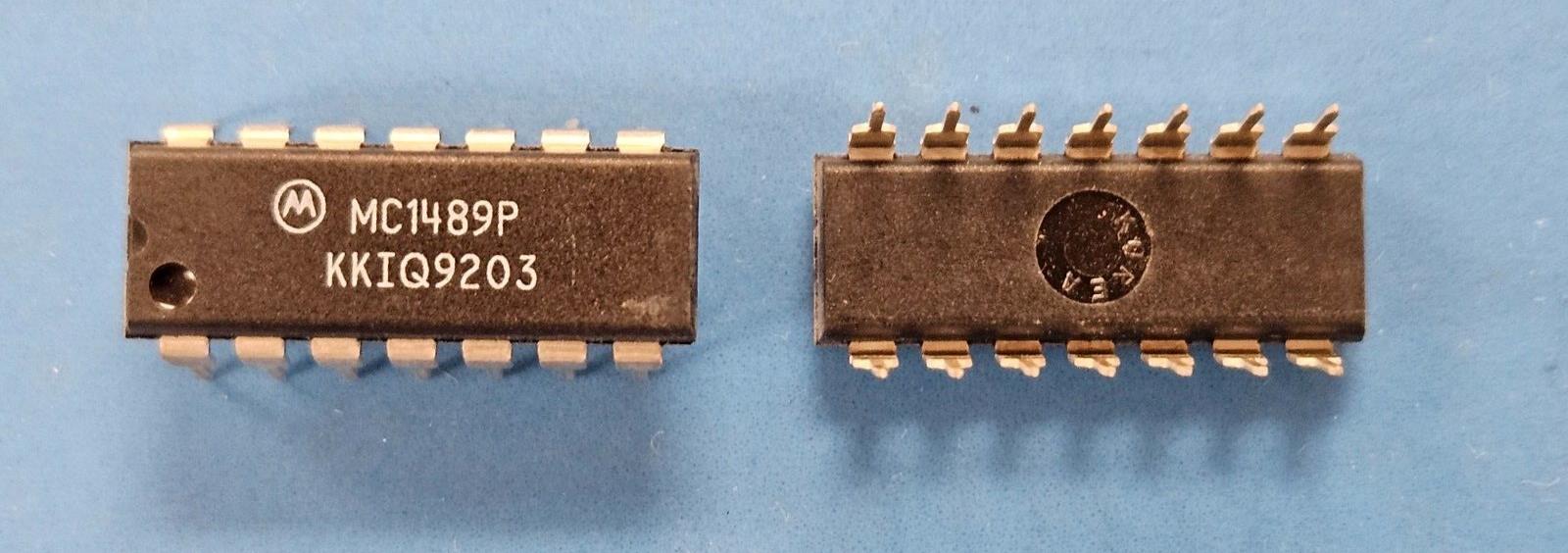

(4PCS) MC1489P MOTOROLA Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDIP14
Tax included.
THIS LISTING IS FOR (4PCS) OF MC1489P BY MOTOROLA
Mfr Package Description PLASTIC, DIP-14
Status Transferred
Interface IC Type LINE RECEIVER
Input Characteristics SCHMITT TRIGGER
Interface Standard EIA-232-D
JESD-30 Code R-PDIP-T14
JESD-609 Code e0
Number of Functions 4
Number of Terminals 14
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Output Low Current-Max 0.01 Amp
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Receive Delay-Max 50.0 ns
Receiver Number of Bits 4.0
Seated Height-Max 4.69 mm
Sub Category Line Driver or Receivers
Supply Current-Max 26.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 18.86 mm
Width 7.62 mm
Additional Feature RESPONSE CONTROL
