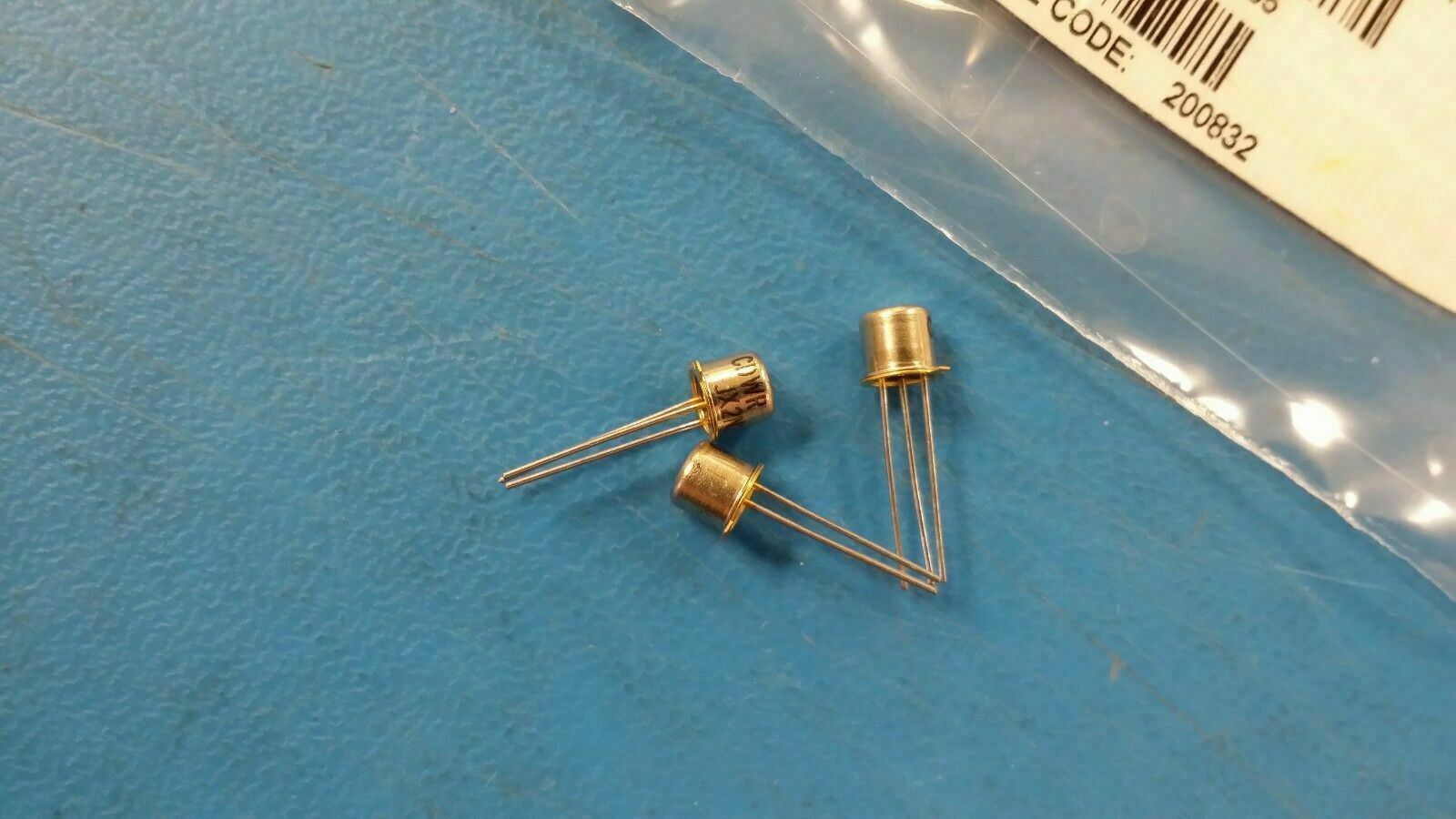

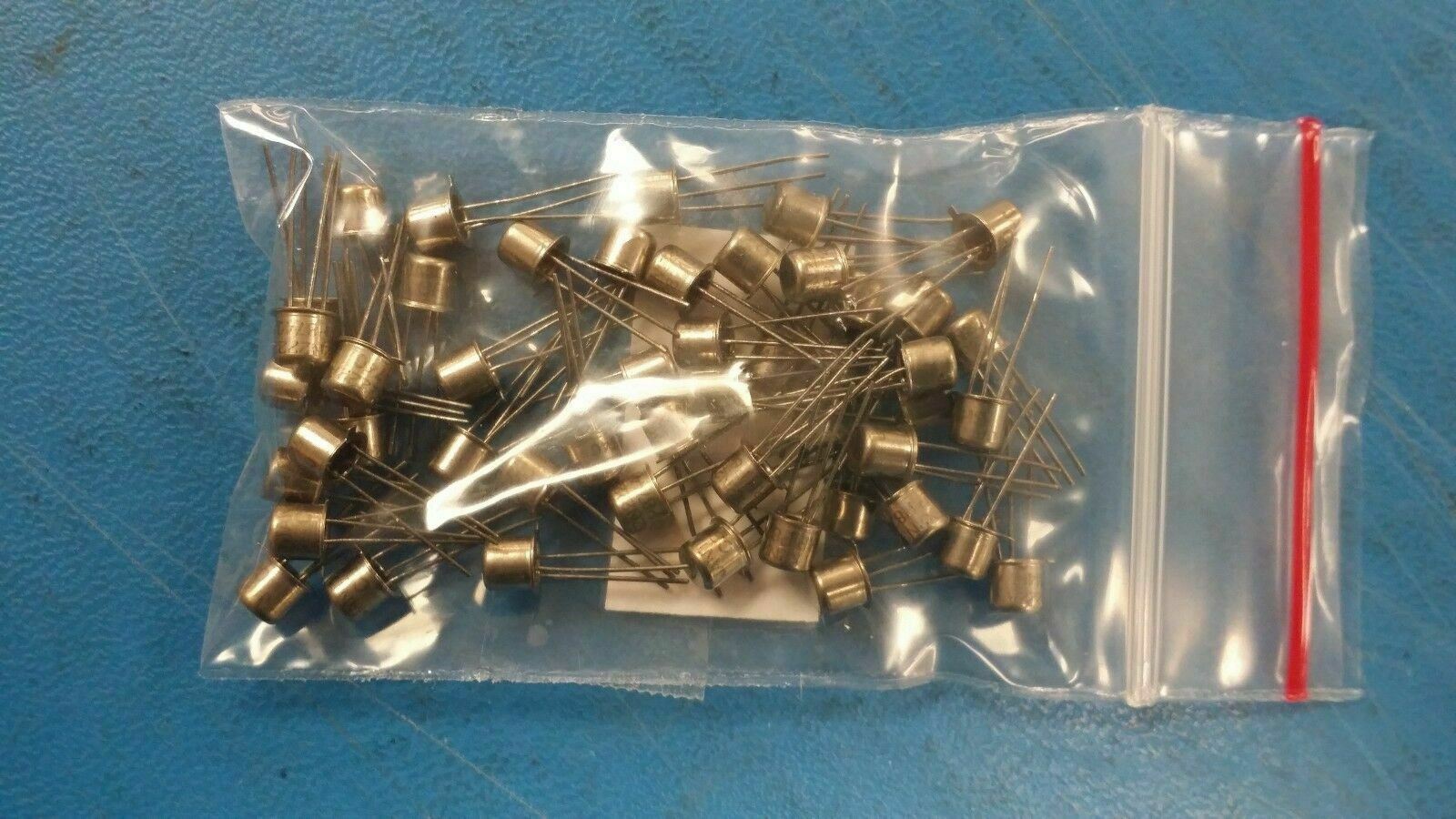

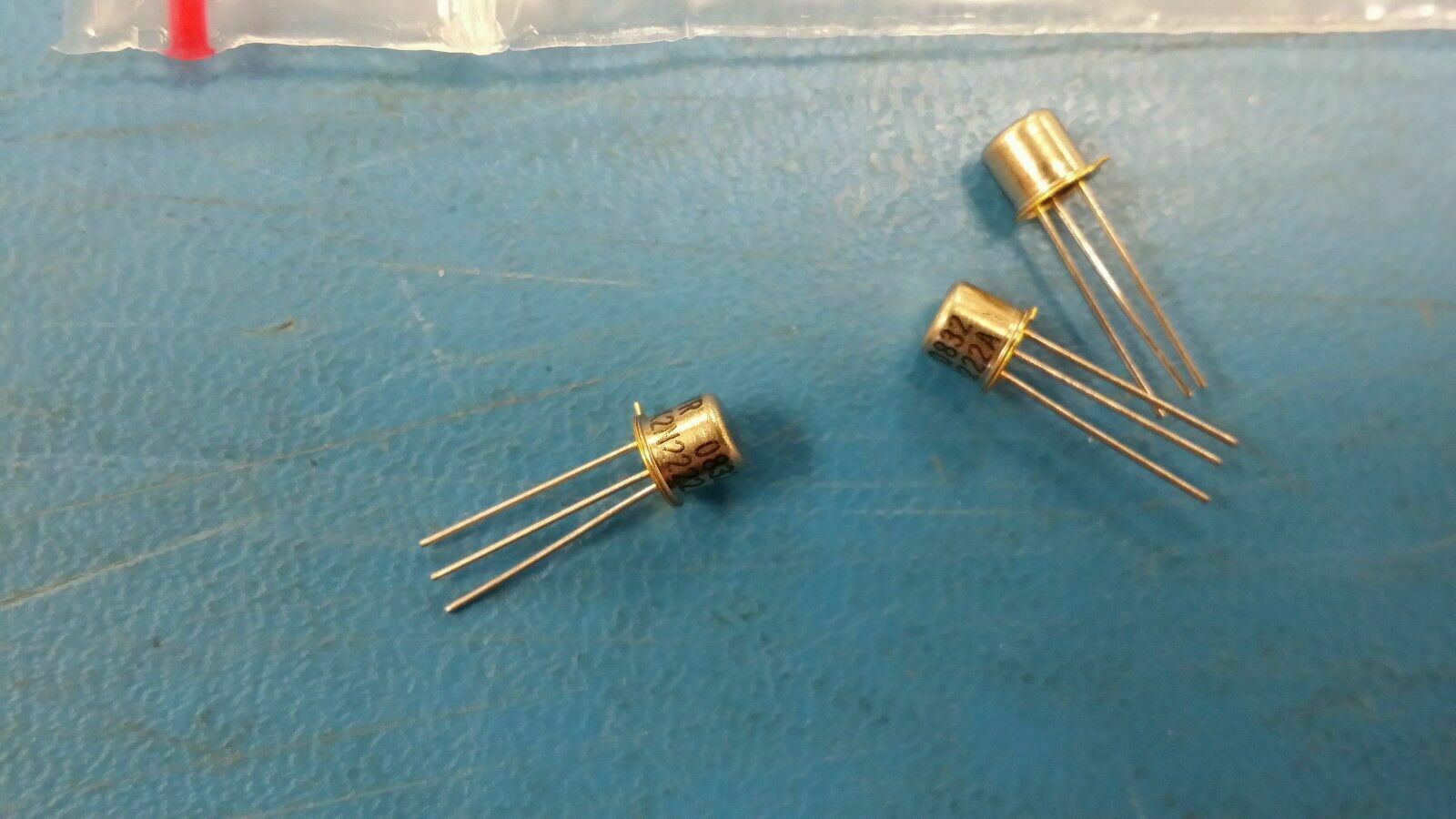

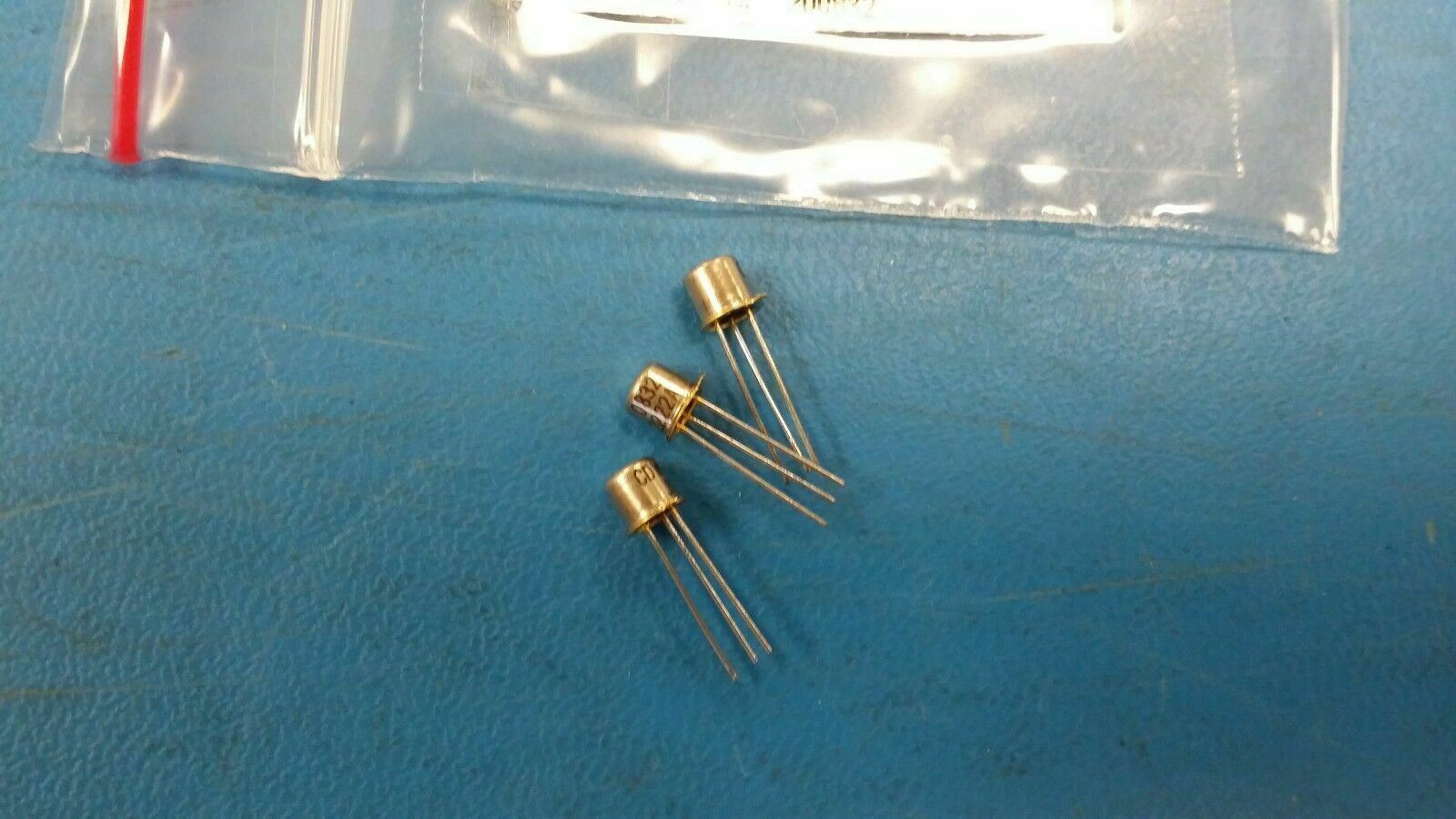

(4pcs) JANTX2N2222A CRP/CDWR Transistor GP BJT NPN 50V 0.8A 3-Pin TO-18
Tax included.

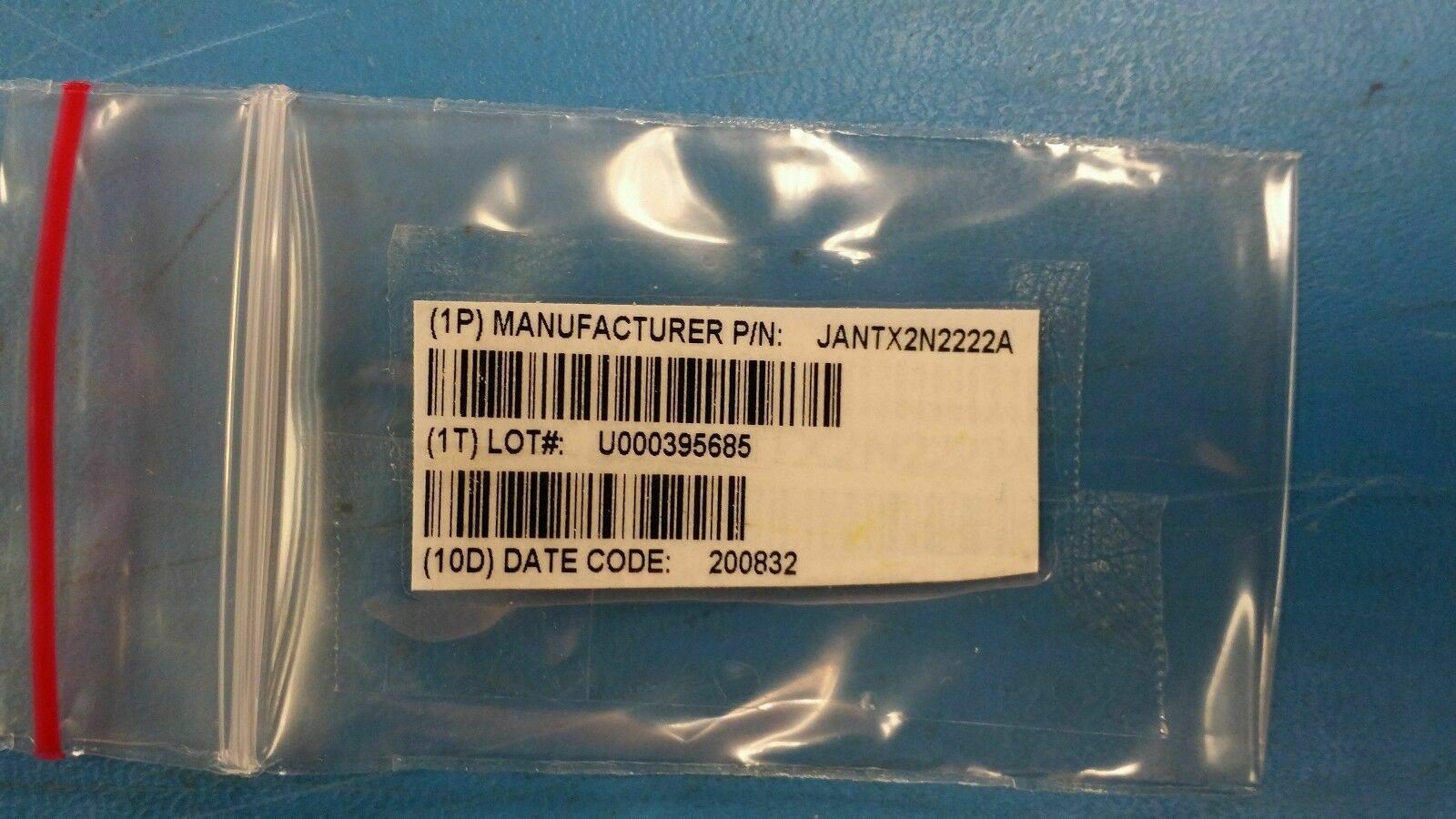

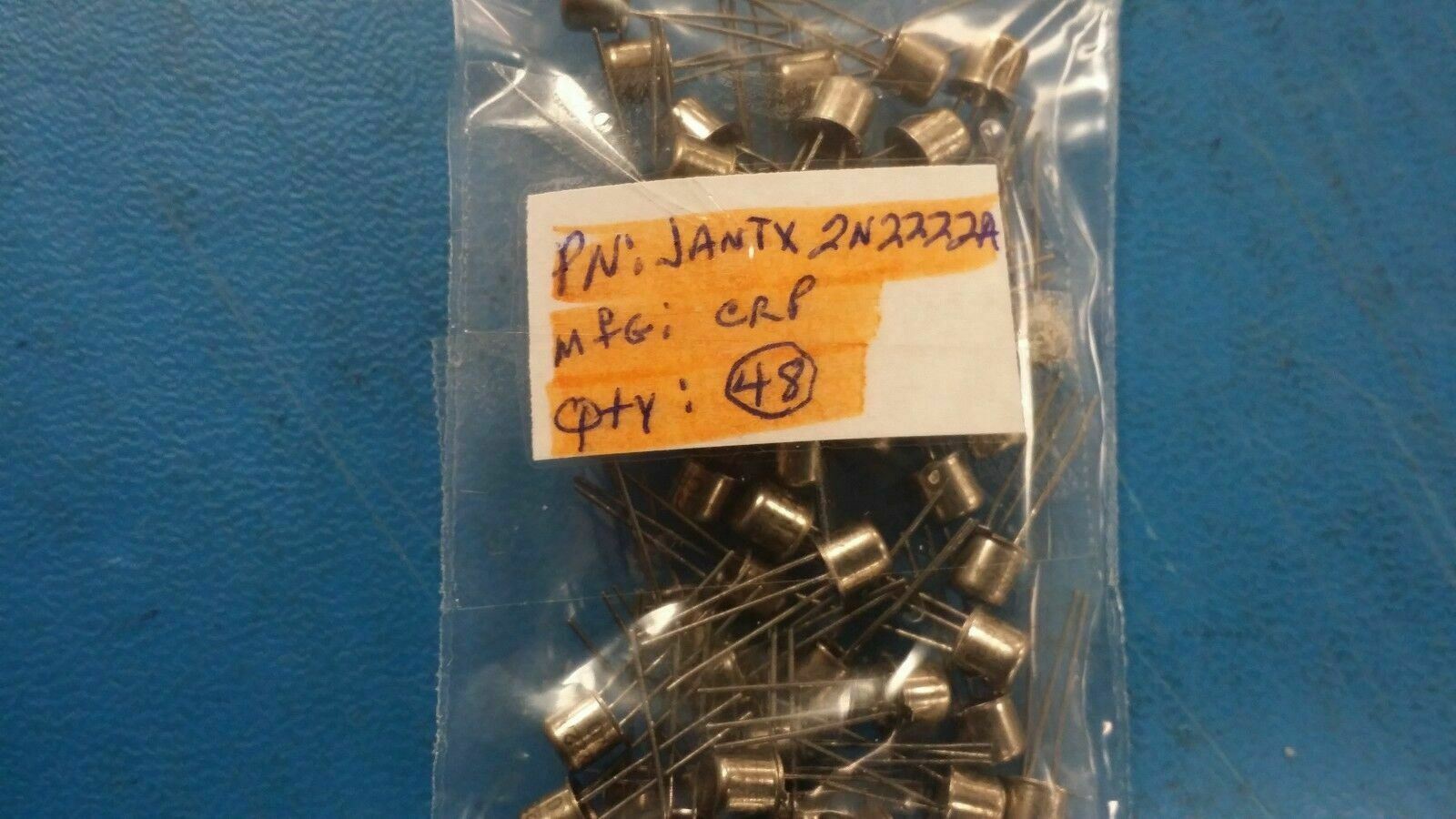

THIS LISTING IS FOR (5 PCS) OF JANTX2N2222A BY CRP/CDWR
Trans GP BJT NPN 50V 0.8A 3-Pin TO-18
JANTX2N2222A Part Details & Parametric
| EU RoHS | Not Compliant |
| Screening Level | Military |
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 200 |
| Type | NPN |
| Maximum Collector Base Voltage (V) | 75 |
| Maximum Emitter Base Voltage (V) | 6 |
| Maximum Collector Emitter Voltage (V) | 50 |
| Maximum Power Dissipation (mW) | 500 |
| Maximum DC Collector Current (A) | 0.8 |
| Minimum DC Current Gain | 50@0.1mA@10V|75@1mA@10V|100@10mA@10V|100@150mA@10V|30@500mA@10V |
| Number of Elements per Chip | 1 |
| Category | Bipolar Power |
| Package Diameter (mm) | 5.84(Max) |
| Mounting | Through Hole |
| Package Height (mm) | 5.33(Max) |
| PCB | 3 |
| Standard Package Name | TO-206-AA |
| Supplier Package | TO-18 |
| Pin Count | 3 |
