(4PCS) 74FCT162652ATPV Registered Bus Transceiver 2-Func 8-Bit True Output CMOS
Tax included.

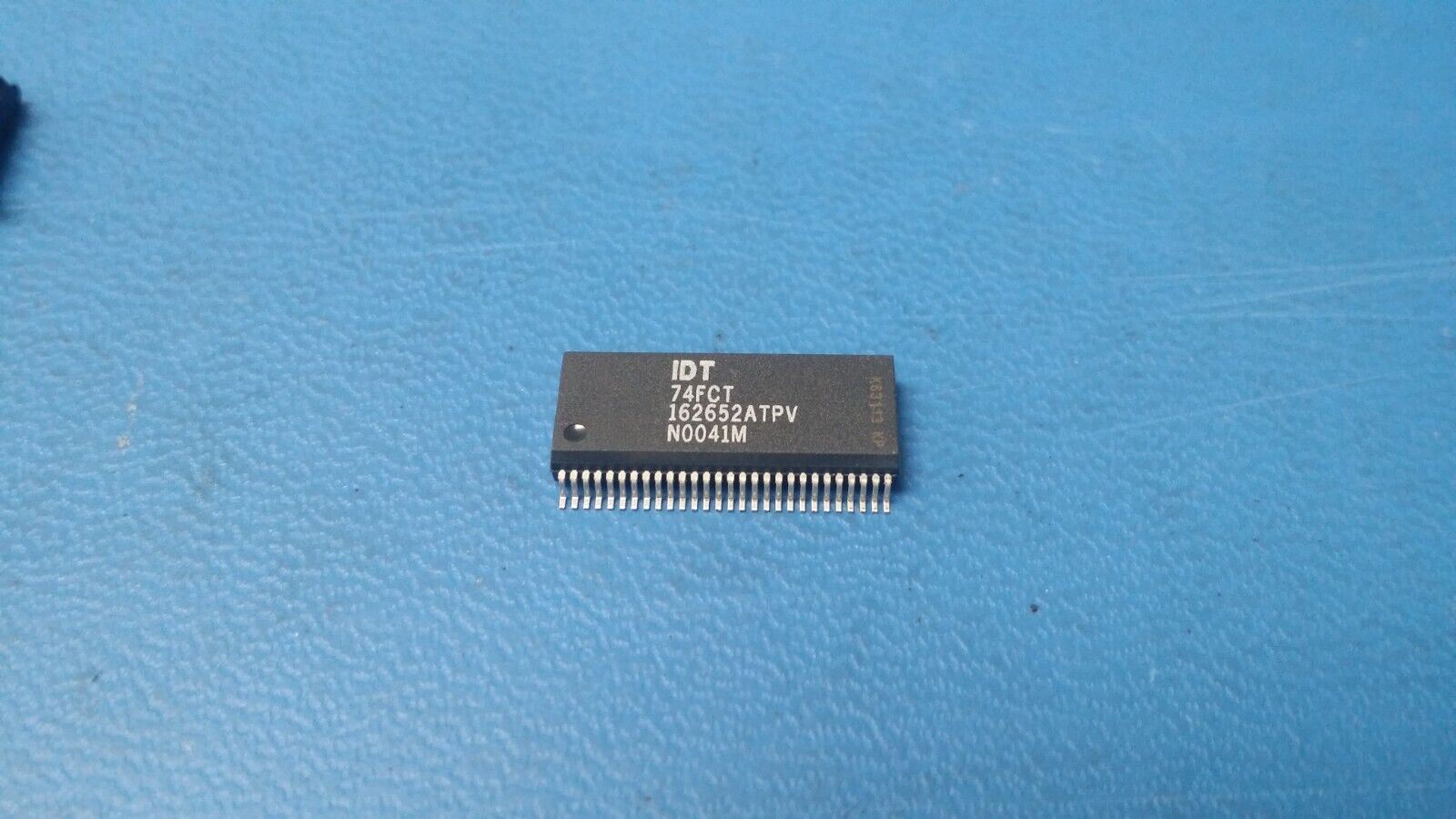

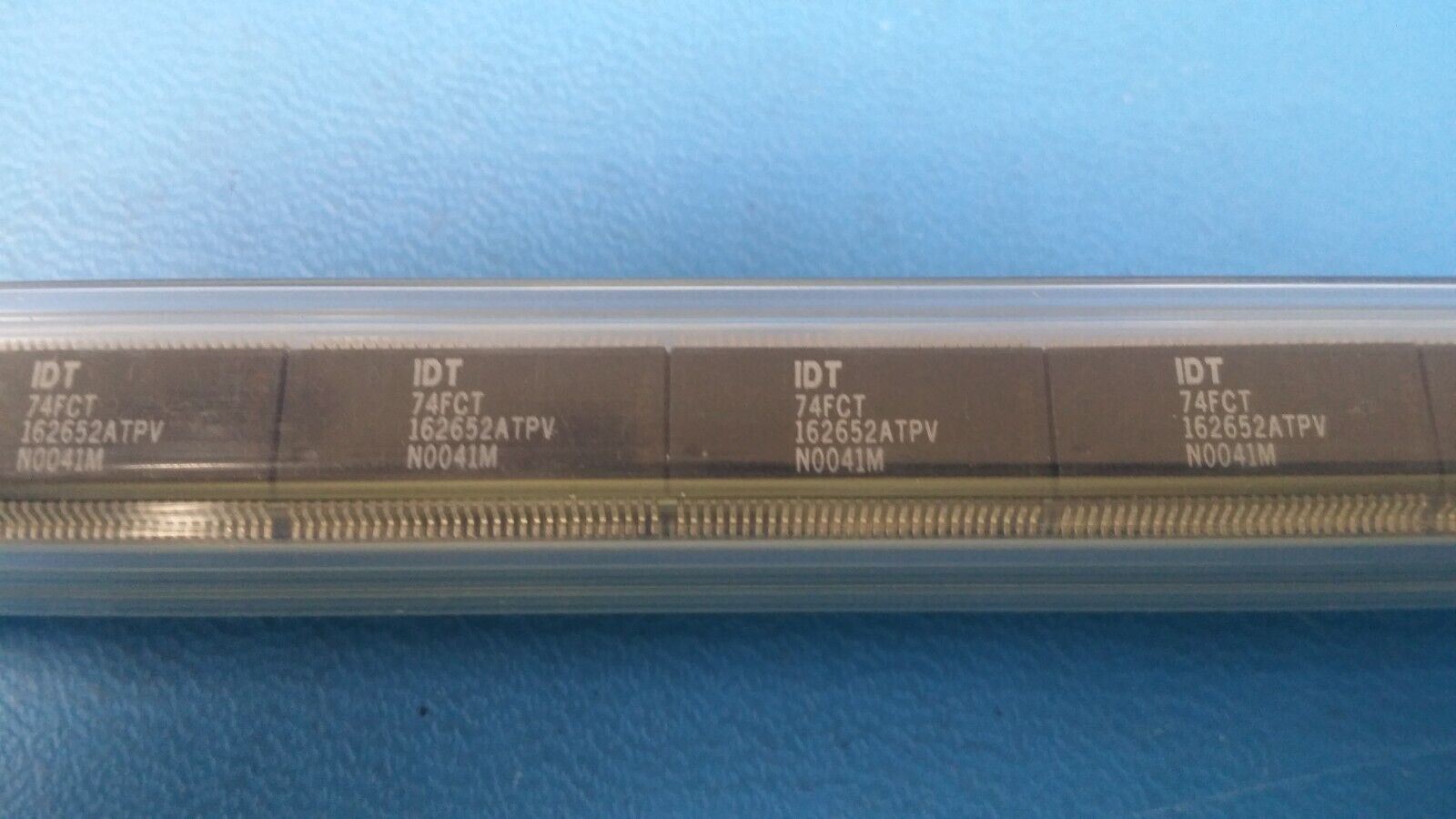

THIS IS FOR (4 PCS) OF 74FCT162652ATPV BY IDT
Registered Bus Transceiver 2-Func 8-Bit True Output CMOS
Part #: 74FCT162652ATPV
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Registered Bus Transceiver, 2-Func, 8-Bit, True Output, CMOS, PDSO56
Status Discontinued
Logic IC Type REGISTERED BUS TRANSCEIVER
Sub Category Bus Driver/Transceivers
Control Type INDEPENDENT CONTROL
Count Direction BIDIRECTIONAL
JESD-30 Code R-PDSO-G56
JESD-609 Code e0
Max I(ol) 0.024 Amp
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 2
Number of Terminals 56
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP56,.4
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Prop. Delay@Nom-Sup 6.3 ns
Qualification Status Not Qualified
Supply Voltage-Nom (Vsup) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
