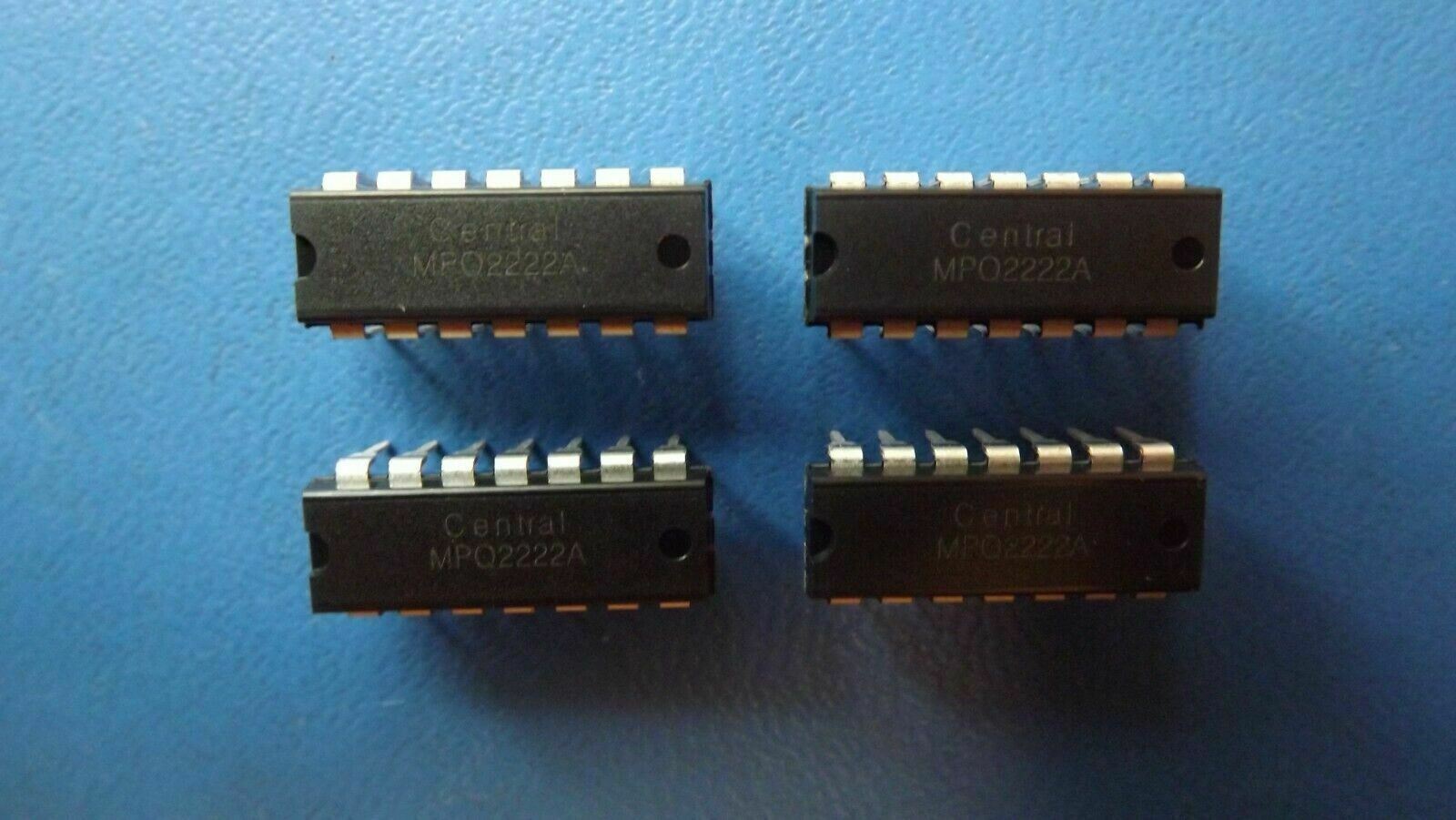

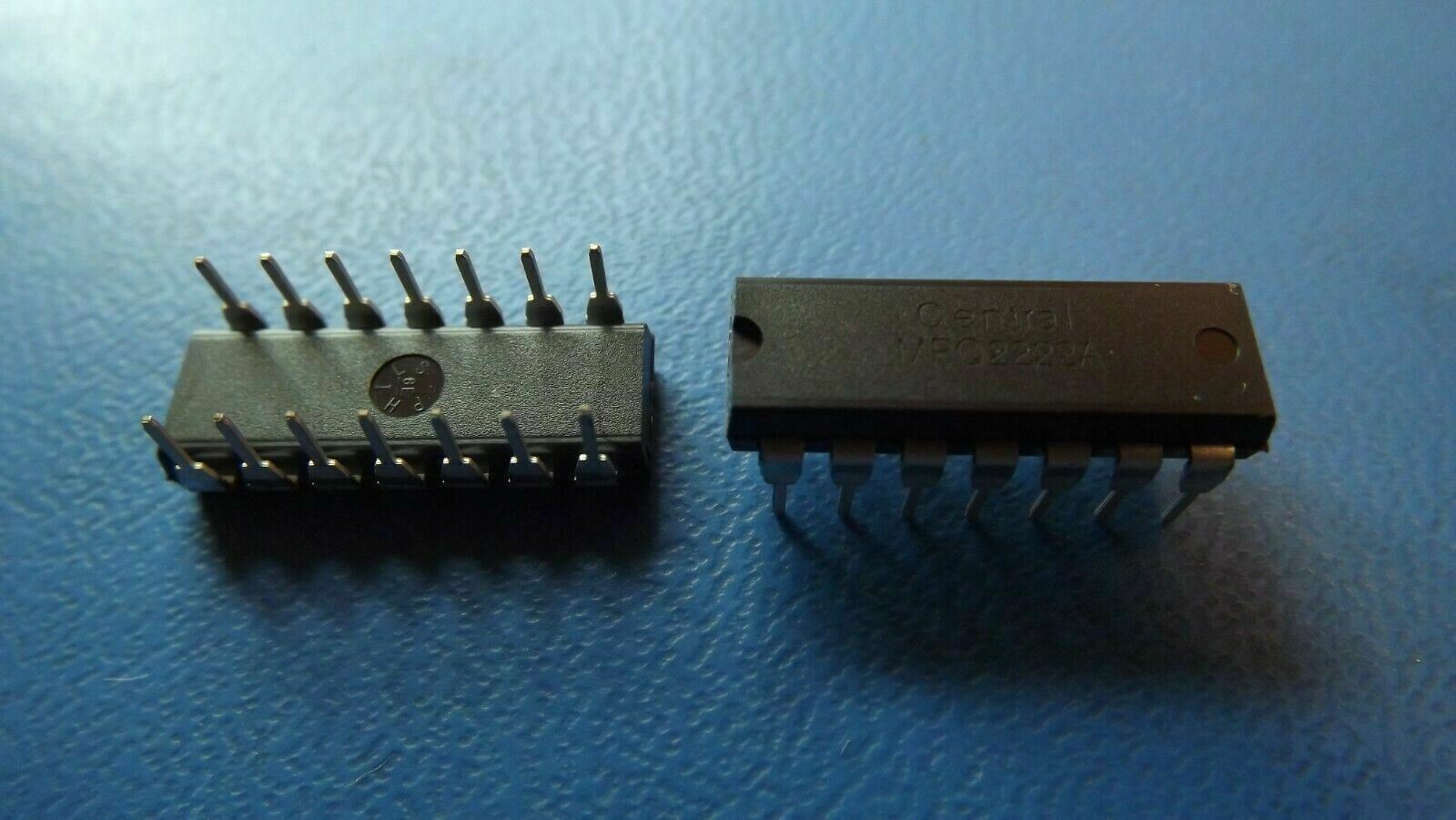

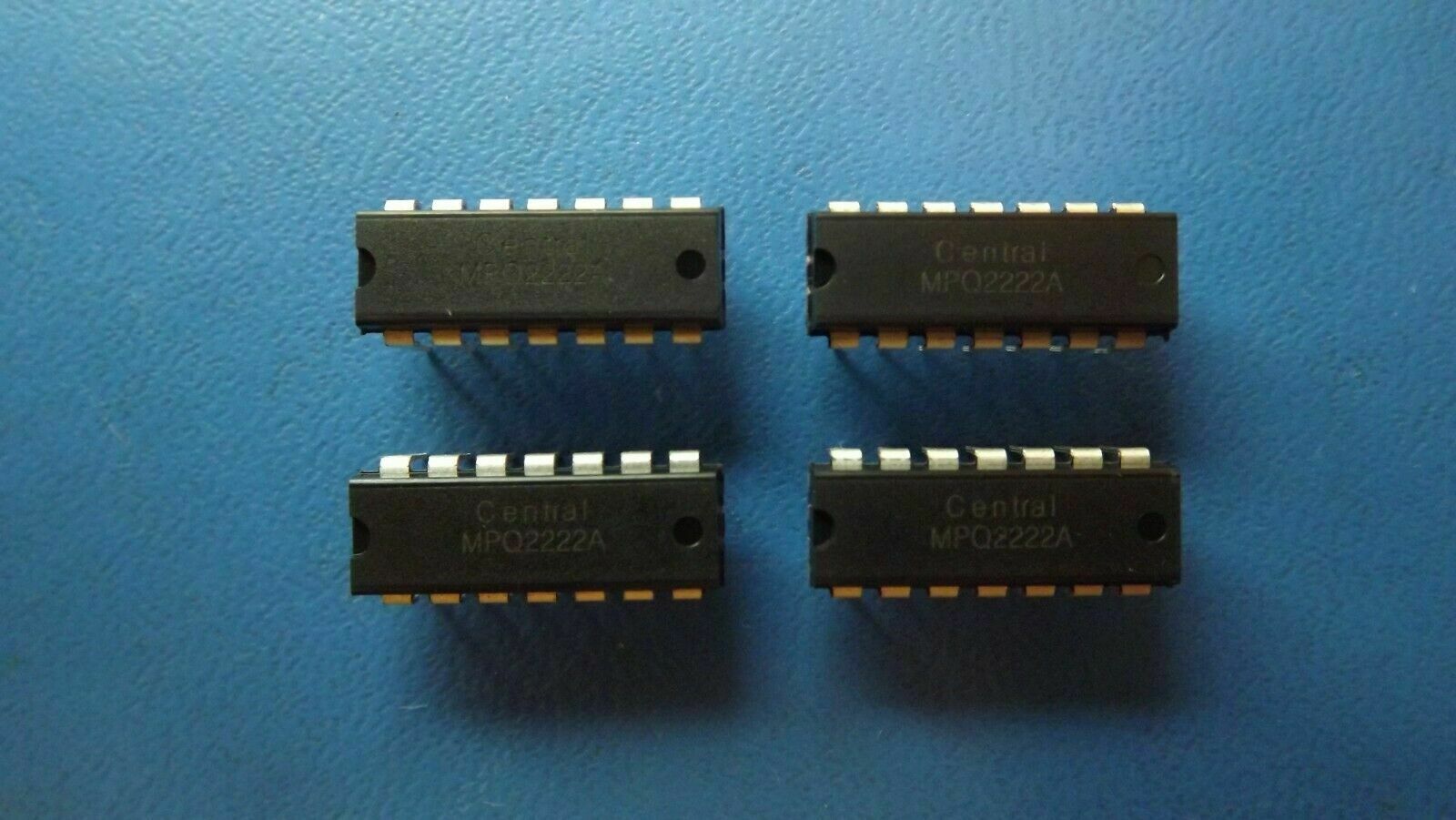

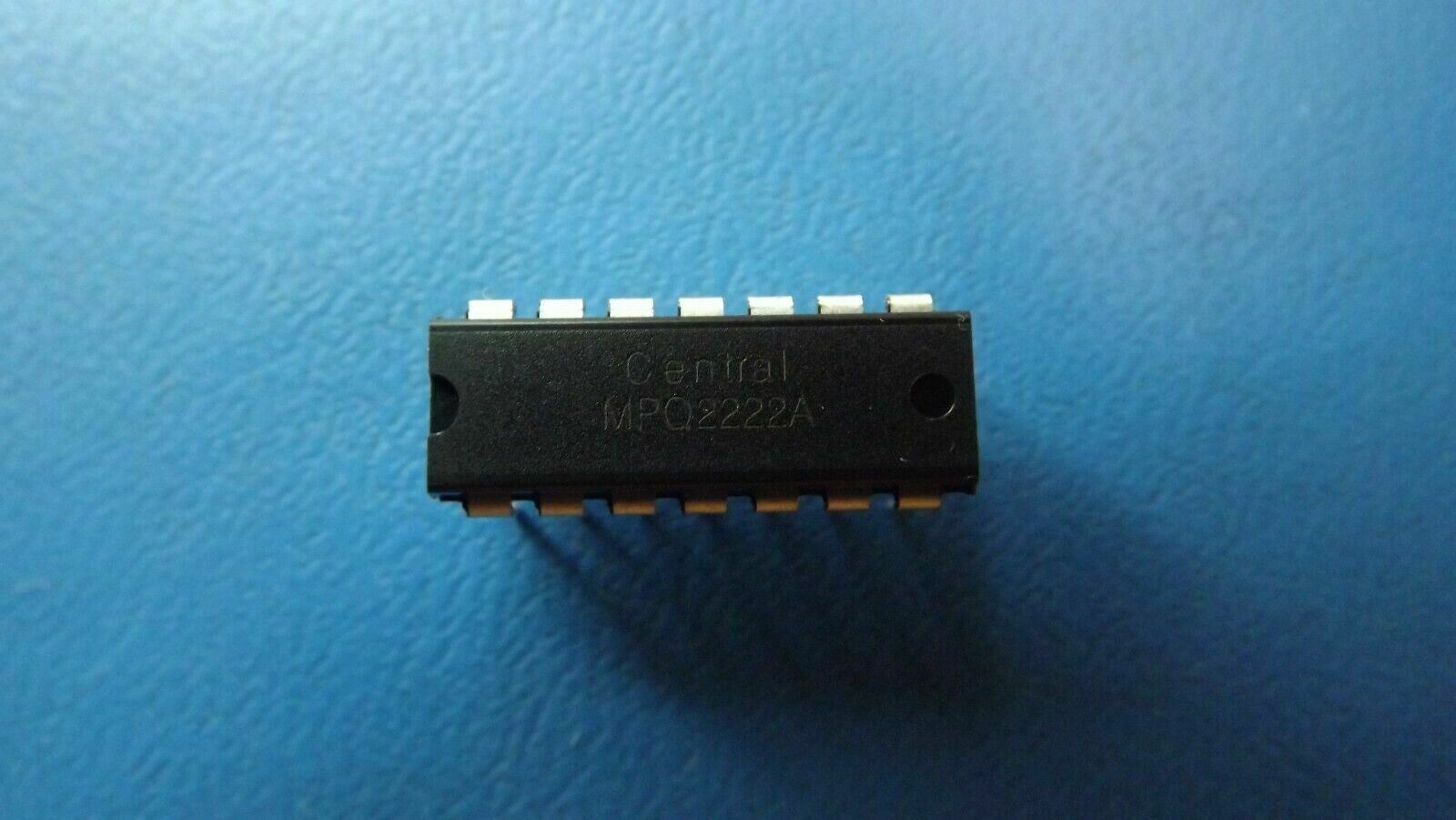

(4PC) MPQ2222A CENTRAL Transistor NPN Amplifier/Switch 40V 500mA 14-Pin DIP
Tax included.
THIS LISTING IS FOR (4PCS) OF MPQ2222A BY CENTRAL SEMICONDUCTOR
Manufacturer:Central Semiconductor
Product Category:Bipolar Transistors - BJT
RoHS:N
Mounting Style:Through Hole
Package / Case:TO-116
Transistor Polarity:NPN
Configuration:Single
Collector- Emitter Voltage VCEO Max:40 V
Collector- Base Voltage VCBO:75 V
Emitter- Base Voltage VEBO:6 V
Collector-Emitter Saturation Voltage:2 V
Maximum DC Collector Current:500 mA
Pd - Power Dissipation:650 mW
Gain Bandwidth Product fT:200 MHz
Minimum Operating Temperature:- 65 C
Maximum Operating Temperature:+ 150 C
Series:MPQ2222
