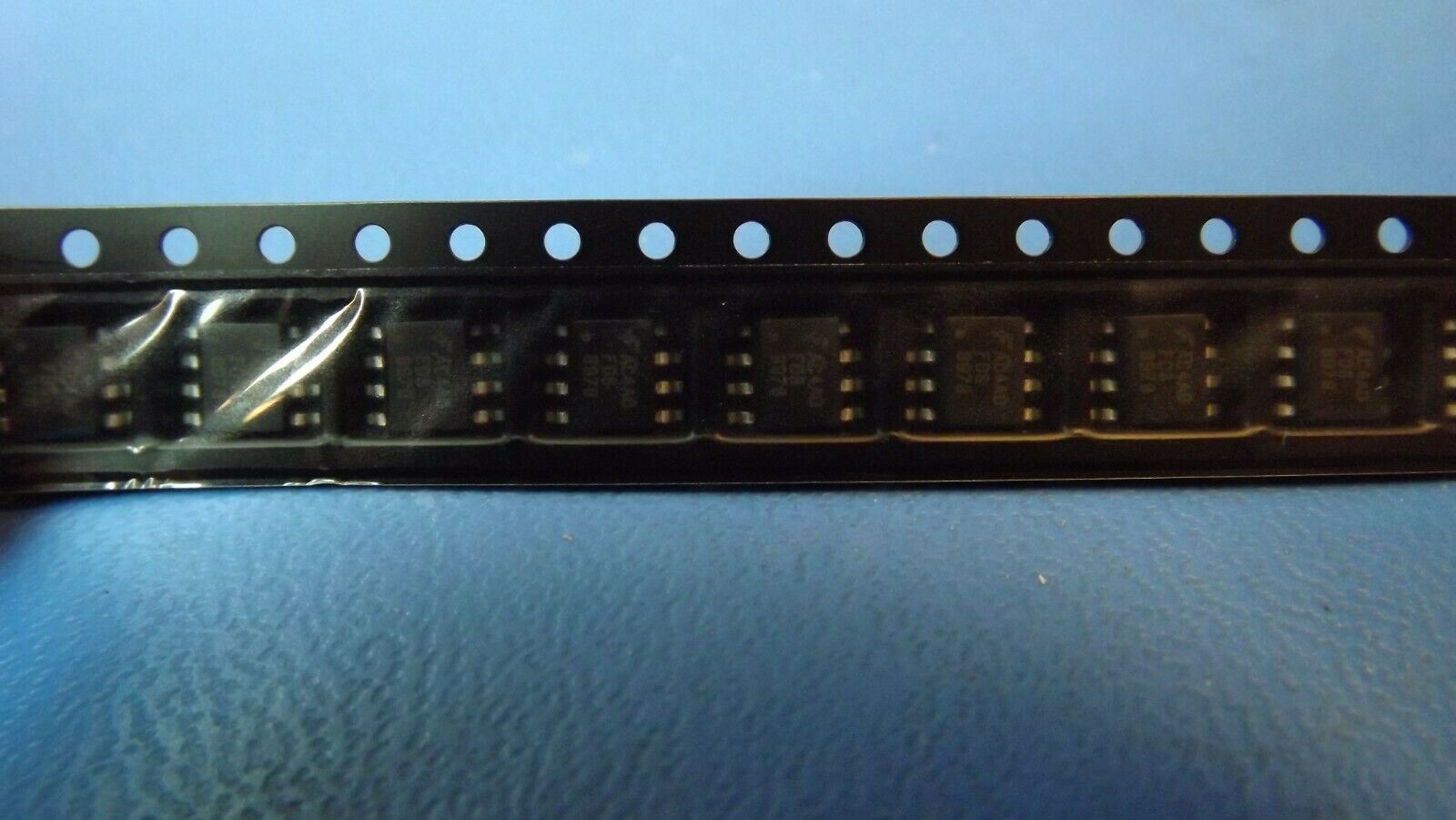

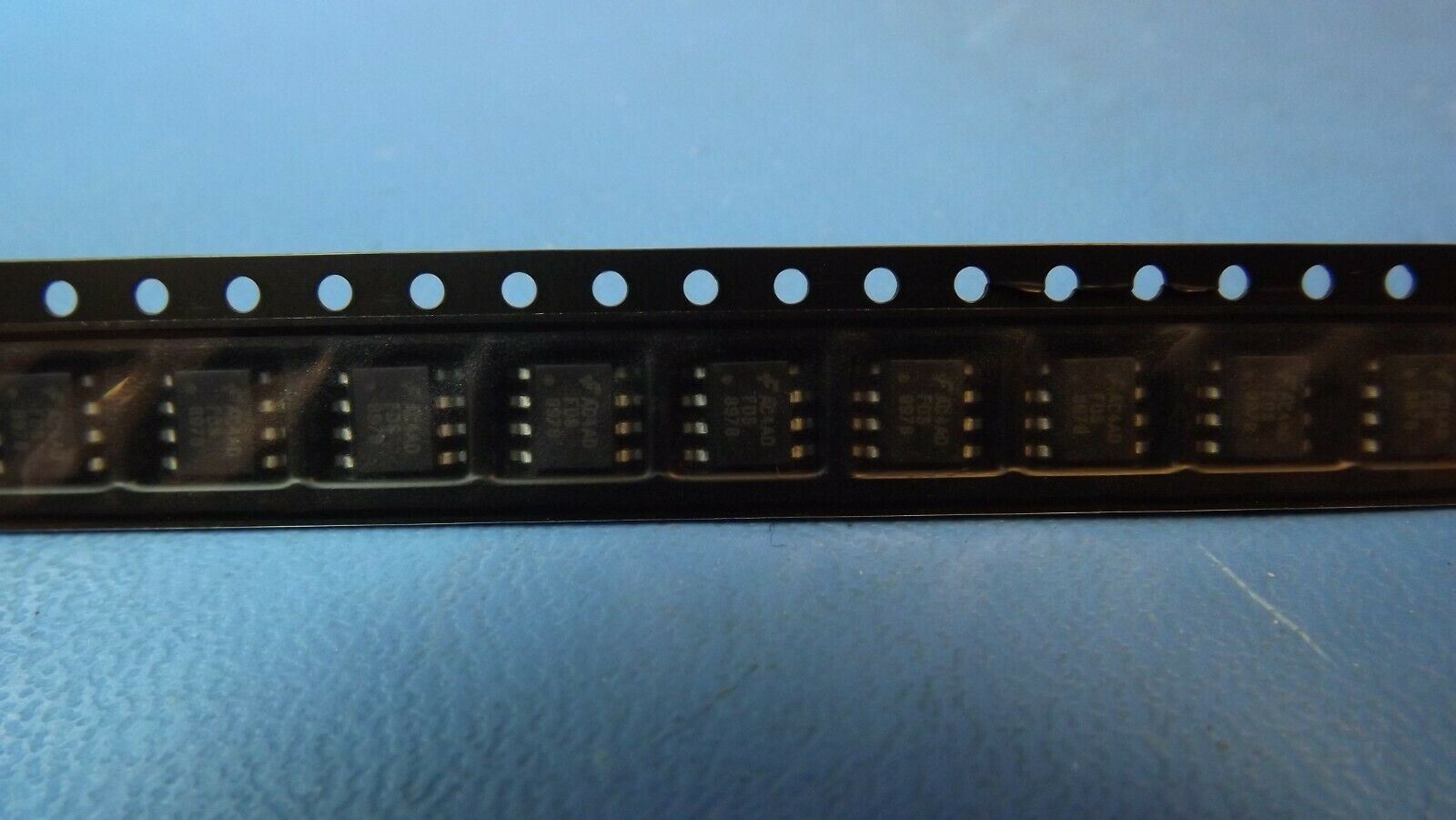

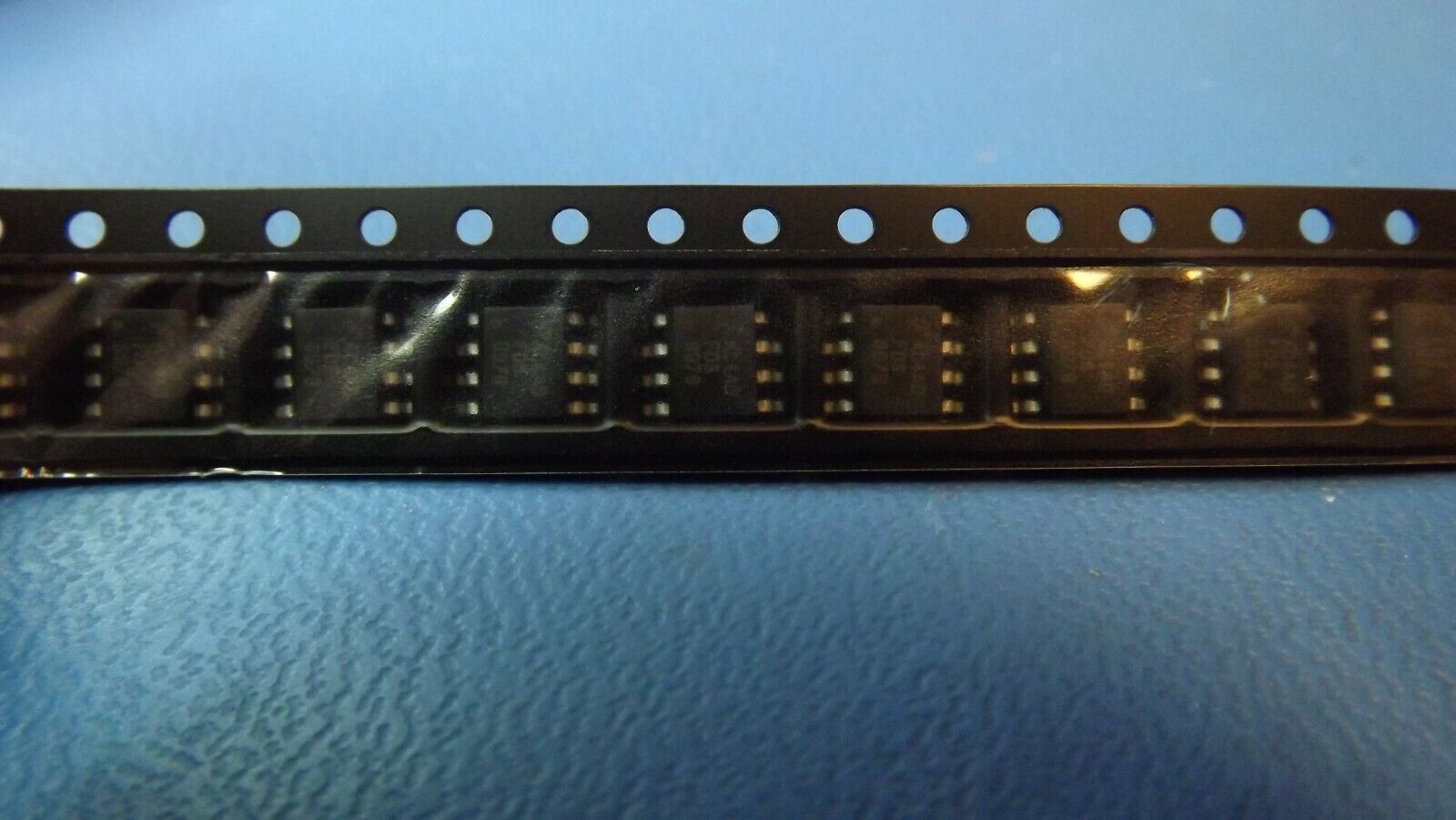

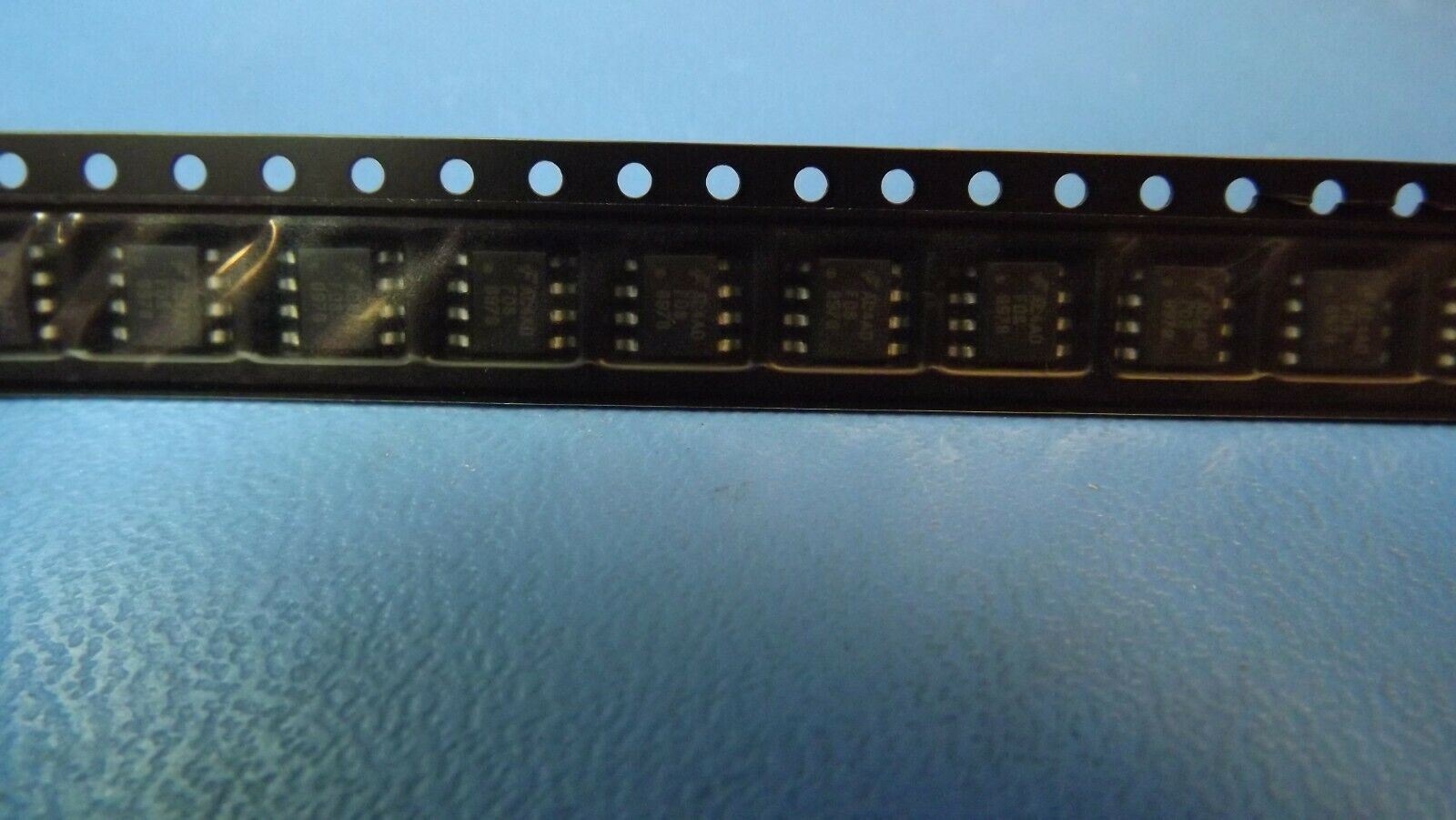

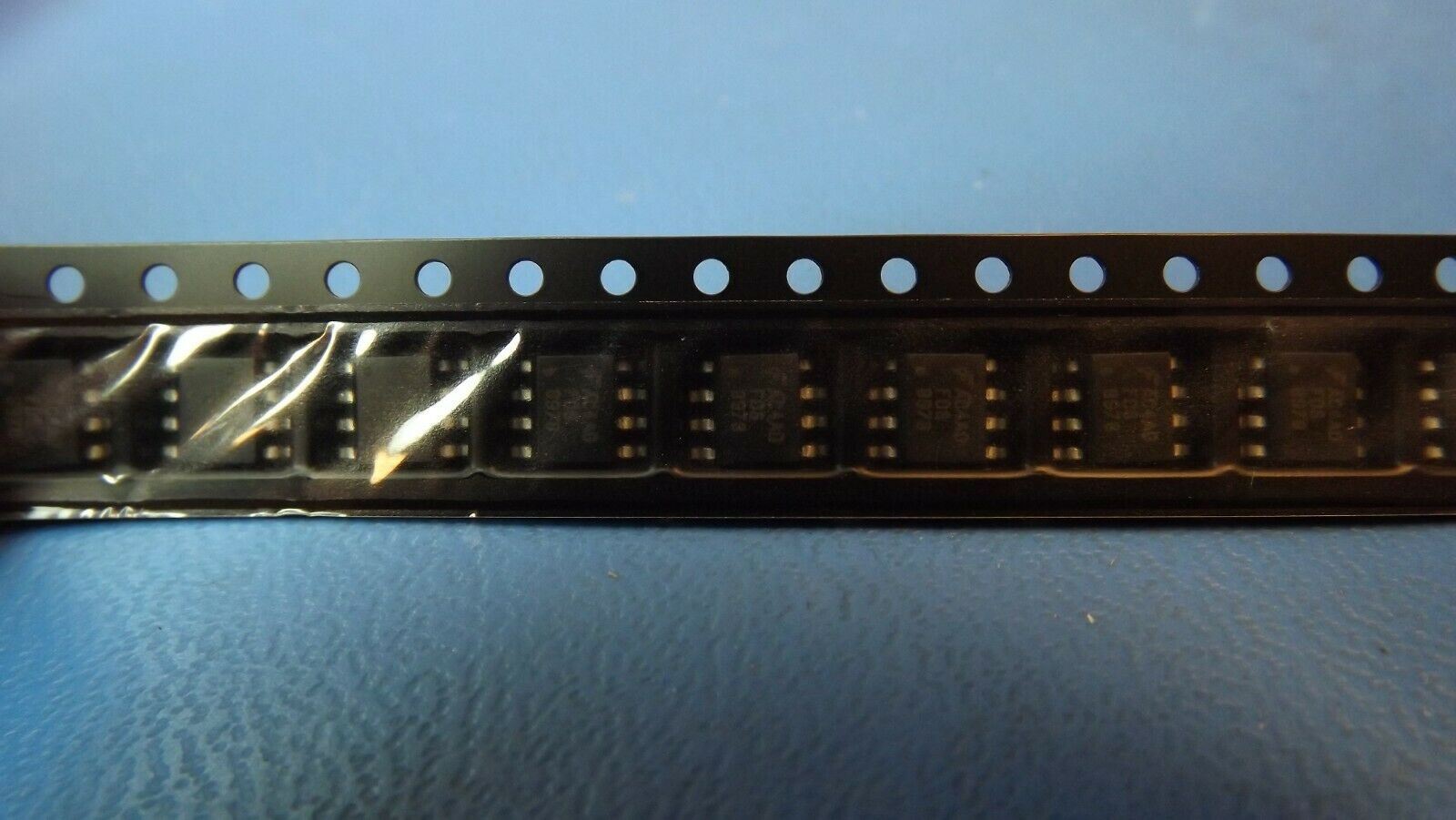

(49PCS) FDS8978 Trans MOSFET N-CH 30V 7.5A 8-Pin SOIC

  • $17.15
    Unit price per
Tax included.

Only 1 left!

THIS LISTING IS FOR (49PCS) OF FDS8978 BY FAIRCHILD SEMICONDUCTOR

SPECIFICATIONS

Mfr Package Description ROHS COMPLIANT, SOP-8
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Transferred
Avalanche Energy Rating (Eas) 57.0  mJ
Configuration SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
Drain Current-Max (Abs) (ID) 7.5  A
Drain Current-Max (ID) 6.9  A
Drain-source On Resistance-Max 0.018  ohm
DS Breakdown Voltage-Min 30.0  V
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-G8
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 2.0
Number of Terminals 8
Operating Mode ENHANCEMENT MODE
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type N-CHANNEL
Power Dissipation-Max (Abs) 1.6  W
Pulsed Drain Current-Max (IDM) 49.0  A
Qualification Status Not Qualified
Sub Category FET General Purpose Power
Surface Mount YES
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
Additional Feature ULTRA-LOW RESISTANCE
