(48pcs) SM16LC15C ESD Suppressor TVS 15V 16-Pin SOIC
Tax included.

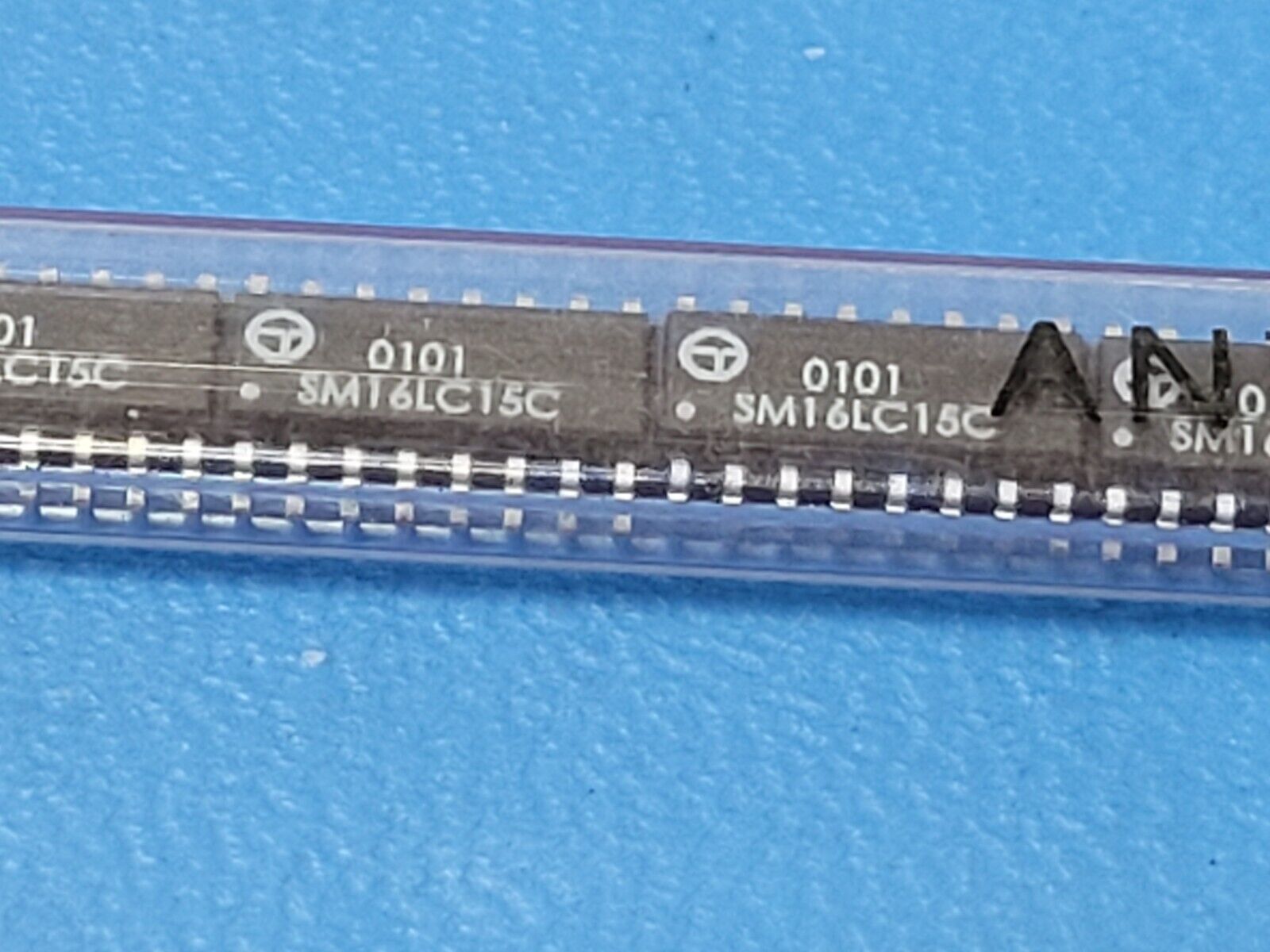

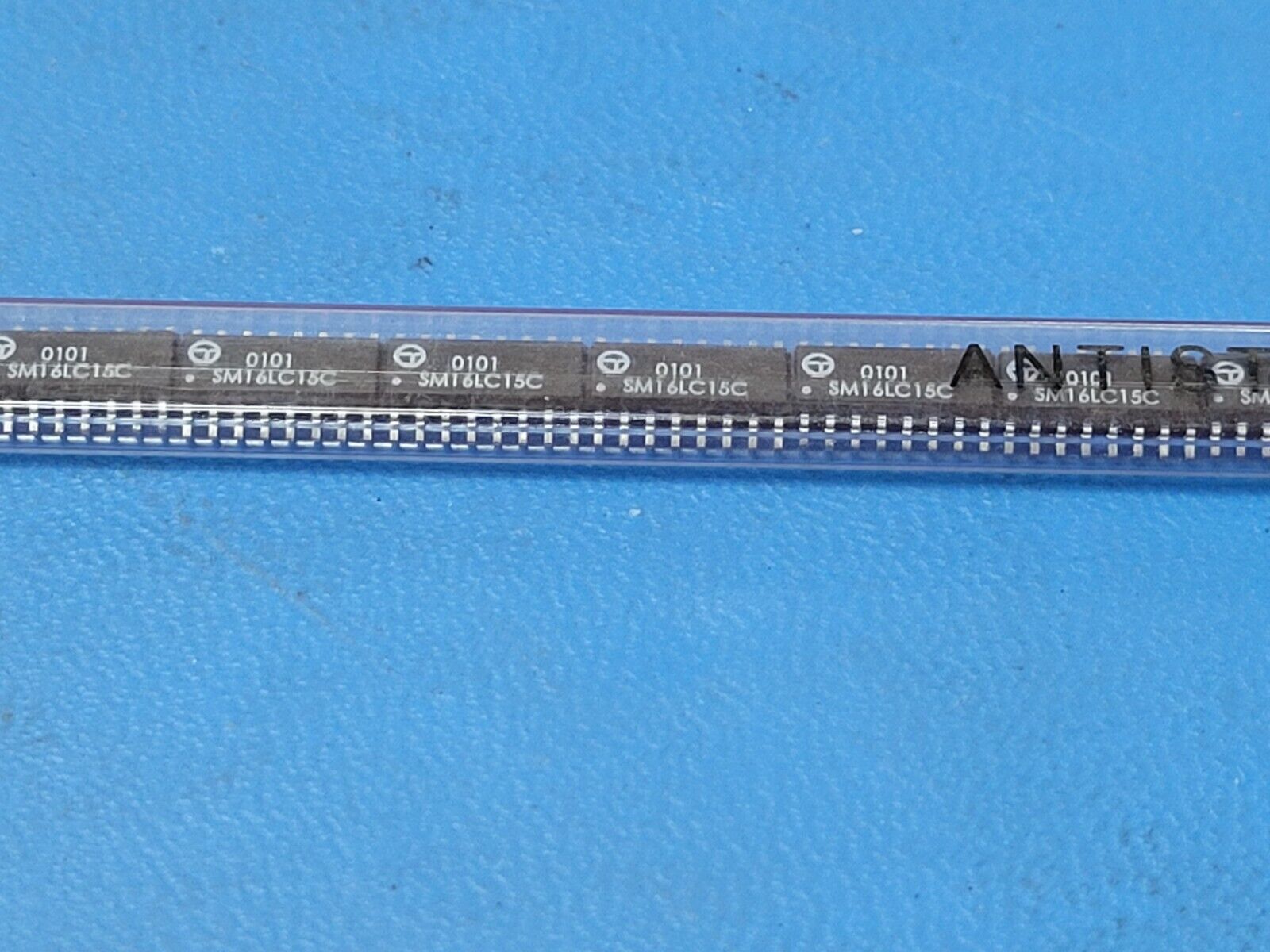

THIS LISTING IS FOR (48PCS) OF SM16LC15C BY PROTEK DEVICES
Mfr Package Description PLASTIC, SOP-16
REACH Compliant Yes
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 16.7 V
Clamping Voltage-Max 29.5 V
Configuration 8 BANKS, COMMON BIPOLAR TERMINAL, 2 ELEMENTS
Diode Capacitance-Min 25.0 pF
Diode Element Material SILICON
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 500.0 W
Number of Elements 16.0
Number of Terminals 16
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 245
Polarity BIDIRECTIONAL
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 15.0 V
Reverse Current-Max 4.0 µA
Sub Category Transient Suppressors
Surface Mount YES
Technology AVALANCHE
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Position DUAL
Additional Feature LOW CAPACITANCE
