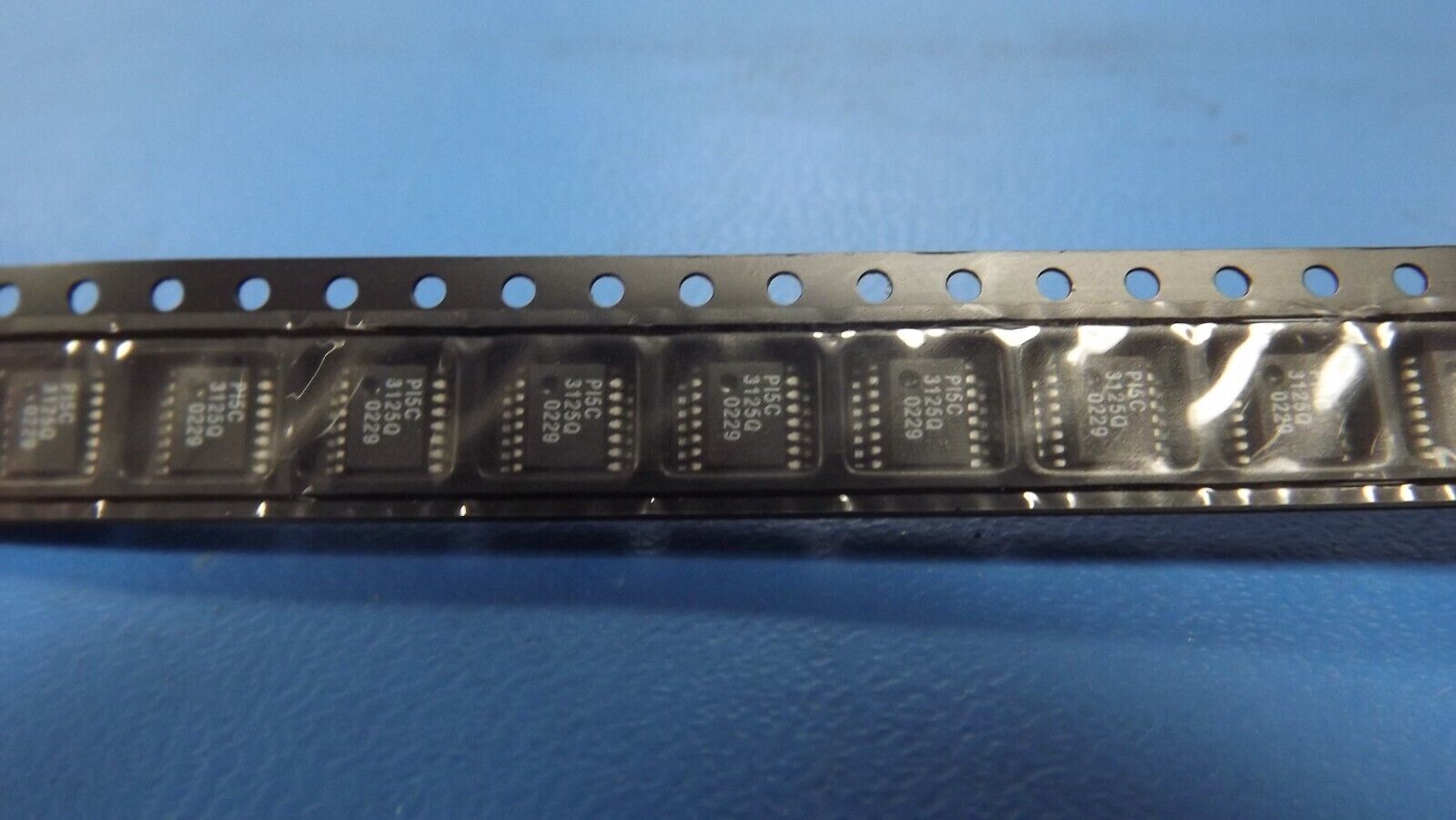

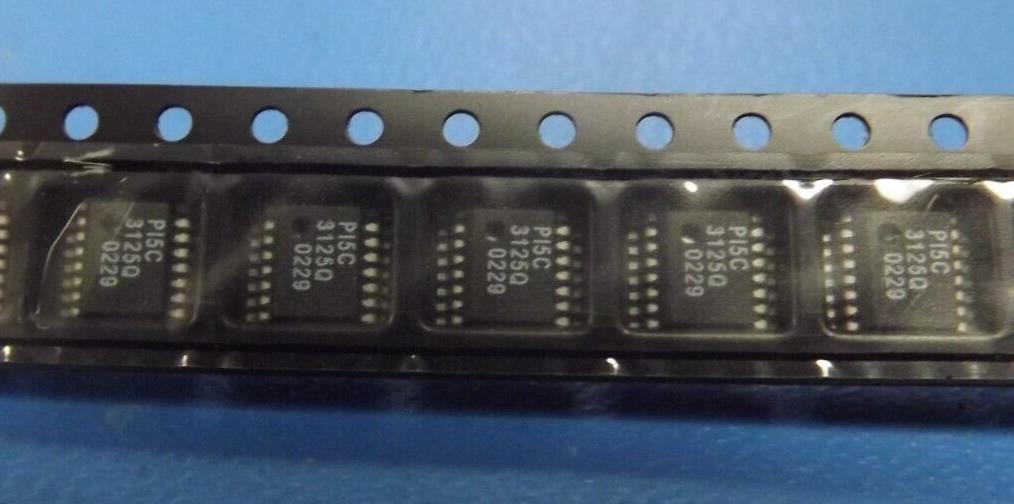

(45PCS) PI5C3125Q Bus Switch 4-Element CMOS 4-IN 16-Pin QSOP
Tax included.
THIS LISTING IS FOR (45PCS) OF PI5C3125Q BY PERICOM
Mfr Package Description 0.150 INCH, PLASTIC, QSOP-16
REACH Compliant Yes
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Family CBT/FST/QS/5C/B
JESD-30 Code R-PDSO-G16
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Moisture Sensitivity Level 1
Number of Bits 4
Number of Functions 1
Number of Ports 2
Number of Terminals 16
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP16,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Propagation Delay (tpd) 0.25 ns
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 0.635 mm
Terminal Position DUAL
Length 4.9 mm
Width 3.9 mm
Additional Feature BUS SWITCH
