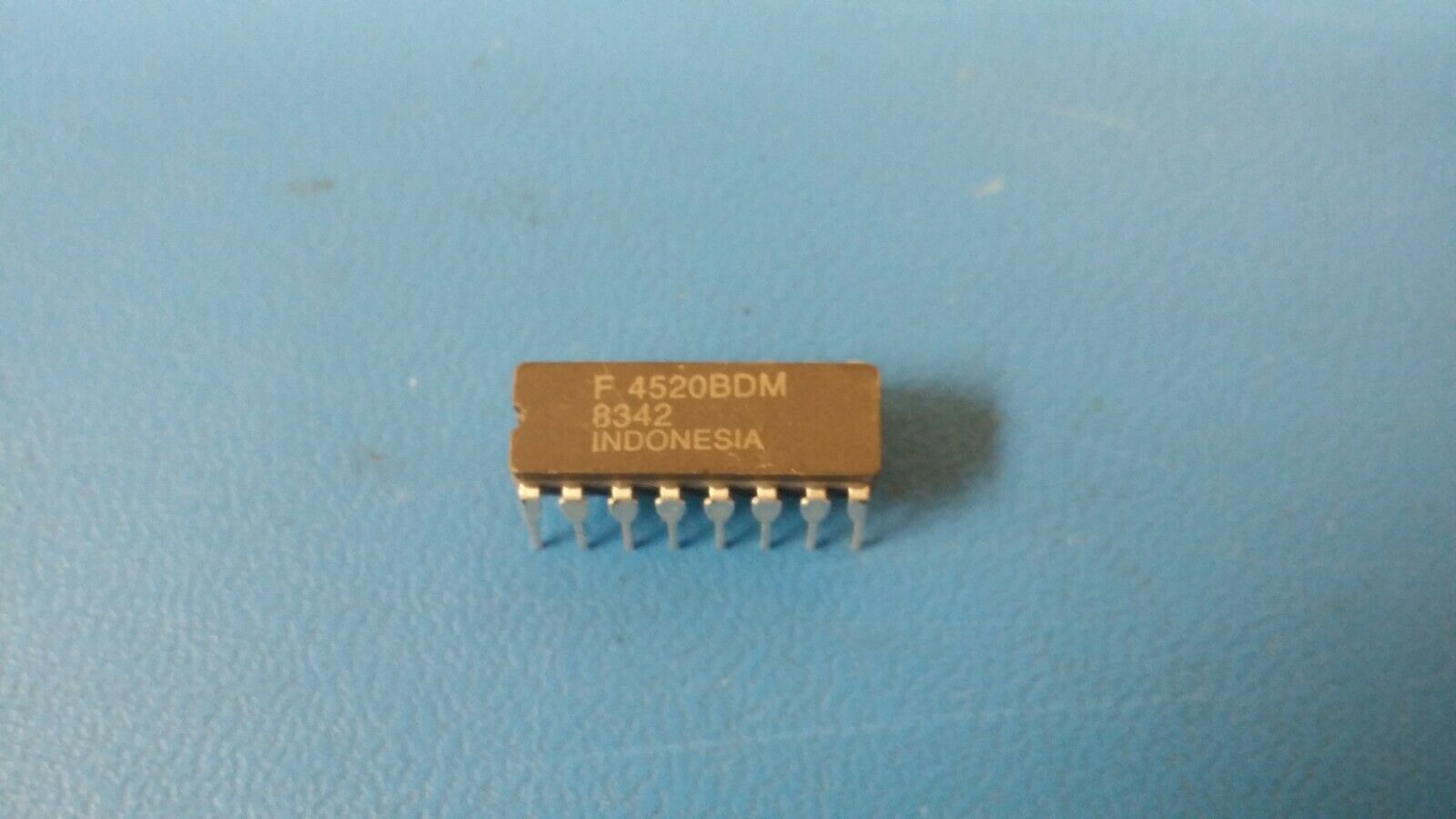

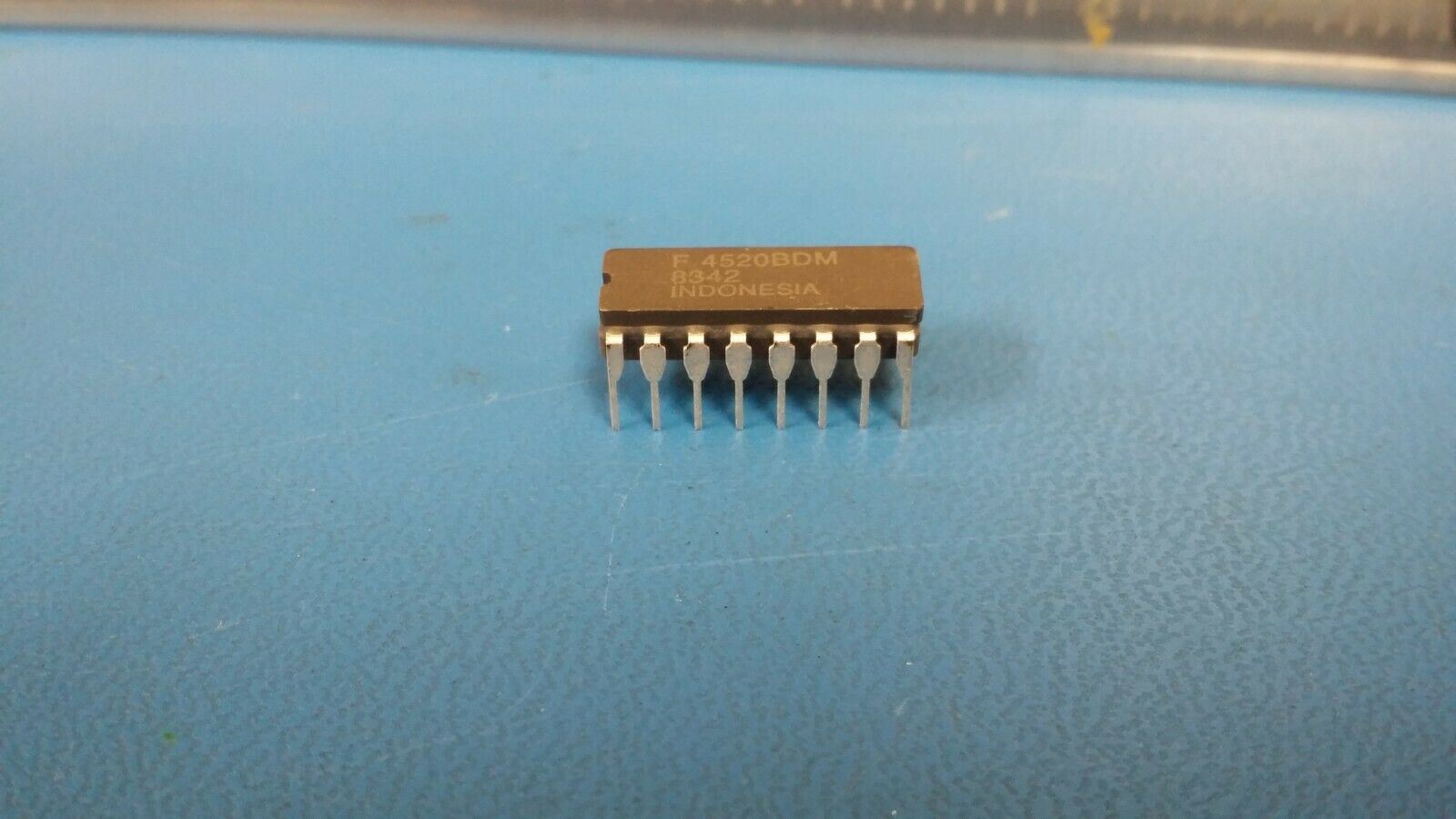

4520BDM FSC Binary Counter, 4-Bit, Up Direction, CMOS, CDIP16

Part #: 4520BDM

Part Category: Logic ICs

Manufacturer: Fairchild Semiconductor

Description: Binary Counter, 4000/14000/40000 Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16

Mfr Package Description CDIP-16

Status Discontinued

Logic IC Type BINARY COUNTER

Sub Category Counters

Count Direction UP

Family 4000/14000/40000

fmax-Min 10.0  MHz

JESD-30 Code R-XDIP-T16

JESD-609 Code e0

Load/Preset Input YES

Mode of Operation SYNCHRONOUS

Number of Bits 4

Number of Functions 2

Number of Terminals 16

Operating Temperature-Min -55.0  Cel

Operating Temperature-Max 125.0  Cel

Package Body Material CERAMIC

Package Code DIP

Package Equivalence Code DIP16,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Qualification Status Not Qualified

Supply Voltage-Nom (Vsup) 10

Surface Mount NO

Technology CMOS

Temperature Grade MILITARY

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54  mm

Terminal Position DUAL

Trigger Type POSITIVE EDGE
