(40pcs) 74LCX38MTC NAND Gate 4-Element 2-IN CMOS 14-Pin TSSOP
Tax included.

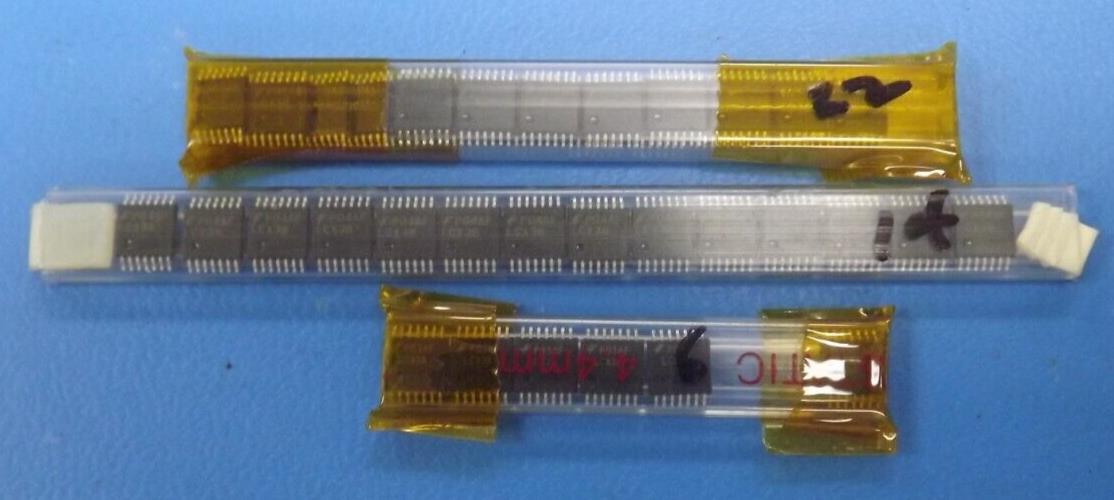

THIS LISTING IS FOR (40PCS) OF 74LCX38MTC BY FSC
Mfr Package Description TSSOP-14
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status Active
Logic IC Type NAND GATE
Sub Category Gates
Family LVC/LCX/Z
JESD-30 Code R-PDSO-G14
JESD-609 Code e4
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.024 Amp
Moisture Sensitivity Level 1
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 14
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics OPEN-DRAIN
Package Body Material PLASTIC/EPOXY
Package Code TSSOP
Package Equivalence Code TSSOP14,.25
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel) 260
Propagation Delay (tpd) 6.5 ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 1.2 mm
Supply Voltage-Nom (Vsup) 2.5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 3.6 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish NICKEL PALLADIUM GOLD
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
