(40 PCS) SMBJ75A-E3/52 VISHAY Diode TVS Single Uni-Dir 7.5V 600W 2-Pin SMB
Tax included.

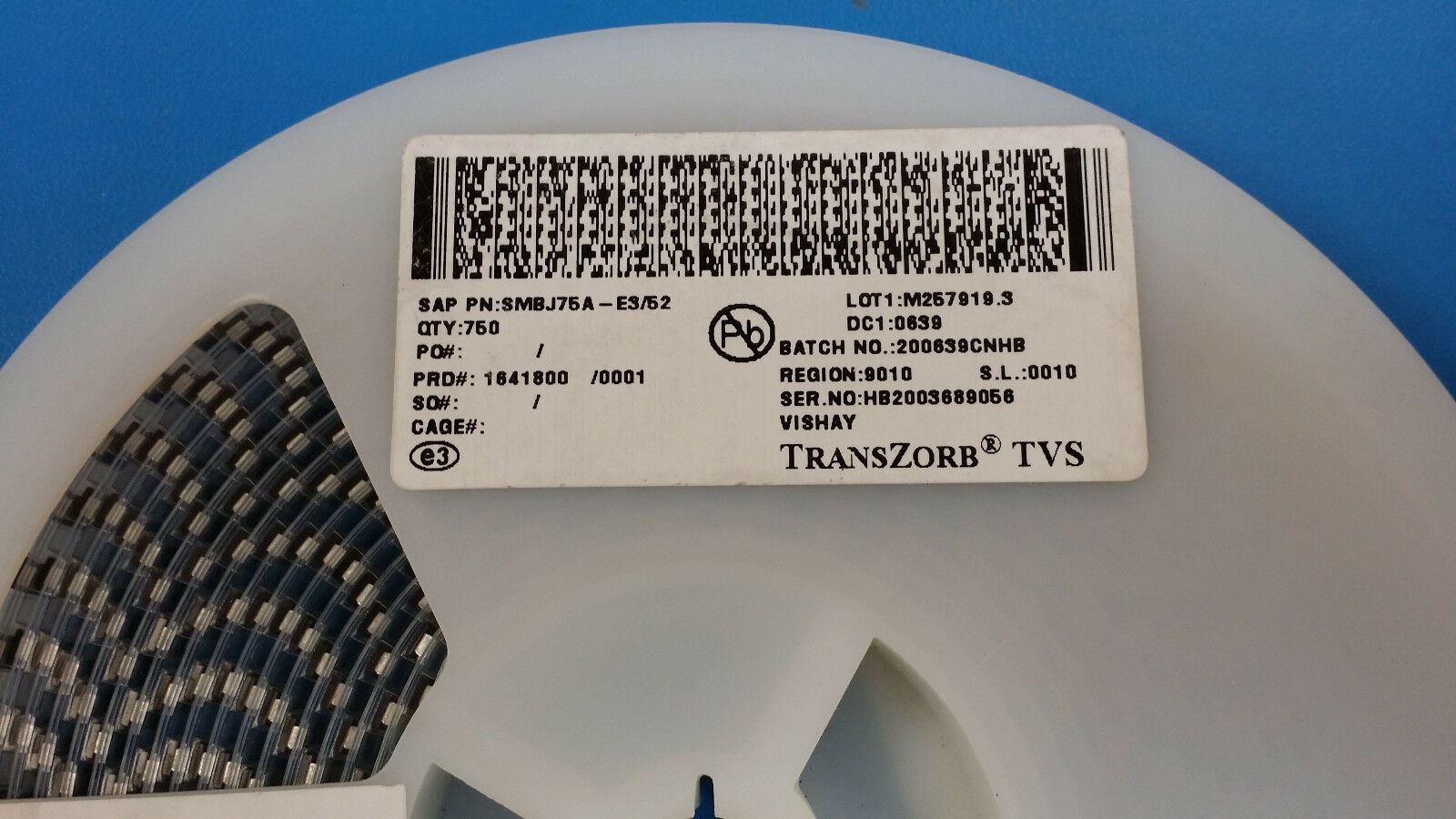

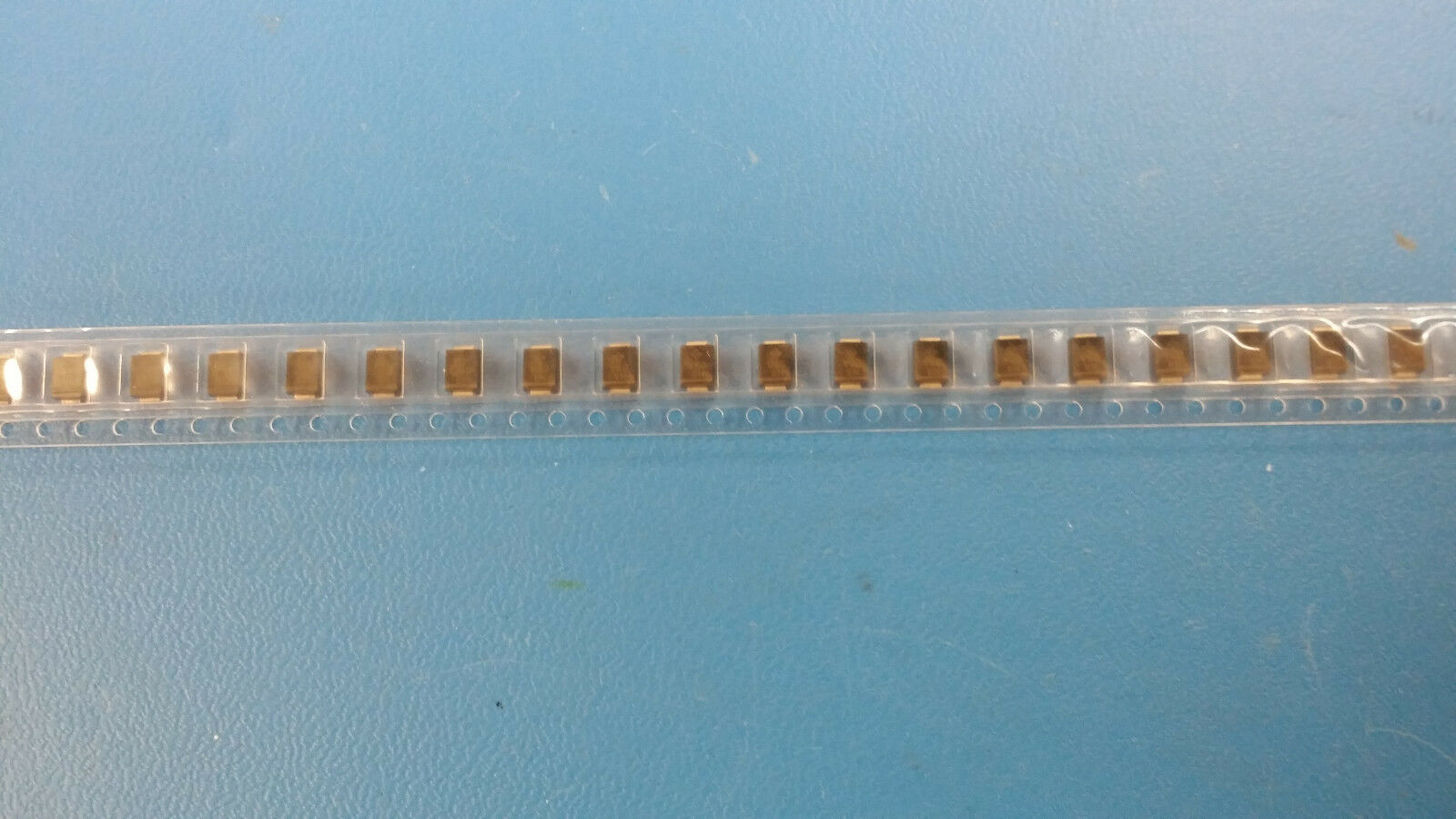

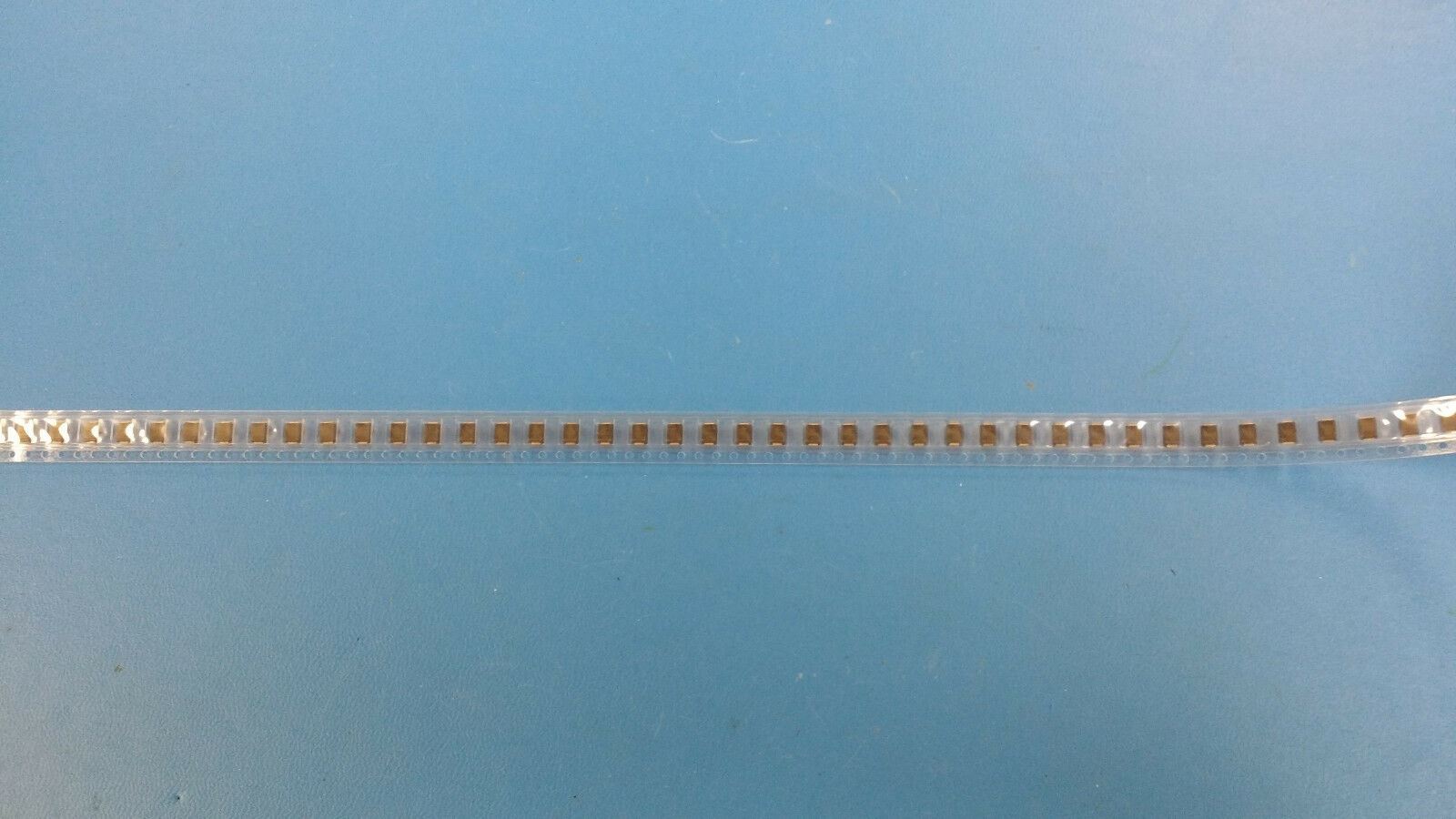

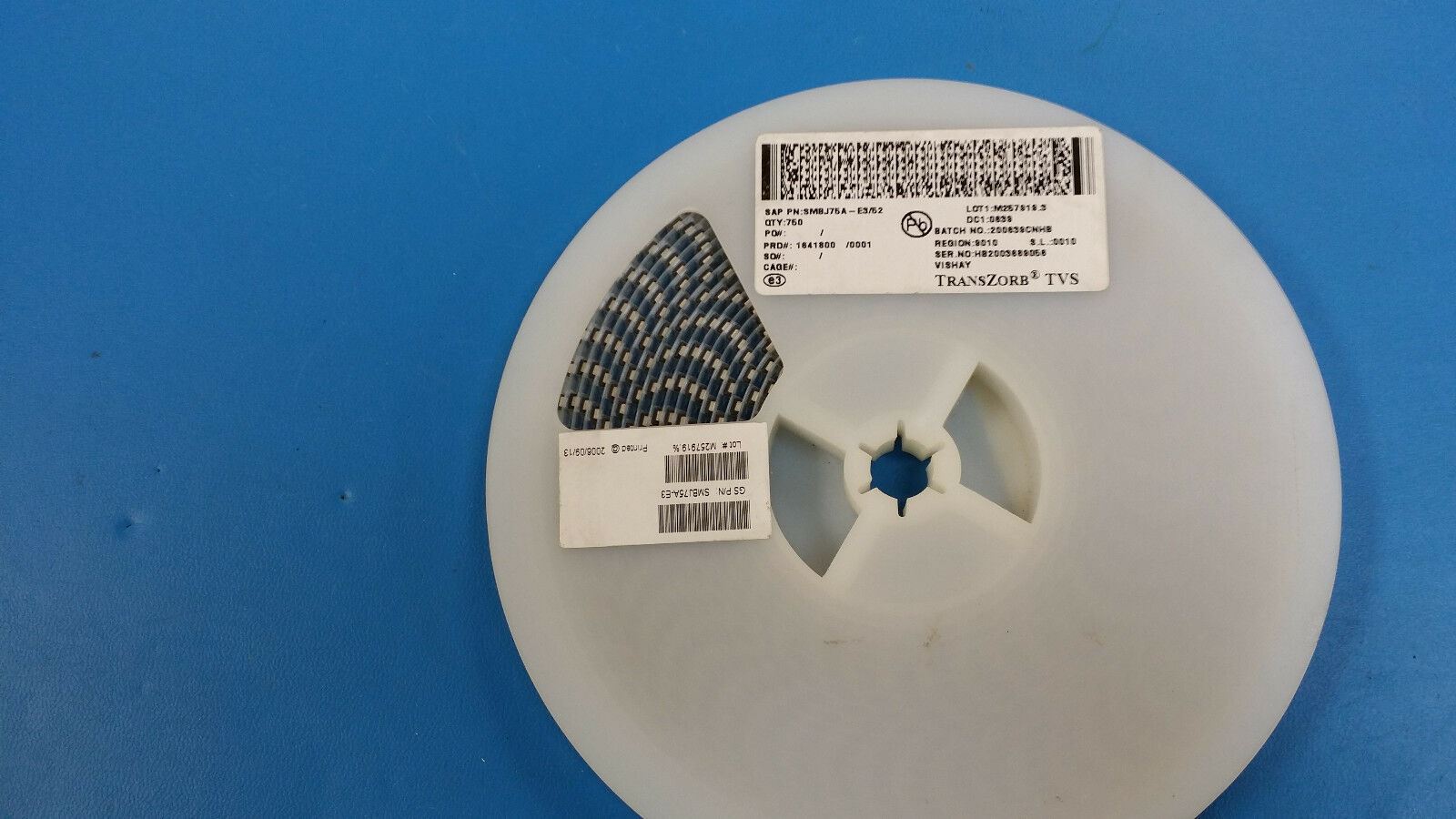

THIS LISTING IS FOR (40 PCS) OF SMBJ75A-E3/52 BY VISHAY
Diode TVS Single Uni-Dir 7.5V 600W 2-Pin SMB
(1500 STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
Diode TVS Single Uni-Dir 7.5V 600W 2-Pin SMB
(1500 STOCK. WE WILL MAKE DEALS ON LARGER QUANTITIES. SEND OFFERS)
SMBJ75A-E3/52 Part Details & Parametric
| EU RoHS |
Compliant
|
| Screening Level | Commercial |
| Direction Type | Uni-Directional |
| Maximum Reverse Stand-Off Voltage (V) | 75 |
| Minimum Breakdown Voltage (V) | 83.3 |
| Maximum Clamping Voltage (V) | 121 |
| Maximum Reverse Leakage Current (uA) | 1 |
| Packaging | Tape and Reel |
| Number of Elements per Chip | 1 |
| Maximum Peak Pulse Current (A) | 5 |
| Test Current (mA) | 1 |
| Operating Junction Temperature (°C) | -55 to 150 |
| Peak Pulse Power Dissipation (W) | 600 |
| Minimum Operating Temperature (°C) | -55 |
| Maximum Operating Temperature (°C) | 150 |
| Mounting | Surface Mount |
| Package Length (mm) | 4.7(Max) |
| Package Width (mm) | 3.8(Max) |
| PCB | 2 |
| Standard Package Name | DO-214-AA |
| Supplier Package | SMB |
| Pin Count | 2 |
| Lead Shape | J-Lead |
