(40 PCS) MB74HC244PF Fujitsu, Bus Transceiver 2-Func 4-Bit 3-State CMOS FP-20DA
Tax included.

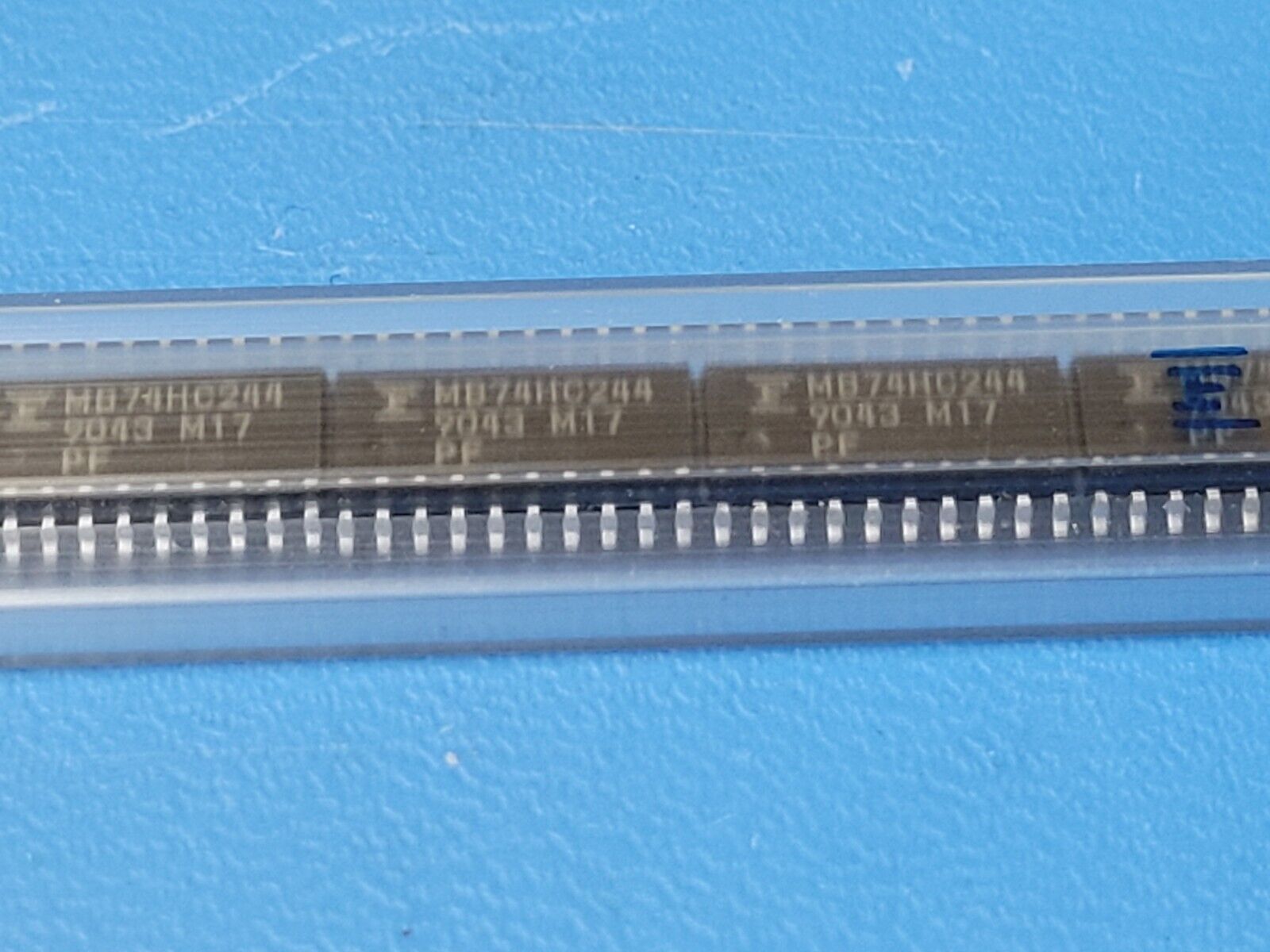

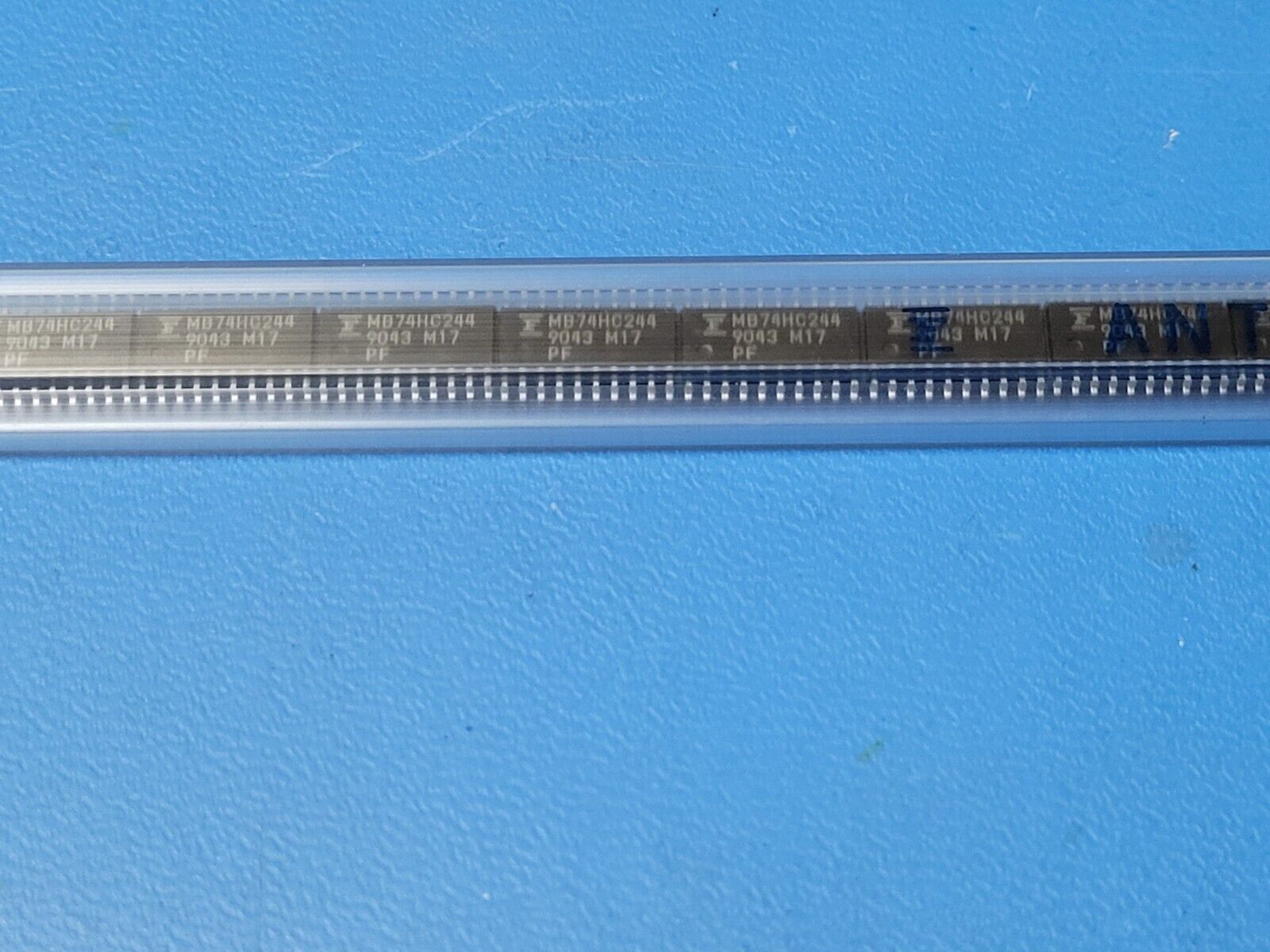

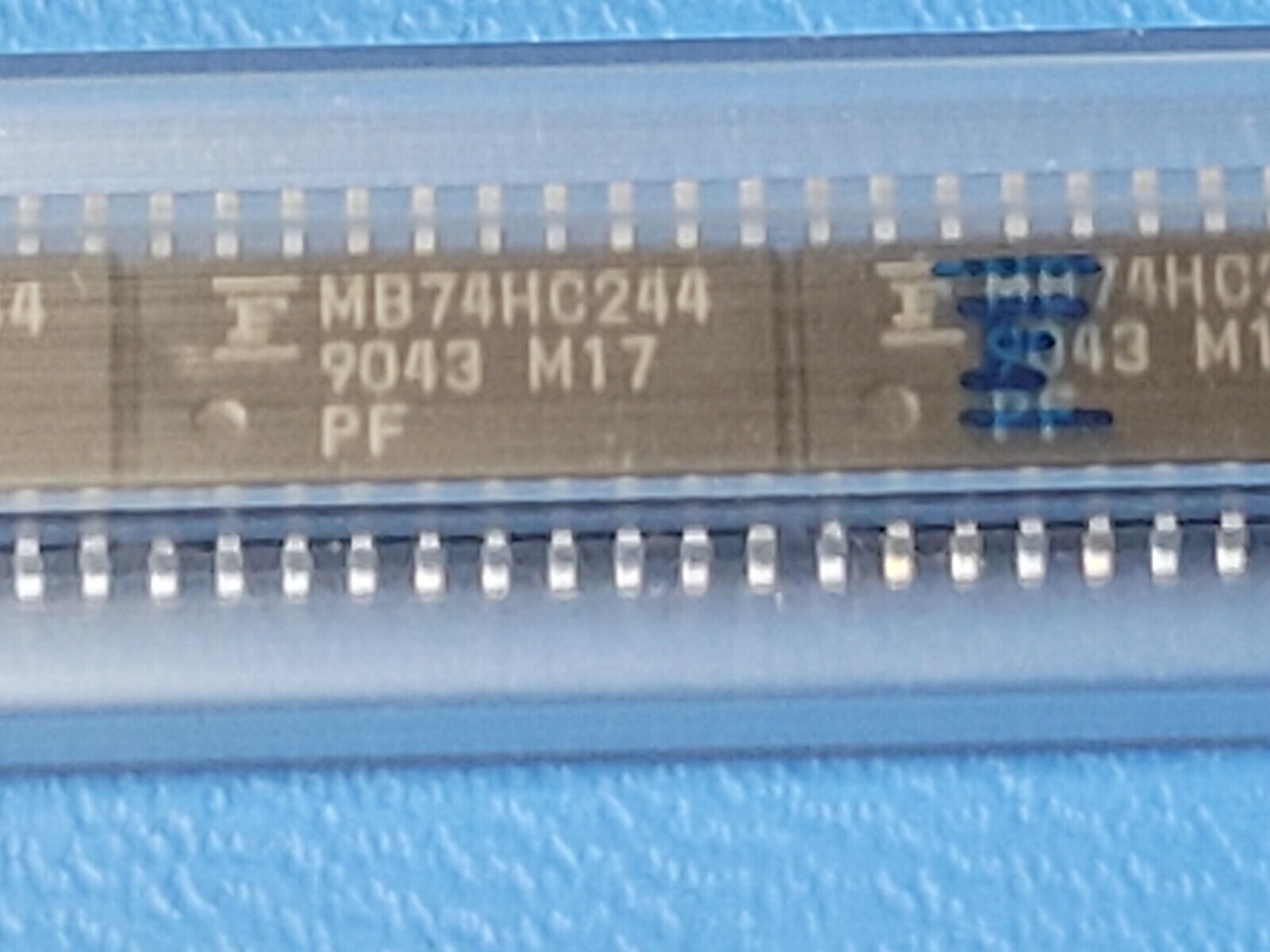

THIS LISTING IS FOR (40 PCS) OF MB74HC244PF BY Fujitsu
Bus Transceiver 2-Func 4-Bit 3-State CMOS FP-20DA
Part #: HD74HC244FP
Part Category: Logic ICs
Manufacturer: Hitachi, Ltd.
Description: Bus Driver, HC/UH Series, 2-Func, 4-Bit, True Output, CMOS, PDSO20
Mfr Package Description FP-20DA
Status Transferred
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Control Type ENABLE LOW
Family HC/UH
JESD-30 Code R-PDSO-G20
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.006 Amp
Number of Bits 4
Number of Functions 2
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP20,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Prop. Delay@Nom-Sup 23.0 ns
Propagation Delay (tpd) 115.0 ns
Qualification Status Not Qualified
Seated Height-Max 2.2 mm
Supply Voltage-Nom (Vsup) 4.5
Supply Voltage-Min (Vsup) 2.0 V
Supply Voltage-Max (Vsup) 6.0 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 12.6 mm
Width 5.5 mm
