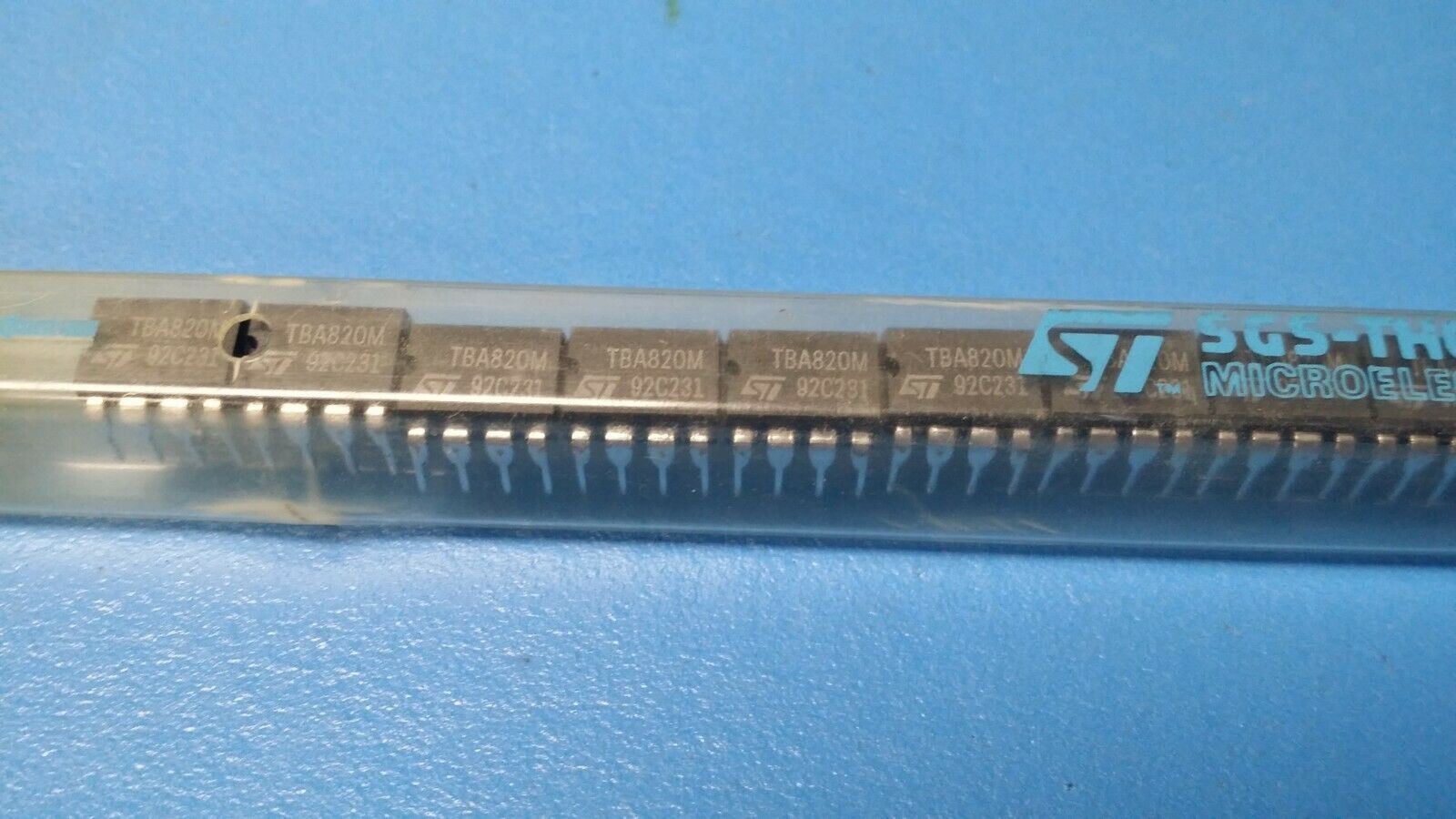

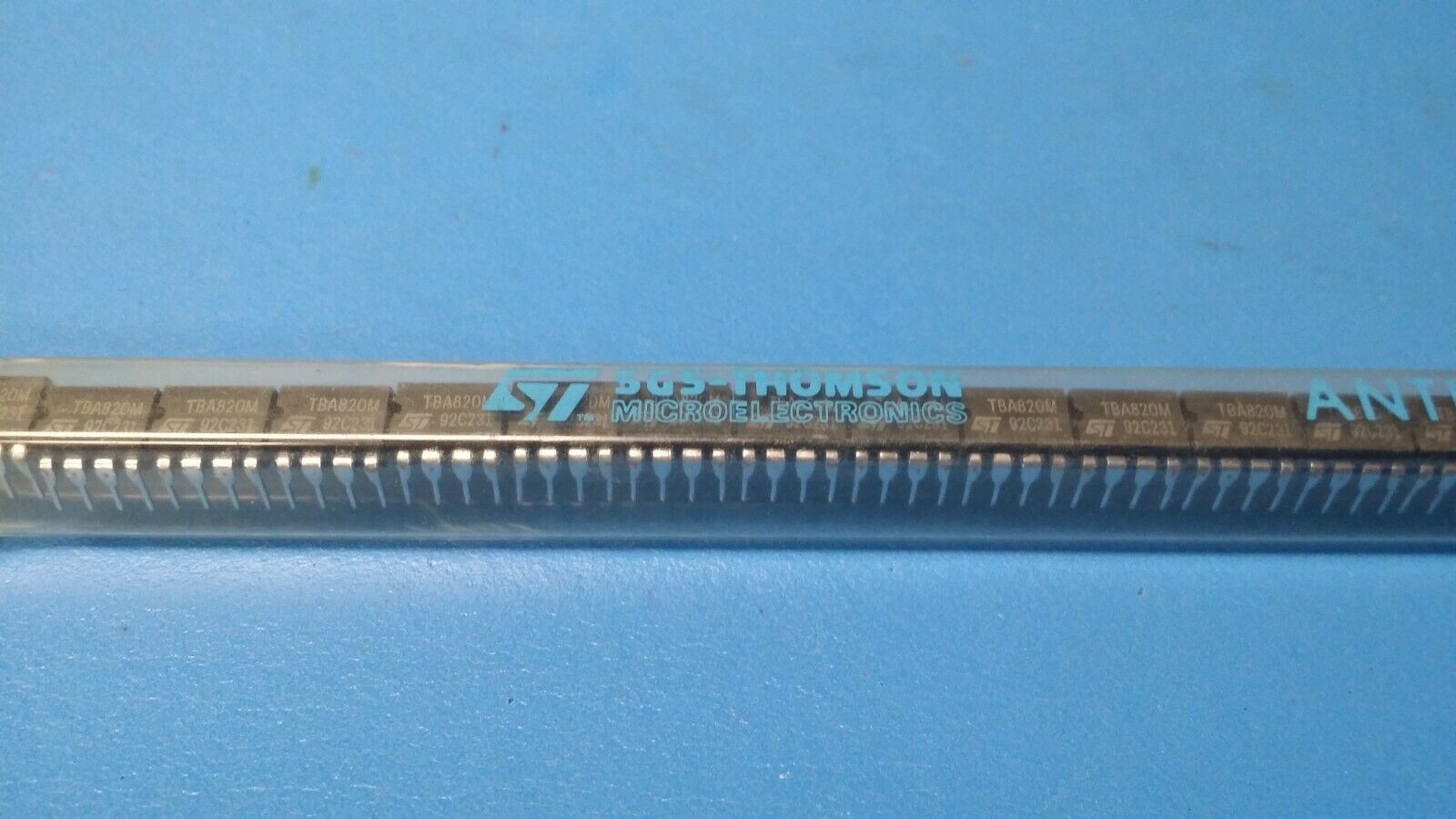

(4 PCS) TBA820M STMICRO Audio Amp Speaker 1-CH Mono 2W Class-B 8-Pin Mini-PDIP
(4 PCS) TBA820M STMICRO Audio Amp Speaker 1-CH Mono 2W Class-B 8-Pin Mini-PDIP

(4 PCS) TBA820M STMICRO Audio Amp Speaker 1-CH Mono 2W Class-B 8-Pin Mini-PDIP

Tax included.
Only 36 left!
THIS IS FOR (4 PCS) OF TBA820M BY STMICRO
Audio Amp Speaker 1-CH Mono 2W Class-B 8-Pin Mini-PDIP

Manufacturer: STMicroelectronics
Product Category: Audio Amplifiers
RoHS:  N
Series: TBA820M
Product: Audio Amplifiers
Class: Class-B
Output Power: 2 W
Mounting Style: Through Hole
Type: 1-Channel Mono
Package / Case: PDIP-8
Audio - Load Impedance: 8 Ohms
THD plus Noise: 0.8 %
Supply Voltage - Max: 16 V
Supply Voltage - Min: 3 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 150 C
Packaging: Tube
Brand: STMicroelectronics
Description/Function: Speaker
Gain: 75 dB
Height: 3.32 mm
Ib - Input Bias Current: 100 nA
Input Type: Single
Length: 10.92 mm
Number of Channels: 1 Channel
Operating Supply Current: 1.5 A
Operating Supply Voltage: 5 V, 9 V, 12 V, 15 V
Output Current: 1500 mA
Output Signal Type: Single
Pd - Power Dissipation: 1000 mW
Product Type: Audio Amplifiers
50
Subcategory: Audio ICs
Supply Type: Single
Width: 6.6 mm
Unit Weight: 0.032805 oz
