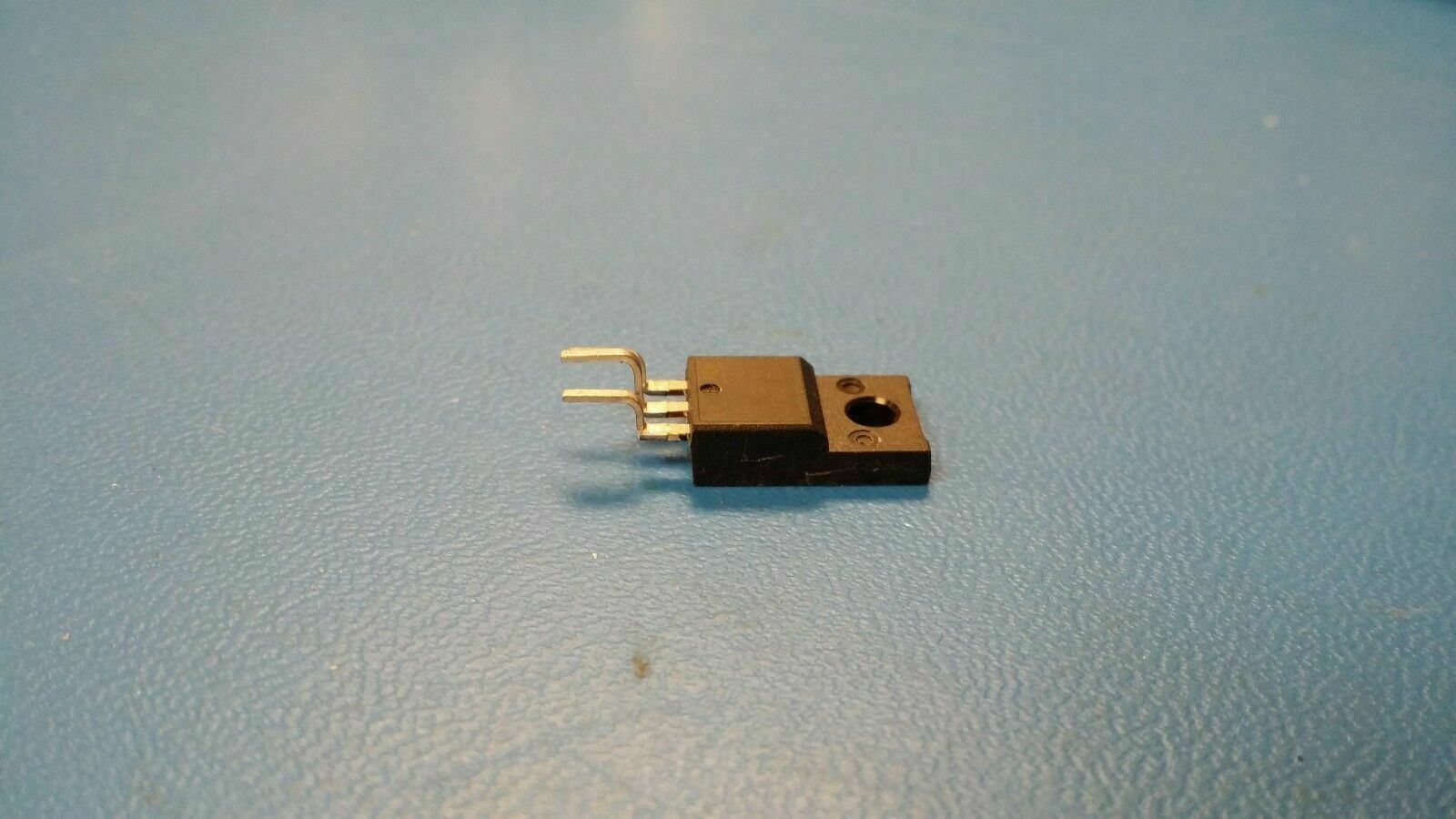

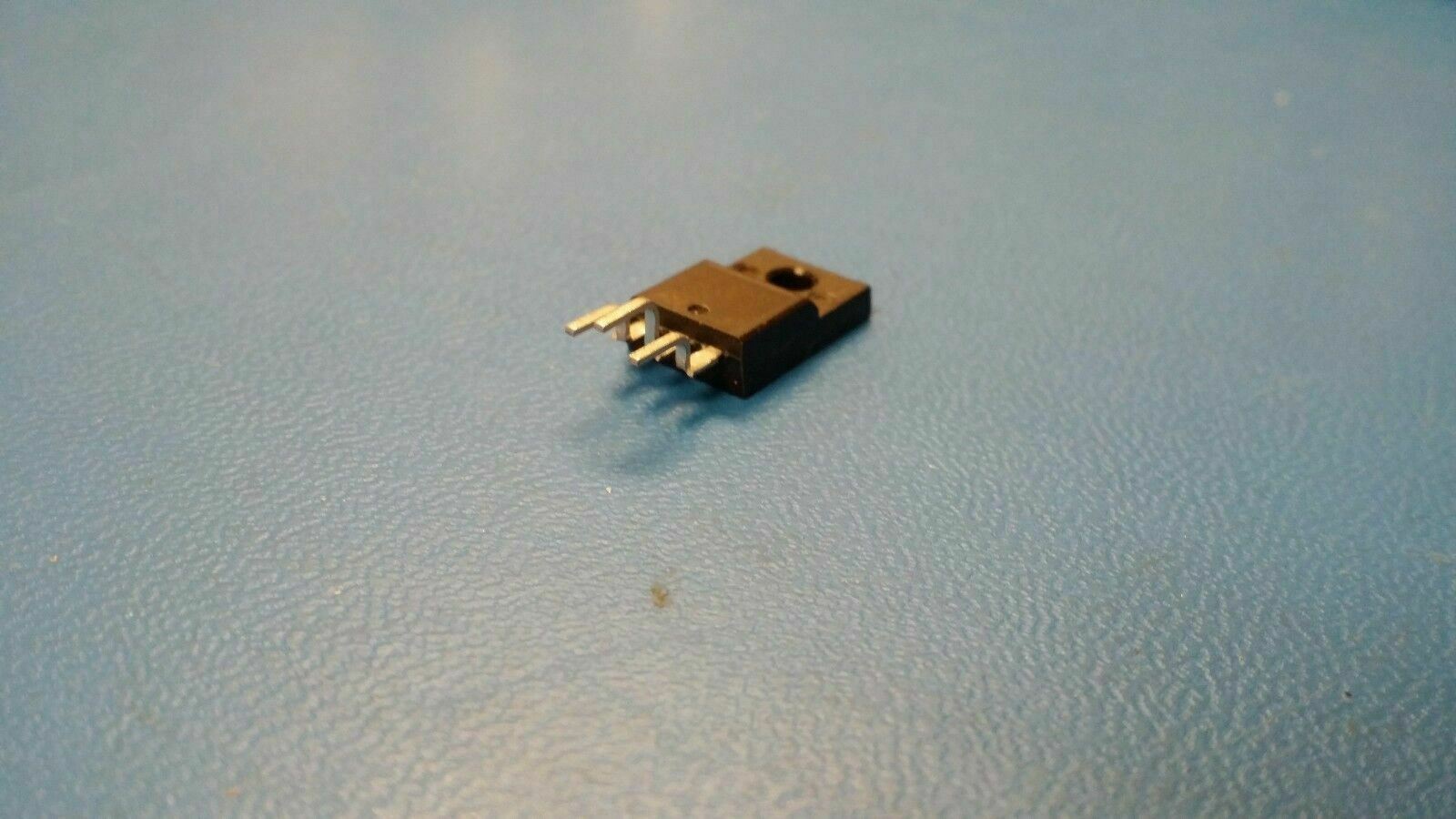

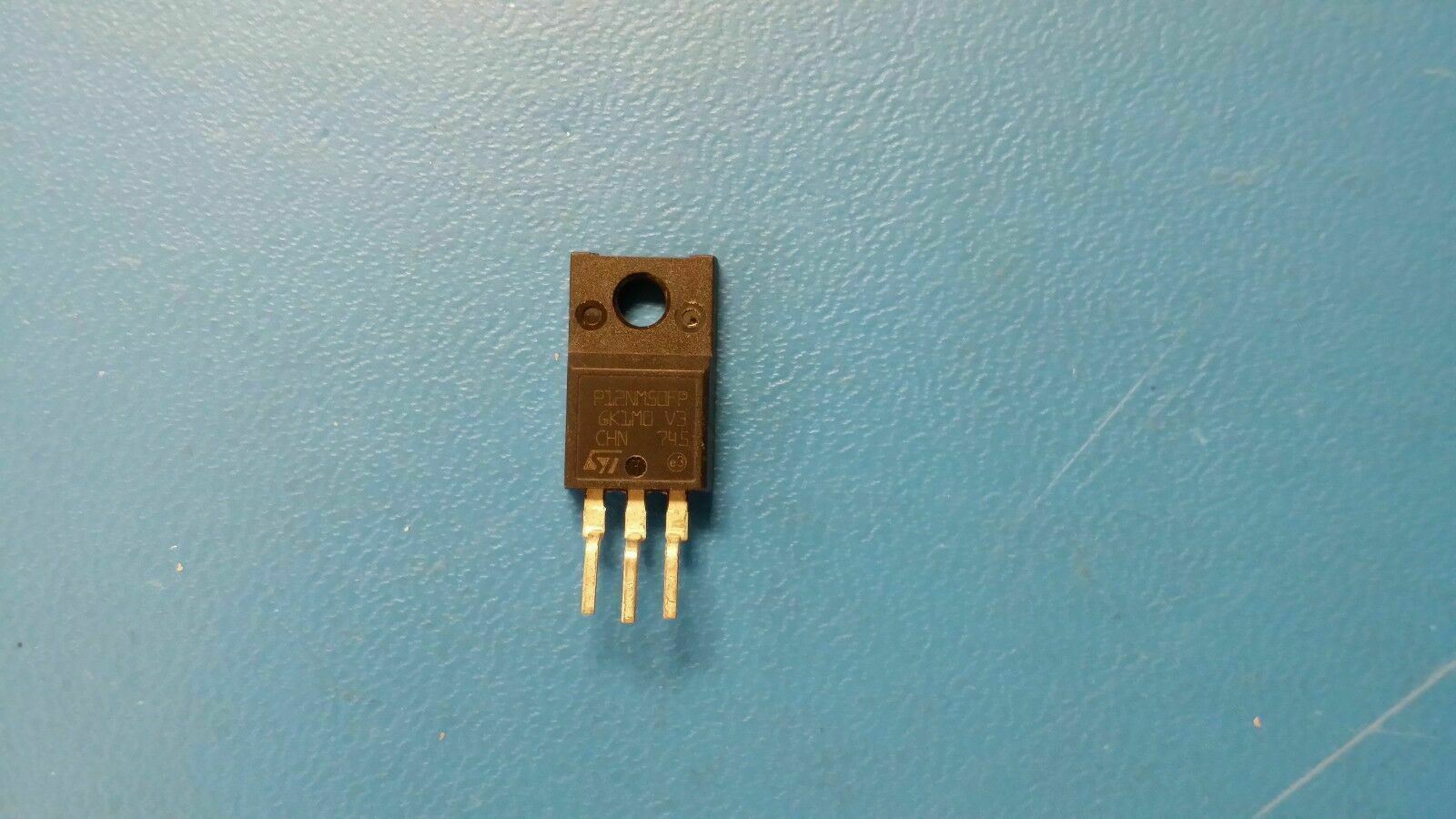

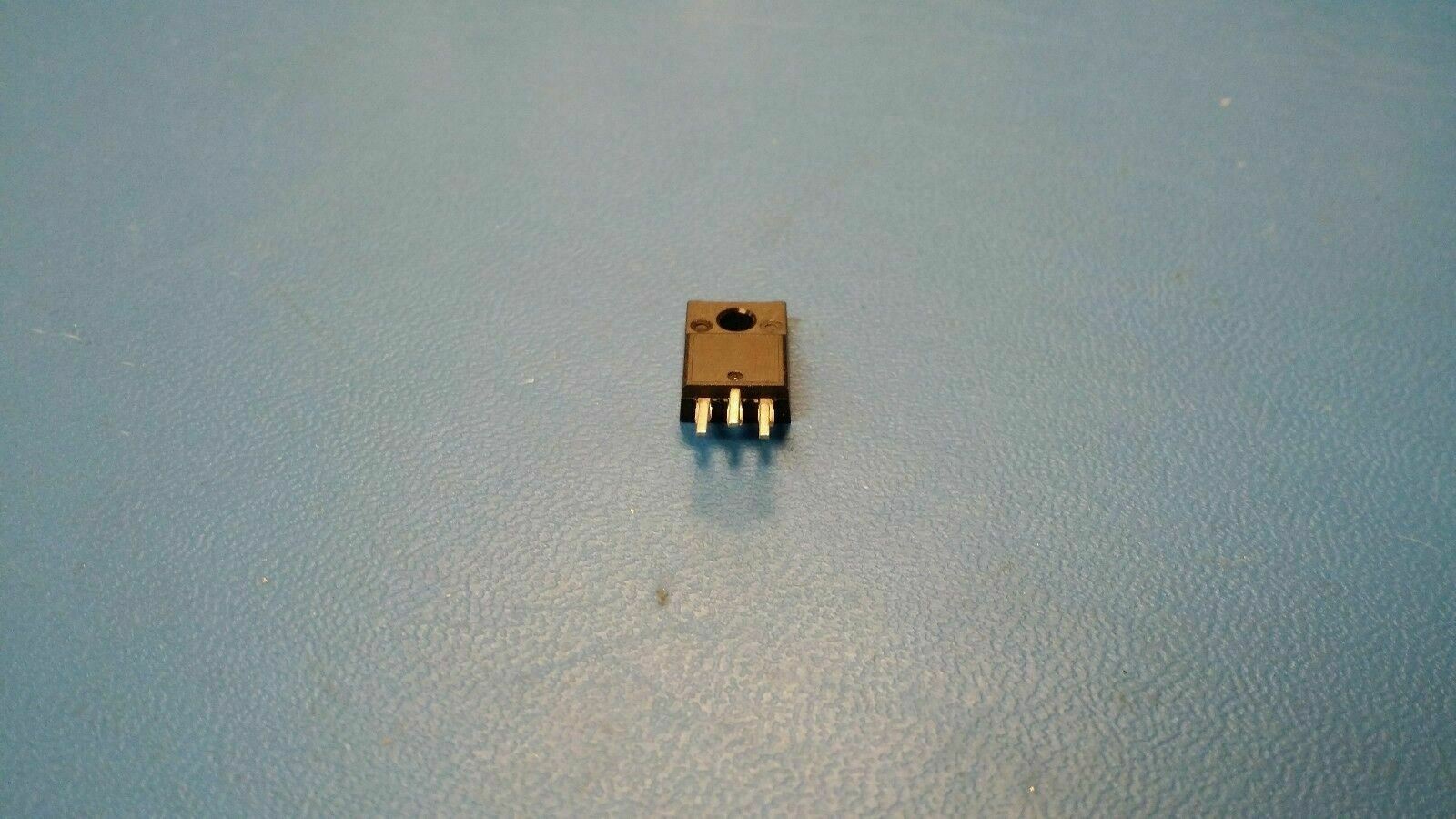

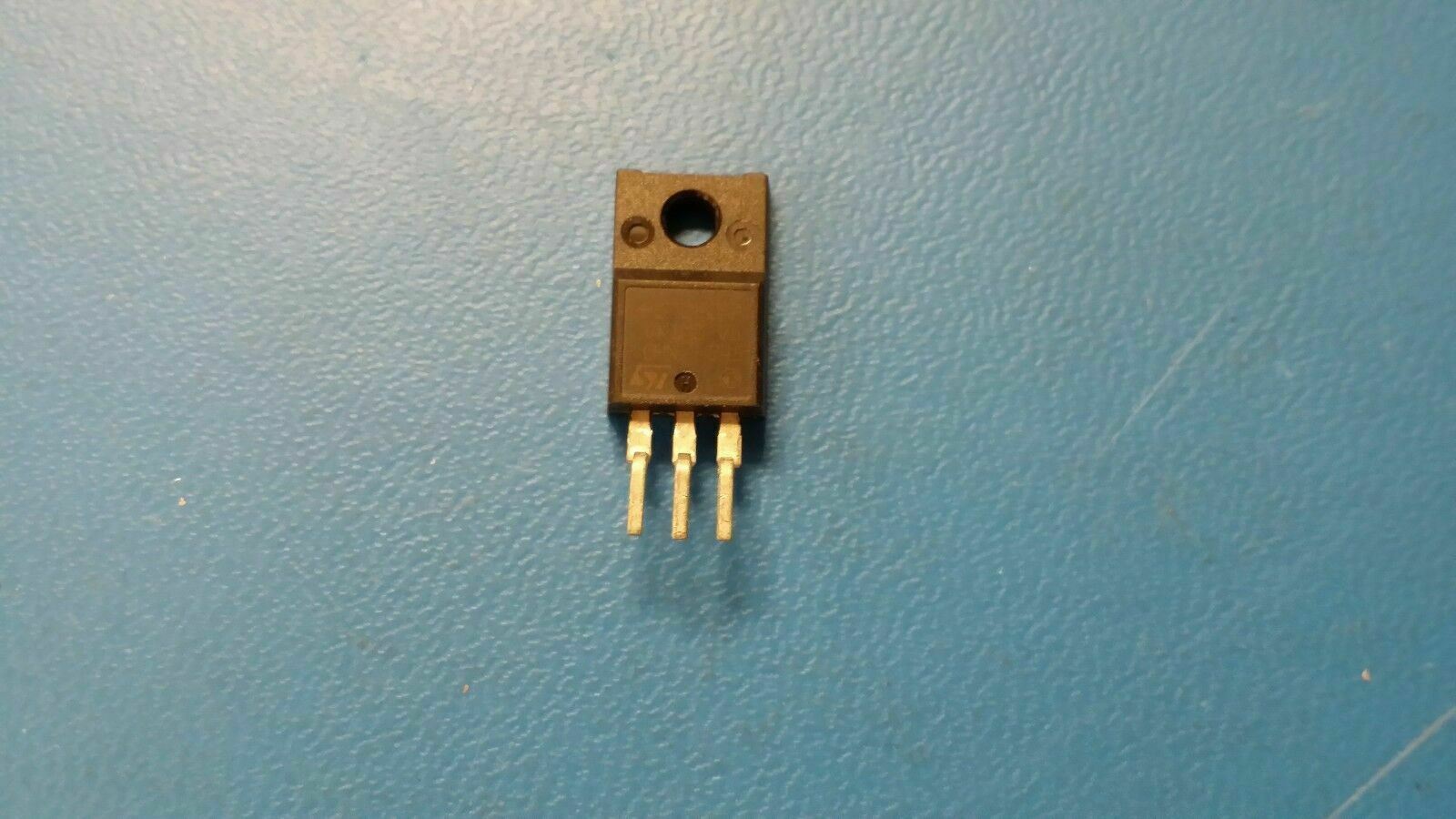

(4 PCS) STP12NM50FP ST MICRO Trans MOSFET N-CH 500V 12A 3-Pin(3+Tab) TO-220FP
Tax included.
THIS LISTING IS FOR (2 PCS) OF STP12NM50FP BY ST MICRO
Trans MOSFET N-CH 500V 12A 3-Pin(3+Tab) TO-220FP
| Product Category: | MOSFET | |
| Manufacturer: | STMicroelectronics | |
| Technology: | Si | |
| Mounting Style: | Through Hole | |
| Package / Case: | TO-220-3 | |
| Number of Channels: | 1 Channel | |
| Transistor Polarity: | N-Channel | |
| Vds - Drain-Source Breakdown Voltage: | 500 V | |
| Id - Continuous Drain Current: | 12 A | |
| Rds On - Drain-Source Resistance: | 350 mOhms | |
| Vgs - Gate-Source Voltage: | 30 V | |
| Maximum Operating Temperature: | + 150 C | |
| Packaging: | Tube | |
| Channel Mode: | Enhancement | |
| Brand: | STMicroelectronics | |
| Configuration: | Single | |
| Forward Transconductance - Min: | 5.5 S | |
| Height: | 9.3 mm | |
| Length: | 10.4 mm | |
| Minimum Operating Temperature: | - 65 C | |
| Pd - Power Dissipation: | 35 W | |
| Rise Time: | 10 ns | |
| Series: | STP12NM50FP | |
| Transistor Type: | 1 N-Channel | |
| Type: | MOSFET | |
| Typical Turn-On Delay Time: | 20 ns |
