(4 PCS) SN74LS612N TI 12 I/O PIA-GENERAL PURPOSE PDIP40
Tax included.

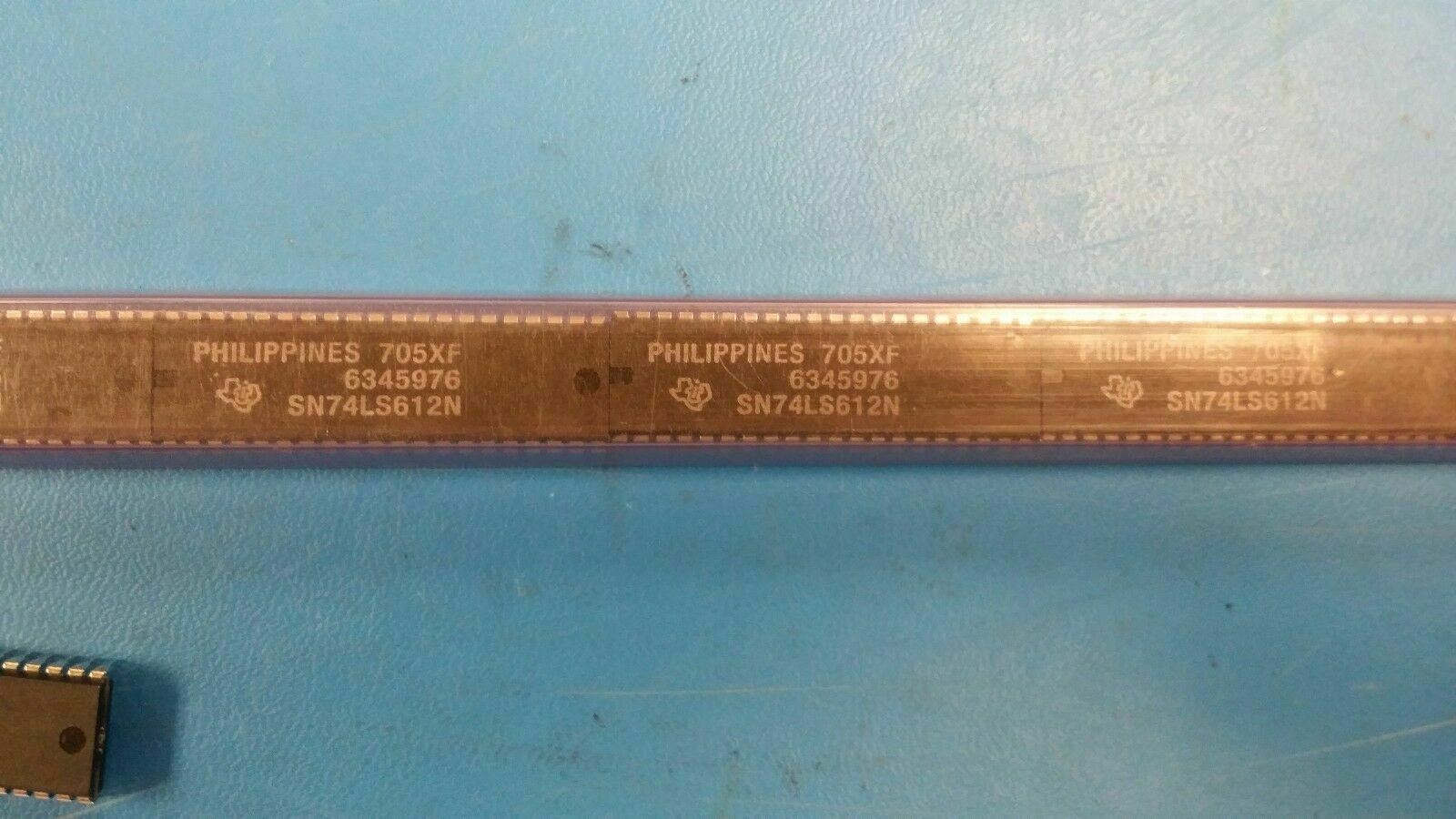

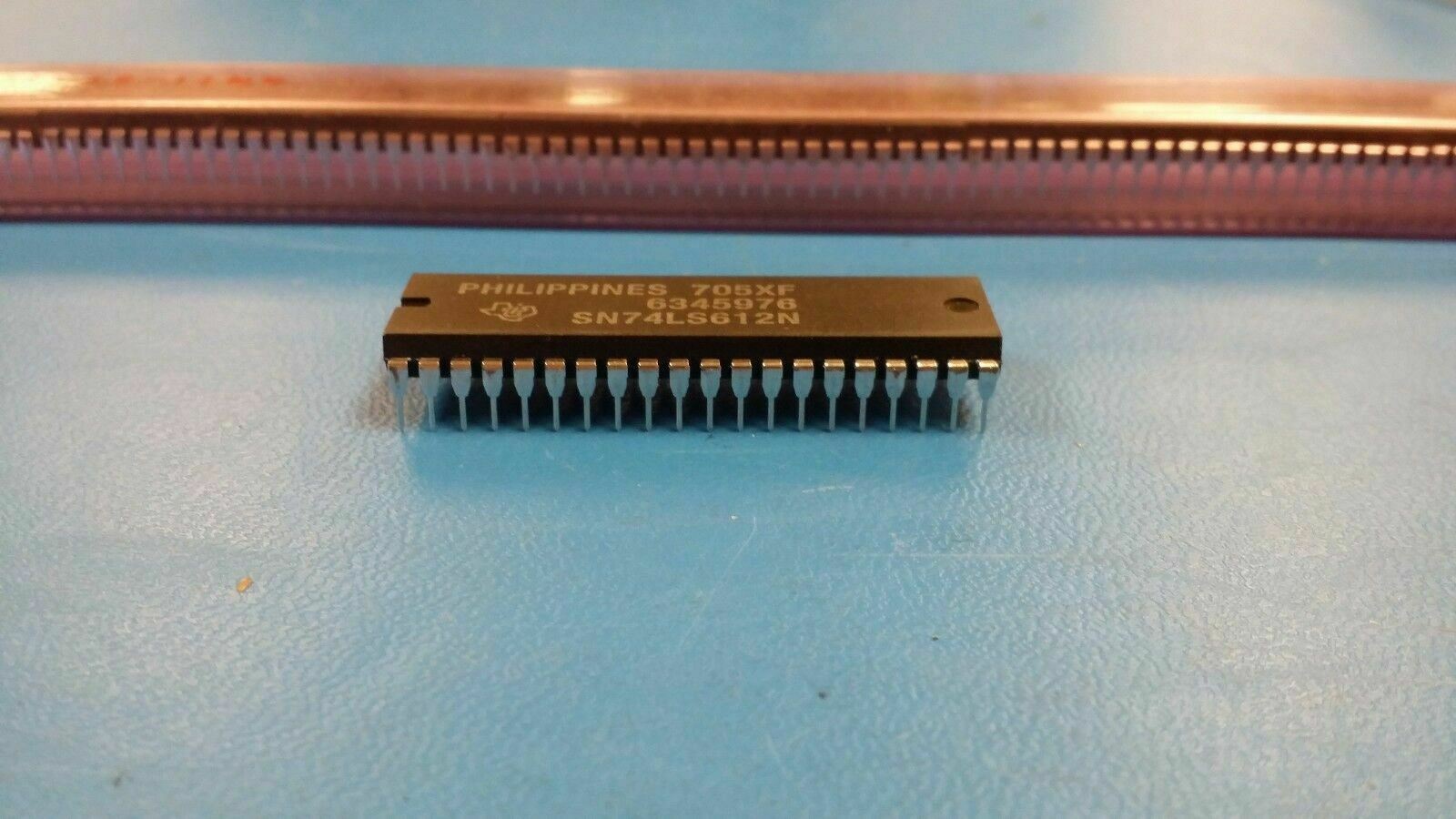

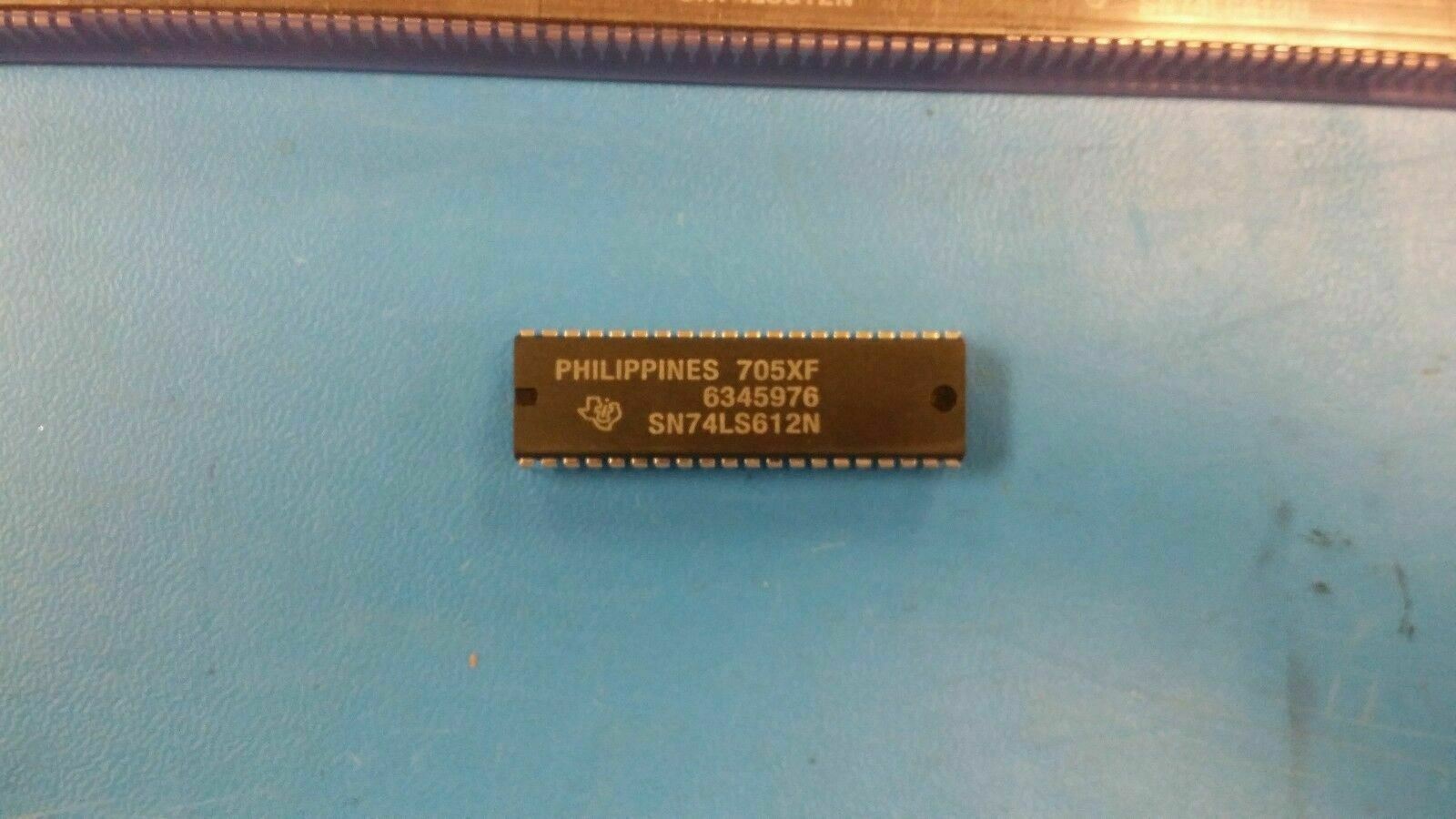

THIS LISTING IS FOR (4 PCS) OF SN74LS612N BY TI
12 I/O PIA-GENERAL PURPOSE PDIP40
**May not recieve same as picture**
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: 12 I/O, PIA-GENERAL PURPOSE, PDIP40
Manufacturer: Texas Instruments High-Performance Analog
Description: 12 I/O, PIA-GENERAL PURPOSE, PDIP40
| Status | Discontinued |
| Microprocessor/Microcontroller/Peripheral IC Type | PARALLEL IO PORT, GENERAL PURPOSE |
| JESD-30 Code | R-PDIP-T40 |
| JESD-609 Code | e0 |
| Number of I/O Lines | 12.0 |
| Number of Ports | 1 |
| Number of Terminals | 40 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP40,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Sub Category | Other Microprocessor ICs |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 52.455 mm |
| Width | 15.24 mm |
