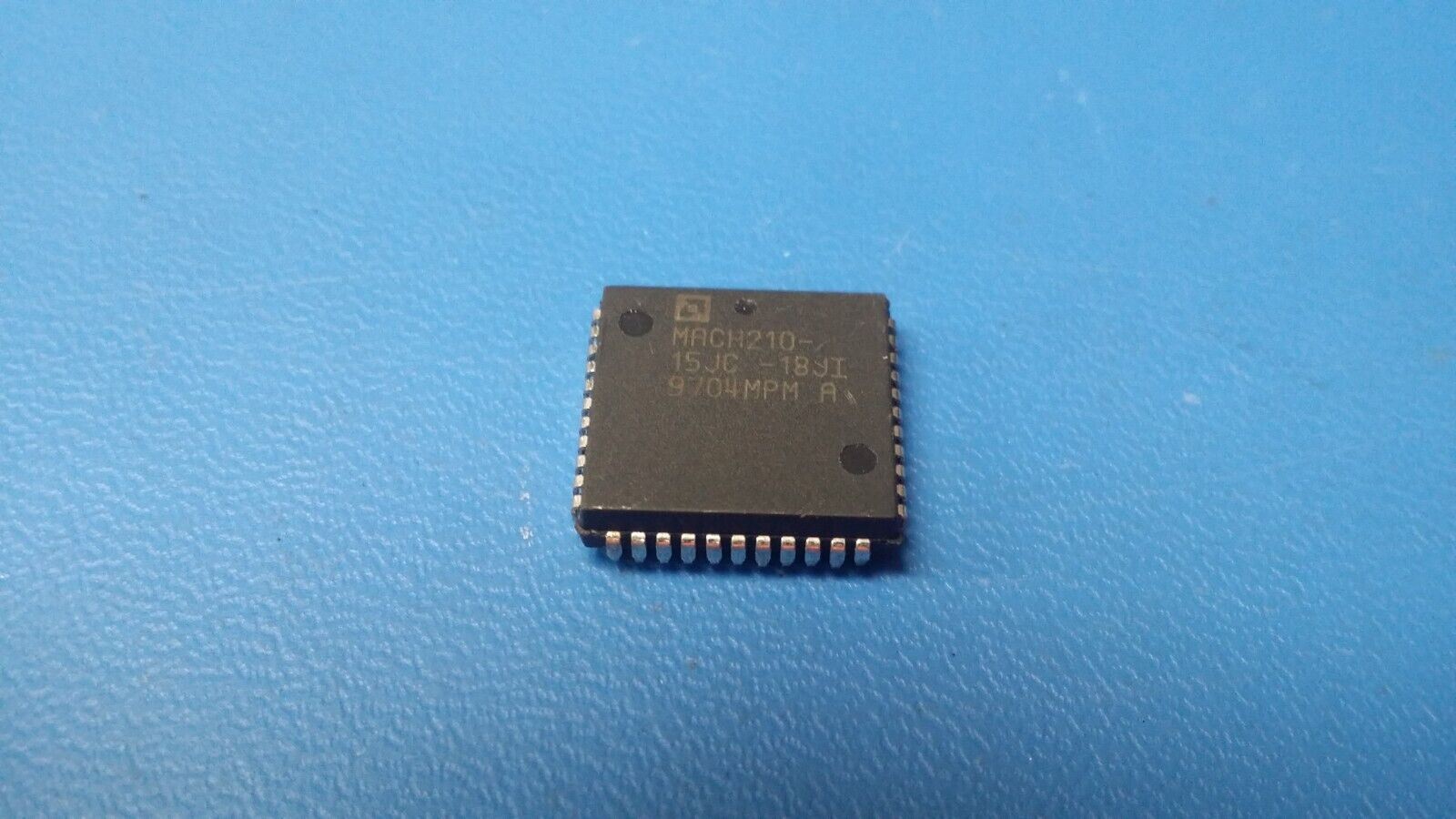

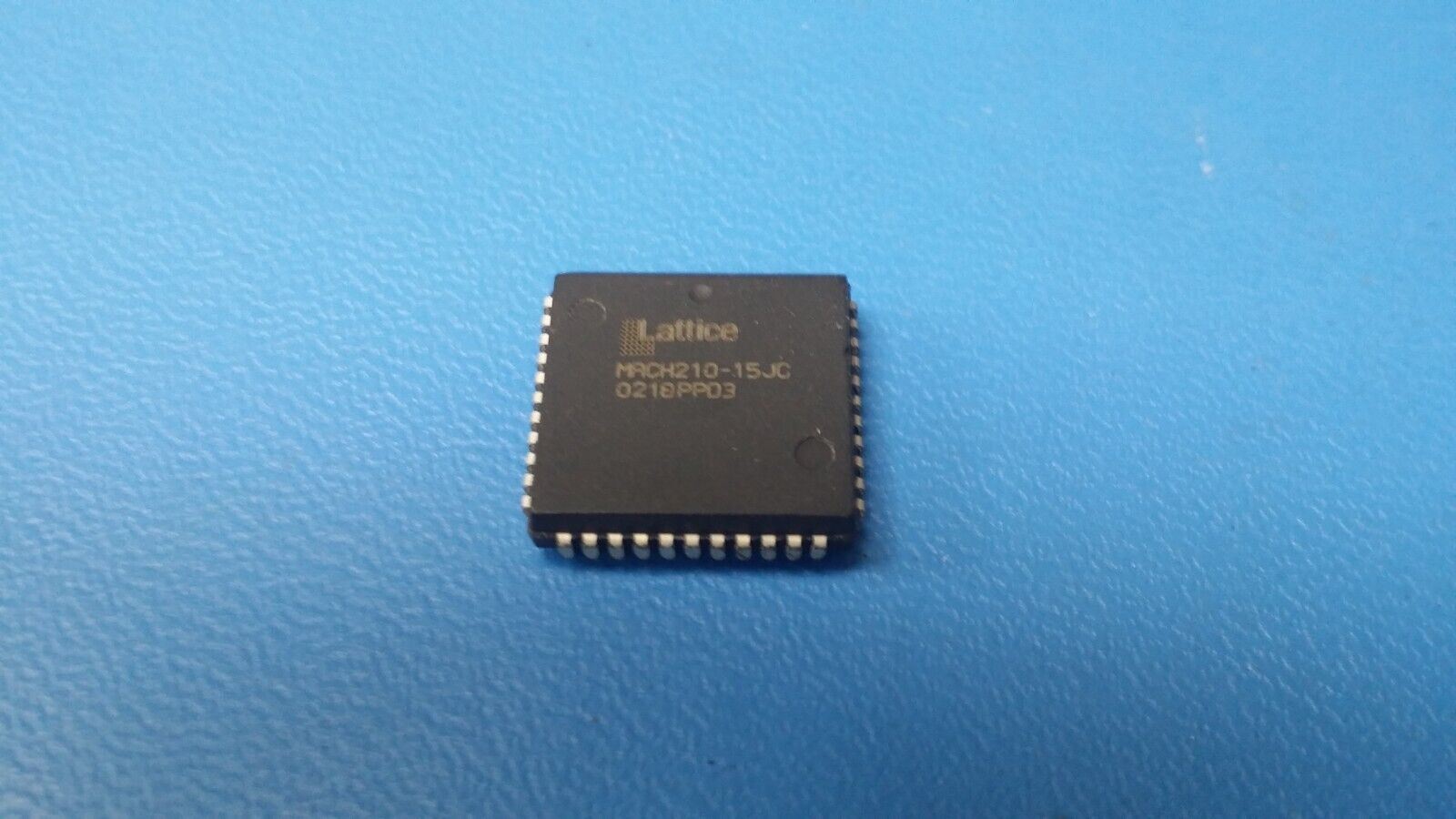

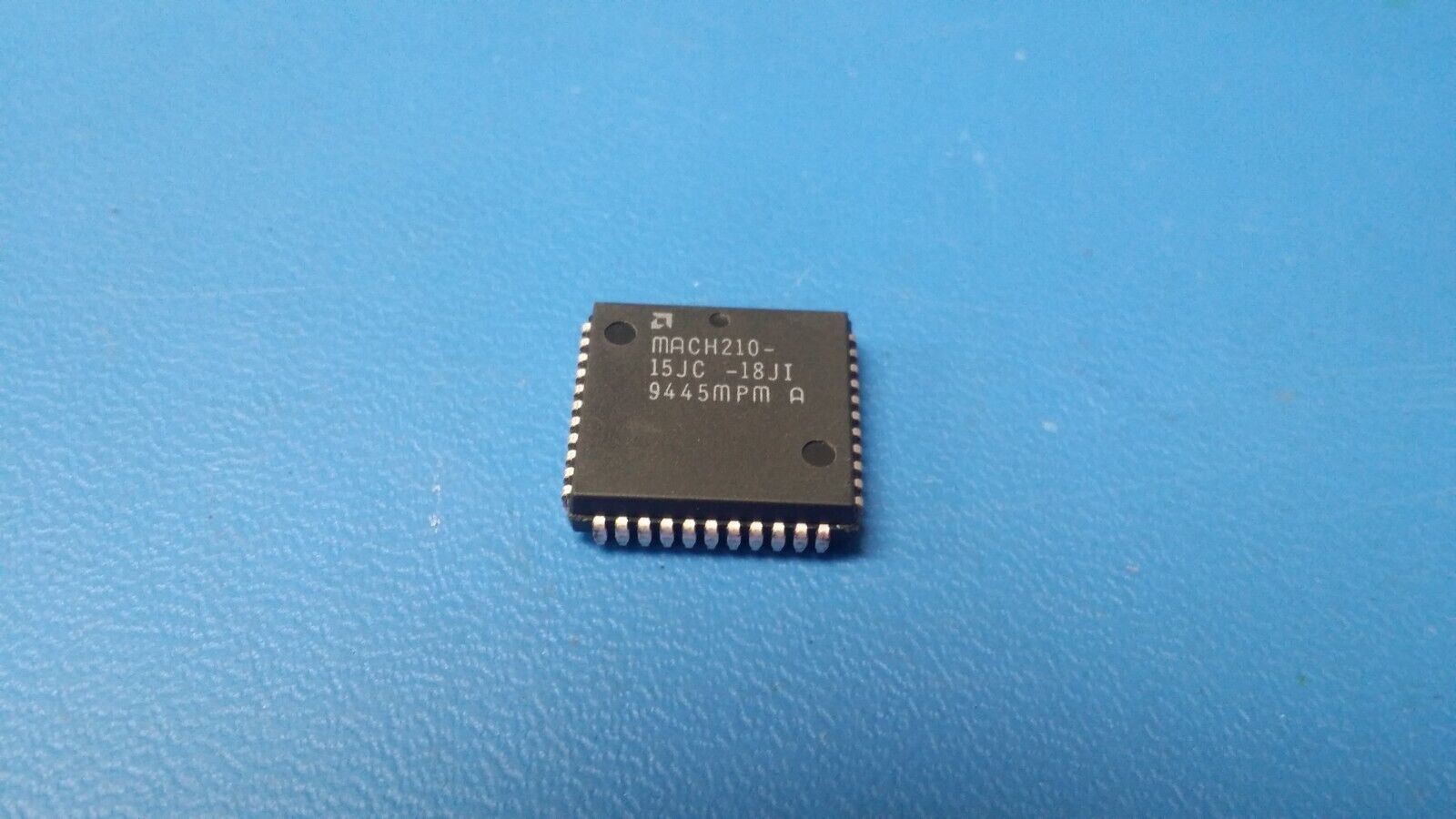

THIS IS FOR (1 PC) OF MACH210-15JC MACH210-15JC / 18JI  BY LATTICE / AMD
EE PLD, 15ns, 64-Cell, CMOS, PLCC44

Part #: MACH210-15JC
Part Category: Programmable Logic ICs
Manufacturer: Lattice Semiconductor Corporation
Description: EE PLD, 15ns, 64-Cell, CMOS, PQCC44

Status Transferred
Programmable Logic Type EE PLD
Clock Frequency-Max 50.0  MHz
In-System Programmable NO
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
JTAG BST NO
Number of Dedicated Inputs 4.0
Number of I/O Lines 32.0
Number of Macro Cells 64.0
Number of Terminals 44
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 4 DEDICATED INPUTS, 32 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Propagation Delay 15.0  ns
Qualification Status Not Qualified
Sub Category Programmable Logic Devices
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
Additional Feature NO
