(4 PCS) IR2304SPBF IR Half-Bridge Gate Driver IC Non-Inverting 8-SOIC ROHS
Tax included.

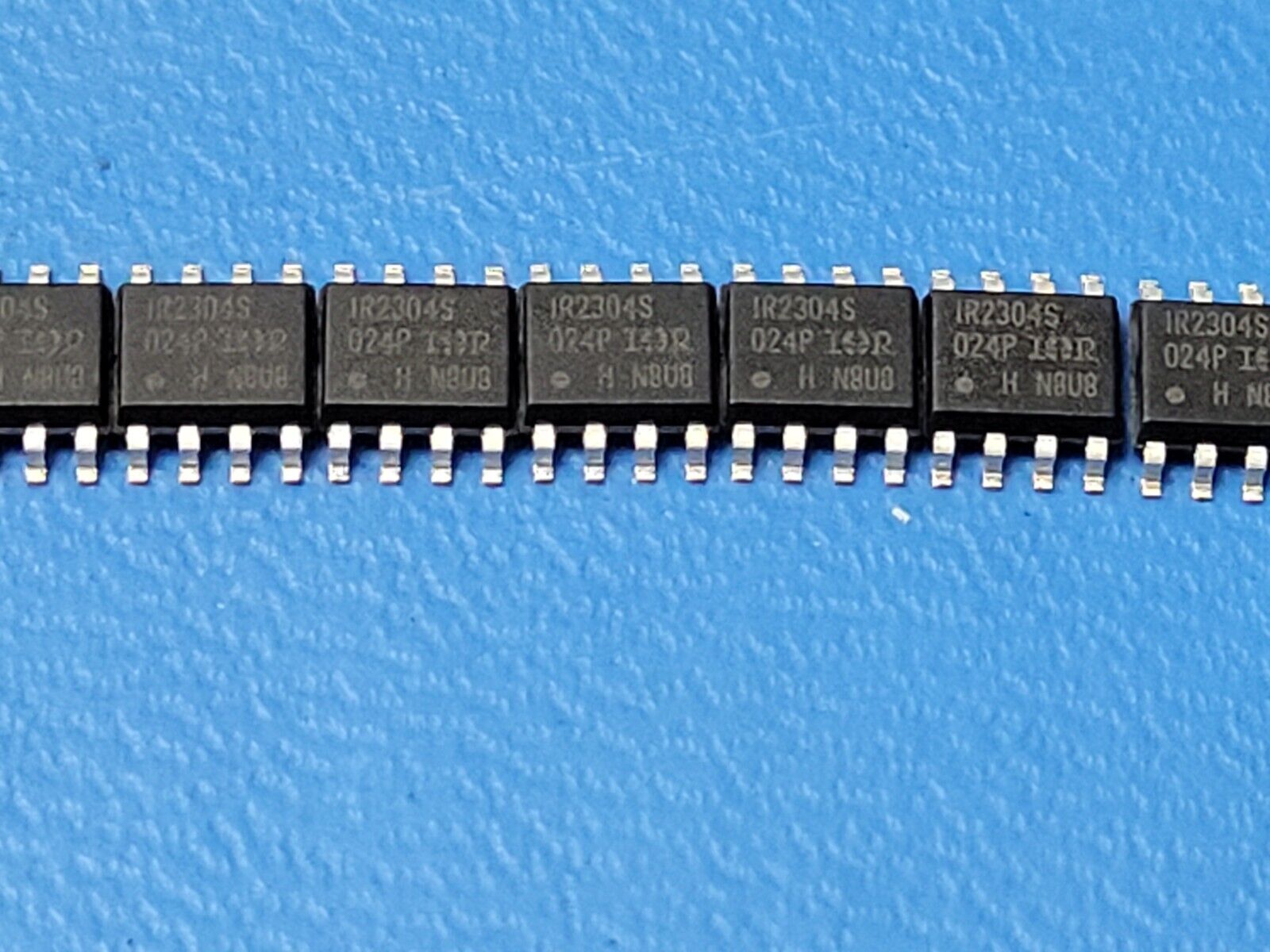

THIS IS FOR (4 PCS) OF IR2304SPBF BY IR
Half-Bridge Gate Driver IC Non-Inverting 8-SOIC ROHS
Manufacturer: International Rectifier
Product Category: Gate Drivers
RoHS: YES
Product: IGBT, MOSFET Gate Drivers
Type: Half-Bridge
Mounting Style: SMD/SMT
Package / Case: SOIC-8
Number of Drivers: 2 Driver
Number of Outputs: 2 Output
Output Current: 130 mA
Supply Voltage - Min: 10 V
Supply Voltage - Max: 20 V
Rise Time: 300 ns
Fall Time: 170 ns
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Packaging: Tube
Brand: International Rectifier
Features: Independent
Height: 1.75 mm
Length: 4.9 mm
Logic Type: CMOS, TTL
Maximum Turn-Off Delay Time: 220 ns
Maximum Turn-On Delay Time: 220 ns
Moisture Sensitive: Yes
Operating Supply Voltage: 5 V to 20 V
Pd - Power Dissipation: 625 mW
Product Type: Gate Drivers
Propagation Delay - Max: 330 ns
