(4 PCS) GI1404 General Instrument Diode Switching 200V 8A 2-Pin(2+Tab) TO-220
Tax included.

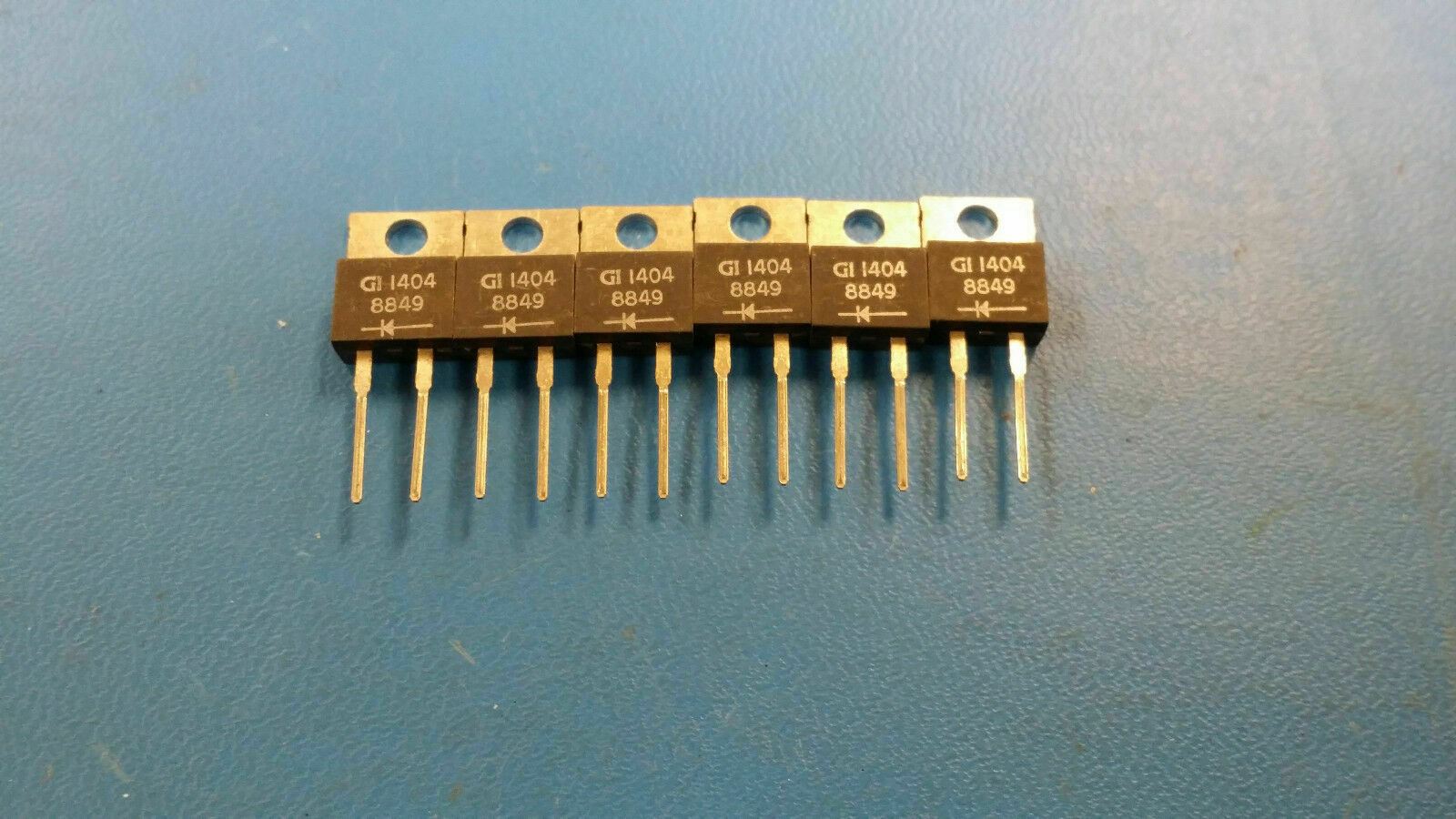

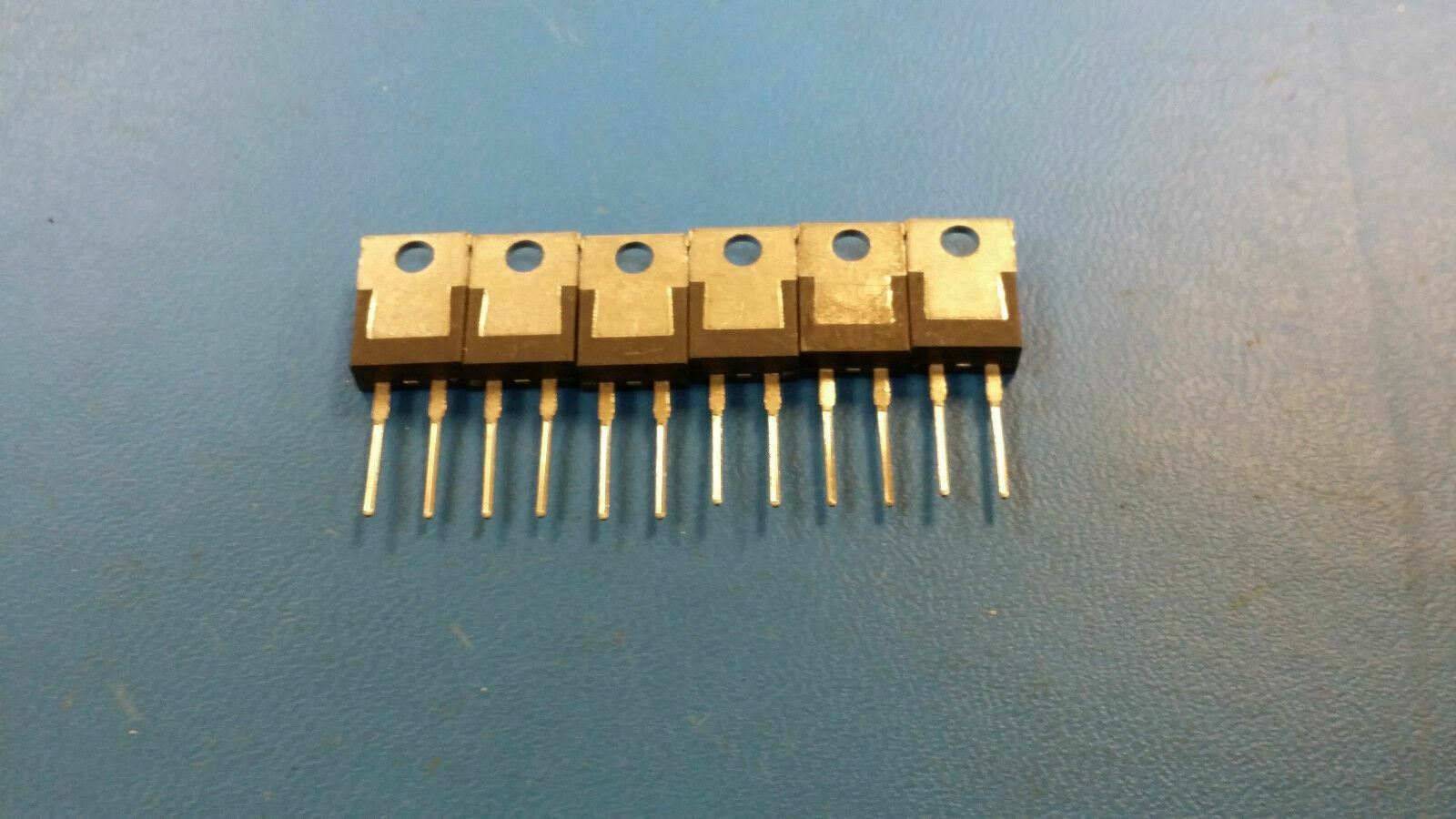

THIS LISTING IS FOR (6 PCS) OF GI1404 BY GENERAL INSTRUMENT
Diode Switching 200V 8A 2-Pin(2+Tab) TO-220
Diode Switching 200V 8A 2-Pin(2+Tab) TO-220
| Minimum Operating Temperature (°C) | -65 |
| Maximum Operating Temperature (°C) | 150 |
| Type | Switching Diode |
| Peak Reverse Current (uA) | 5 |
| Configuration | Single |
| Packaging | Tube |
| Peak Reverse Repetitive Voltage (V) | 200 |
| Maximum Continuous Forward Current (A) | 8 |
| Peak Reverse Recovery Time (ns) | 35 |
| Peak Forward Voltage (V) | 0.975 |
| Peak Non-Repetitive Surge Current (A) | 125 |
| Operating Junction Temperature (°C) | -65 to 150 |
| Mounting | Through Hole |
| Package Height (mm) | 8.89(Max) |
| Package Length (mm) | 10.54(Max) |
| Package Width (mm) | 4.7(Max) |
| PCB | 2 |
| Tab | Tab |
| Standard Package Name | TO-220 |
| Supplier Package | TO-220AC |
| Pin Count | 2 |
| Lead Shape | Through Hole |
| Taxonomy | Diodes, Transistors and Thyristors |
