(4 PCS) FQP11N40C FSC MOSFET N-CH 400V 10.5A TO-220
Tax included.

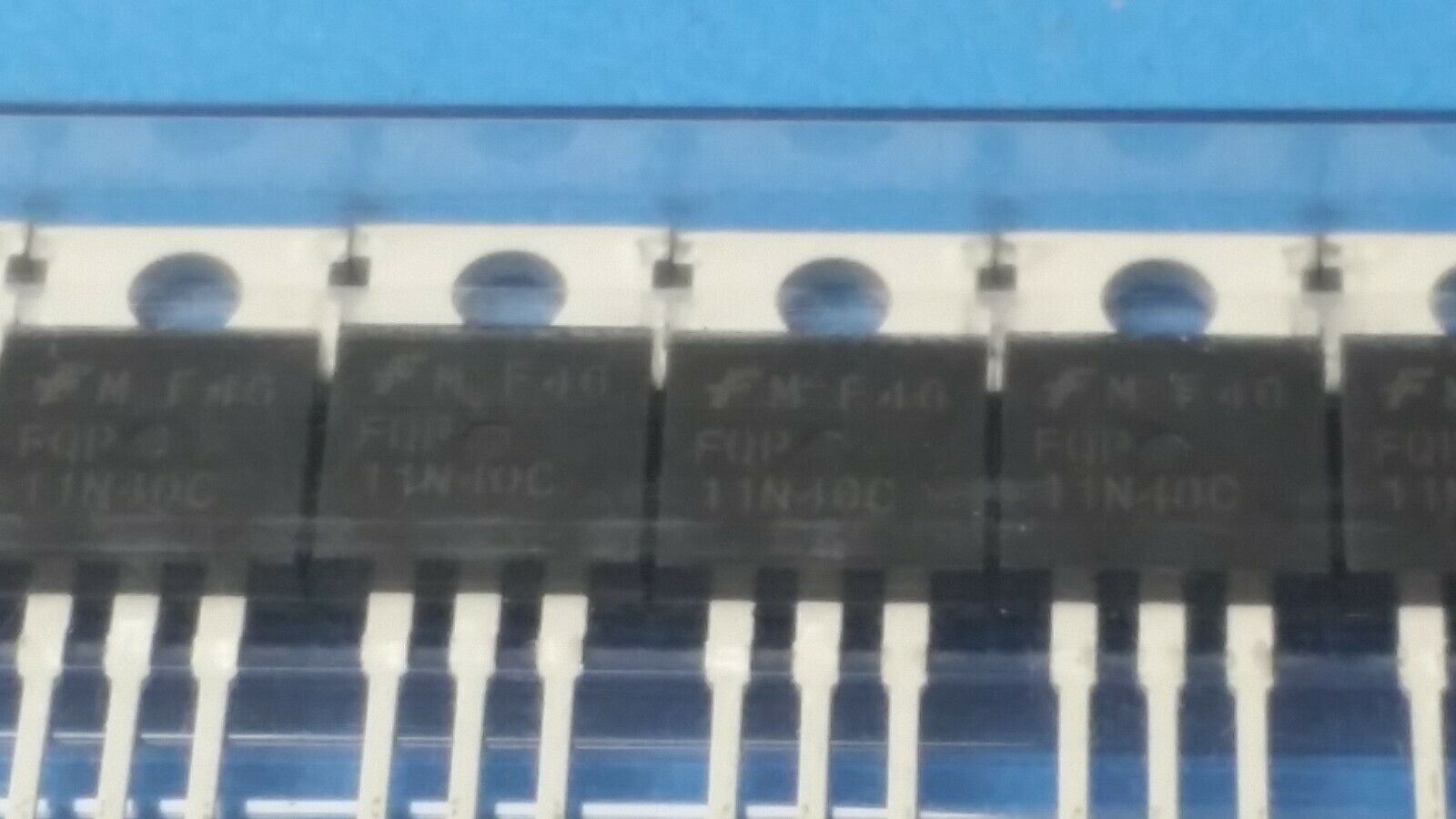

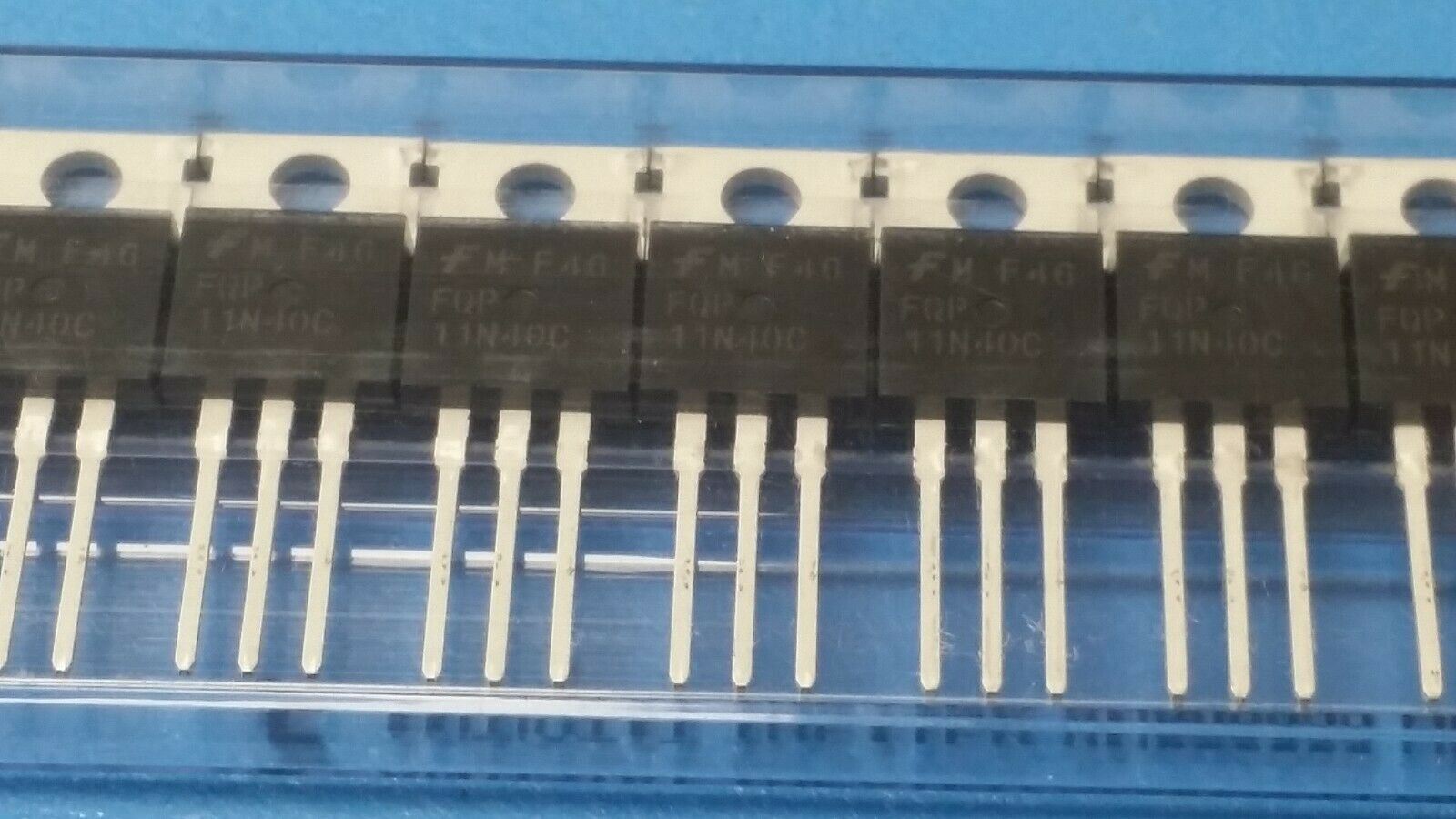

THIS IS FOR (4 PCS) OF FQP11N40C BY FSC
MOSFET N-CH 400V 10.5A TO-220
Manufacturer: onsemi/Fairchild
Product Category: MOSFET
RoHS: N
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 400 V
Id - Continuous Drain Current: 11 A
Rds On - Drain-Source Resistance: 530 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Qg - Gate Charge: 35 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 135 W
Channel Mode: Enhancement
Tradename: QFET
Packaging: Tube
Brand: onsemi / Fairchild
Configuration: Single
Fall Time: 81 ns
Forward Transconductance - Min: 7.1 S
Height: 16.3 mm
Length: 10.67 mm
Product Type: MOSFET
Rise Time: 89 ns
Series: FQP11N40C
1000
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Type: MOSFET
Typical Turn-Off Delay Time: 81 ns
Typical Turn-On Delay Time: 14 ns
Width: 4.7 mm
Part # Aliases: FQP11N40C_NL
Unit Weight: 0.068784 oz
