(4 PCS) DS75107N,MC75107P NSC DUAL LINE RECEIVER, PDIP14
Tax included.

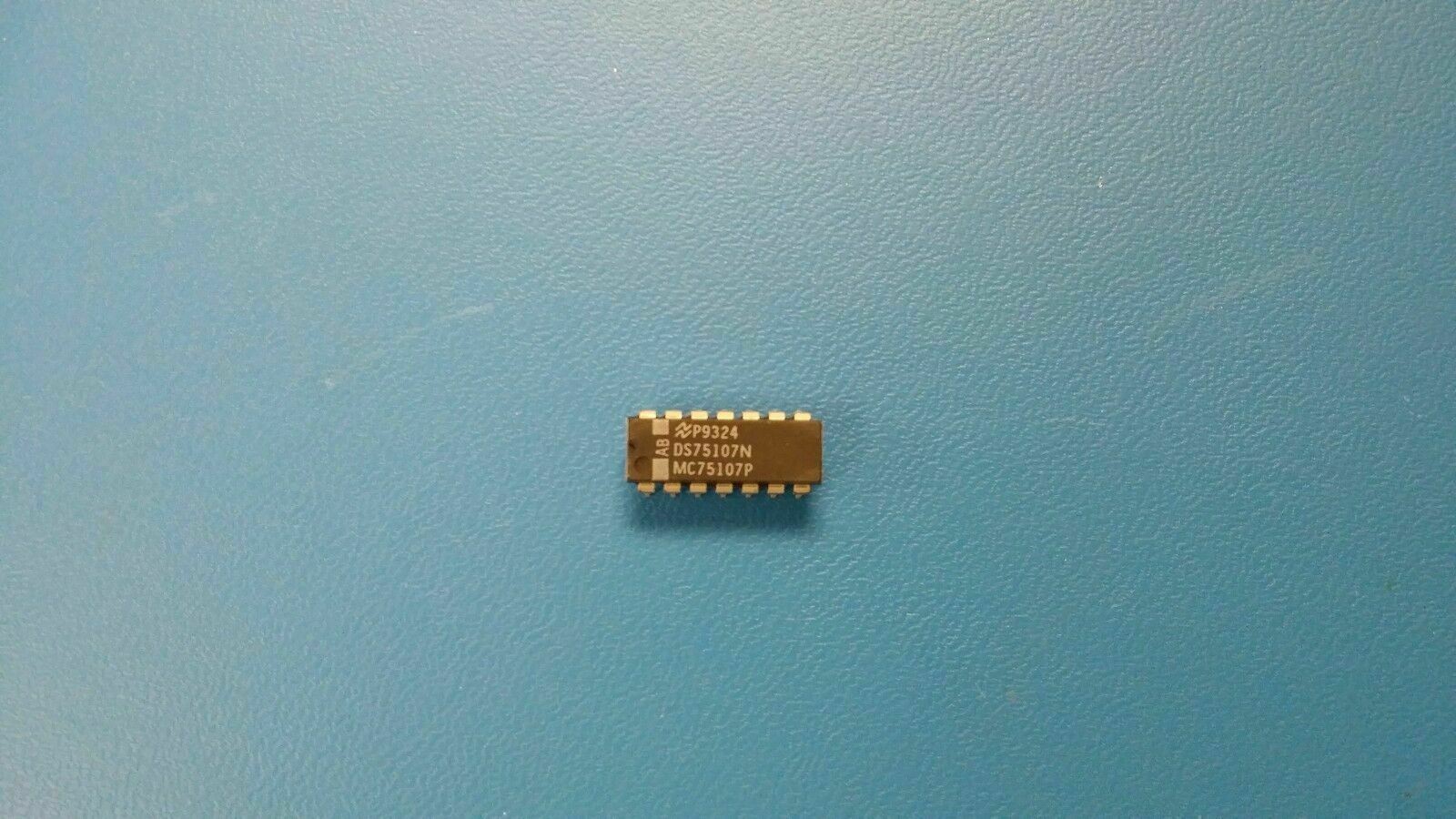

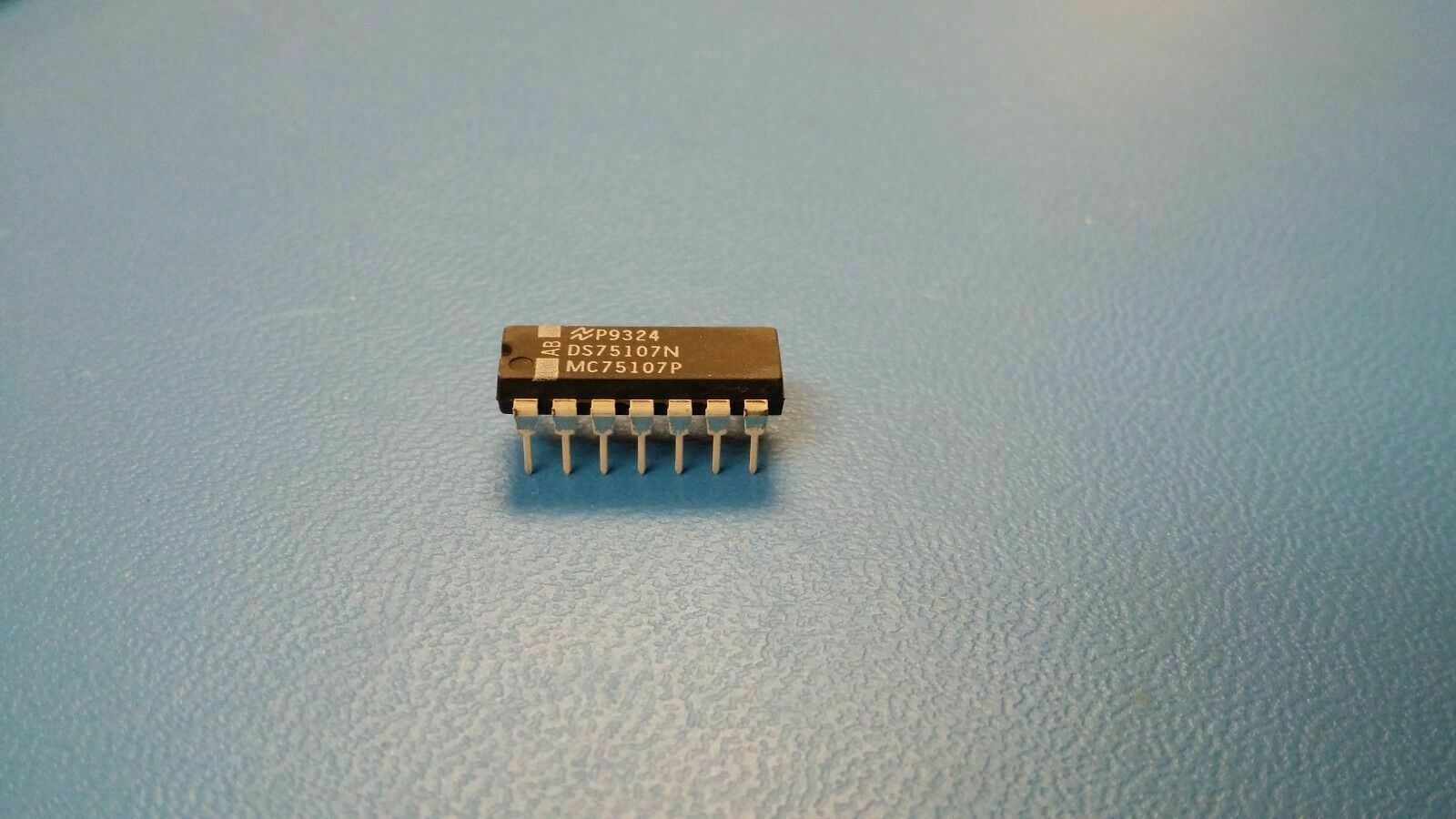

THIS LISTING IS FOR (4 PCS) OF DS75107N,MC75107P BY NSC
DUAL LINE RECEIVER, PDIP14
| Mfr Package Description | PLASTIC, DIP-16 |
| Status | Discontinued |
| Interface IC Type | LINE RECEIVER |
| Input Characteristics | DIFFERENTIAL |
| Interface Standard | GENERAL PURPOSE |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e0 |
| Negative Supply Voltage-Nom | -5.0 V |
| Number of Functions | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | TOTEM-POLE |
| Output Low Current-Max | 0.016 Amp |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | +-5 |
| Qualification Status | Not Qualified |
| Receive Delay-Max | 25.0 ns |
| Receiver Number of Bits | 2.0 |
| Seated Height-Max | 5.08 mm |
| Sub Category | Line Driver or Receivers |
| Supply Current-Max | 30.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 19.18 mm |
| Width | 7.62 mm |
| Additional Feature | ADDITIONAL COMMON STROBE INPUT |
