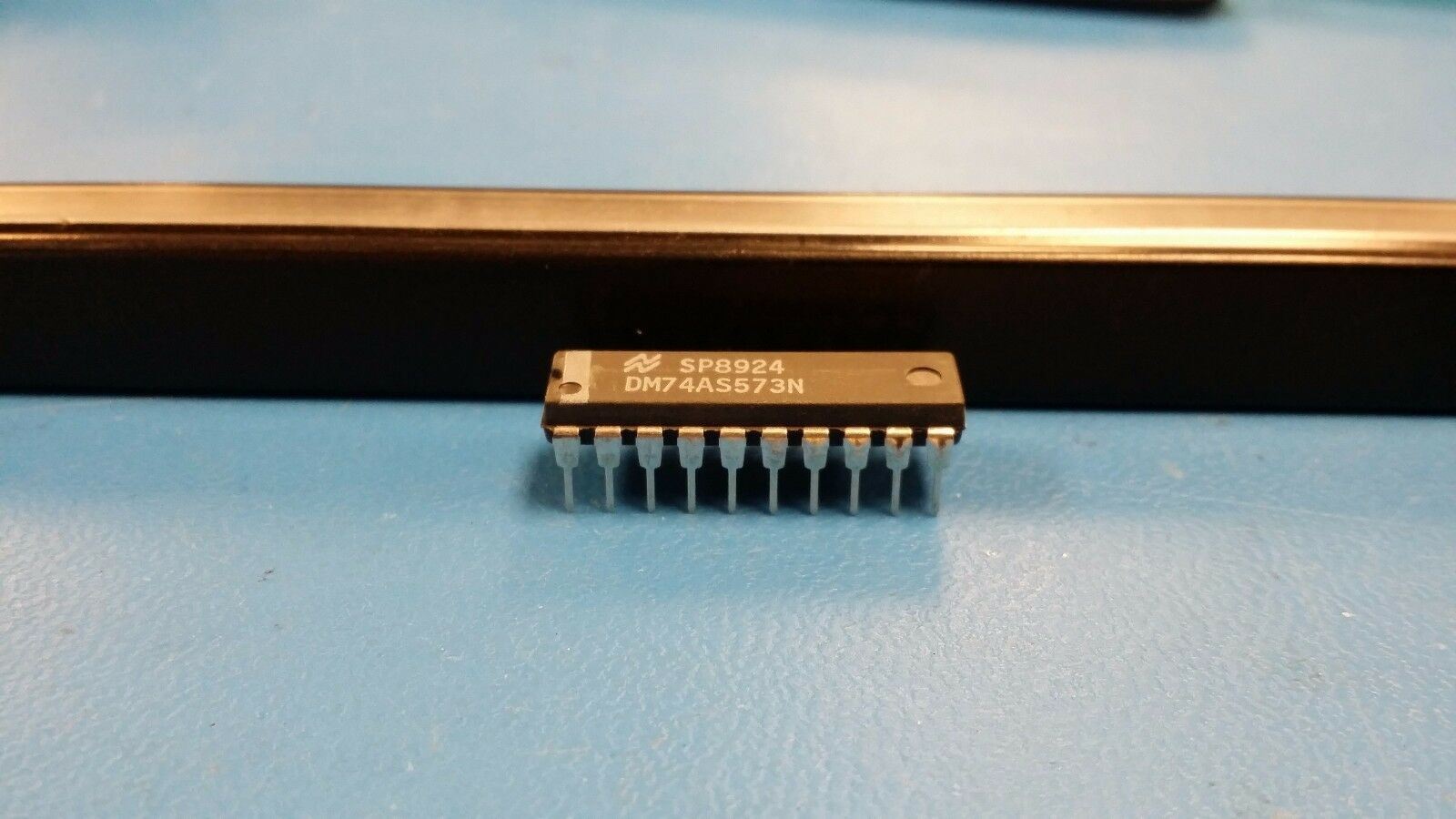

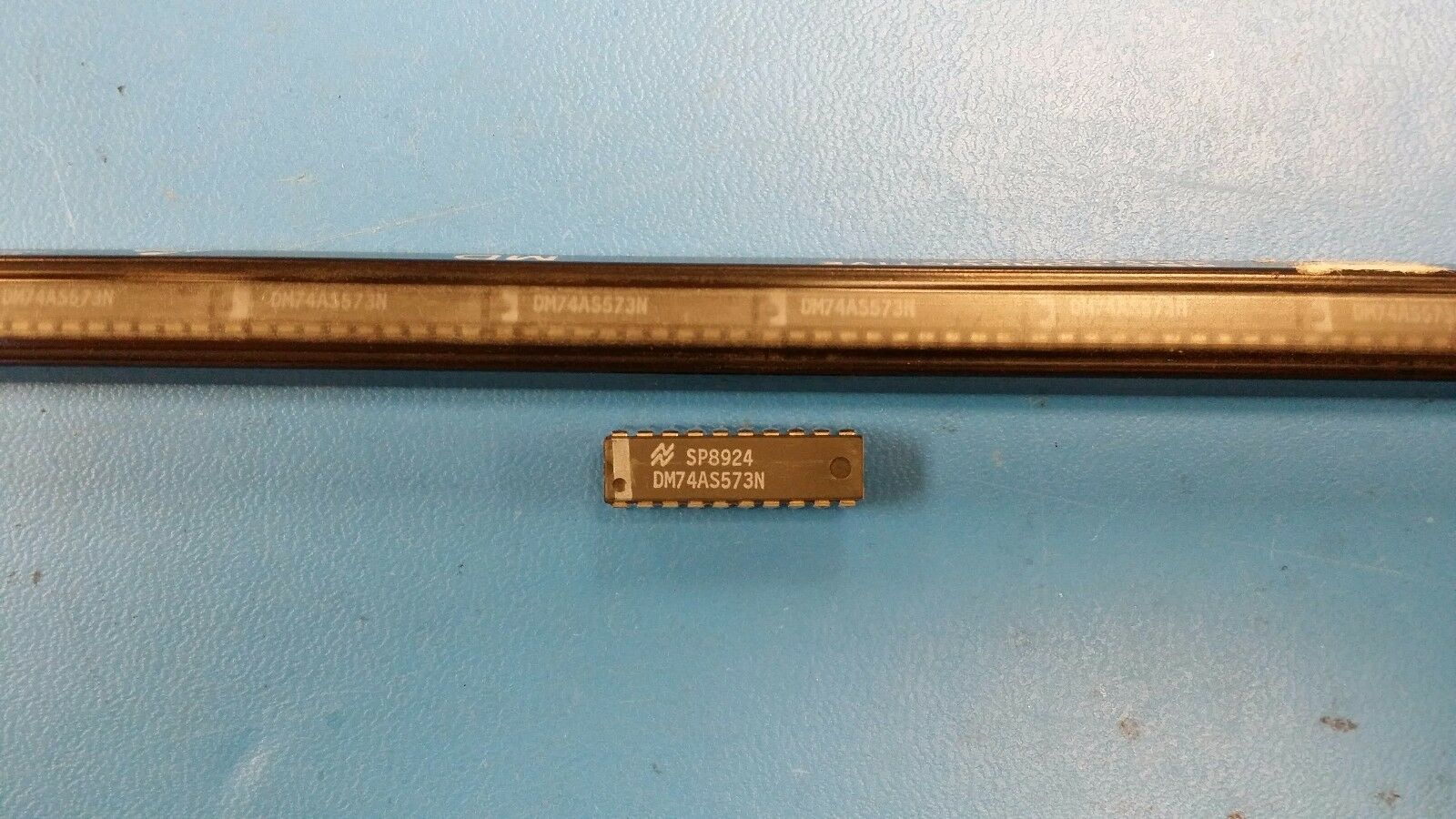

(4 PCS) DM74AS573N NSC AS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20
Tax included.
THIS LISTING IS FOR (4 PCS) OF DM74AS573N BY NSC NOW TI
AS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20
Part #: SN74AS573N
Part Category: Logic ICs
Manufacturer: Texas Instruments High-Performance Analog
Description: AS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20
Manufacturer: Texas Instruments High-Performance Analog
Description: AS SERIES, 8-BIT DRIVER, TRUE OUTPUT, PDIP20
| Status | Discontinued |
| Logic IC Type | BUS DRIVER |
| Sub Category | FF/Latches |
| Family | AS |
| JESD-30 Code | R-PDIP-T20 |
| Load Capacitance (CL) | 50.0 pF |
| Number of Bits | 8 |
| Number of Functions | 1 |
| Number of Ports | 2 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Output Characteristics | 3-STATE |
| Output Polarity | TRUE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Power Supplies (V) | 5 |
| Power Supply Current-Max (ICC) | 93.0 mA |
| Propagation Delay (tpd) | 7.5 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Nom (Vsup) | 5 |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | COMMERCIAL |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 24.325 mm |
| Width | 7.62 mm |
| Additional Feature | BROADSIDE VERSION OF 373 |
