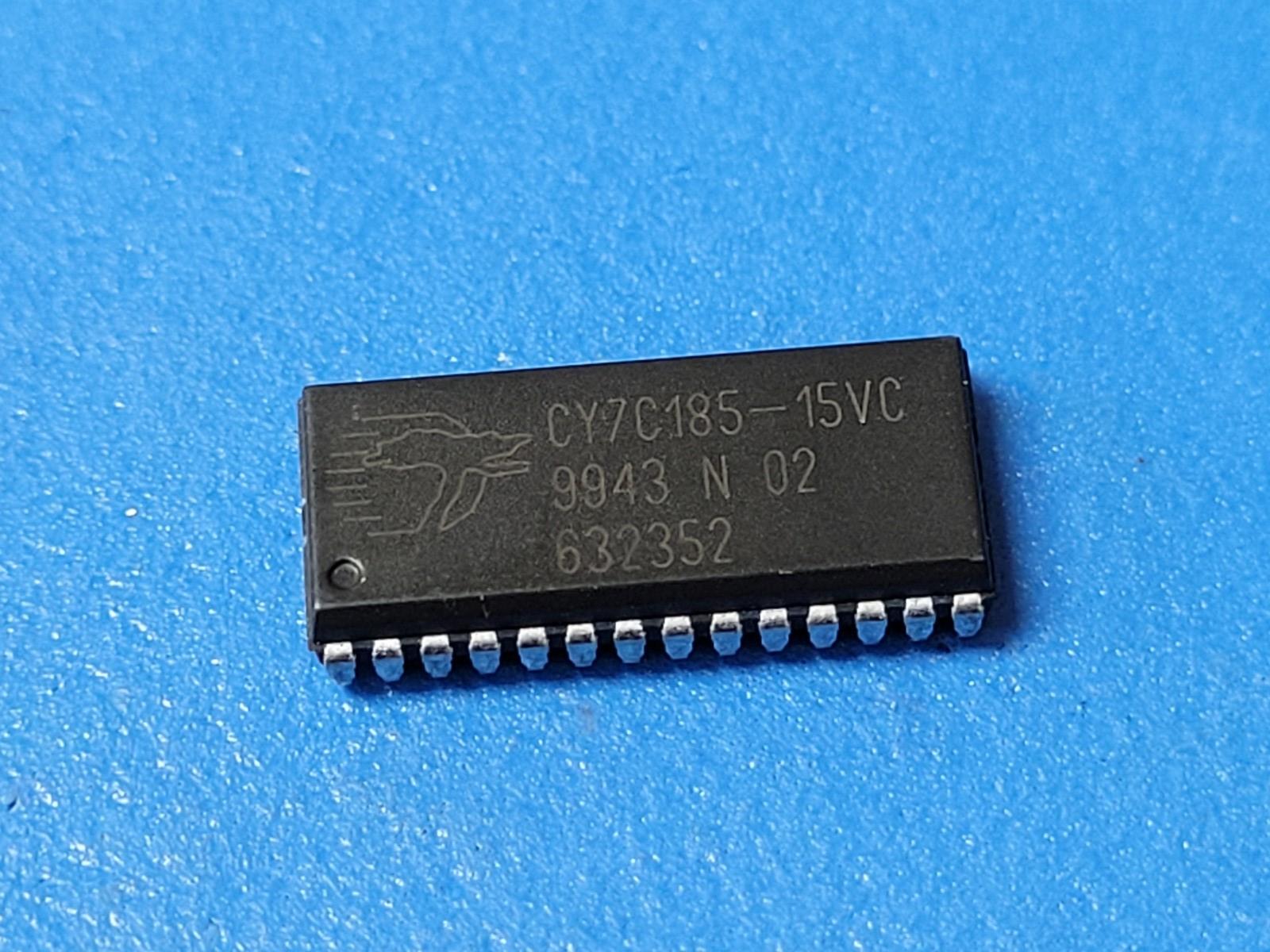

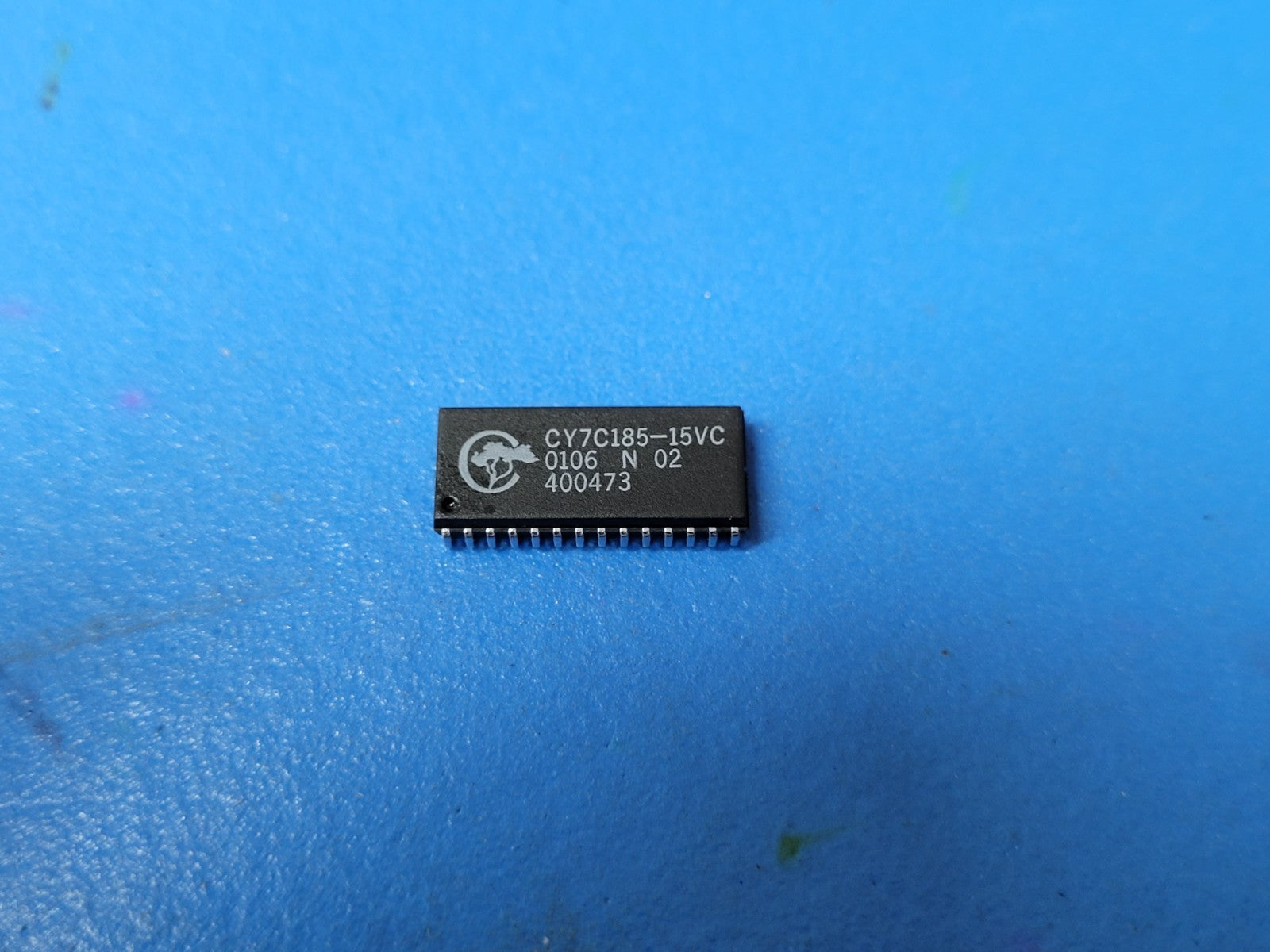

THIS IS FOR (4 PCS) OF CY7C185-15VC BY CYPRESS
Standard SRAM, 8KX8, 15ns, CMOS, SOJ-28

Part #: CY7C185-15VC
Part Category: Memory ICs
Manufacturer: Cypress Semiconductor Corp.
Description: Standard SRAM, 8KX8, 35ns, CMOS, PDSO28

Mfr Package Description 0.300 INCH, PLASTIC, SOJ-28
Status Discontinued
Sub Category SRAMs
Access Time-Max 15.0  ns
I/O Type COMMON
JESD-30 Code R-PDSO-J28
JESD-609 Code e0
Memory Density 65536.0  bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 1
Number of Functions 1
Number of Ports 1
Number of Terminals 28
Number of Words 8192.0  words
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 8KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ28,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 3.556  mm
Standby Current-Max 0.015  Amp
Standby Voltage-Min 4.5  V
Supply Current-Max 0.1  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 17.907  mm
Width 7.5  mm
Additional Feature AUTOMATIC POWER-DOWN
