(4 PCS) CD4515BM TI IC DECODER/DEMUX 1X4:16 24SOIC
Tax included.

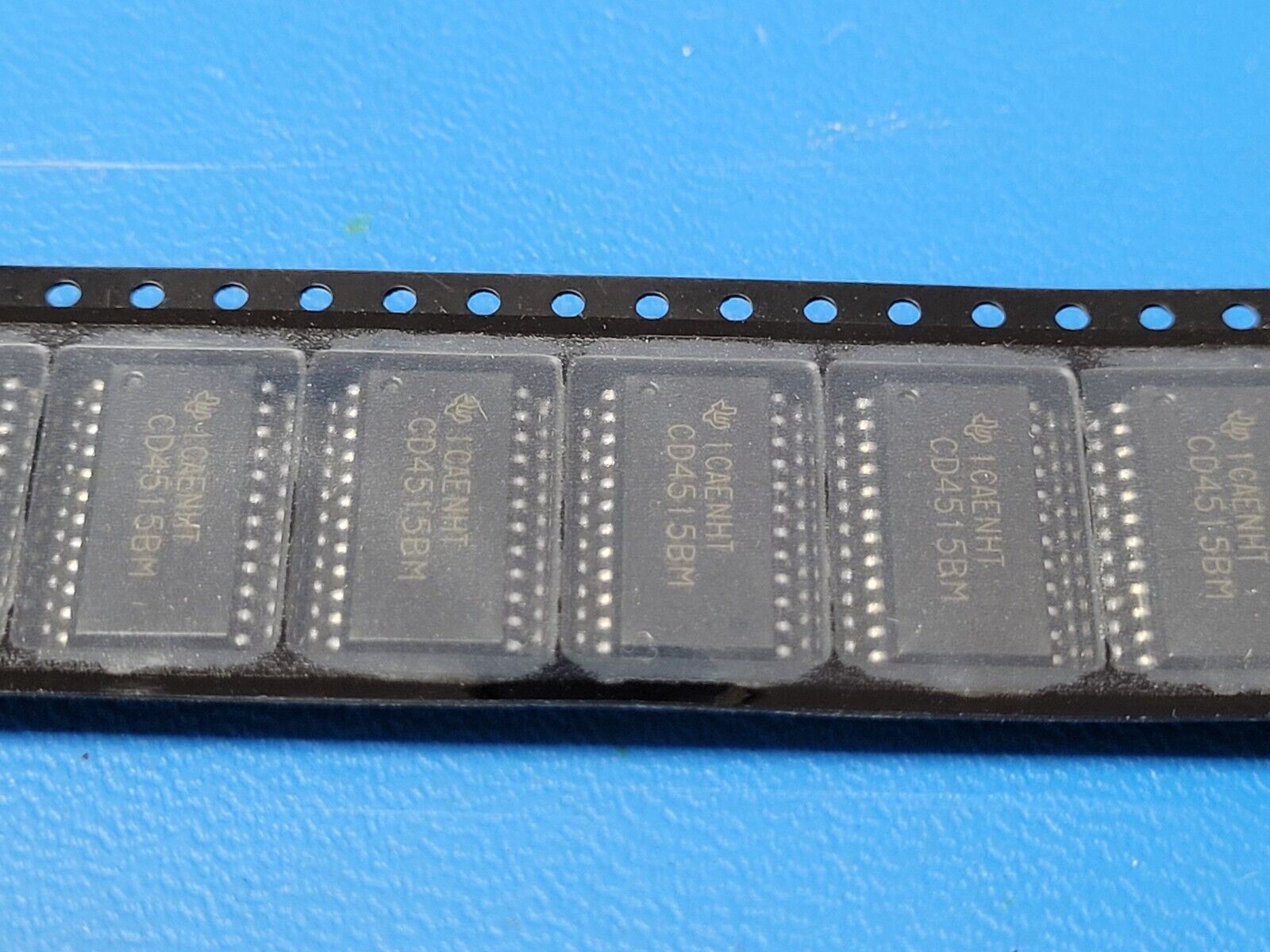

THIS IS FOR (4 PCS) OF CD4515BM BY TI
IC DECODER/DEMUX 1X4:16 24SOIC
Manufacturer: Texas Instruments
Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
RoHS: NO
Product: Decoders / Demultiplexers
Logic Family: CD4000
Number of Bits: 4 bit
Number of Input Lines: 4 Input
Number of Output Lines: 16 Output
Propagation Delay Time: 370 ns
Supply Voltage - Min: 3 V
Supply Voltage - Max: 18 V
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package / Case: SOIC-24
Brand: Texas Instruments
Function: Latch/Decoder/Demultiplexer
Height: 2.35 mm
High Level Output Current: - 1.5 mA
Length: 15.4 mm
Logic Type: Decoder
Low Level Output Current: 1.5 mA
Maximum Clock Frequency: 8 MHz
Number of Circuits: 1 Circuit
Operating Supply Voltage: 3 V to 18 V
Operating Temperature Range: - 55 C to + 125 C
Pd - Power Dissipation: 500 mW (1/2 W)
Product Type: Encoders, Decoders, Multiplexers & Demultiplexers
Series: CD4515B
725
Subcategory: Logic ICs
Supply Current - Max: 100 uA
Technology: CMOS
Width: 7.52 mm
Unit Weight: 0.022025 oz
