(4 PCS) 1120-1R0M JW MILLER 1 ELEMENT 1uH FERRITE-CORE GENERAL PURPOSE INDUCTOR
Tax included.
THIS LISTING IS FOR (4 PCS) OF 1120-1R0M BY JW MILLER
High Current RF Choke Bobbin Core 1uH 20% 1KHz Ferrite 11.4A 3mOhm DCR RDL

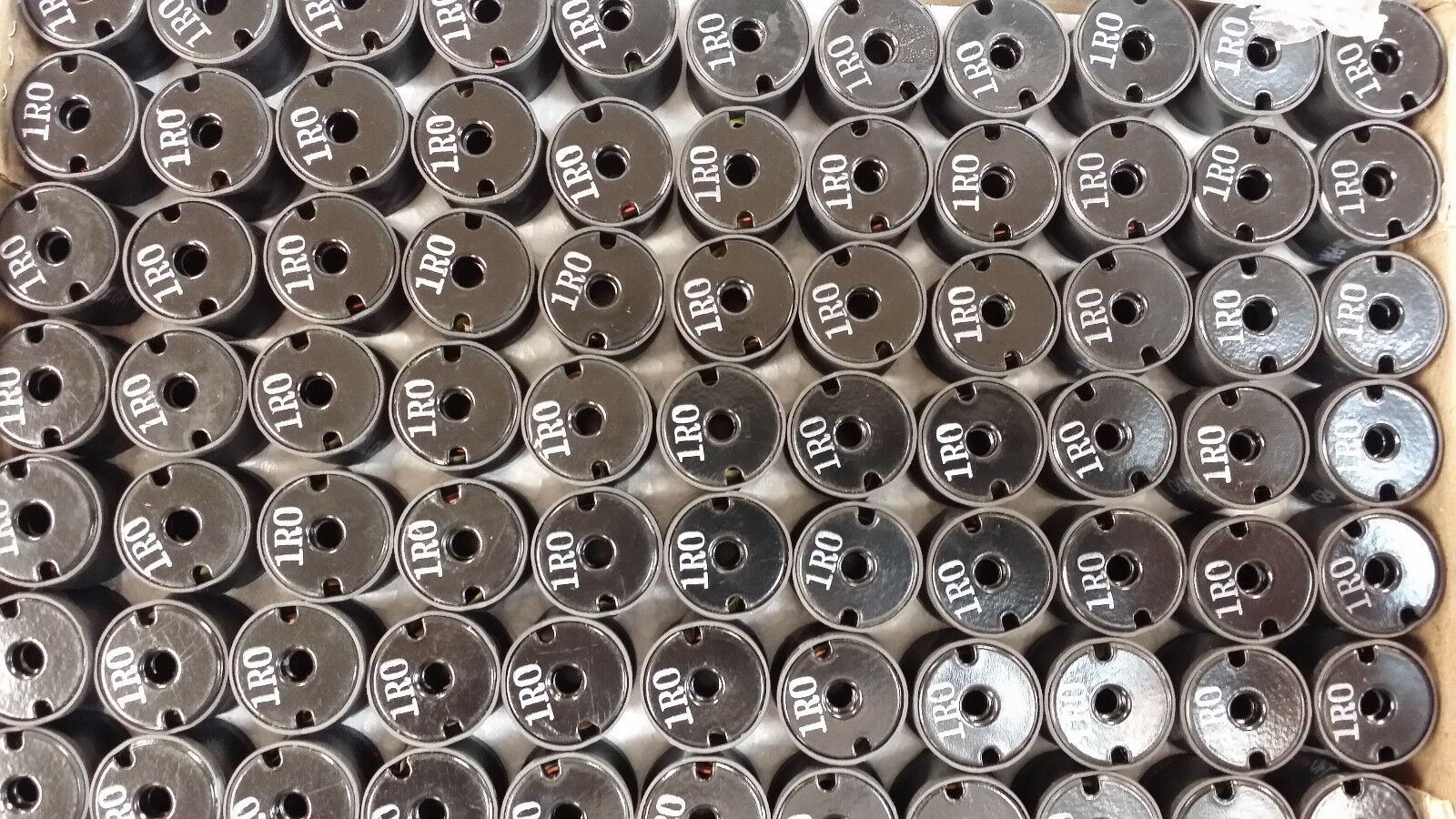

1 ELEMENT 1uH FERRITE-CORE GENERAL PURPOSE INDUCTOR
High Current RF Choke Bobbin Core 1uH 20% 1KHz Ferrite 11.4A 3mOhm DCR RDL
1 ELEMENT 1uH FERRITE-CORE GENERAL PURPOSE INDUCTOR
| REACH Compliant | Yes |
| Status | Active |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Construction | Epoxy Coated |
| Core Material | FERRITE |
| DC Resistance | 0.0030 ohm |
| Inductance-Nom (L) | 1 µH |
| Inductor Application | RF INDUCTOR |
| Lead Diameter | 1.83 mm |
| Lead Length | 12.7 mm |
| Lead Spacing | 16 mm |
| Manufacturer Series | 1120 |
| Number of Functions | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 105 Cel |
| Package Diameter | 20.57 mm |
| Package Length | 21.34 mm |
| Package Style (Meter) | Radial |
| Rated Current-Max | 11.4 A |
| Series | 1120 |
| Shape/Size Description | CYLINDRICAL PACKAGE |
| Shielded | NO |
| Surface Mount | NO |
| Terminal Placement | RADIAL |
| Terminal Shape | WIRE |
| Test Frequency | 1.00E-3 MHz |
| Tolerance | 20 % |
|
|
|
