(3PCS) XC3030-100PC44C XILINX IC FPGA 34 I/O 44PLCC
(3PCS) XC3030-100PC44C XILINX IC FPGA 34 I/O 44PLCC
(3PCS) XC3030-100PC44C XILINX IC FPGA 34 I/O 44PLCC

(3PCS) XC3030-100PC44C XILINX IC FPGA 34 I/O 44PLCC

Tax included.
Only 21 left!

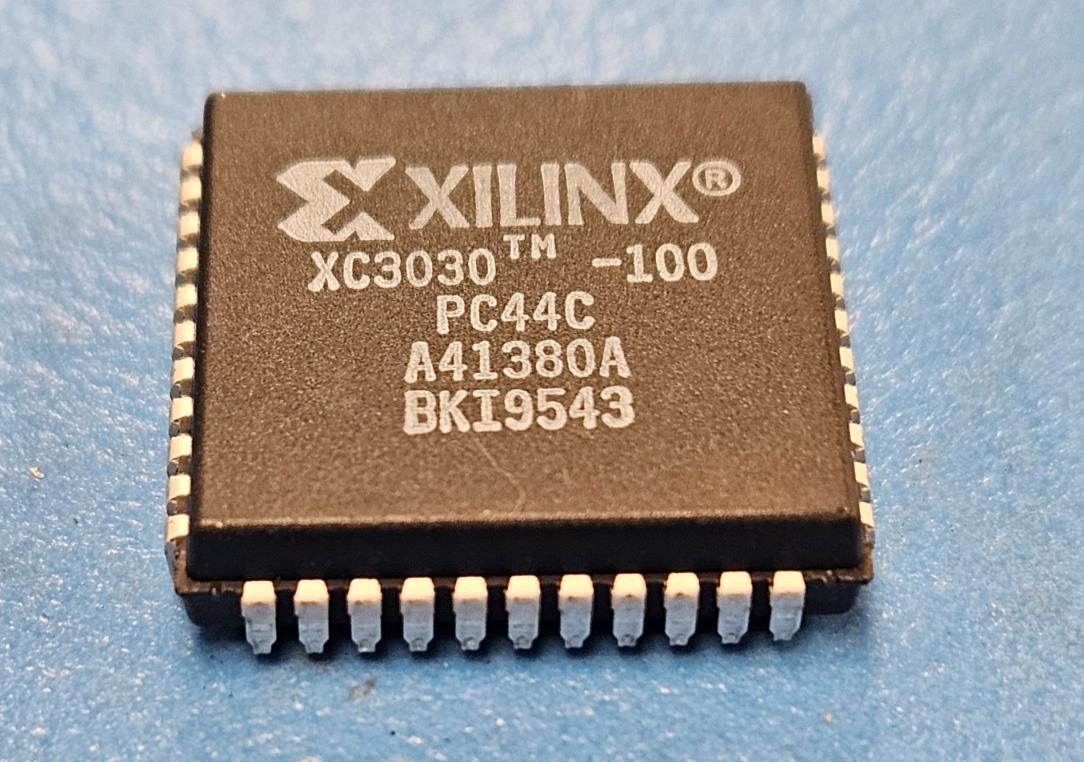

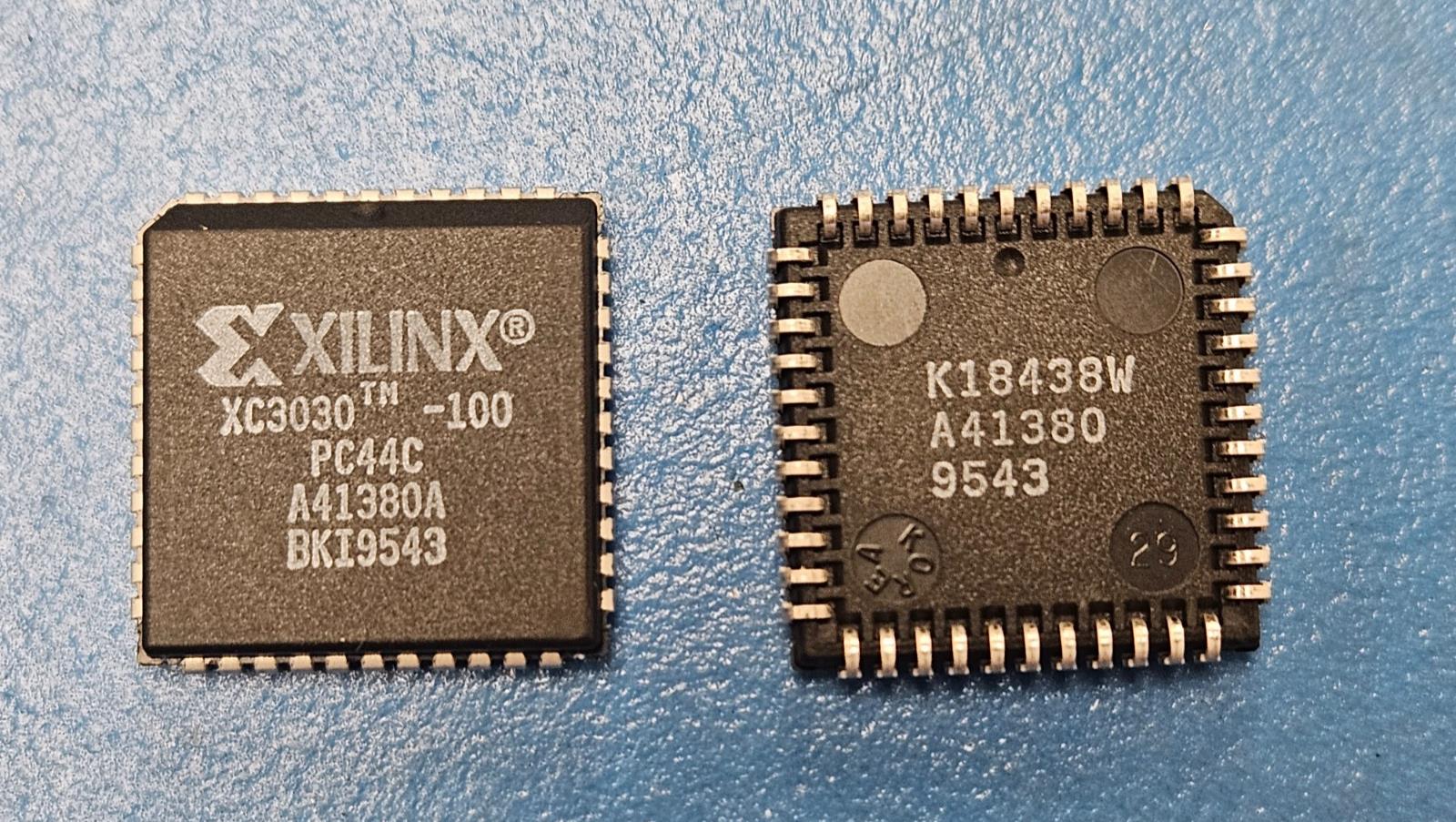

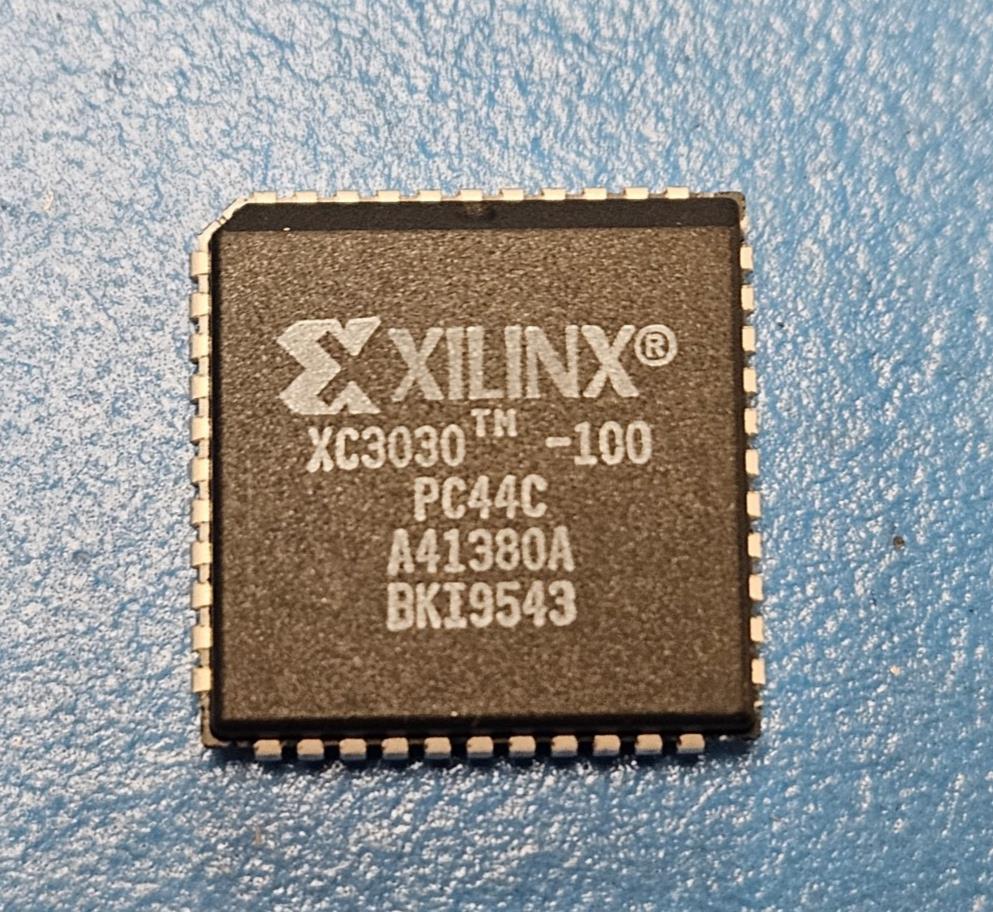

This listing is for (3PCS) of XC3030-100PC44C by Xilinx

Mfr Package Description PLASTIC, LCC-44
Status Discontinued
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Clock Frequency-Max 100.0  MHz
Combinatorial Delay of a CLB-Max 7.0  ns
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Moisture Sensitivity Level 3
Number of CLBs 100.0
Number of Equivalent Gates 1500.0
Number of Inputs 34.0
Number of Logic Cells 100.0
Number of Outputs 34.0
Number of Terminals 44
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 85.0  Cel
Organization 100 CLBS, 1500 GATES
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Peak Reflow Temperature (Cel) 225
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.318  mm
Sub Category Field Programmable Gate Arrays
Supply Voltage-Nom 5.0  V
Supply Voltage-Min 4.75  V
Supply Voltage-Max 5.25  V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 16.5862  mm
Width 16.5862  mm
