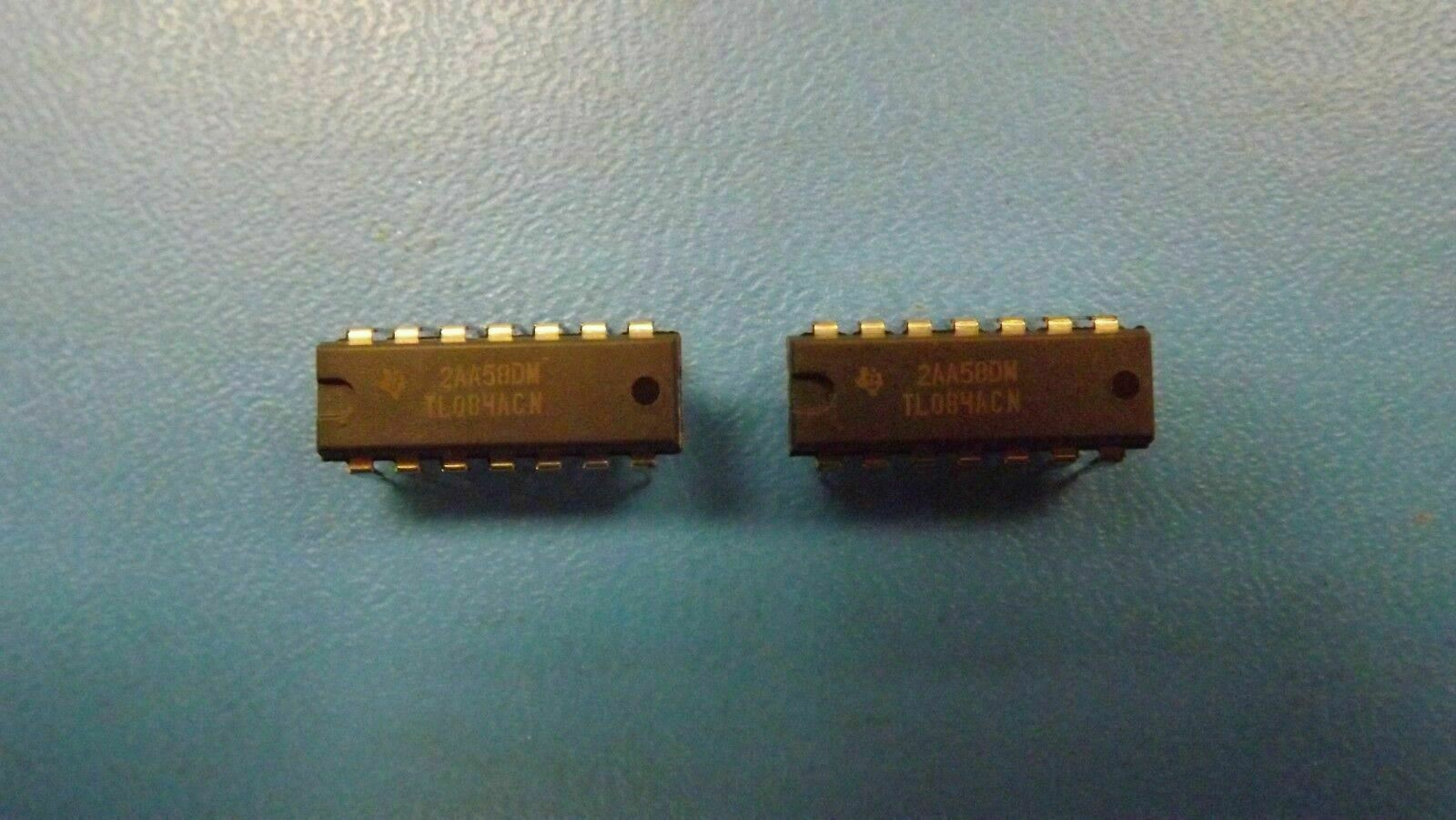

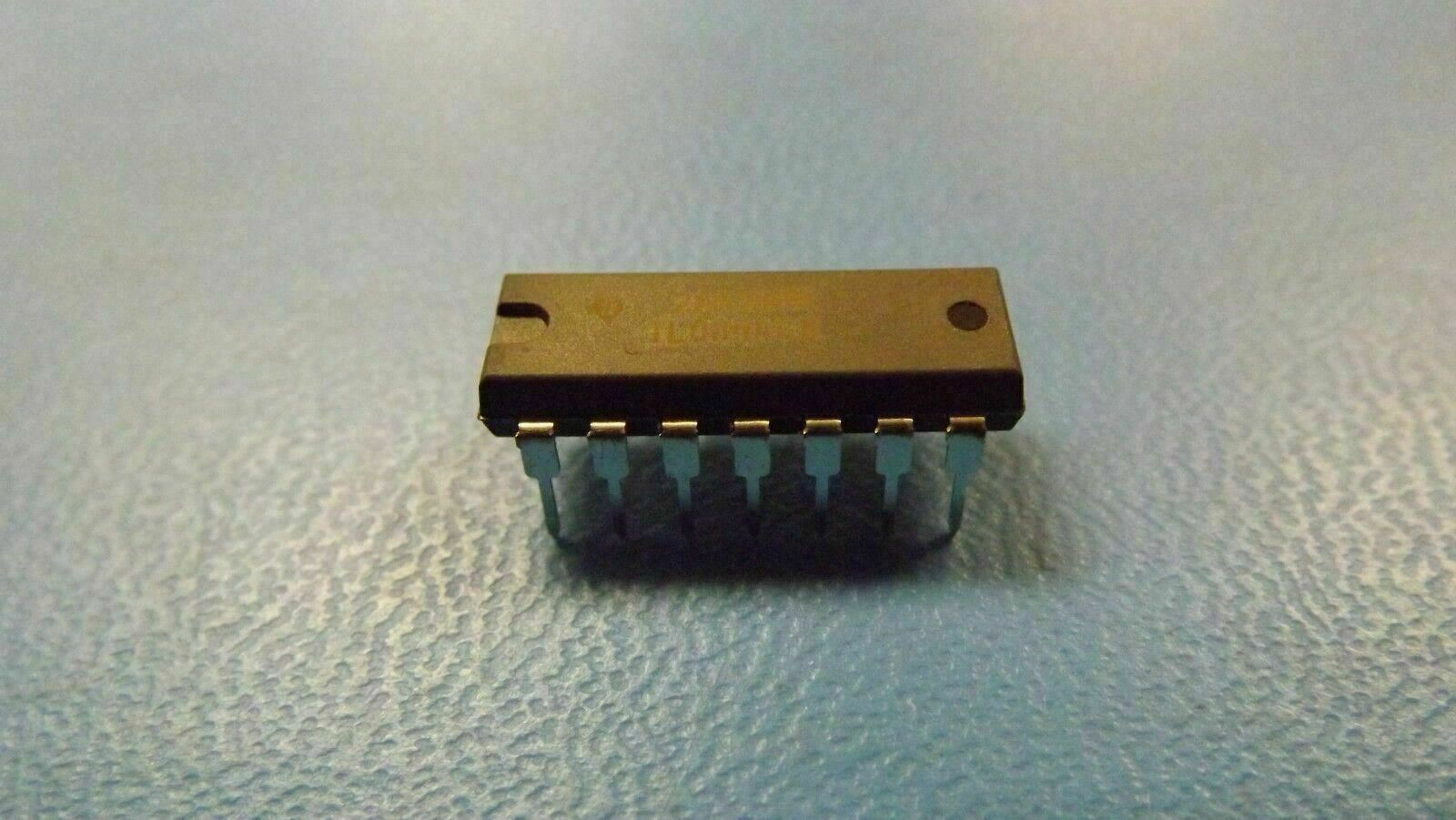

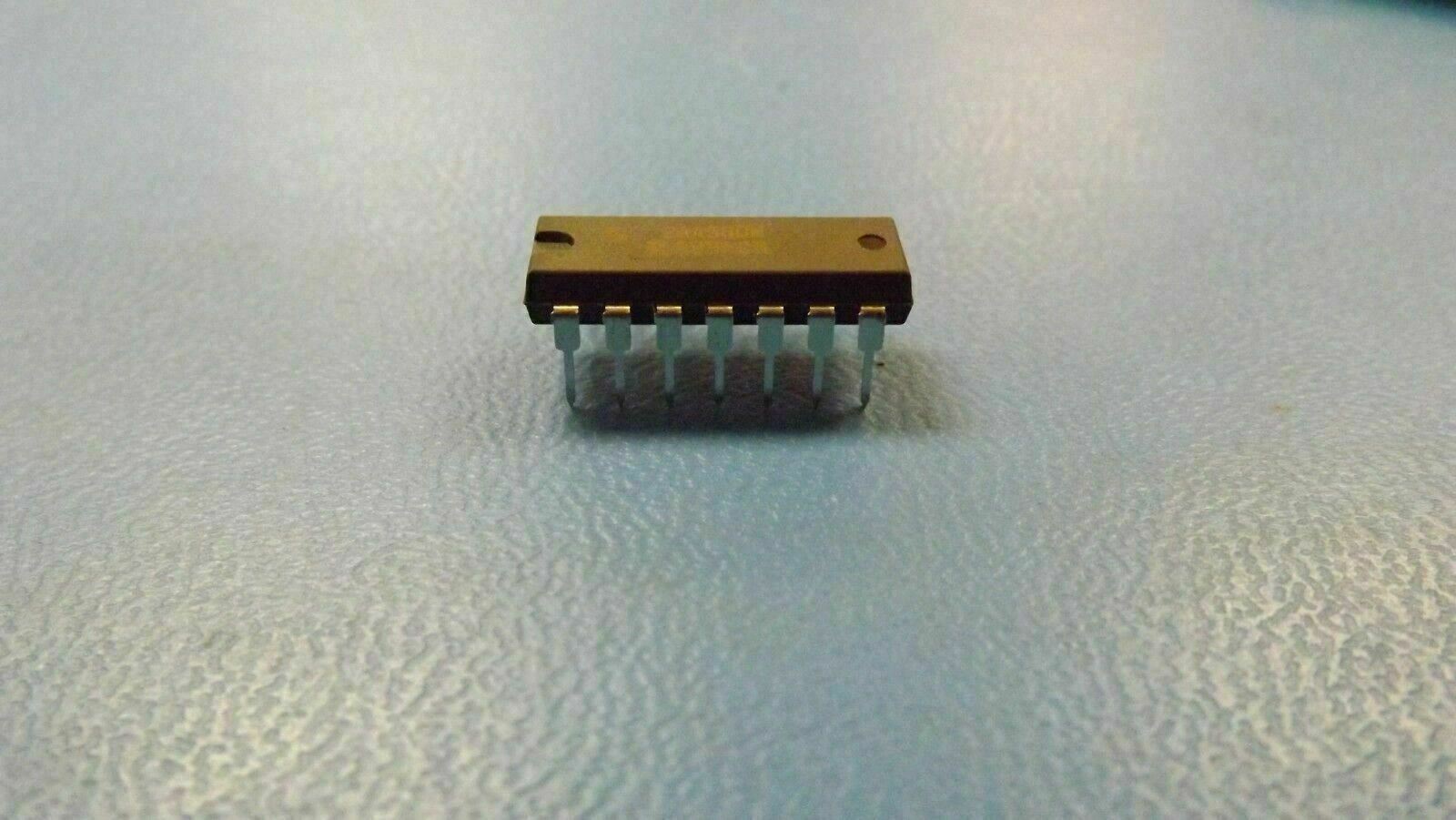

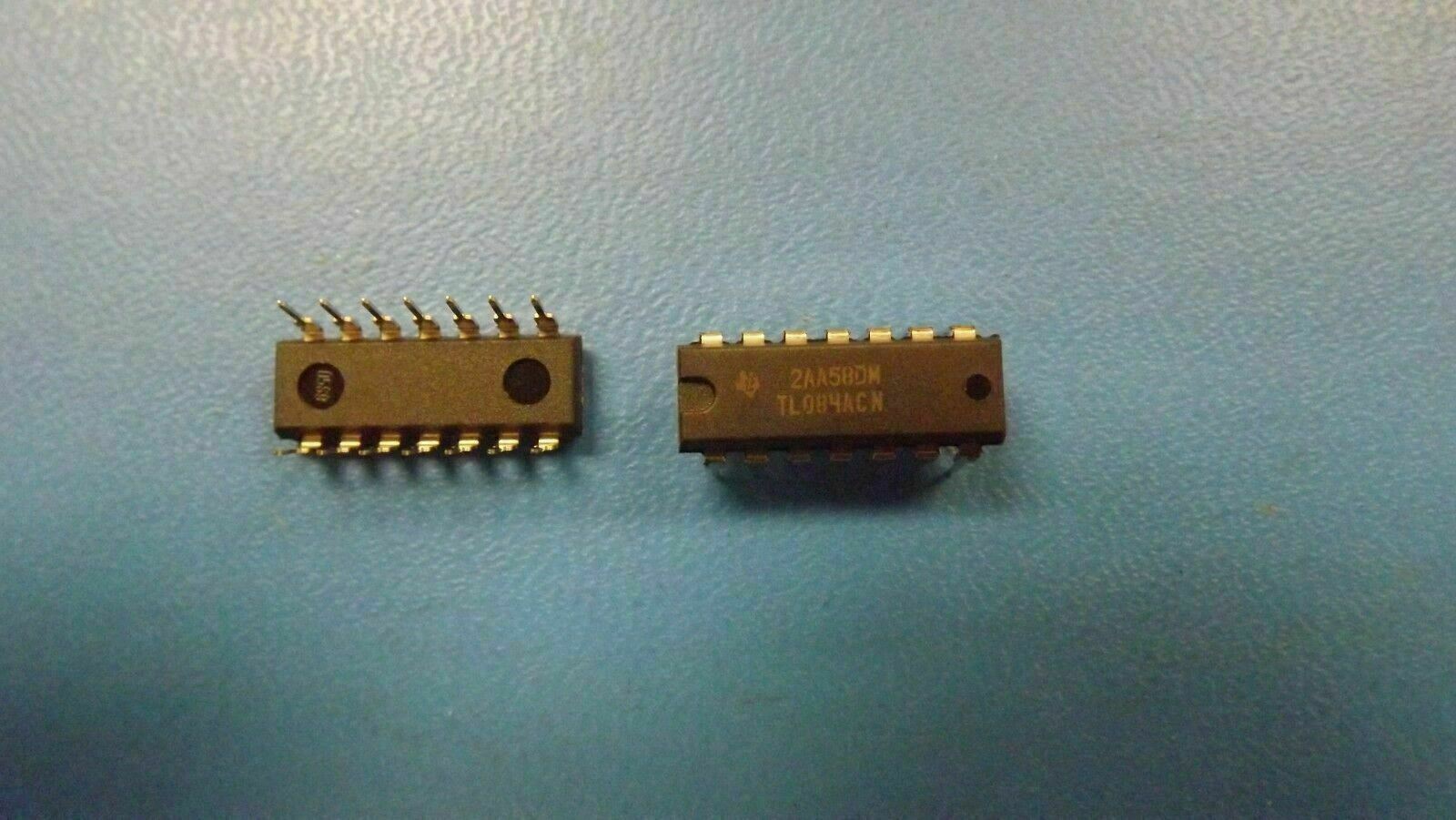

(3pcs) TL084ACN TEXAS INSTRUMENTS OP Amp Quad GP ±18V 14-Pin PDIP
Tax included.
THIS LISTING IS FOR (3PCS) OF TL084ACN BY TEXAS INSTRUMENTS
SPECIFICATIONS
| Mfr Package Description | DIP-14 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.007 µA |
| Bias Current-Max (IIB) @25C | 2.0E-4 µA |
| Common-mode Reject Ratio-Nom | 86.0 dB |
| Common-mode Reject Ratio-Min | 75.0 dB |
| Frequency Compensation | YES |
| Input Offset Current-Max (IIO) | 0.002 µA |
| Input Offset Voltage-Max | 7500.0 µV |
| JESD-30 Code | R-PDIP-T14 |
| JESD-609 Code | e4 |
| Low-Bias | YES |
| Low-Offset | NO |
| Moisture Sensitivity Level | 1 |
| Neg Supply Voltage Limit-Max | -18.0 V |
| Neg Supply Voltage-Nom (Vsup) | -15.0 V |
| Number of Functions | 4 |
| Number of Terminals | 14 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP14,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Packing Method | TUBE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies (V) | +-15 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.08 mm |
| Slew Rate-Nom | 13.0 V/us |
| Slew Rate-Min | 8.0 V/us |
| Sub Category | Operational Amplifier |
| Supply Current-Max | 11.2 mA |
| Supply Voltage Limit-Max | 18.0 V |
| Supply Voltage-Nom (Vsup) | 15.0 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Unity Gain BW-Nom | 3000.0 kHz |
| Voltage Gain-Min | 25000.0 |
| Length | 19.305 mm |
| Width | 7.62 mm |
