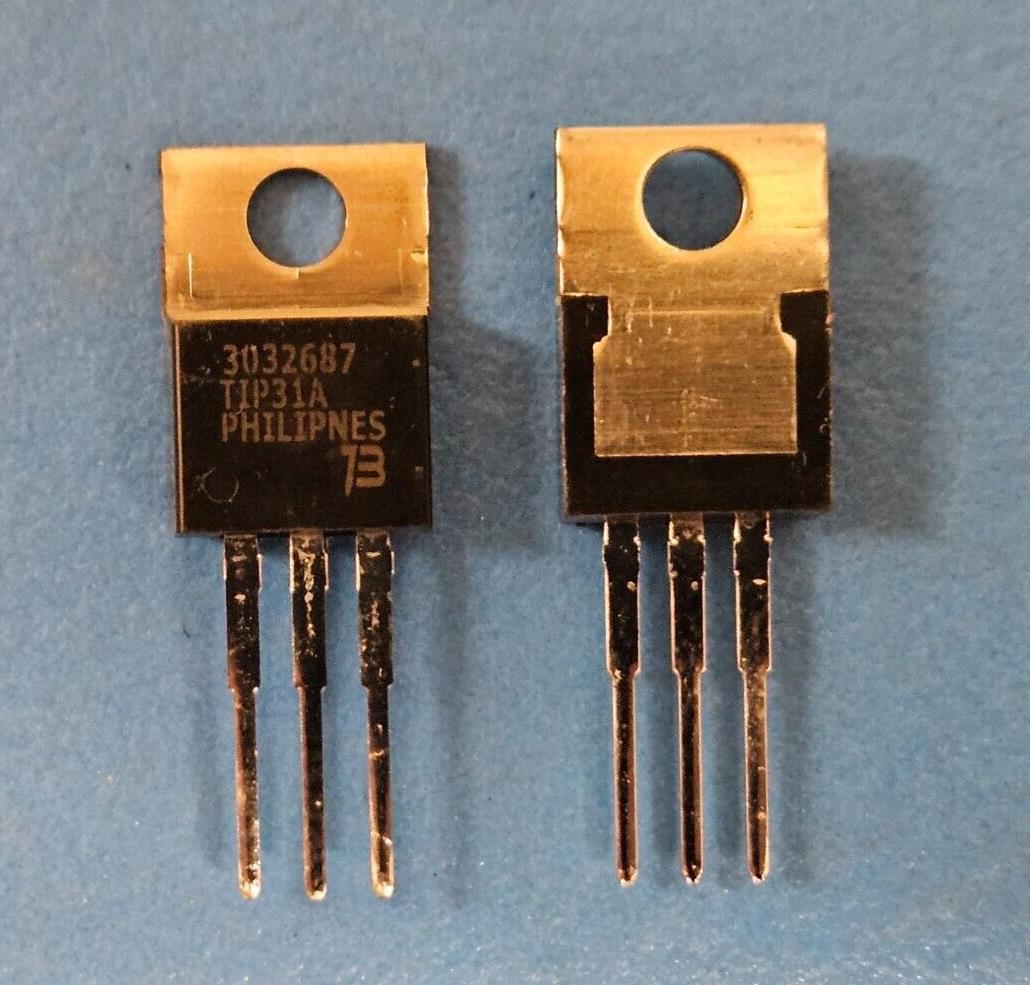

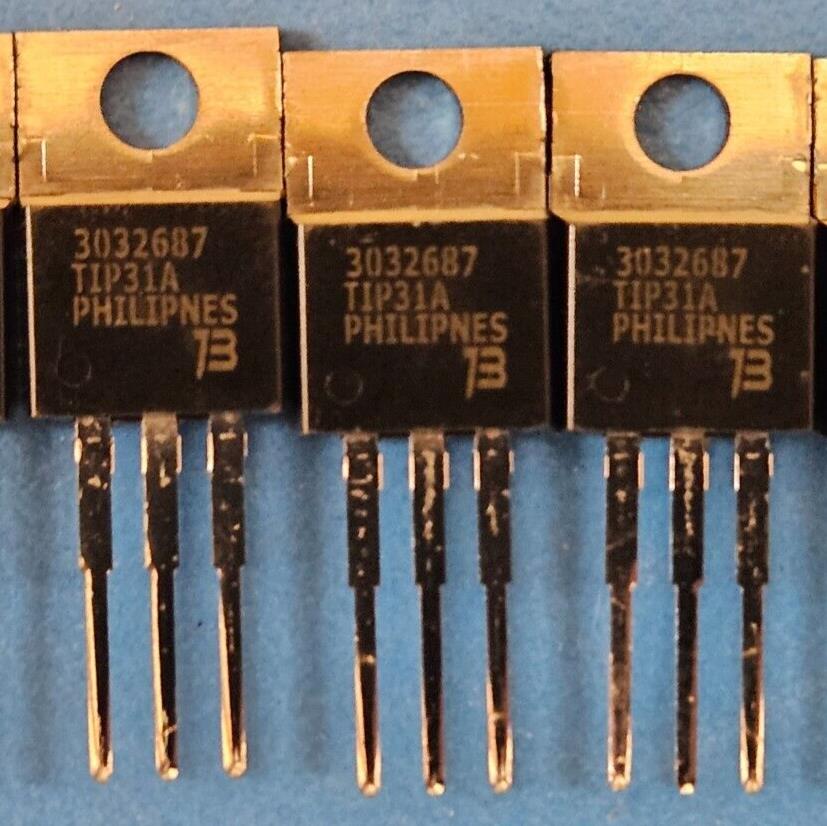

(3PCS) TIP31A Power Bipolar Transistor, 3A, 60V, 1-Element, NPN, TO-220
Tax included.
This listing is for (3PCS) of TIP31A by Bourns
Mfr Package Description TO-220, 3 PIN
REACH Compliant Yes
Status Discontinued
Case Connection COLLECTOR
Collector Current-Max (IC) 3.0 A
Collector-emitter Voltage-Max 60.0 V
Configuration SINGLE
DC Current Gain-Min (hFE) 10.0
JEDEC-95 Code TO-220AB
JESD-30 Code R-PSFM-T3
Number of Elements 1.0
Number of Terminals 3
Operating Temperature-Max 150.0 Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style FLANGE MOUNT
Peak Reflow Temperature (Cel) NOT SPECIFIED
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 40.0 W
Qualification Status Not Qualified
Sub Category Other Transistors
Surface Mount NO
Terminal Form THROUGH-HOLE
Terminal Position SINGLE
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Transistor Application SWITCHING
Transistor Element Material SILICON
