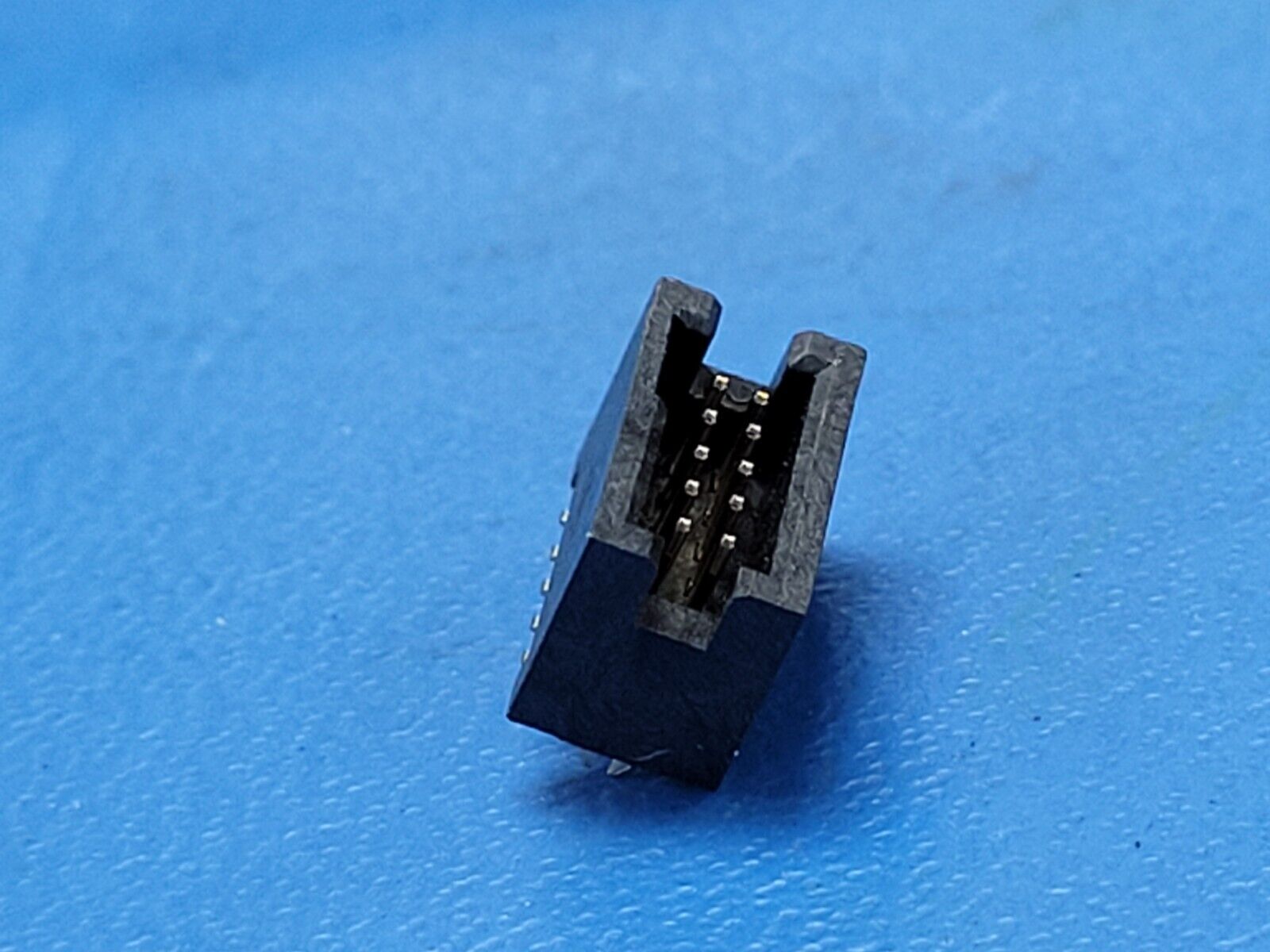

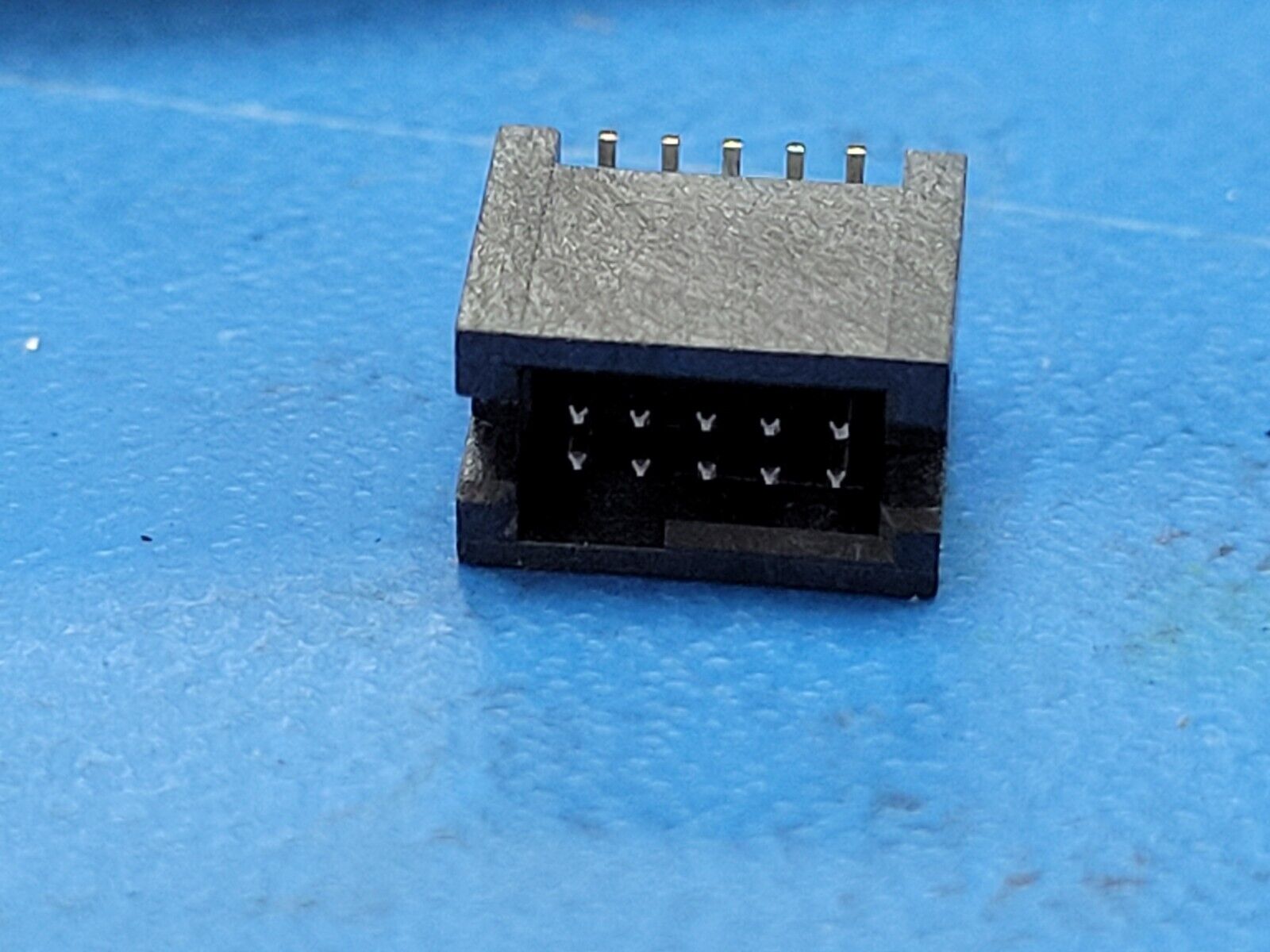

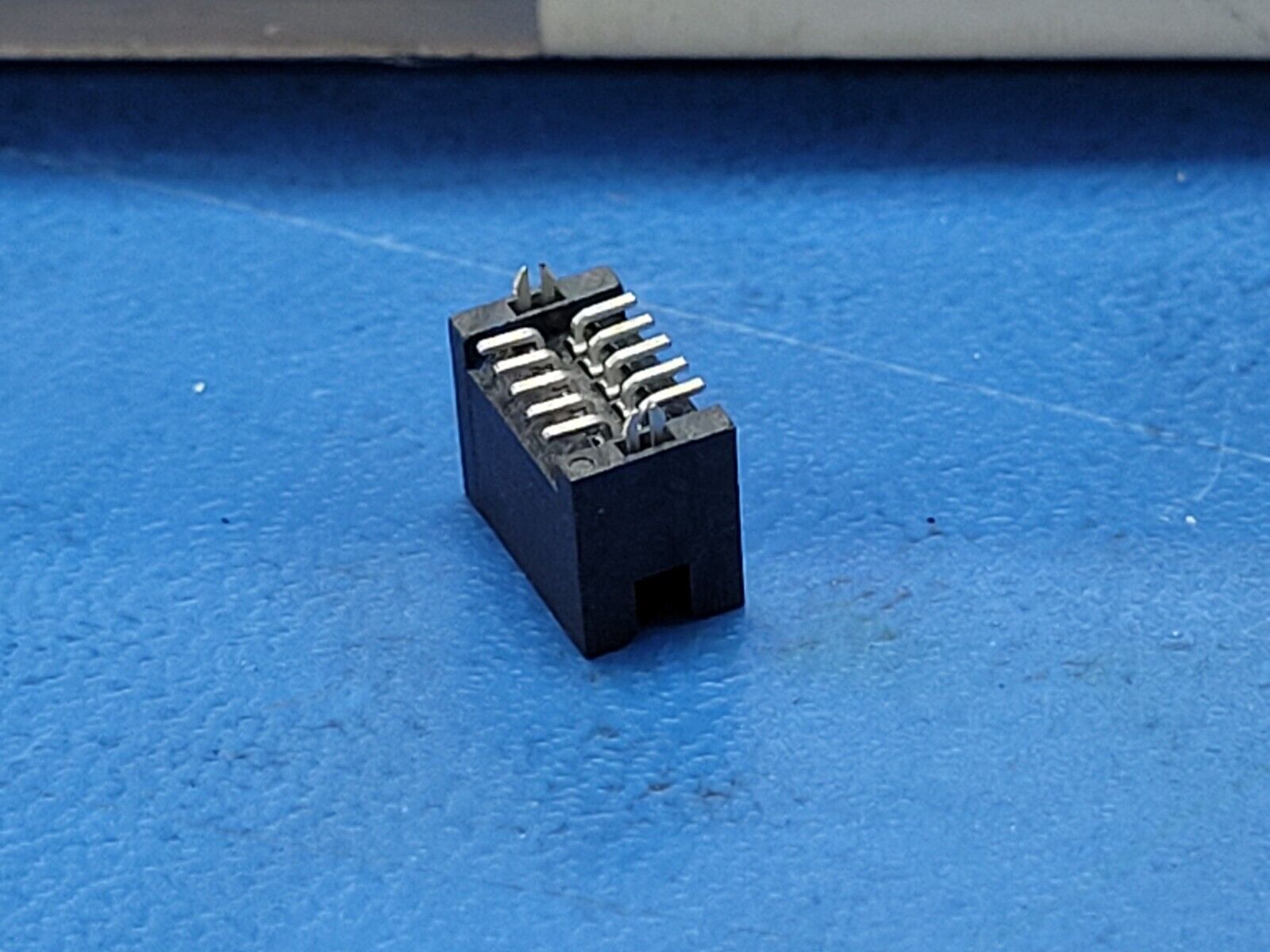

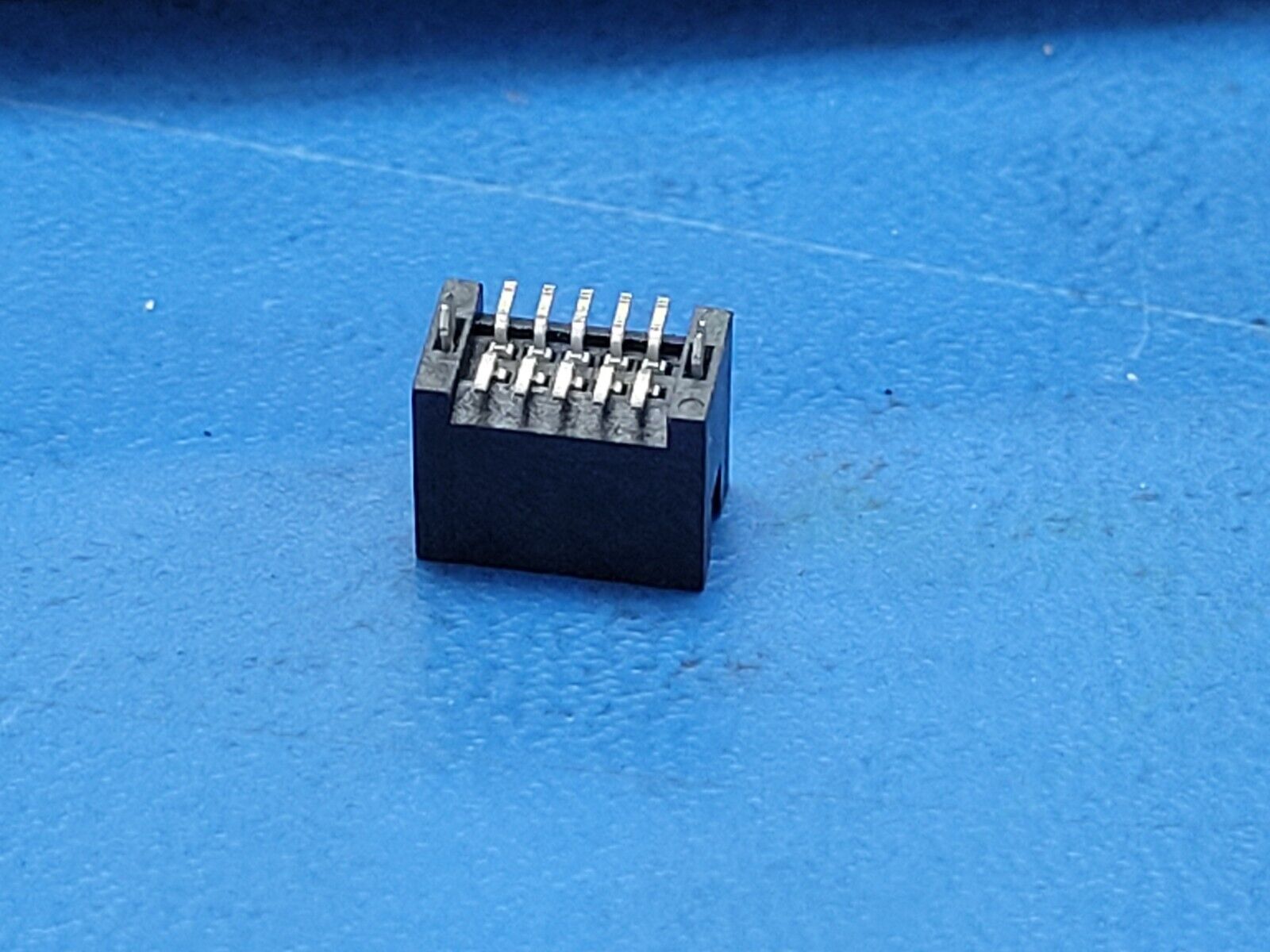

(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)
(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)
(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)
(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)
(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)

(3PCS) TFM-105-12-S-D-LC Connector Header SMT 10 position 0.050"(1.27mm)

Tax included.
Only 56 left!

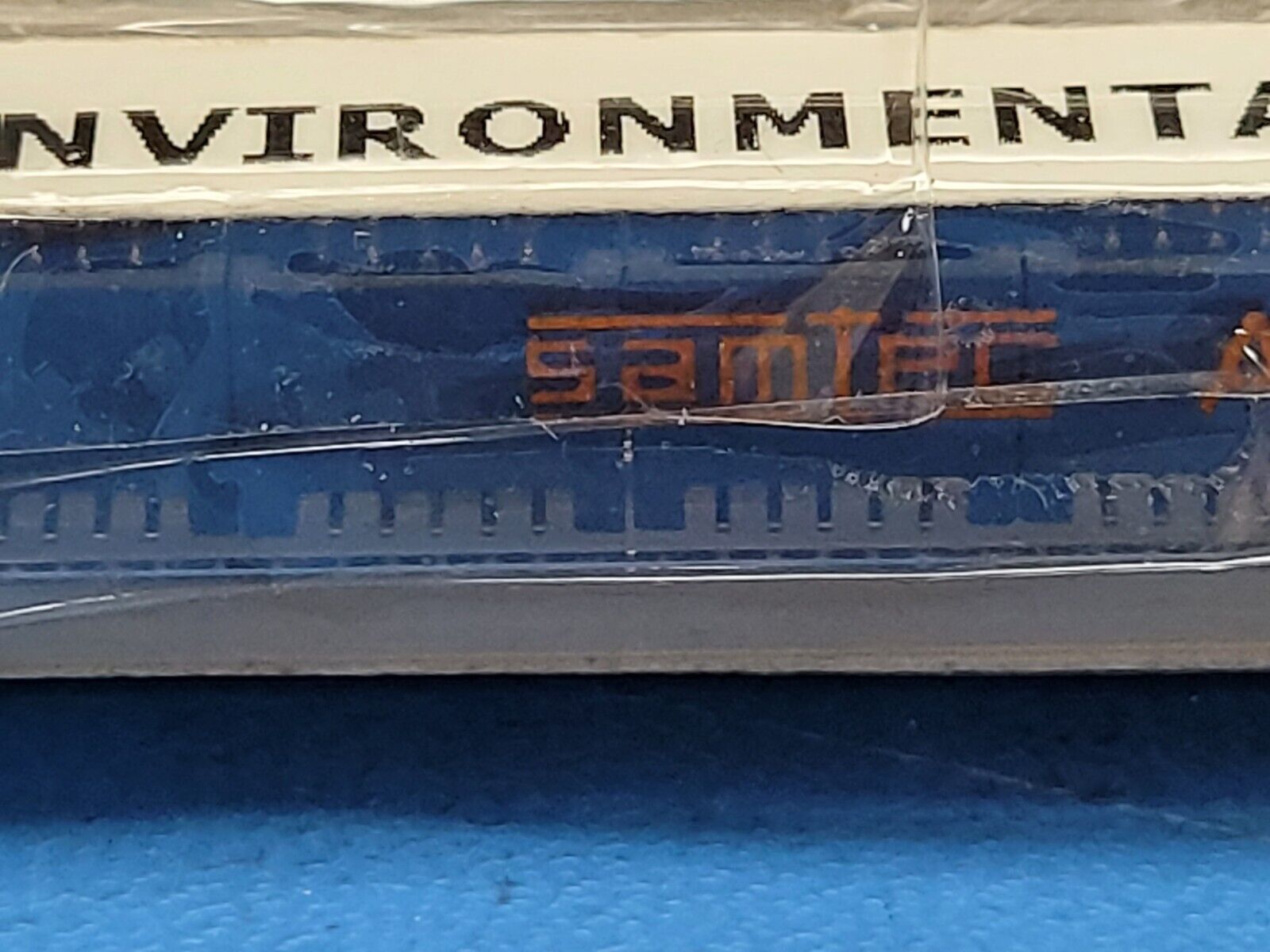

THIS LISTING IS FOR (3PCS) OF TFM-105-12-S-D-LC BY SAMTEC

Connector Type BOARD CONNECTOR
Board Mounting Option SPLIT BOARD LOCK
Body Breadth 0.225  inch
Body Depth 0.295  inch
Body Length 0.375  inch
Body/Shell Style RECEPTACLE
Contact Finish - Mating GOLD (30) OVER NICKEL (50)
Contact Finish - Termination Tin (Sn) - with Nickel (Ni) barrier
Contact Gender MALE
Contact Material PHOSPHOR BRONZE
Contact Pattern RECTANGULAR
Contact Style SQ PIN-SKT
DIN Conformance NO
Filter Feature NO
IEC Conformance NO
Insulation Resistance 5.0E9  ohm
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
JESD-609 Code e3
MIL Conformance NO
Mixed Contacts NO
Mounting Style STRAIGHT
Mounting Type BOARD
Number Of Connectors ONE
Number Of PCB Rows 2
Number of Rows Loaded 2
Operating Temperature-Min -65.0  Cel
Option GENERAL PURPOSE
PCB Contact Pattern RECTANGULAR
Polarization Key ENDS
Reference Standard UL
Reliability COMMERCIAL
Sub Category Headers and Edge Type Connectors
Terminal Pitch 1.27  mm
Total Number of Contacts 10
UL Flammability Code 94V-0
