(3PCS) TC55V8128BFT-10 Cache SRAM, 128KX8, 10ns, CMOS, SOIC32
Tax included.

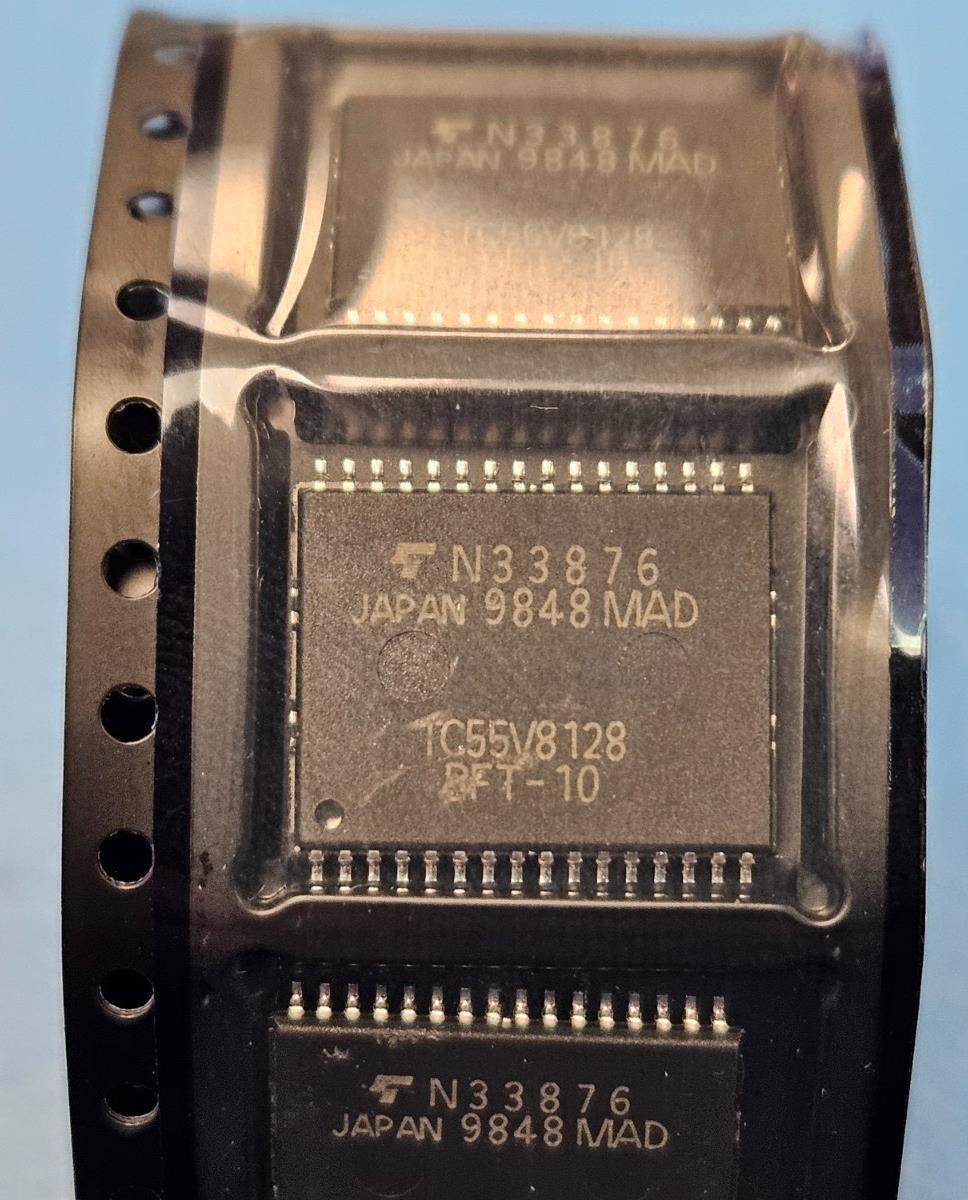

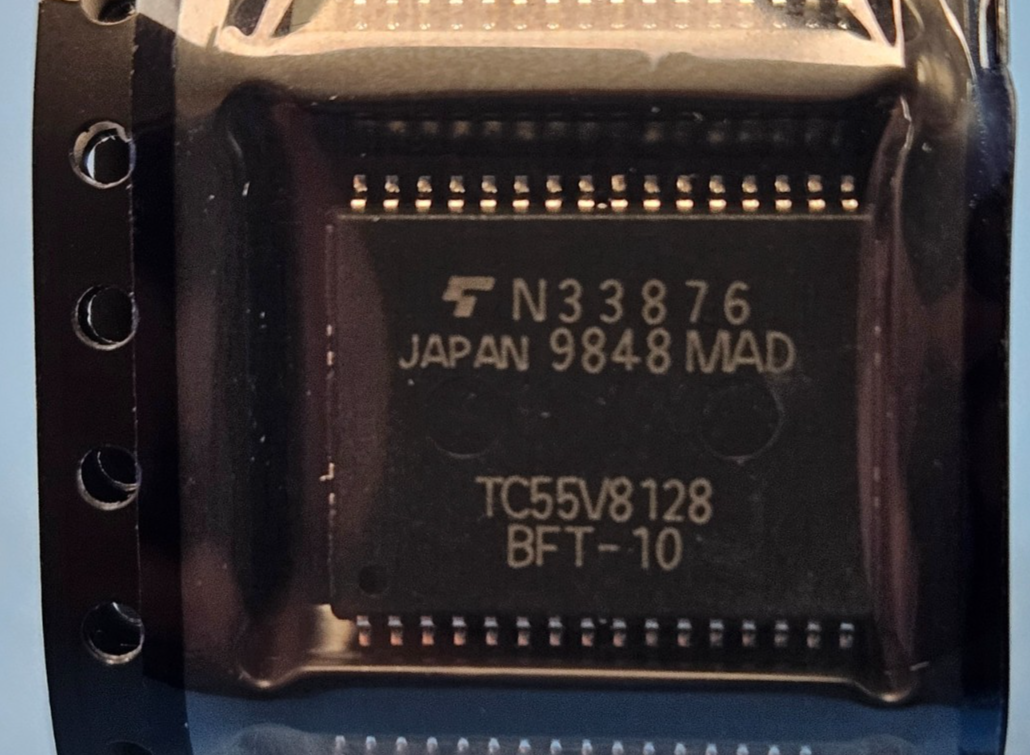

This listing is for (3PCS) of TC55V8128BFT-10 by Toshiba
Status Discontinued
Access Time-Max (ns) 10.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-G32
Length (mm) 13.3400
Memory Density (bits) 1048576.0000000000000000
Memory IC Type CACHE SRAM
Memory Width 8
Number of Functions 1
Number of Terminals 32
Number of Words (words) 131072.0000000000000000
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code TSOP2
Package Equivalence Code TSOP32,.46,32
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, THIN PROFILE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 1.2000
Standby Current-Max (A) 0.002000000000000
Standby Voltage-Min (V) 3.000000
Supply Current-Max (mA) 200.000000000000000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form GULL WING
Terminal Pitch (mm) 0.800
Terminal Position DUAL
Width (mm) 10.1600
