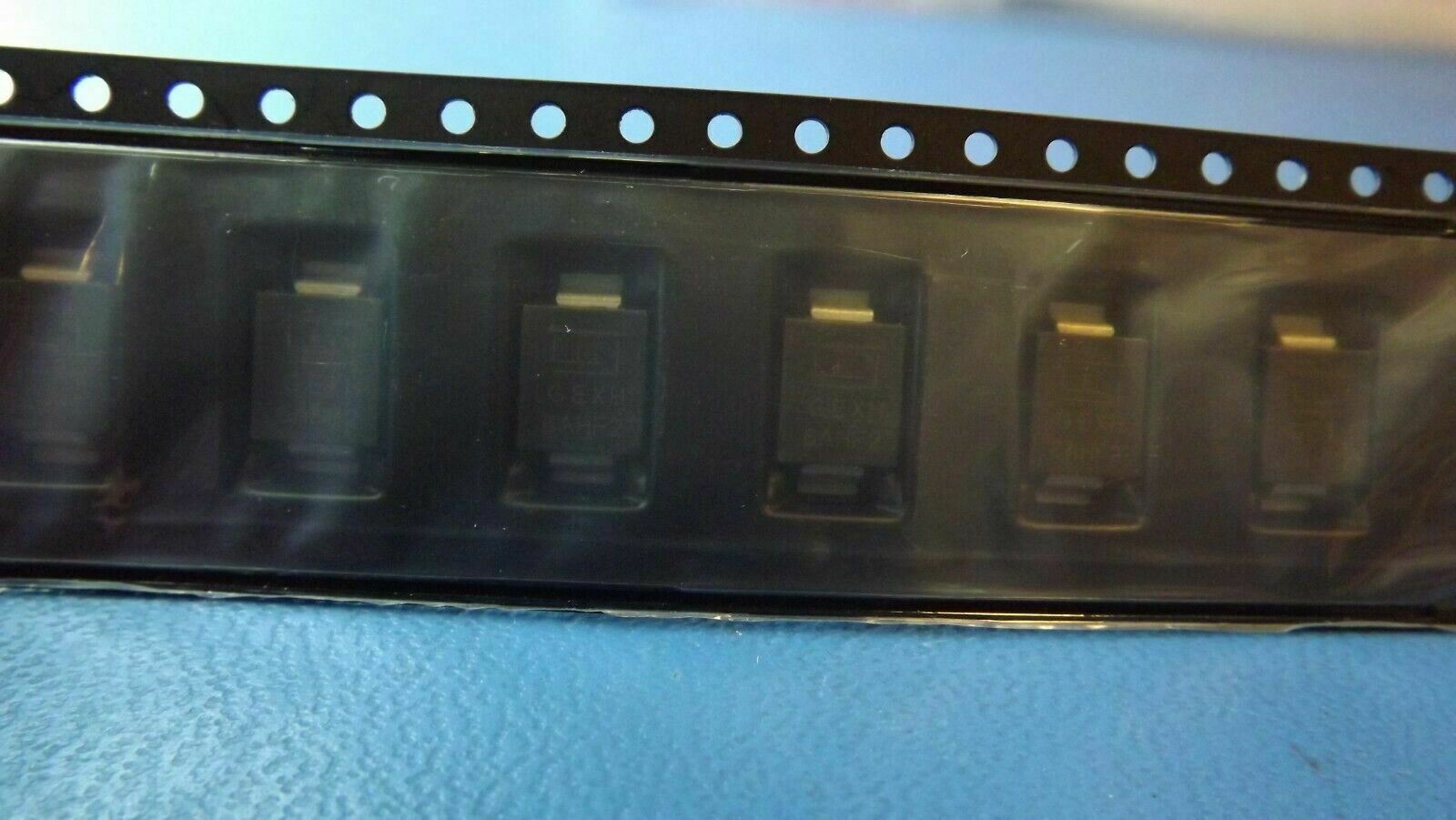

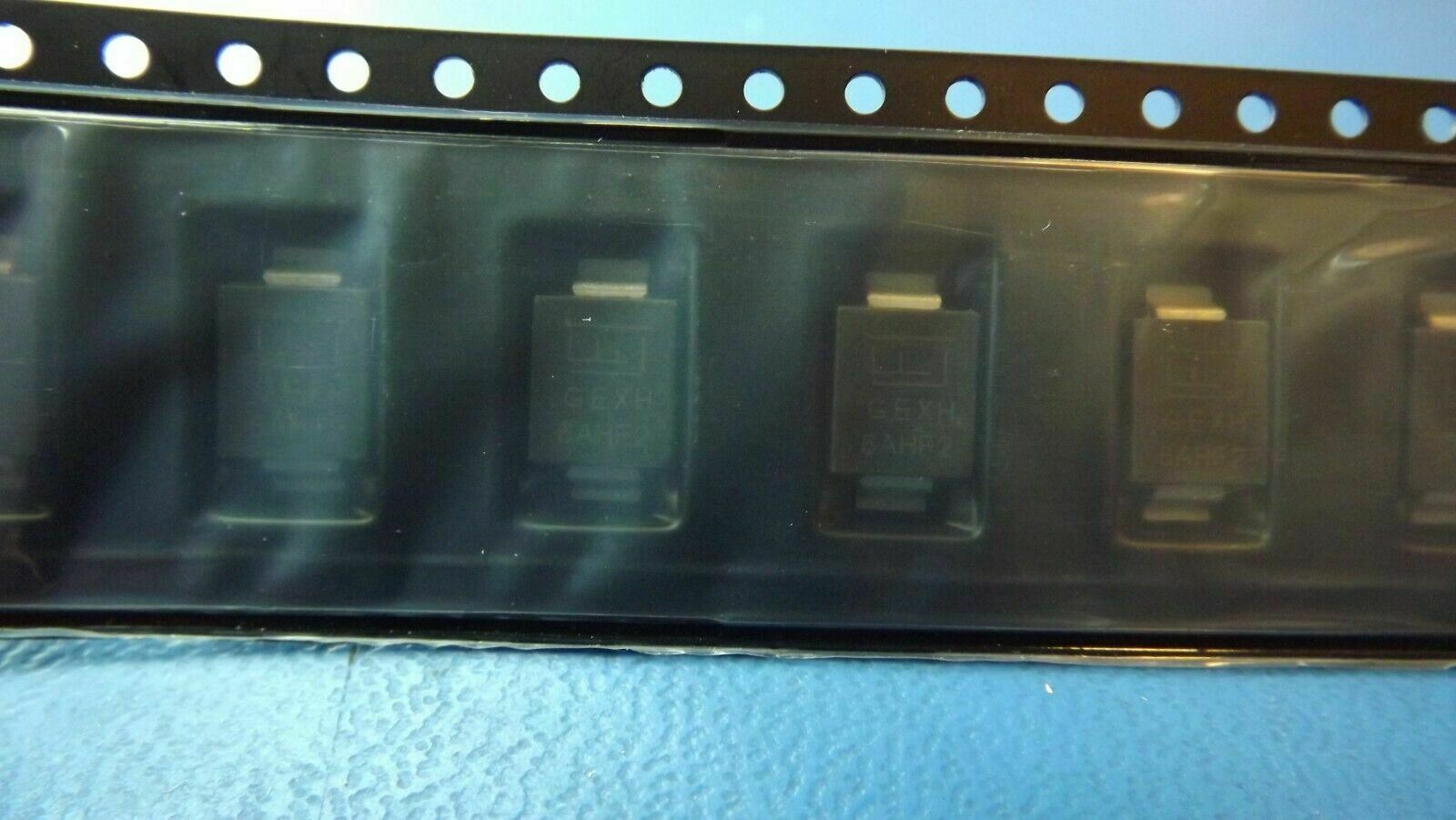

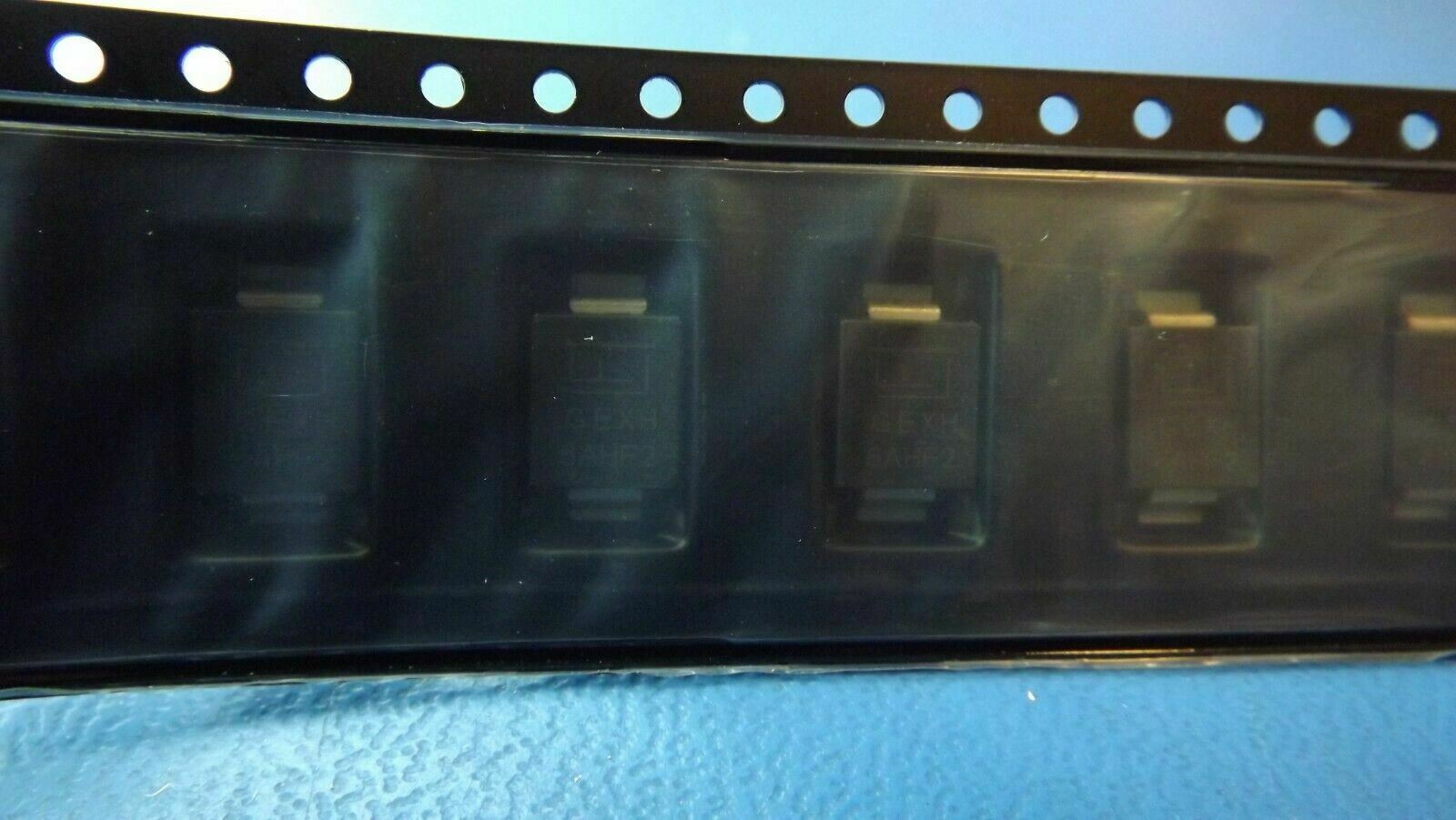

(3PCS) SMCG22A-HRA LITTELFUSE TVS DIODE 22V 35.5V DO215AB

  • $19.98
    Unit price per
Tax included.

Only 100 left!

THIS LISTING IS FOR (3PCS) OF SMCG22A-HRA BY LITTELFUSE

SPECIFICATIONS

Mfr Package Description SMCG, 2 PIN
Status Active
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
Breakdown Voltage-Min 24.4  V
Breakdown Voltage-Max 26.9  V
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-215AB
JESD-30 Code R-PDSO-L2
Non-rep Peak Rev Power Dis-Max 1500.0  W
Number of Elements 1.0
Number of Terminals 2
Operating Temperature-Min -65.0  Cel
Operating Temperature-Max 150.0  Cel
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Polarity UNIDIRECTIONAL
Power Dissipation-Max 6.5  W
Reference Standard IEC-61000-4-2; IEC-61000-4-4
Rep Pk Reverse Voltage-Max 22.0  V
Surface Mount YES
Technology AVALANCHE
Terminal Form L BEND
Terminal Position DUAL
Additional Feature EXCELLENT CLAMPING CAPABILITY, HIGH RELIABILITY, UL RECOGNIZED
