(3PCS) QS34X245Q3 IC BUS SWITCH 32BIT CMOS 80QVSOP
Tax included.

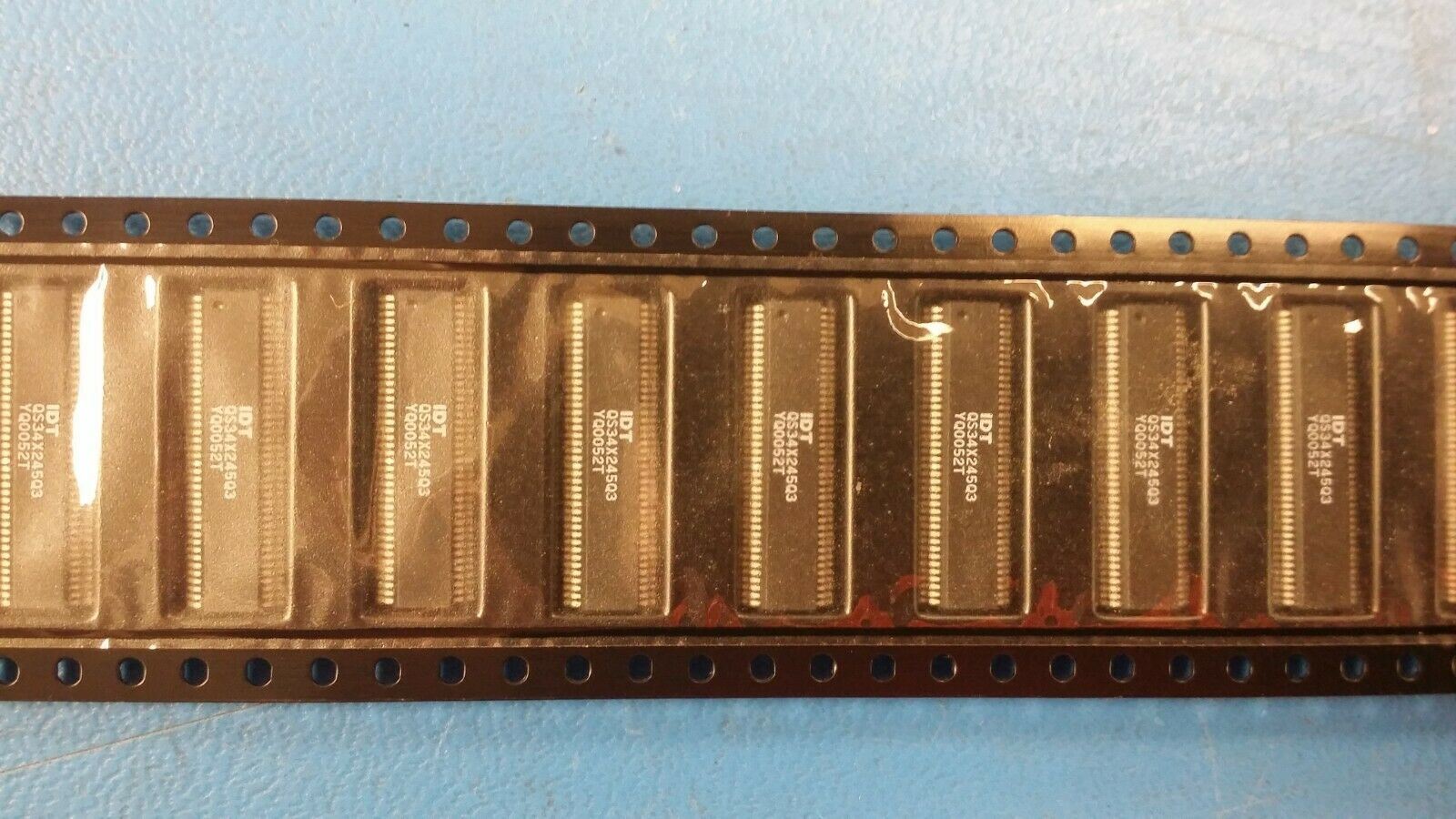

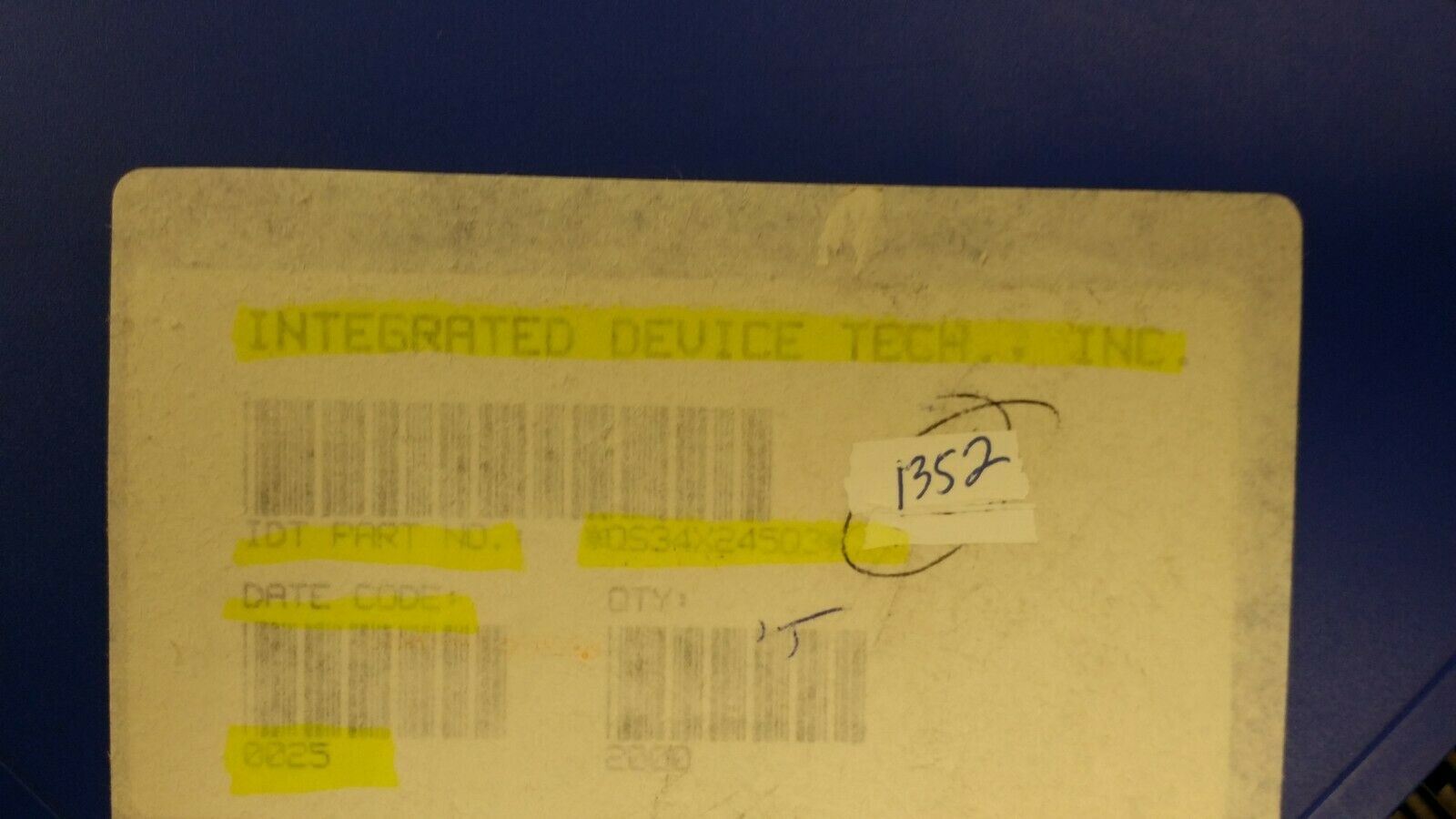

This listing is for (3pcs) of QS34X245Q3 by IDT
Mfr Package Description MILLIPAK-80
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category Bus Driver/Transceivers
Family CBT/FST/QS/5C/B
JESD-30 Code R-PDSO-G80
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Bits 8
Number of Functions 4
Number of Ports 2
Number of Terminals 80
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP80,.25,20
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Peak Reflow Temperature (Cel) 240
Propagation Delay (tpd) 0.25 ns
Qualification Status Not Qualified
Seated Height-Max 1.7526 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 20.4978 mm
Width 3.9116 mm
