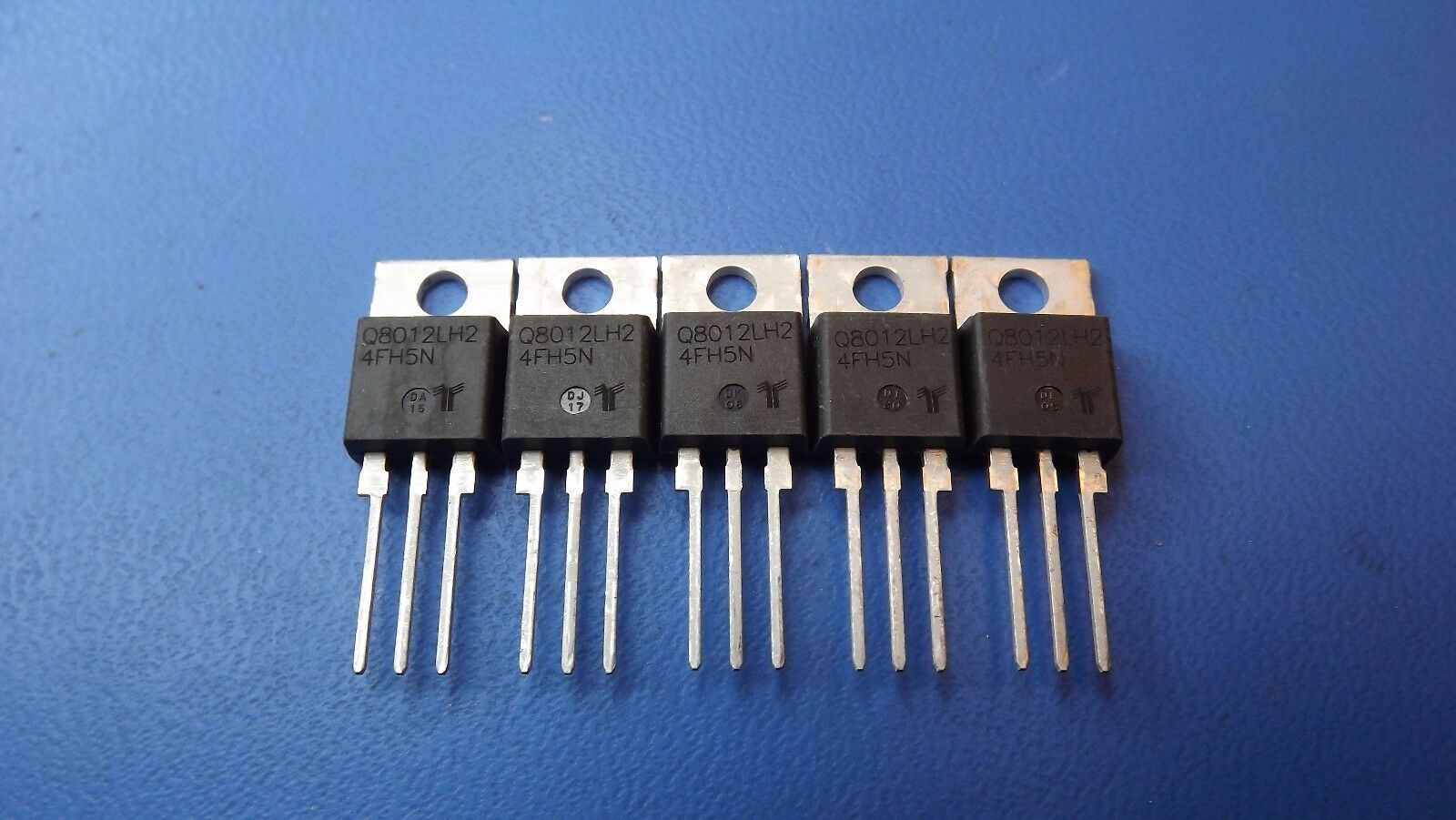

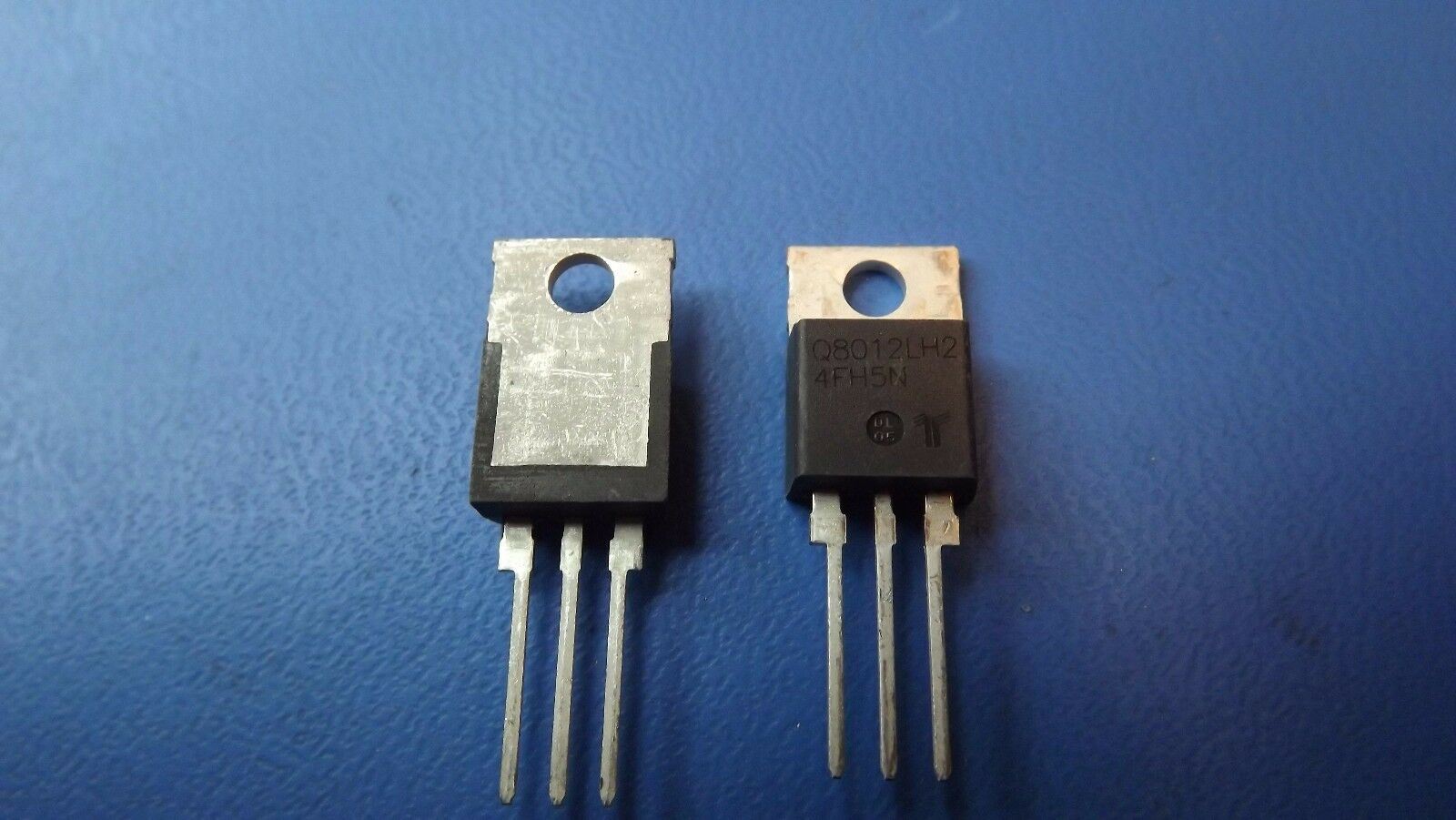

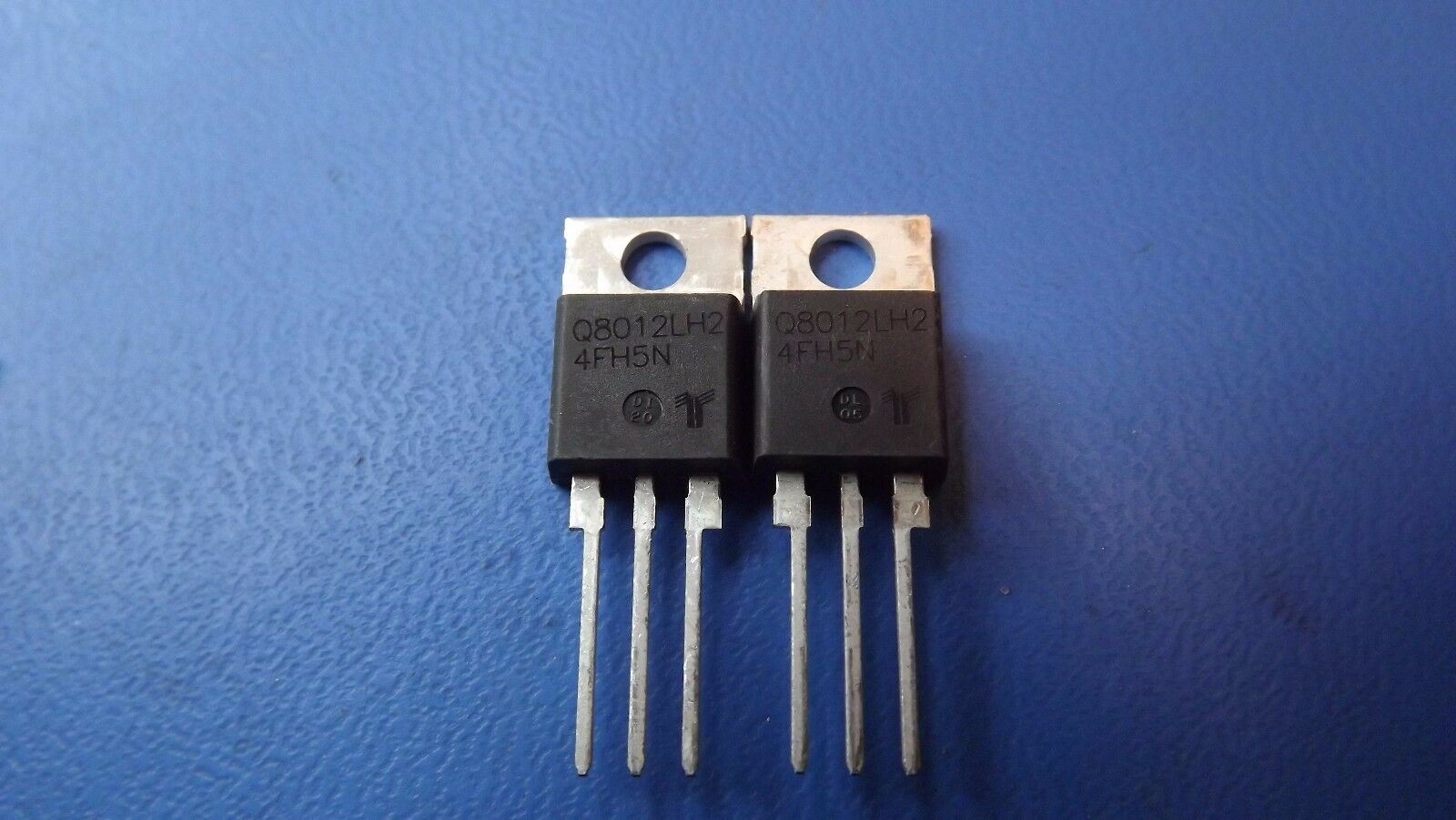

(3PCS) Q8012LH2TP LITTELFUSE/TECCOR Triacs 800V 12A 10-10-10mA TO220 Iso
Tax included.

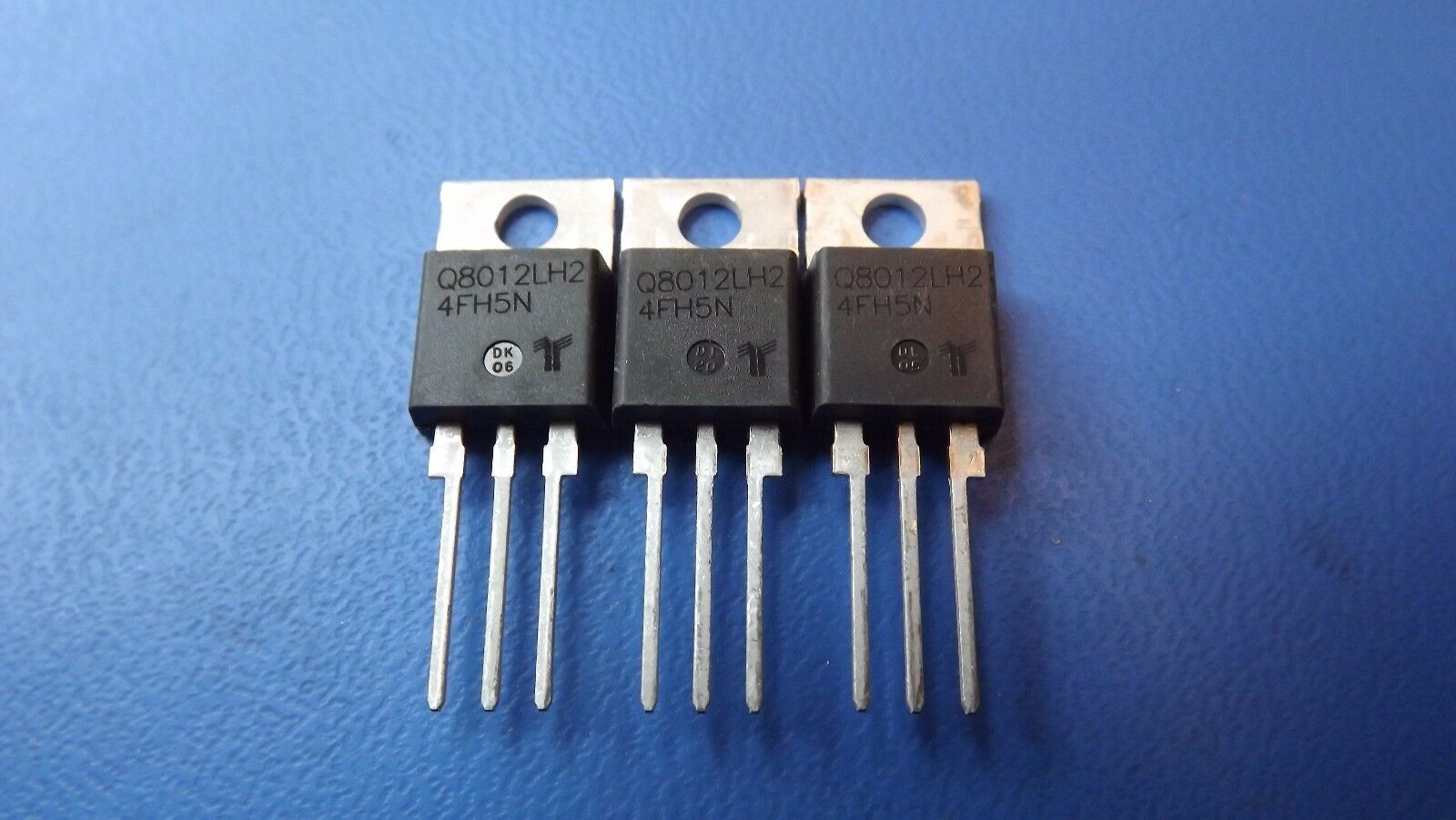

THIS LISTING IS FOR (3PCS) OF Q8012LH2TP BY LITTELFUSE/TECCOR
SPECIFICATIONS
| Mfr Package Description | ROHS COMPLIANT, PLASTIC, ISOLATED TO-220AB, 3 PIN |
| EU RoHS Compliant | Yes |
| Status | Active |
| Trigger Device Type | ALTERNISTOR TRIAC |
| Critical Rate of Rise of Commutation Voltage-Min | 2.0 V/us |
| Critical Rate of Rise of Off-state Voltage-Min | 150.0 V/us |
| DC Gate Trigger Current-Max | 10.0 mA |
| DC Gate Trigger Voltage-Max | 1.3 V |
| Holding Current-Max | 15.0 mA |
| JEDEC-95 Code | TO-220AB |
| JESD-30 Code | R-PSFM-T3 |
| JESD-609 Code | e3 |
| Leakage Current-Max | 0.01 mA |
| Number of Terminals | 3 |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 125.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| Repetitive Peak Off-state Voltage | 800.0 V |
| RMS On-state Current-Max | 12.0 A |
| Sub Category | TRIACs |
| Surface Mount | NO |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | THROUGH-HOLE |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 40 |
