(3PCS) PIC16LF84A-04/SO MICROCHIP TECHNOLOGY IC MCU 8BIT 1.75KB FLASH 18P-SOIC
Tax included.

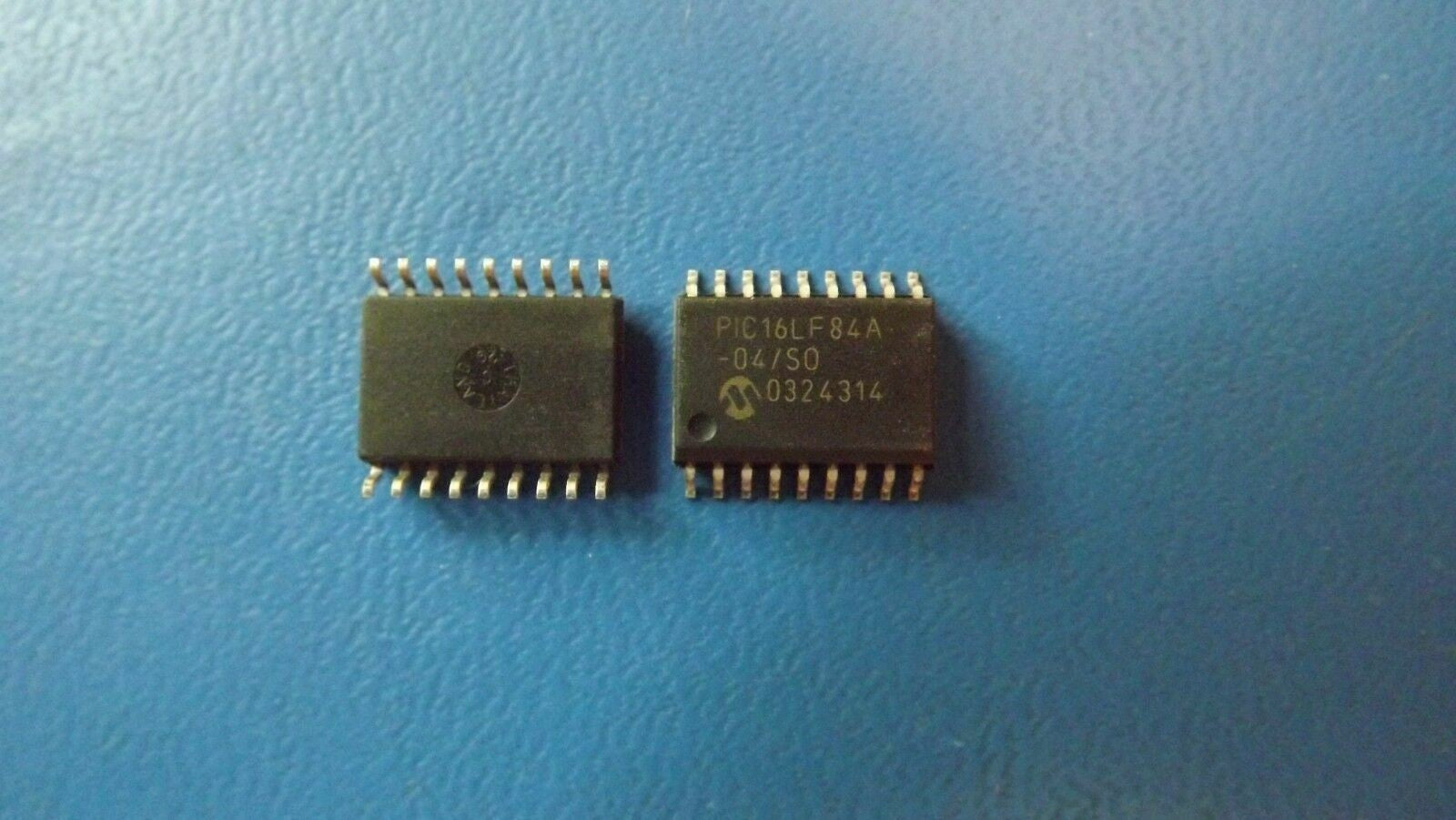

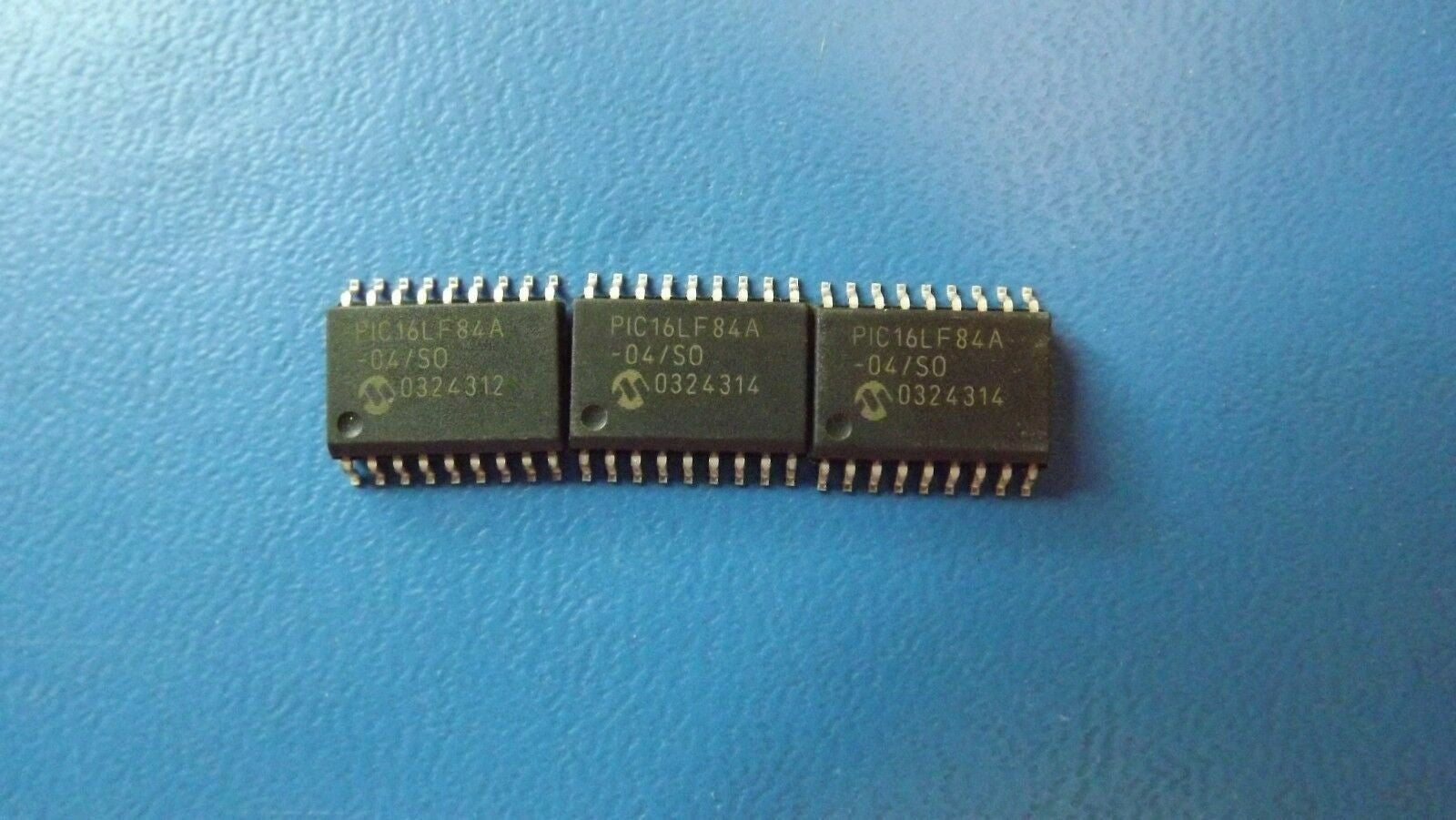

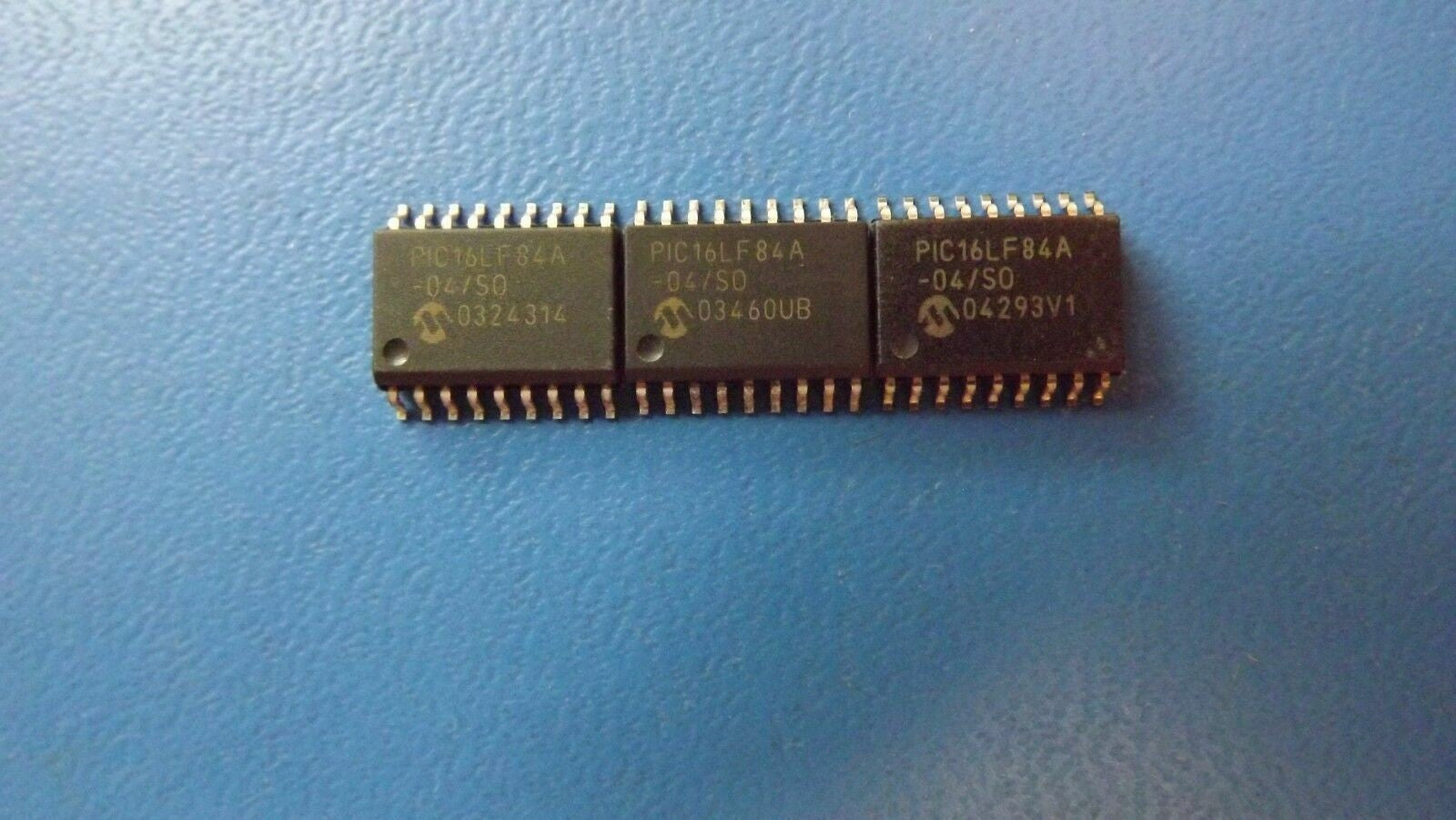

THIS LISTING IS FOR (3PCS) OF PIC16LF84A-04/SO BY MICROCHIP TECHNOLOGY
SPECIFICATIONS
| Mfr Package Description | 0.300 INCH, LEAD FREE, PLASTIC, SOIC-18 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| China RoHS Compliant | Yes |
| Status | Active |
| Microprocessor/Microcontroller/Peripheral IC Type | MICROCONTROLLER, RISC |
| ADC Channels | NO |
| Address Bus Width | 0.0 |
| Bit Size | 8 |
| Clock Frequency-Max | 2.0 MHz |
| CPU Family | PIC |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | 0.0 |
| JESD-30 Code | R-PDSO-G18 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of I/O Lines | 13.0 |
| Number of Terminals | 18 |
| On Chip Program ROM Width | 14.0 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOP18,.4 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Supplies | 2/5.5 |
| PWM Channels | YES |
| Qualification Status | Not Qualified |
| RAM (bytes) | 68.0 |
| ROM Programmability | FLASH |
| ROM (words) | 1024 |
| Seated Height-Max | 2.65 mm |
| Speed | 2.0 MHz |
| Sub Category | Microcontrollers |
| Supply Current-Max | 4.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 2.0 V |
| Supply Voltage-Max | 6.0 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Matte Tin (Sn) |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 40 |
| Length | 11.55 mm |
| Width | 7.5 mm |
