(3PCS) PIC16LF628-04I/SS RISC Microcontroller, 8-Bit, FLASH, 4MHz, CMOS, SSOP20
Tax included.

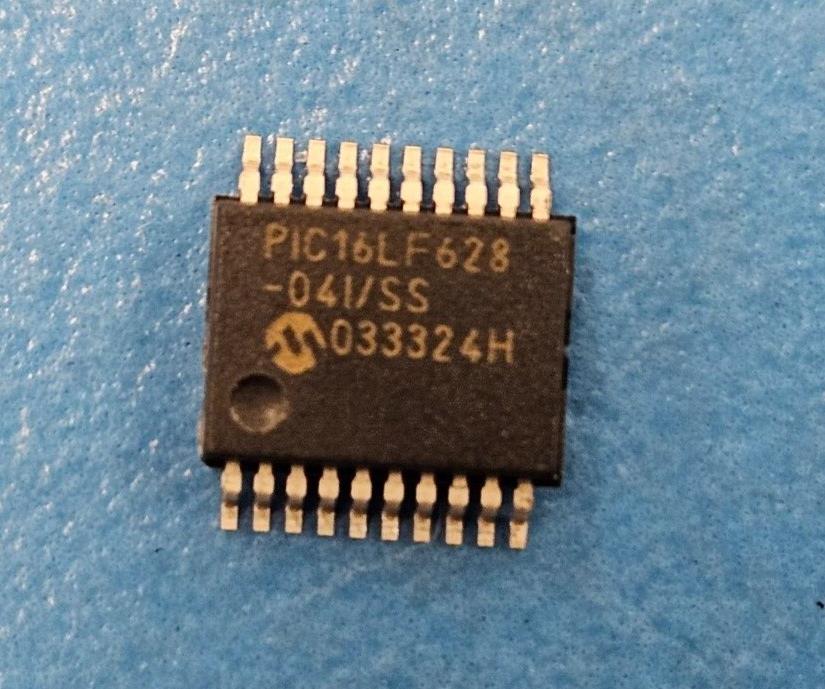

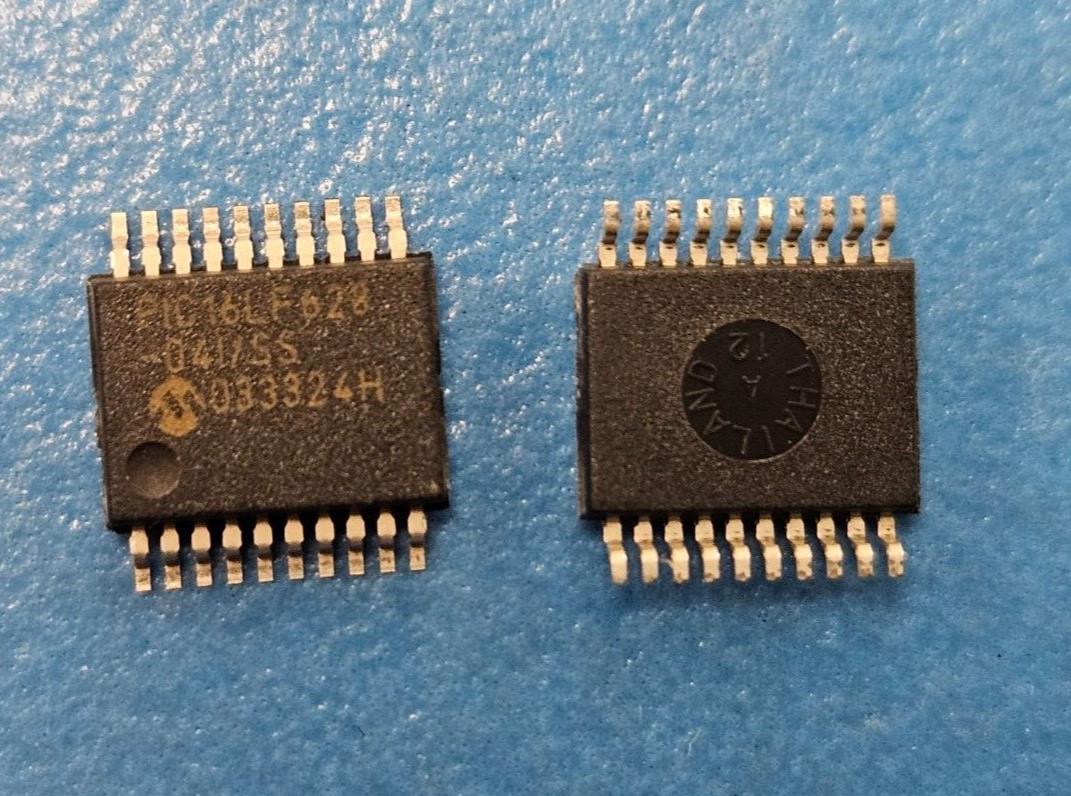

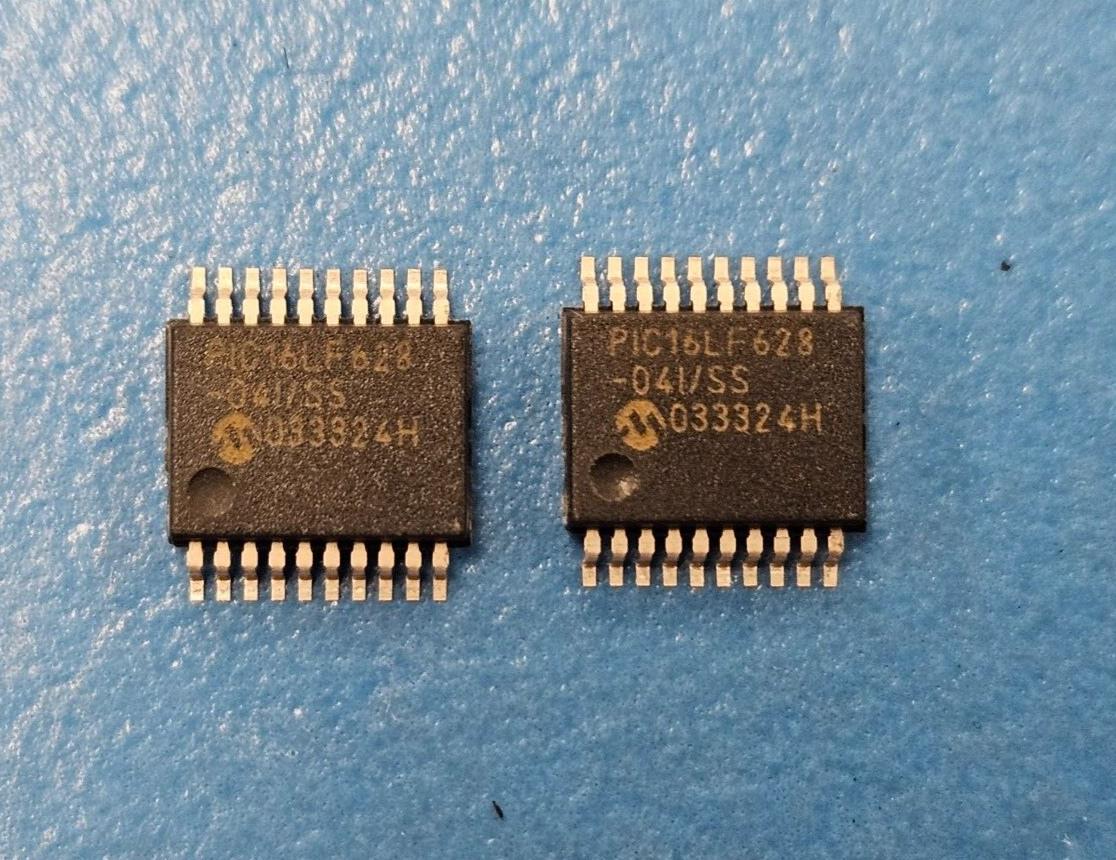

THIS LISTING IS FOR (3PCS) OF PIC16LF628-04I/SS BY MICROCHIP
Mfr Package Description 0.209 INCH, PLASTIC, MO-150, SSOP-20
REACH Compliant Yes
EU RoHS Compliant Yes
China RoHS Compliant Yes
Status NRFND
ADC Channels NO
Address Bus Width 0.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 4.0 MHz
CPU Family PIC16
DAC Channels NO
DMA Channels NO
External Data Bus Width 0.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-PDSO-G20
JESD-609 Code e3
Low Power Mode YES
Moisture Sensitivity Level 1
Number of External Interrupts 1.0
Number of I/O Lines 16.0
Number of Serial I/Os 1.0
Number of Terminals 20
Number of Timers 3.0
On Chip Data RAM Width 8
On Chip Program ROM Width 14.0
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code SSOP
Package Equivalence Code SSOP20,.3
Package Shape RECTANGULAR
Package Style SMALL OUTLINE, SHRINK PITCH
Power Supplies 2/5.5
PWM Channels YES
Qualification Status Not Qualified
RAM (bytes) 224.0
ROM Programmability FLASH
ROM (words) 2048
Seated Height-Max 2.0 mm
Speed 4.0 MHz
Sub Category Microcontrollers
Supply Current-Max 7.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 2.0 V
Supply Voltage-Max 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Matte Tin (Sn)
Terminal Form GULL WING
Terminal Pitch 0.65 mm
Terminal Position DUAL
Length 7.2 mm
Width 5.3 mm
