(3PCS) MC10H124P Translator TTL to MECL 16-Pin PDIP
Tax included.

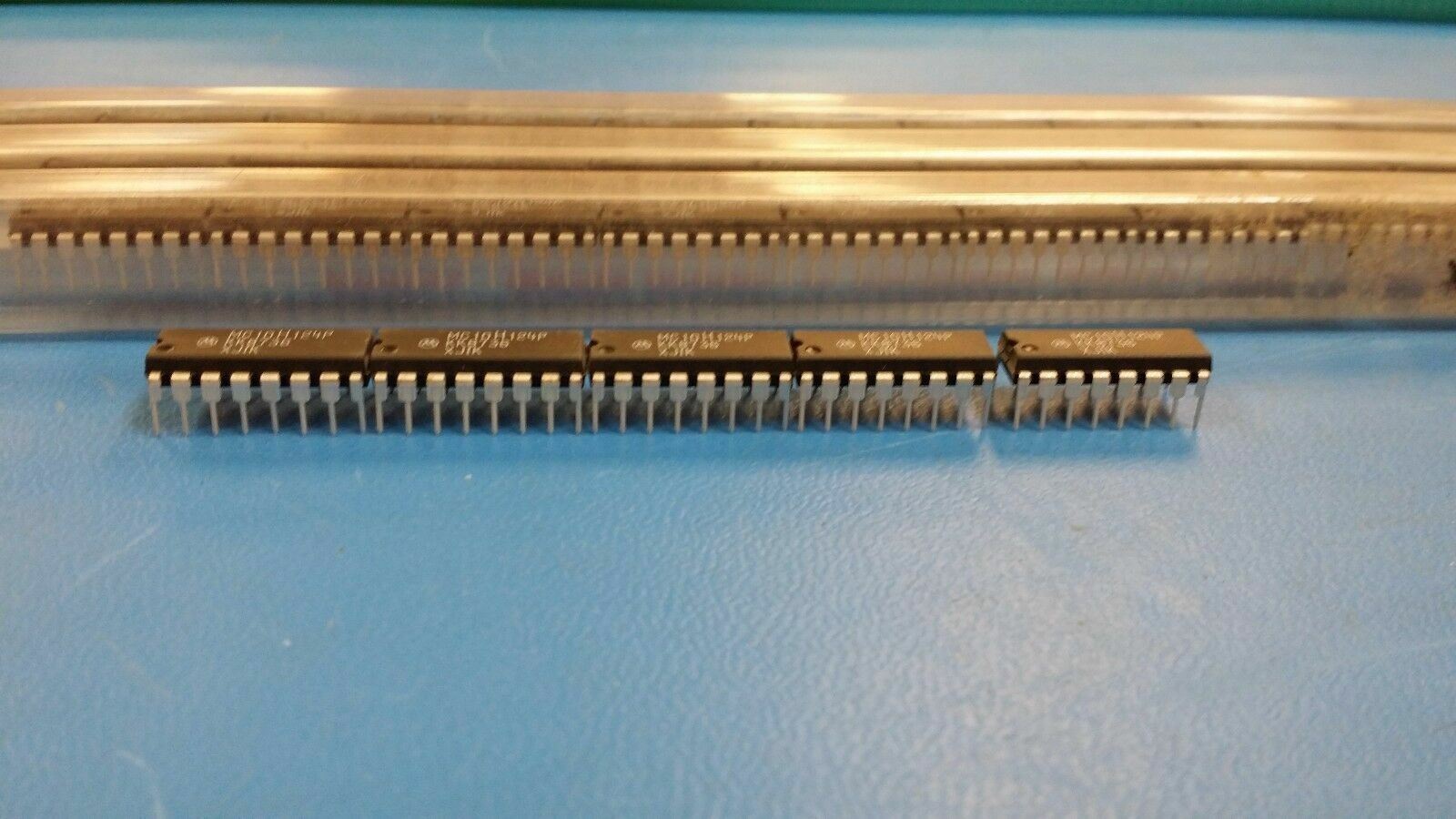

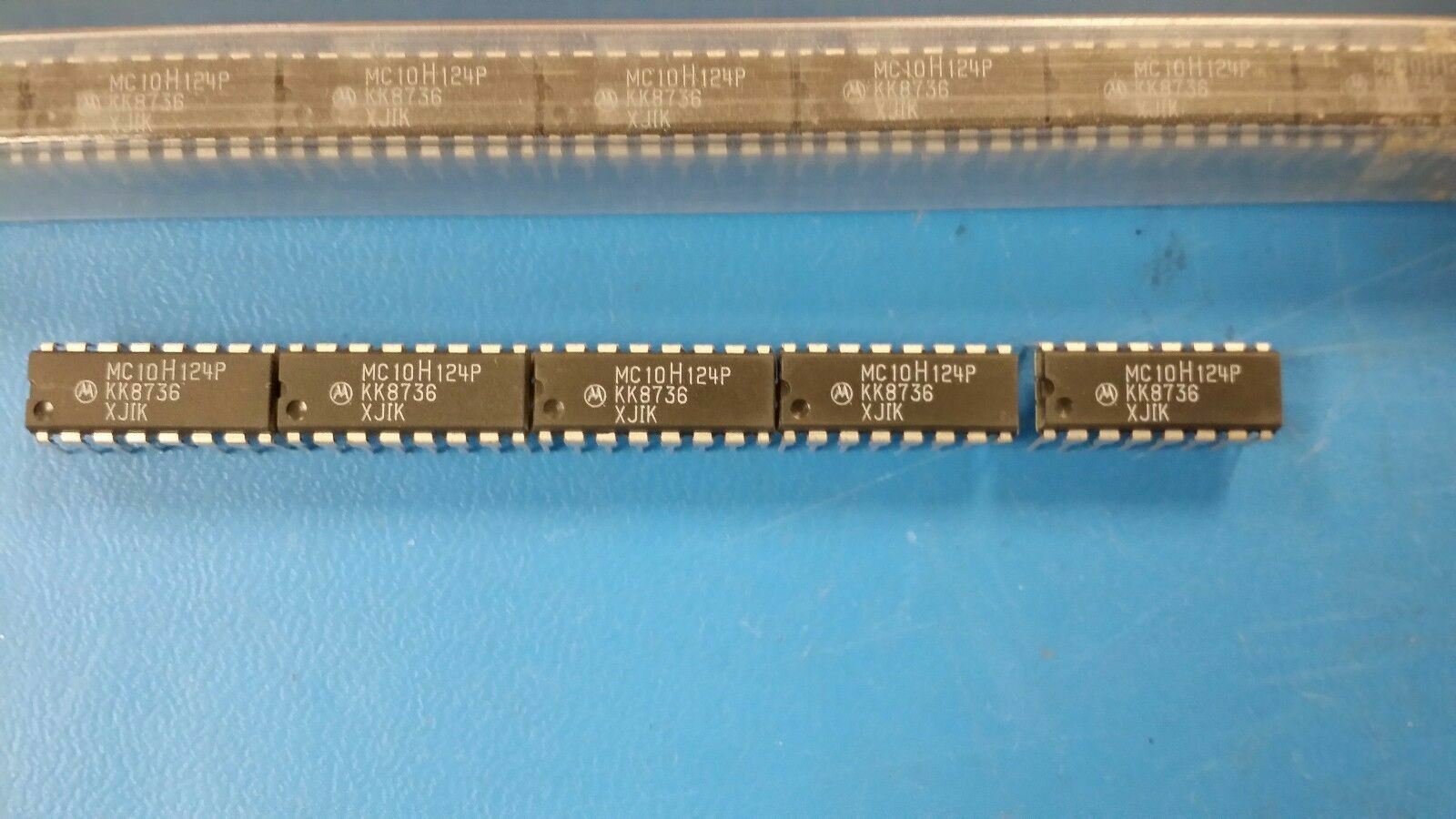

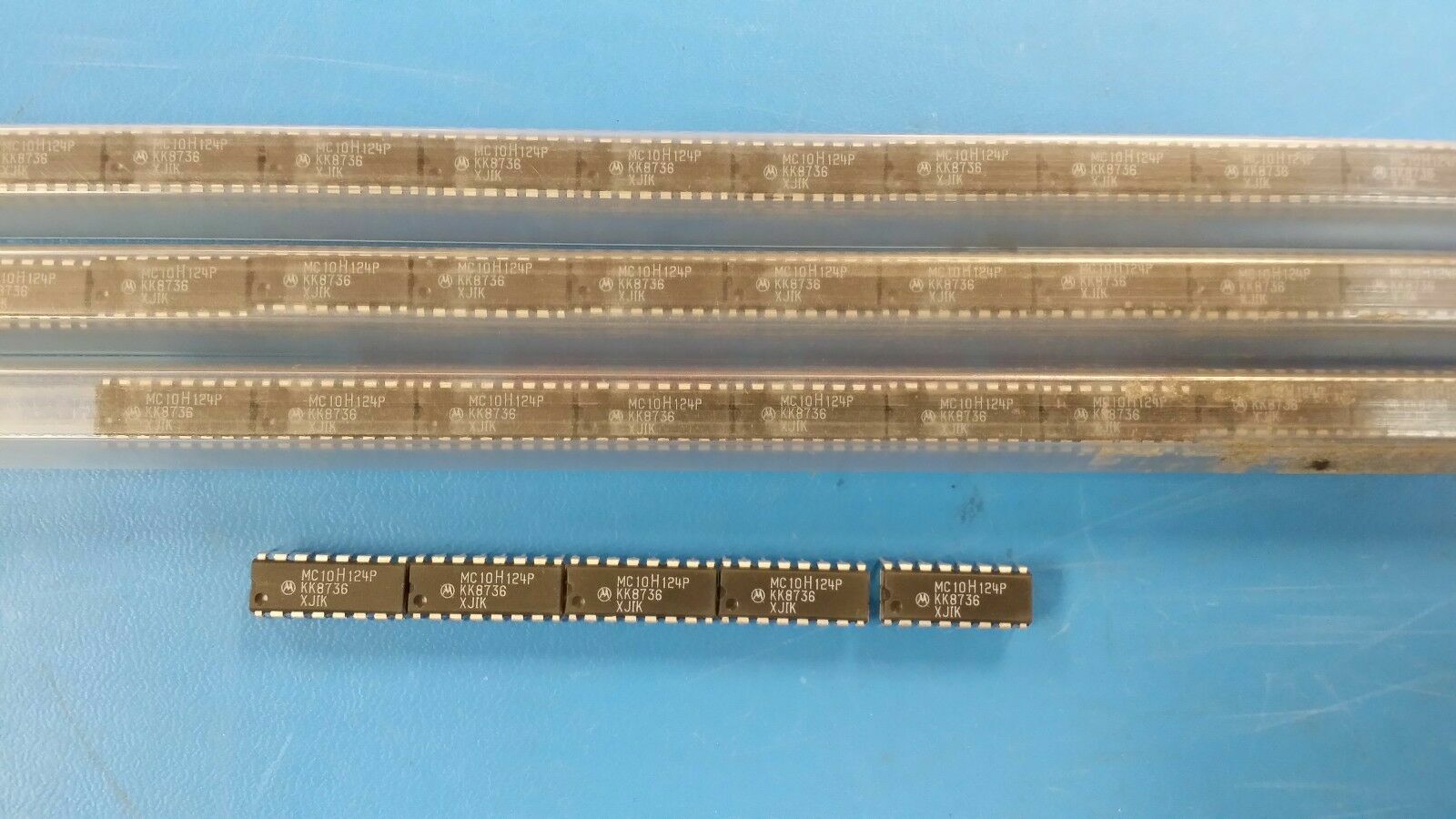

THIS LISTING IS FOR (3PCS) OF MC10H124P BY MOTOROLA
SPECIFICATIONS
| Mfr Package Description | PLASTIC, DIP-16 |
| Status | Transferred |
| Interface IC Type | TTL TO ECL TRANSLATOR |
| Delay-Max | 2.95 ns |
| Input Characteristics | STANDARD |
| JESD-30 Code | R-PDIP-T16 |
| Number of Bits | 1 |
| Number of Functions | 4 |
| Number of Terminals | 16 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 75 Cel |
| Output Characteristics | OPEN-EMITTER |
| Output Latch or Register | NONE |
| Output Polarity | COMPLEMENTARY |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.44 mm |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Length | 19.18 mm |
| Width | 7.62 mm |
