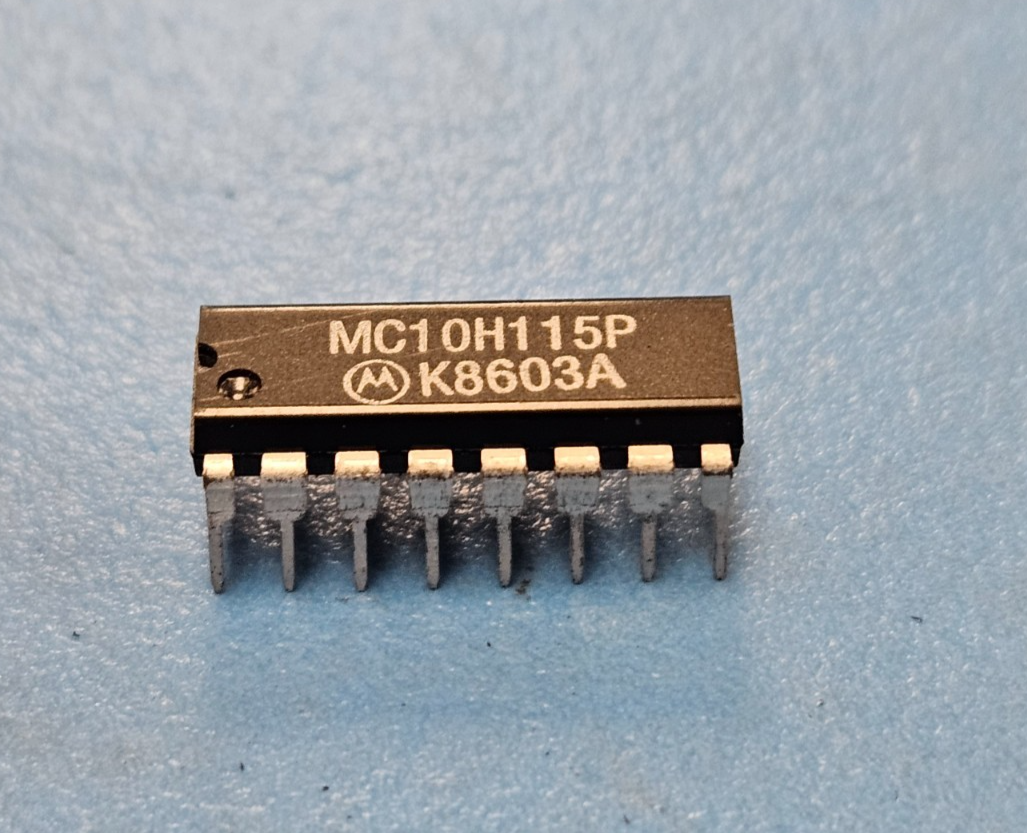

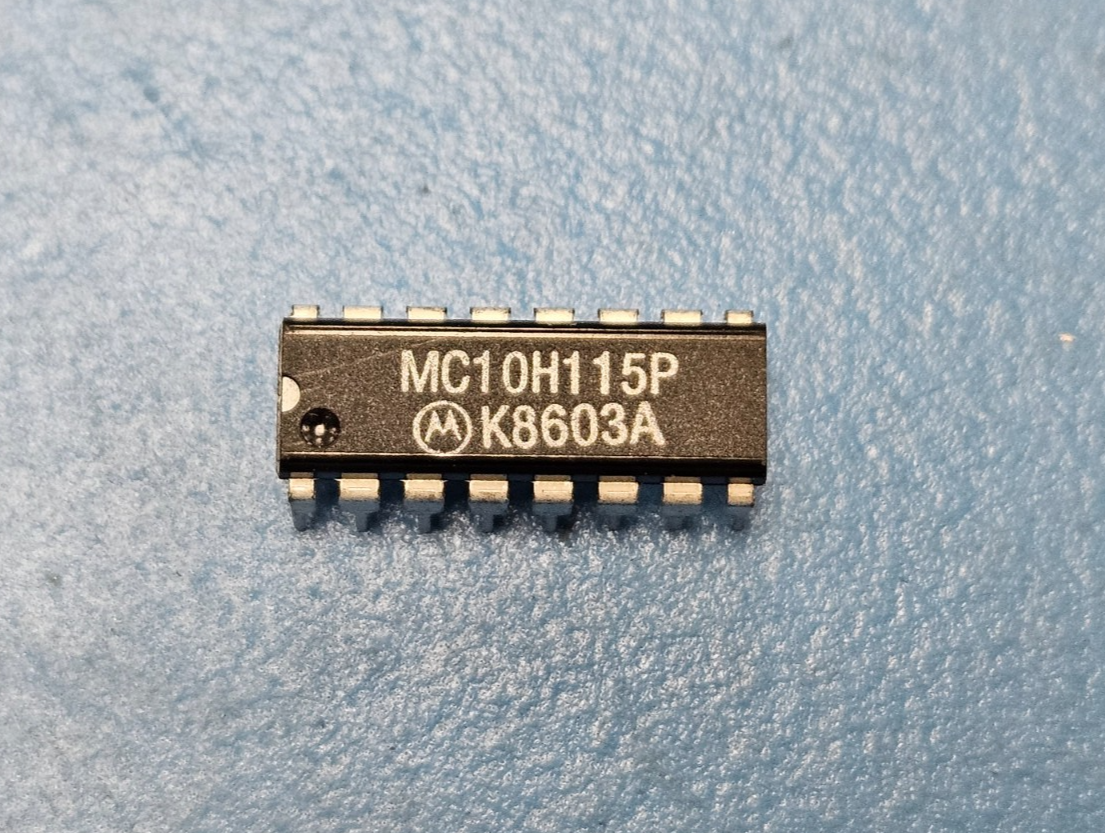

(3PCS) MC10H115P Motorola Line Receiver, 1 Func, 4 Rcvr, ECL, PDIP16
Tax included.
This listing is for (3PCS) of MC10H115P by Motorola
Status Transferred
Input Characteristics DIFFERENTIAL
Interface IC Type LINE RECEIVER
Interface Standard GENERAL PURPOSE
JESD-30 Code R-PDIP-T16
J-STD-609 Code e0
Length (mm) 19.1750
Number of Functions 1
Number of Terminals 16
Operating Temperature-Max (Cel) 75
Operating Temperature-Min (Cel) 0
Output Characteristics OPEN-EMITTER
Output Polarity TRUE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
DLA Qualification Not Qualified
Receive Delay-Max (ns) 1.450000000000000
Receiver Number of Bits 4
Seated Height-Max (mm) 4.4400
Surface Mount NO
Technology ECL
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Width (mm) 7.6200
