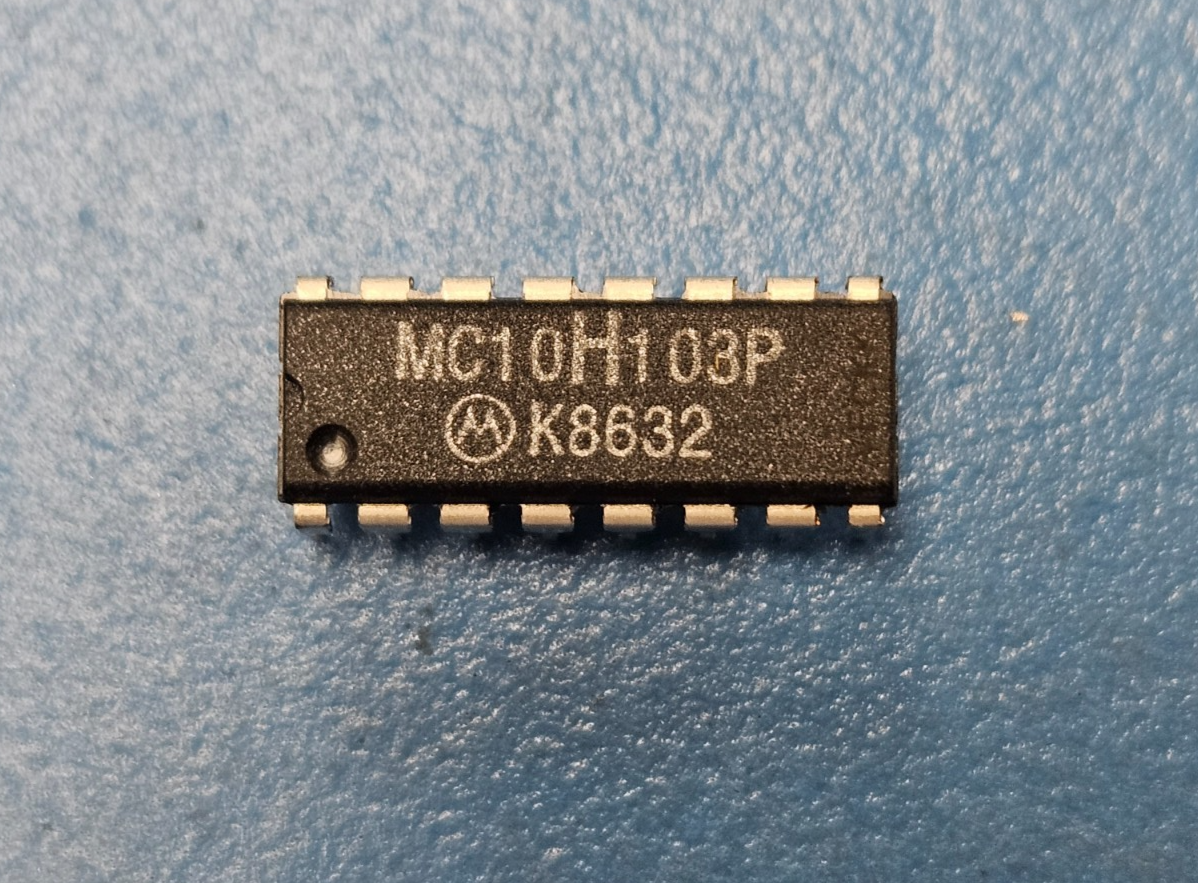

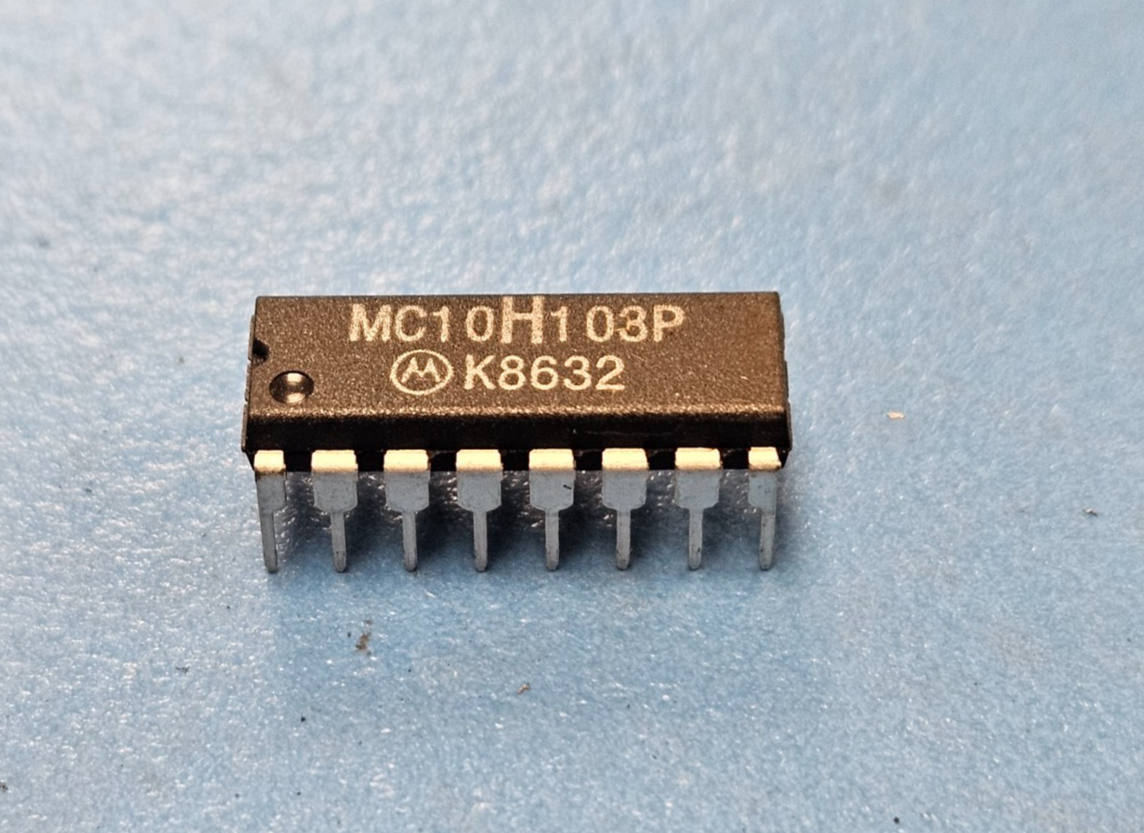

(3PCS) MC10H103P Motorola OR Gate, 4-Func, 2-Input, ECL, PDIP16
Tax included.
This listing is for (3PCS) of MC10H103P by Motorola
Status Transferred
Additional Feature COMPLEMENTARY OUTPUT FOR 1 FUNCTION
Family 10H
JESD-30 Code R-PDIP-T16
J-STD-609 Code e0
Length (mm) 19.1750
Logic IC Type OR GATE
Number of Functions 4
Number of Inputs 2
Number of Terminals 16
Operating Temperature-Max (Cel) 75
Operating Temperature-Min (Cel) 0
Output Characteristics OPEN-EMITTER
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Supply Current-Max (mA) 29.00000000
Propagation Delay-Max@Nom-Sup (ns) 1.450000000000000000
Propagation Delay (ns) 1.4500
DLA Qualification Not Qualified
Schmitt Trigger NO
Seated Height-Max (mm) 4.4400
Surface Mount NO
Technology ECL
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Width (mm) 7.6200
