(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20
(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20
(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20
(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20
(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20
(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20

(3PCS) MC10H102FN Motorola NOR Gate, 10H Series, 4-Func, 2-Input, ECL, PLCC-20

Tax included.
Only 25 left!

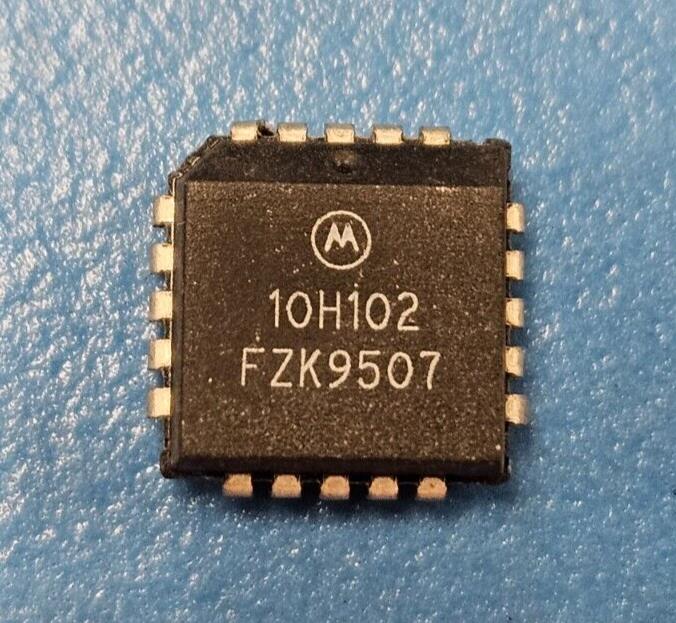

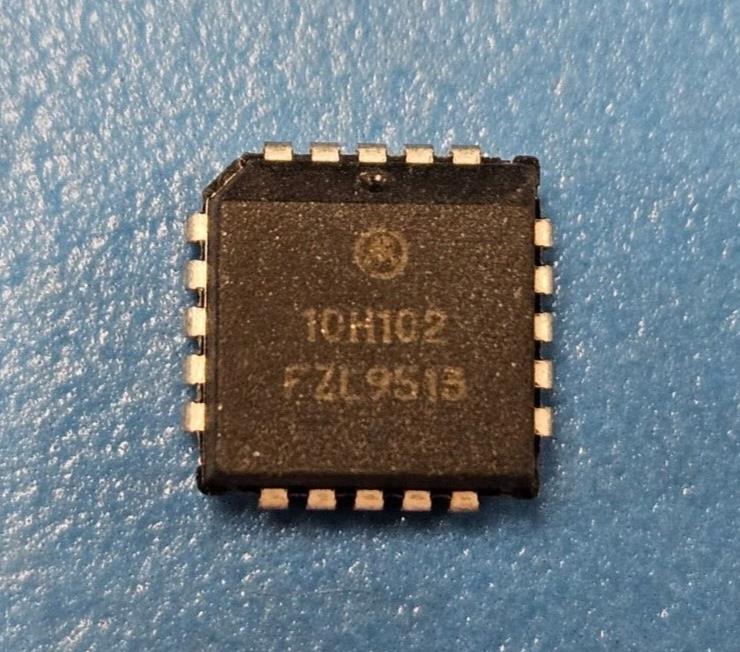

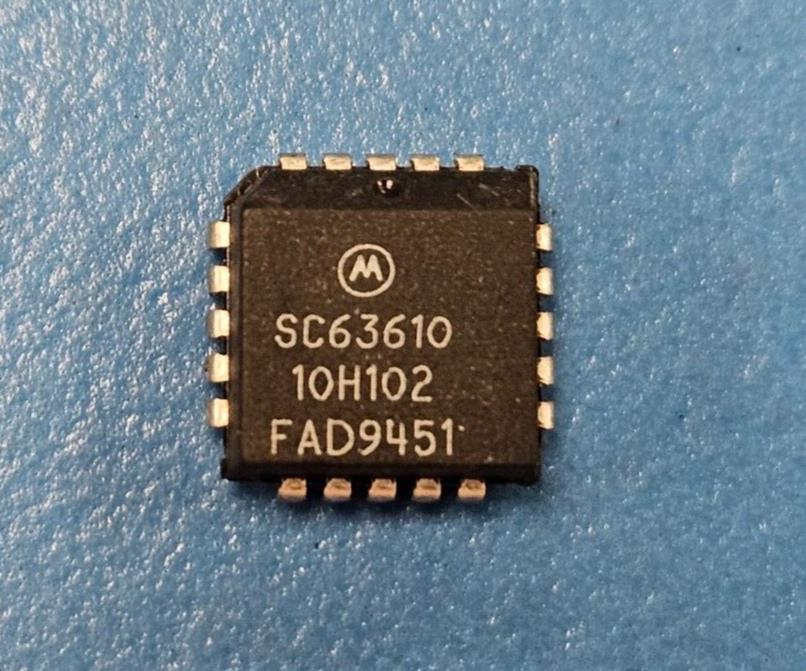

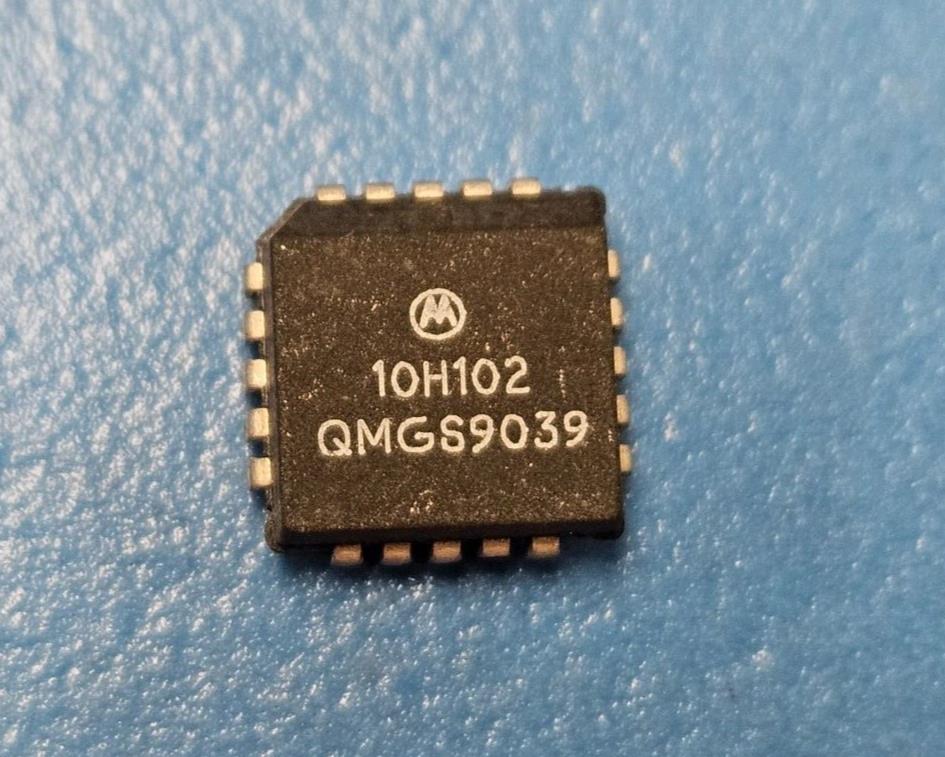

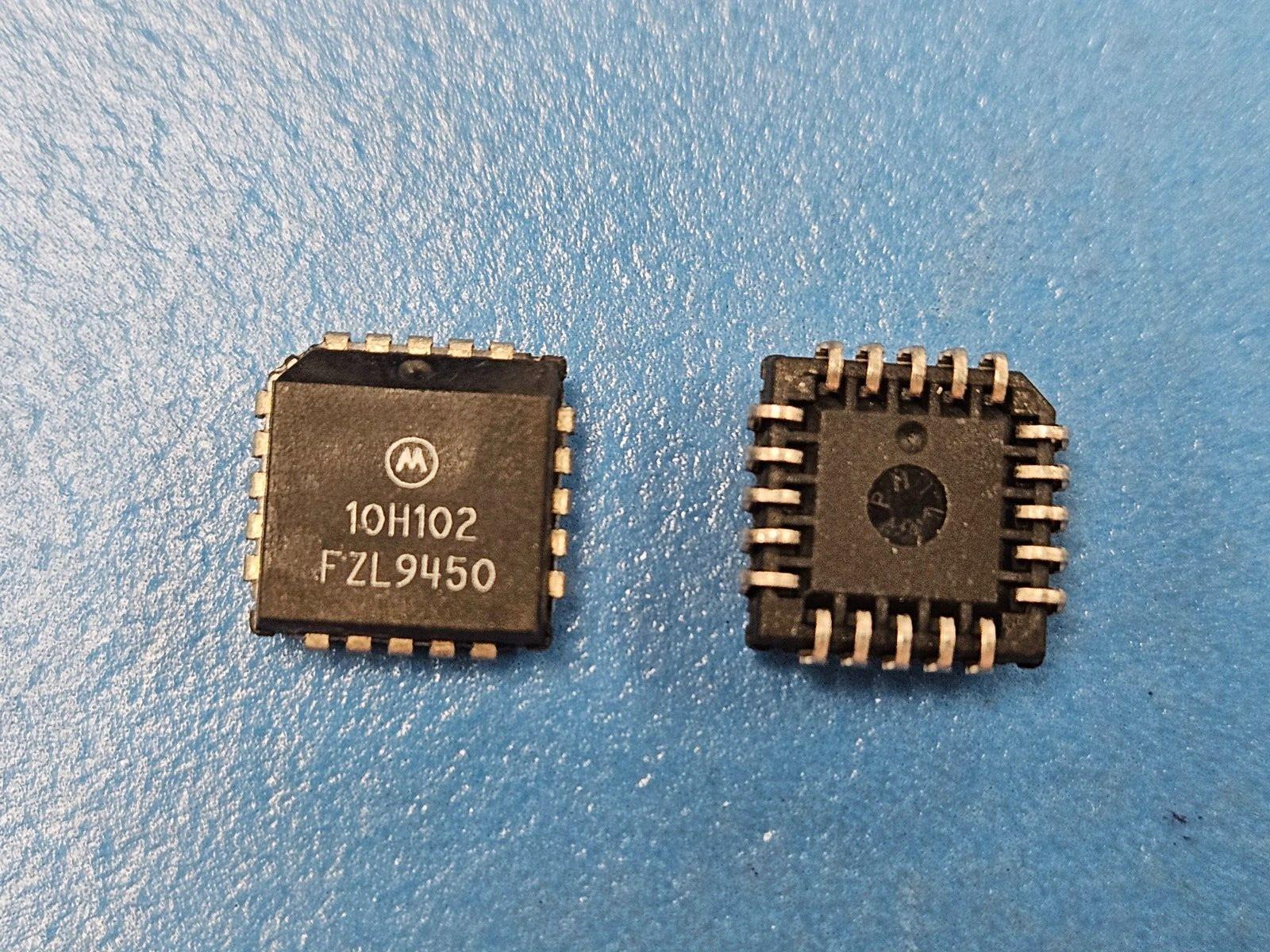

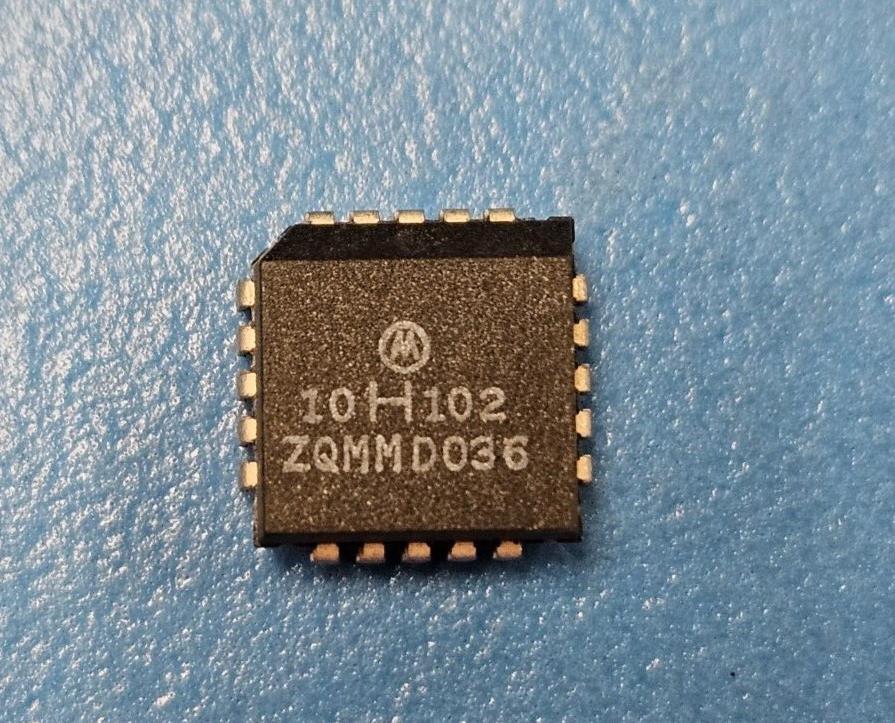

This listing is for (3PCS) of MC10H102FN by Motorola

Mfr Package Description PLASTIC, LCC-20
Status Transferred
Logic IC Type NOR GATE
Sub Category Gates
Family 10H
JESD-30 Code S-PQCC-J20
JESD-609 Code e0
Number of Functions 4
Number of Inputs 2.0
Number of Terminals 20
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 75.0  Cel
Output Characteristics OPEN-EMITTER
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC20,.4SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supply Current-Max (ICC) 29.0  mA
Prop. Delay@Nom-Sup 1.4  ns
Propagation Delay (tpd) 1.4  ns
Qualification Status Not Qualified
Schmitt Trigger NO
Seated Height-Max 4.57  mm
Surface Mount YES
Technology ECL
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
Length 8.9662  mm
Width 8.9662  mm
Additional Feature COMPLEMENTARY OUTPUT FOR 1 FUNCTION
