(3PCS) MC10EP32D Prescaler, 10E Series, 1-Func, ECL, SOIC8
Tax included.

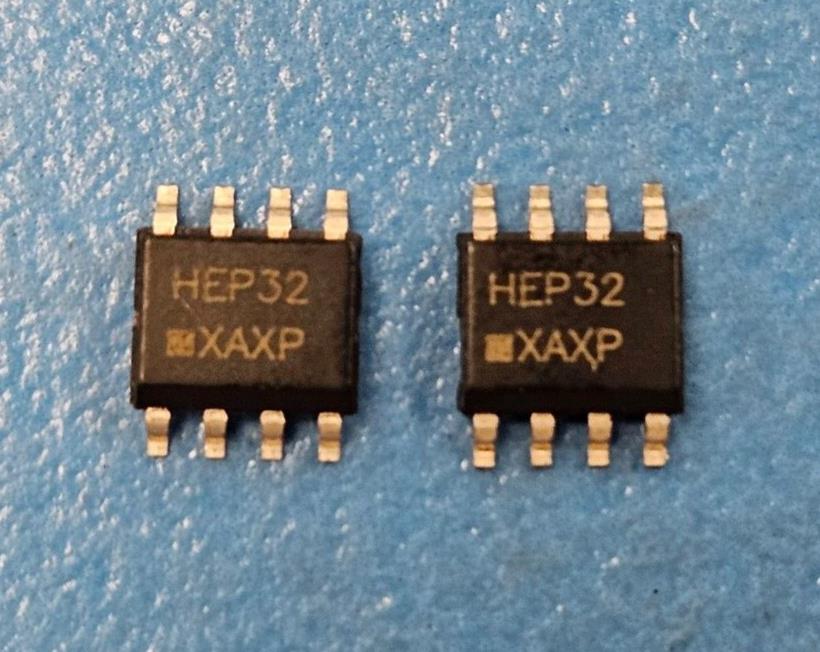

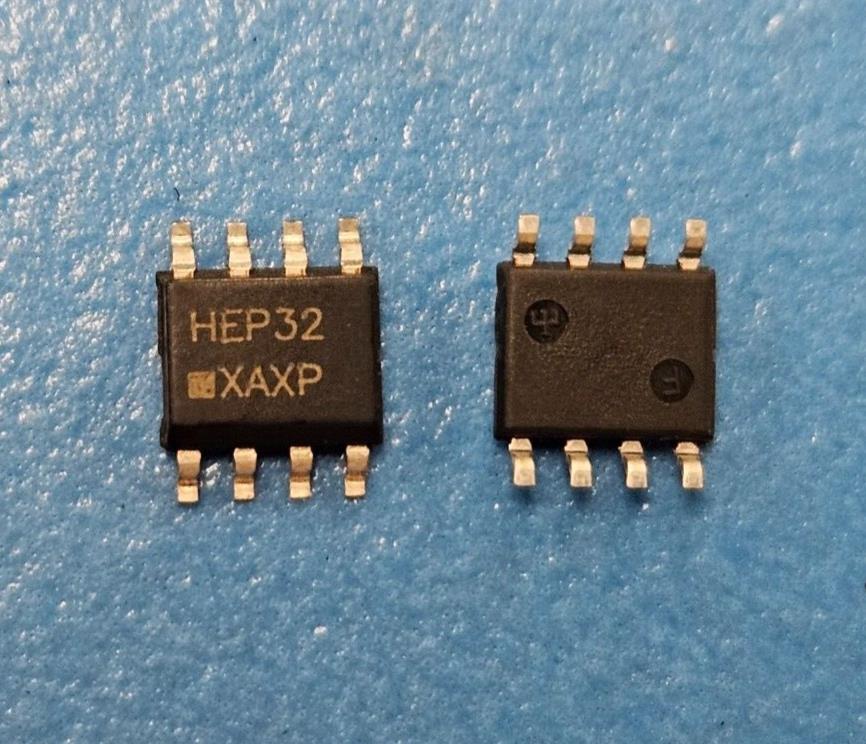

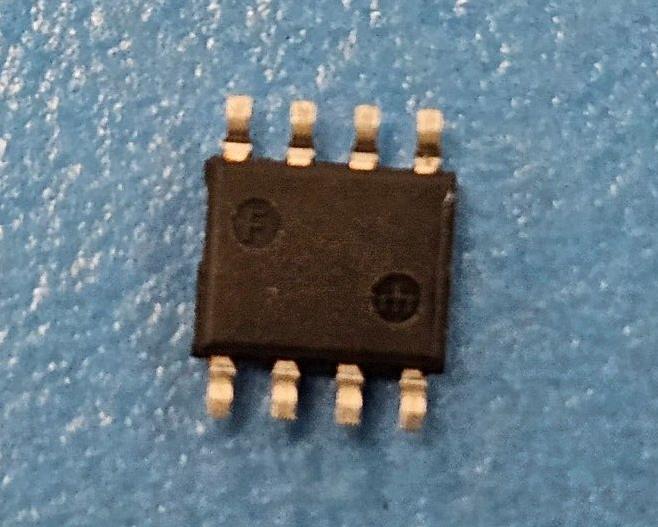

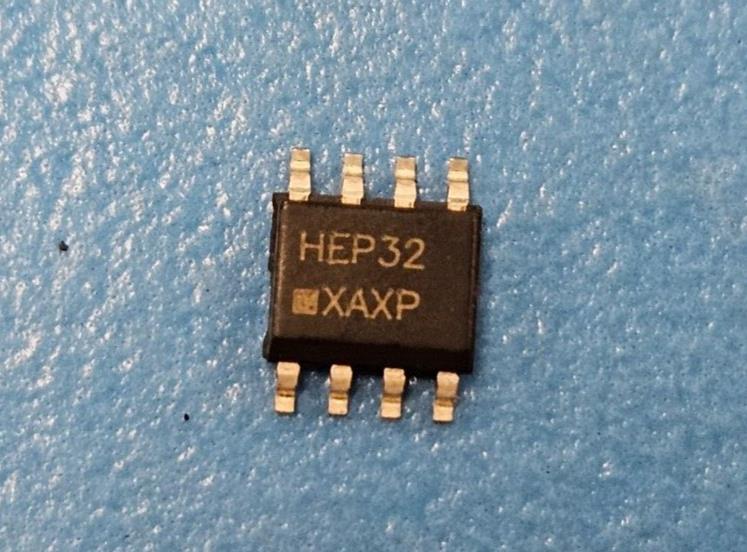

This listing is for (3PCS) of MC10EP32D by Motorola
Mfr Package Description PLASTIC, SOIC-8
Status Transferred
Logic IC Type PRESCALER
Family 10E
JESD-30 Code R-PDSO-G8
JESD-609 Code e0
Number of Data/Clock Inputs 1.0
Number of Functions 1
Number of Terminals 8
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Output Characteristics OPEN-EMITTER
Output Polarity COMPLEMENTARY
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Seated Height-Max 1.75 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 3.0 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology ECL
Temperature Grade INDUSTRIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 4.9 mm
Width 3.9 mm
